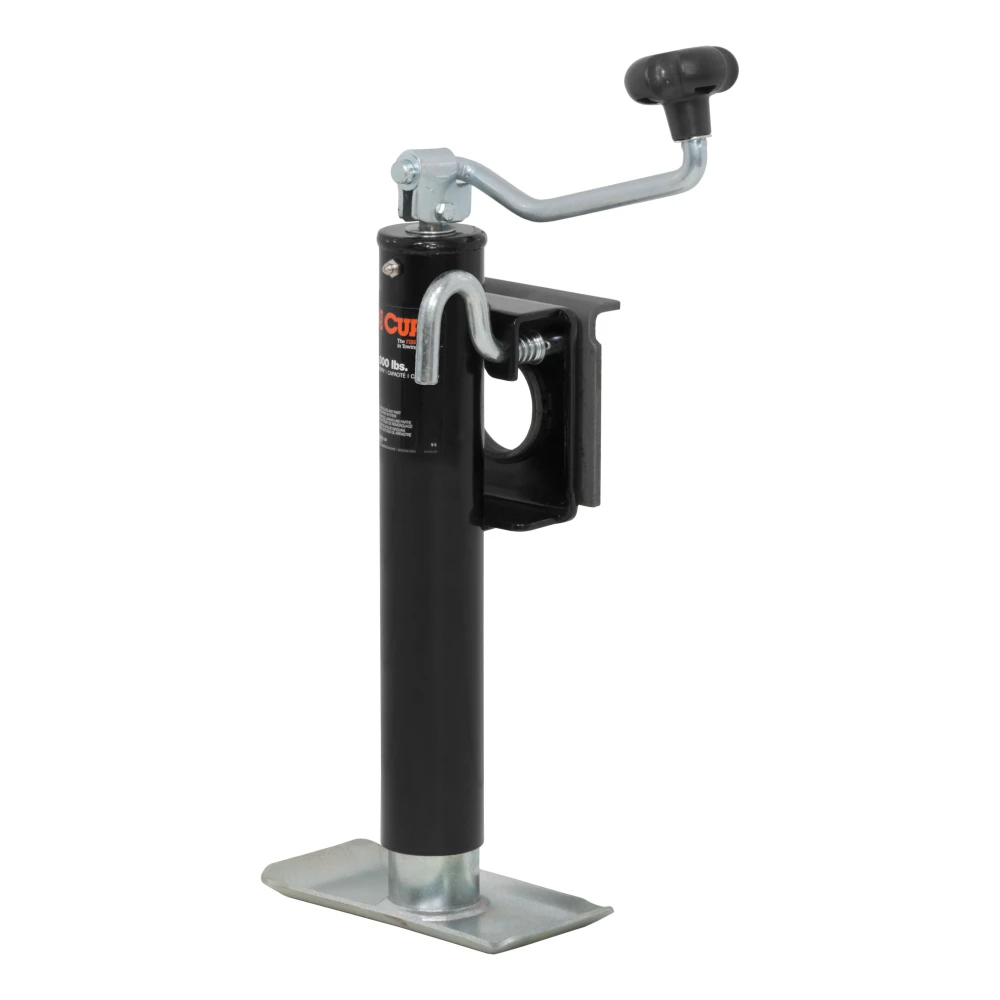

CURT Bracket-Mount Swivel Jack with Top Handle 2000 lbs 10 Inch Travel 28300
Model: 28300CURT Bracket Mount Swivel Trailer Jack
In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are built with quality to enhance the life and function of your trailer, available in various styles to meet your needs, whether you frequent the boat landing, the campground, the racetrack, or the field.
Swivel Feature
CURT swivel jacks feature a convenient pull-pin swivel mechanism that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are available in two designs: pipe mount and bracket mount.
Robust Capacity
This CURT bracket mount swivel jack is engineered with a support capacity of 3,000 lbs. and a lift capacity of 2,000 lbs., along with 10" of travel distance. The integrated jack foot plate provides enhanced stability for your trailer, especially on uneven terrain.

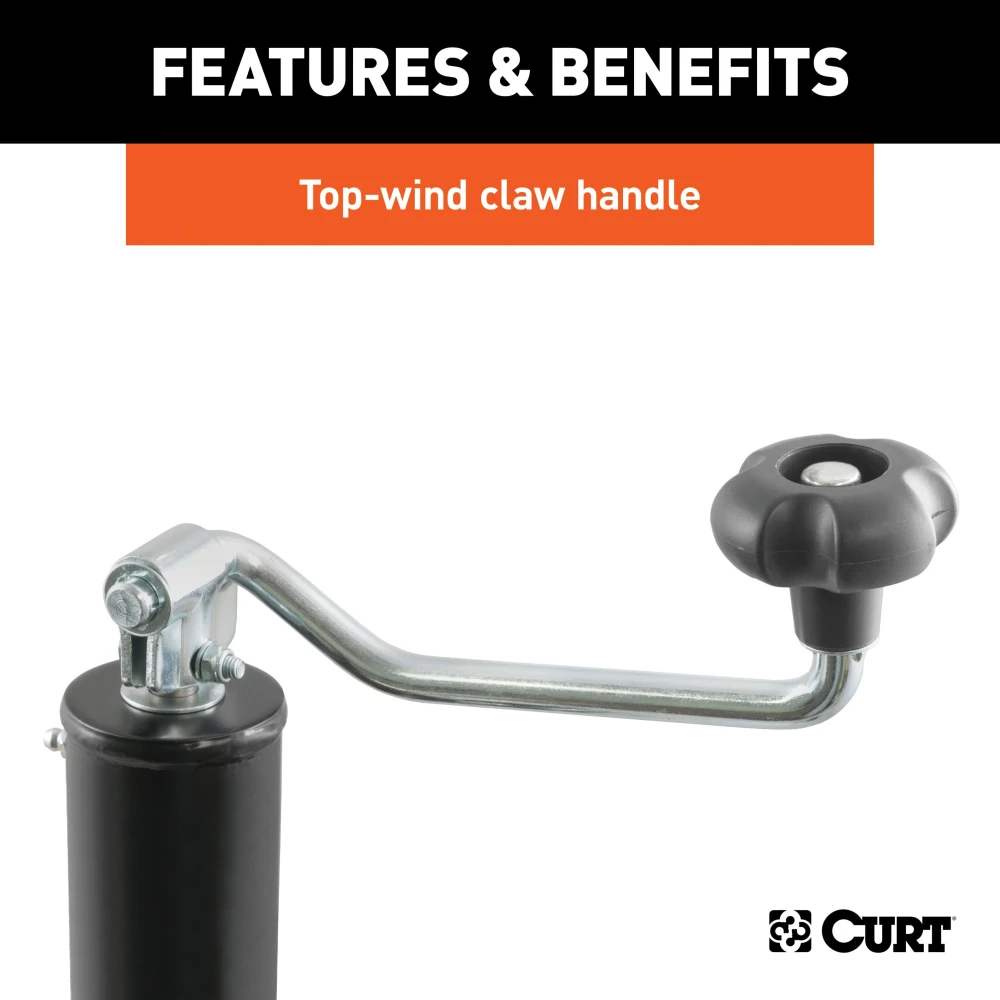

Top-Wind Handle
Featuring a convenient top-wind handle, this jack allows for easy and quick adjustment of the trailer coupler. The design is complemented by a weldable bracket ensuring secure and stable mounting.
Universal Application
No matter the type of trailer—be it a boat trailer, utility trailer, livestock hauler, or a recreational vehicle trailer—CURT jacks fit seamlessly with receiver-style setups, providing reliable and hassle-free operation.
Product Highlights
- Rated for 3,000 lbs. support capacity and 2,000 lbs. lift capacity
- Top-wind claw handle easily raises or lowers trailer coupler
- Weld-on bracket-style mount for secure installation

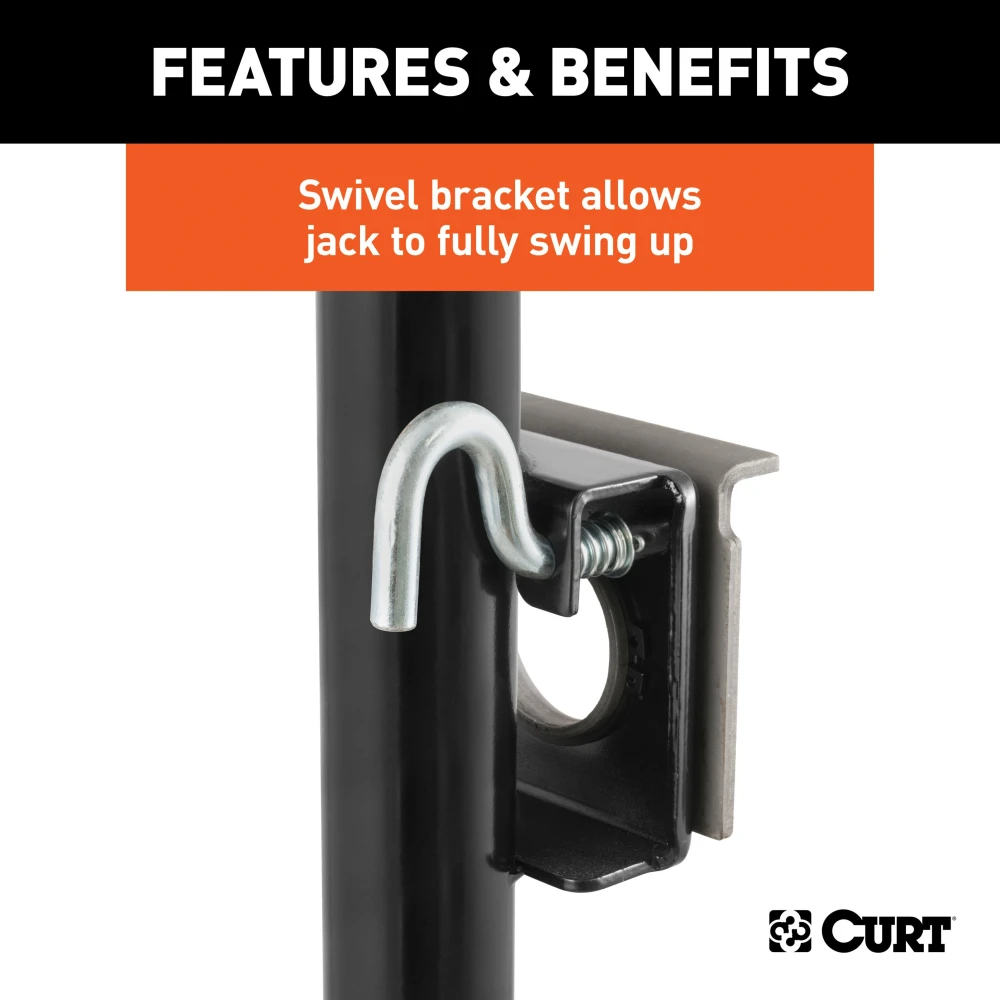

- Swivel bracket allows the jack to fully swing up and out of the way for travel
- Pull-pin keeps the jack securely locked in place
- 10" of vertical travel accommodates multiple ball heights
- Limited lifetime warranty (one-year finish, one-year parts)
For optimal performance and longevity, use replacement handle bulk #28937.
| Specifications: | |
|---|---|
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Groups | Boat and Utility Trailers |
| Jack Style | Snap Ring |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 12 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 22 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 4 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |

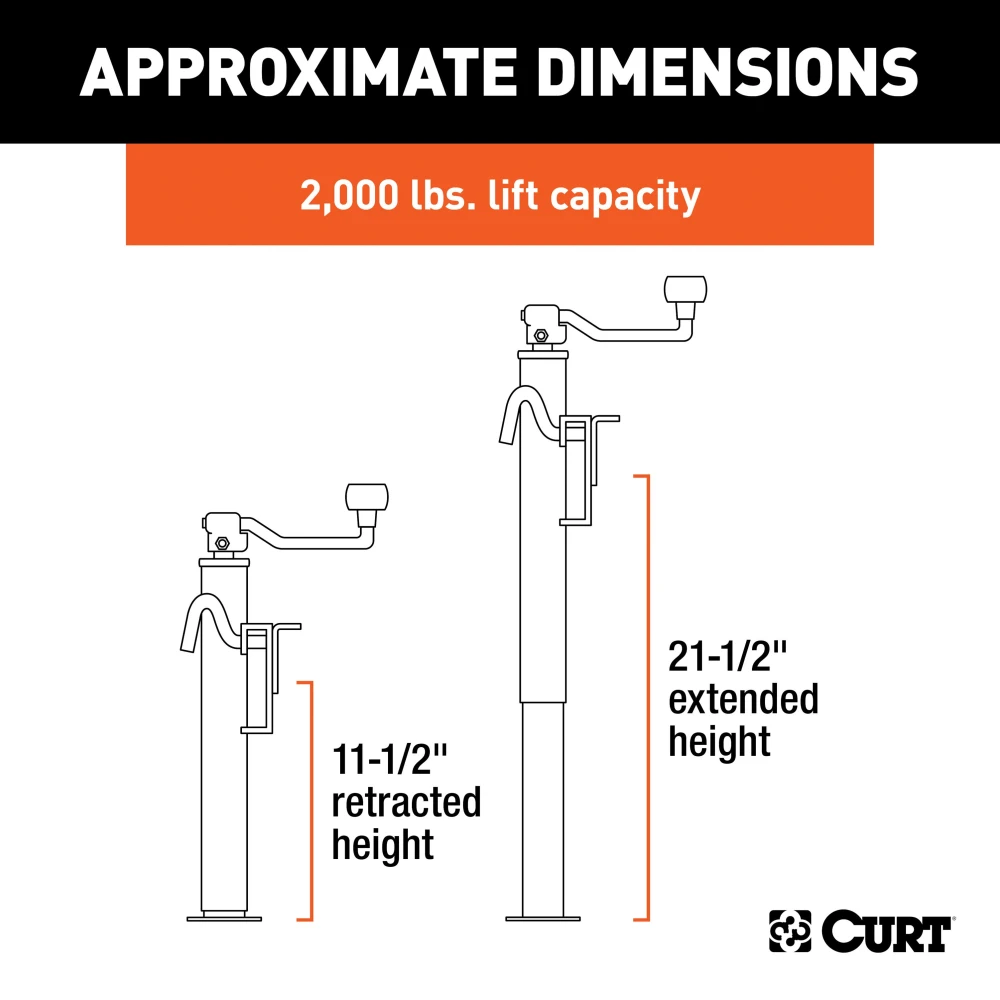

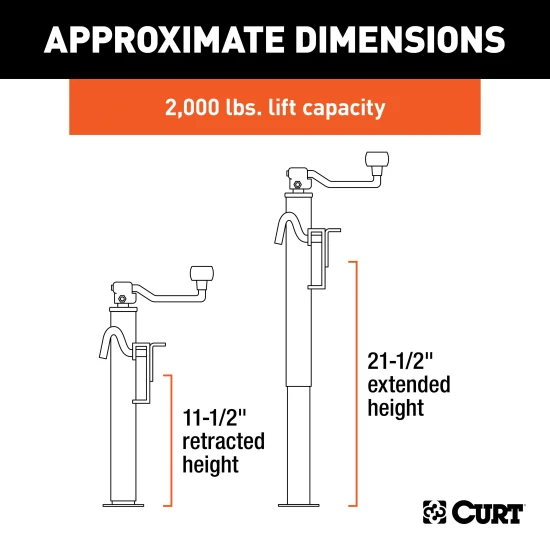

| Exact Bracket-to-Bottom Clearance (Retracted) | 11.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 21.5 Inch |
| Exact Bracket-to-Top Clearance | 4.25 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$67 99 $71.95 6% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$71.95 $67 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Curt
- Model: 28300
- UPC: 612314006472
- Includes: Bracket-Mount Swivel Jack
