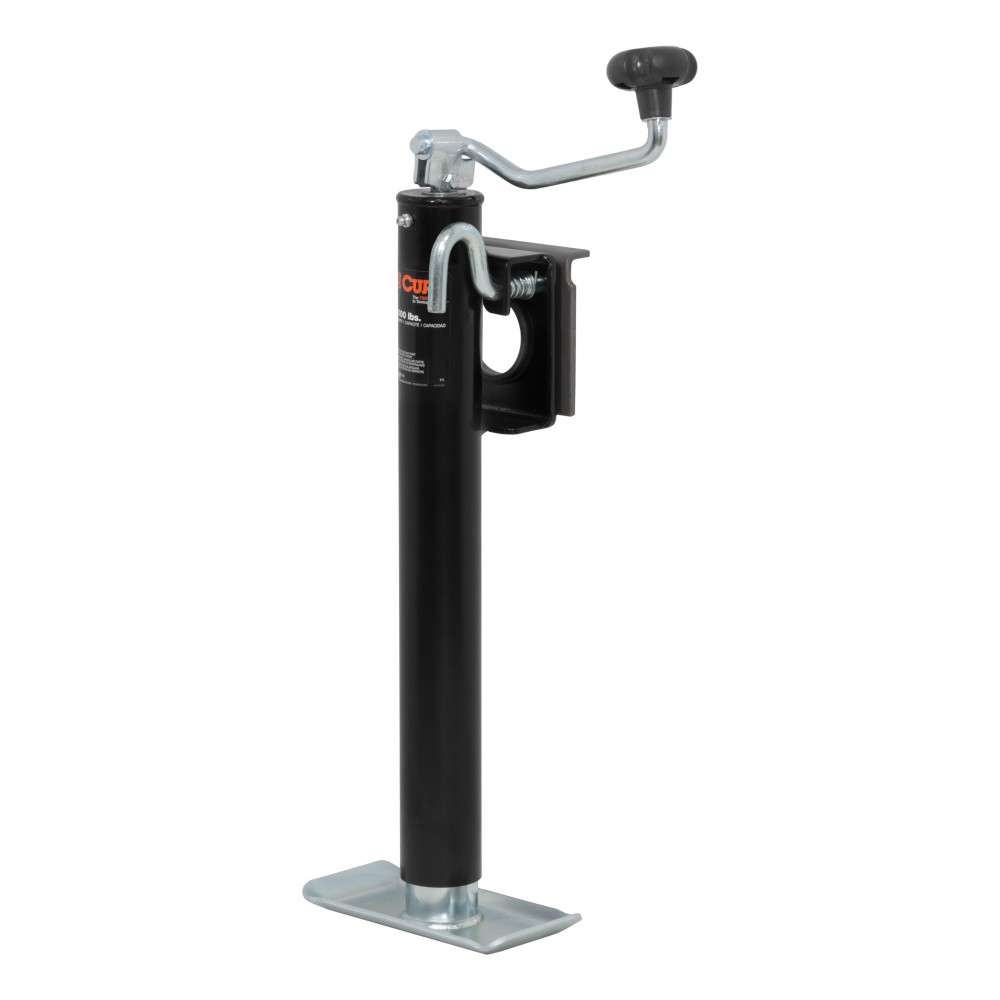

CURT Bracket-Mount Swivel Jack with Top Handle 2000 lbs 15 Inch Travel 28304
Model: 28304CURT Bracket Mount Swivel Trailer Jack

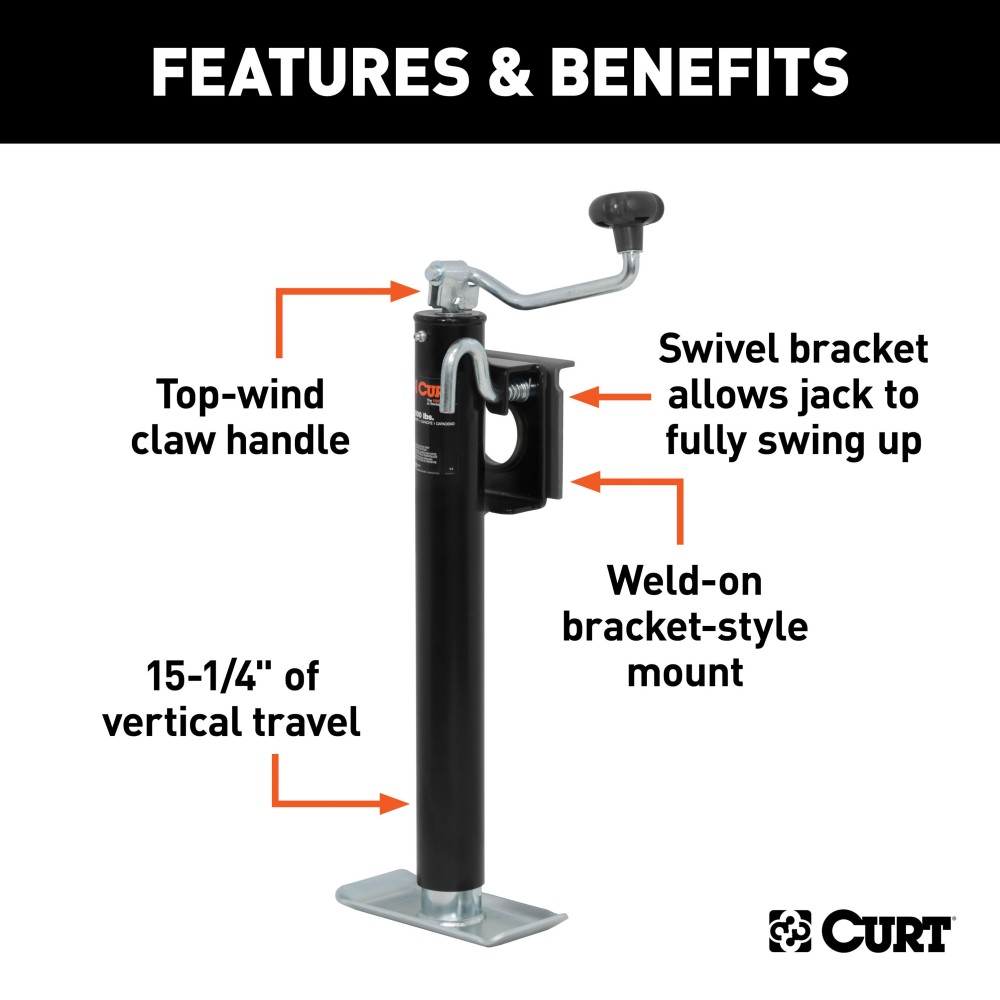

Enhance your towing experience with the robust and reliable CURT Bracket Mount Swivel Trailer Jack, designed to support your trailer with unmatched stability and ease. Crafted with precision, these trailer jacks are perfect for enthusiasts who frequent boat landings, campgrounds, racetracks, or fields. With an eye towards quality, this jack promises to extend the life and functionality of your trailer.
- Support & Lift Capacity: Rated for a 3,000 lbs. support capacity and a 2,000 lbs. lift capacity, this jack is the ideal choice for all types of trailers.

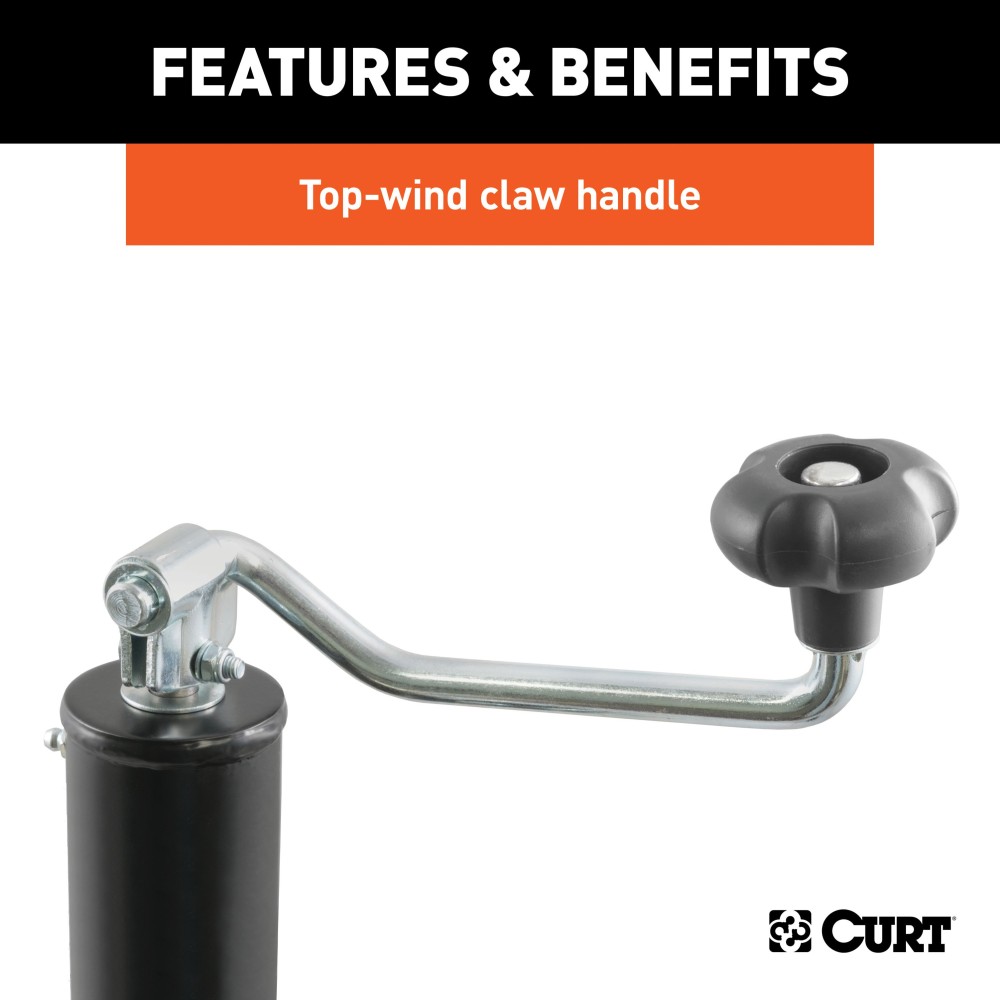

- Convenient Operation: The top-wind claw handle allows you to effortlessly raise or lower the trailer coupler, making it user-friendly and efficient.
- Secure Mounting: Features a weld-on bracket-style mount, ensuring a secure and stable installation on your trailer.

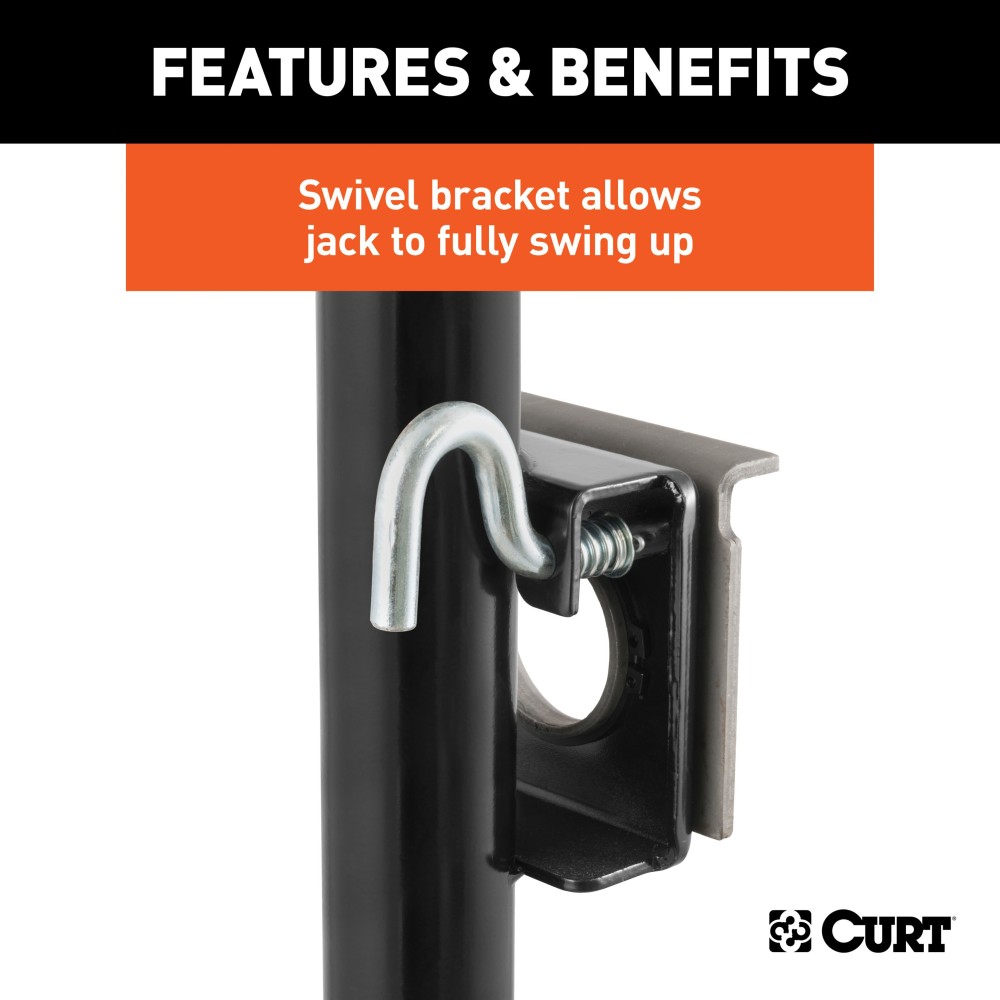

- Swivel Bracket Design: The innovative swivel bracket enables the jack to swing up and out of the way, providing seamless travel convenience.
- Locking Mechanism: Equipped with a pull-pin that securely locks the jack in place during usage or when stowed away.
- Versatile Vertical Travel: Offers 15" of vertical travel, accommodating various ball heights with ease.
- Durable Warranty: Backed by a limited lifetime warranty, with a one-year coverage on finish and parts.
No matter the trailer type—be it a boat, utility, livestock hauler, or a recreational vehicle trailer—the CURT Bracket Mount Swivel Trailer Jack provides an unparalleled level of support and reliability for your towing needs. Discover the dependable solution for your trailer with CURT.
Note: Use replacement handle bulk #28937 for seamless operation.
| Specifications: | |
|---|---|
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Groups | Boat and Utility Trailers |
| Jack Style | Snap Ring |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

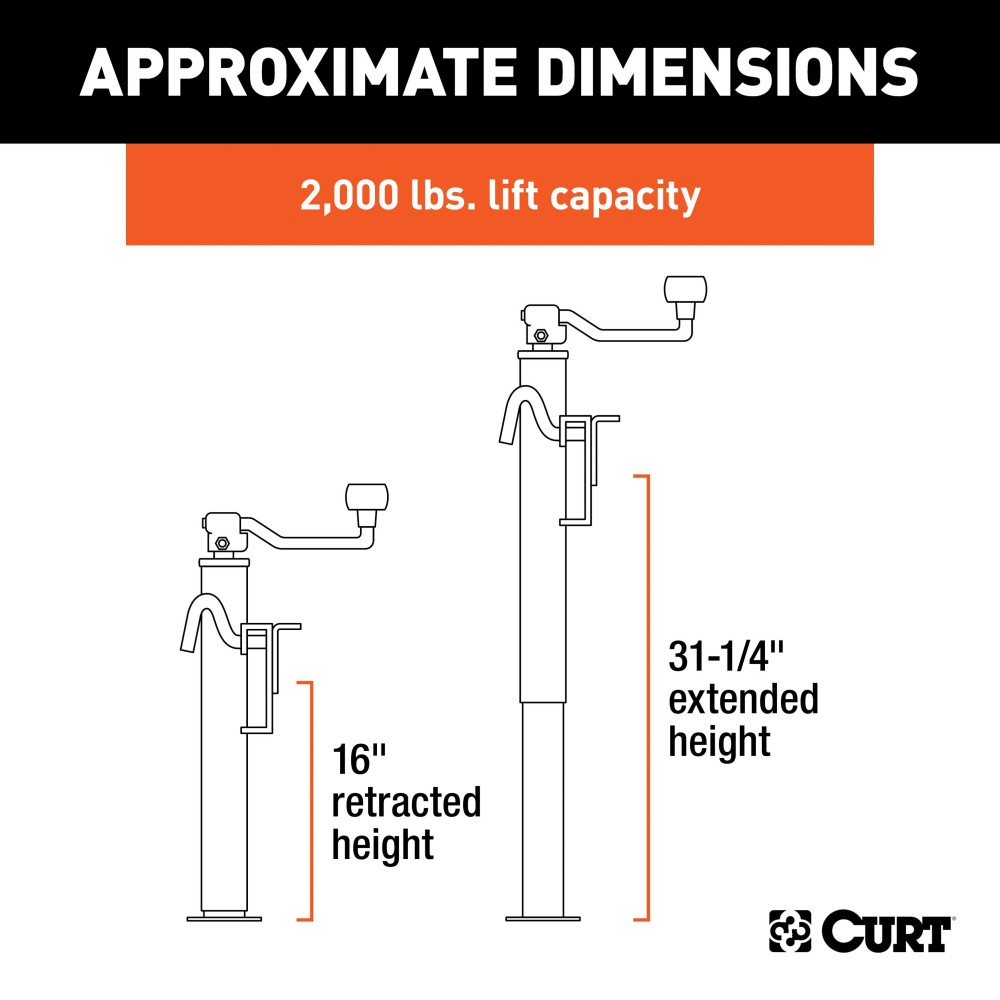

| Approx Bracket-to-Bottom Clearance (Retracted) | 16 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 31 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 4 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 16 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 31.25 Inch |
| Exact Bracket-to-Top Clearance | 4 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$77 96 $83.95 7% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$83.95 $77 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 28304
- UPC: 612314006533
- Includes: Bracket-Mount Swivel Jack
