Product Details
- Brand: Curt
- Model: 16515
- UPC: 612314160150
- Includes: E16 5th Wheel Hitch Head Only
Get Expert Help

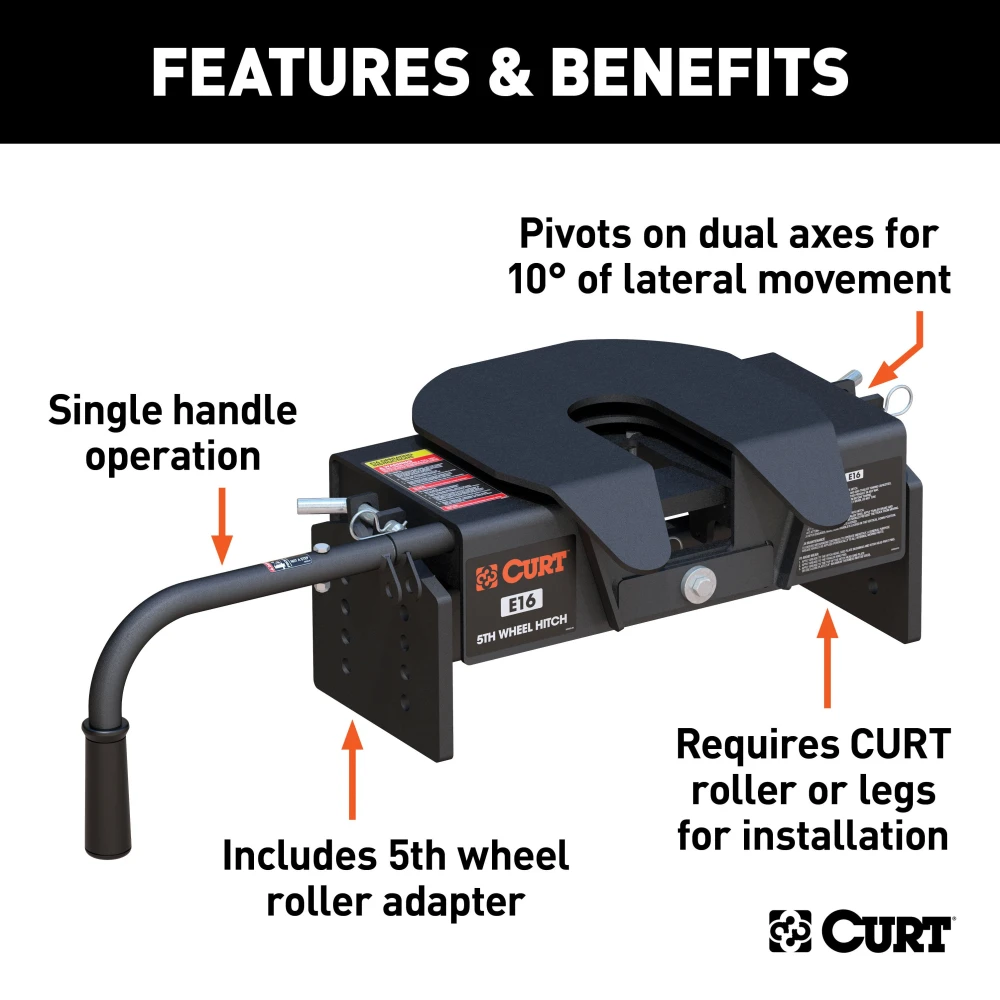

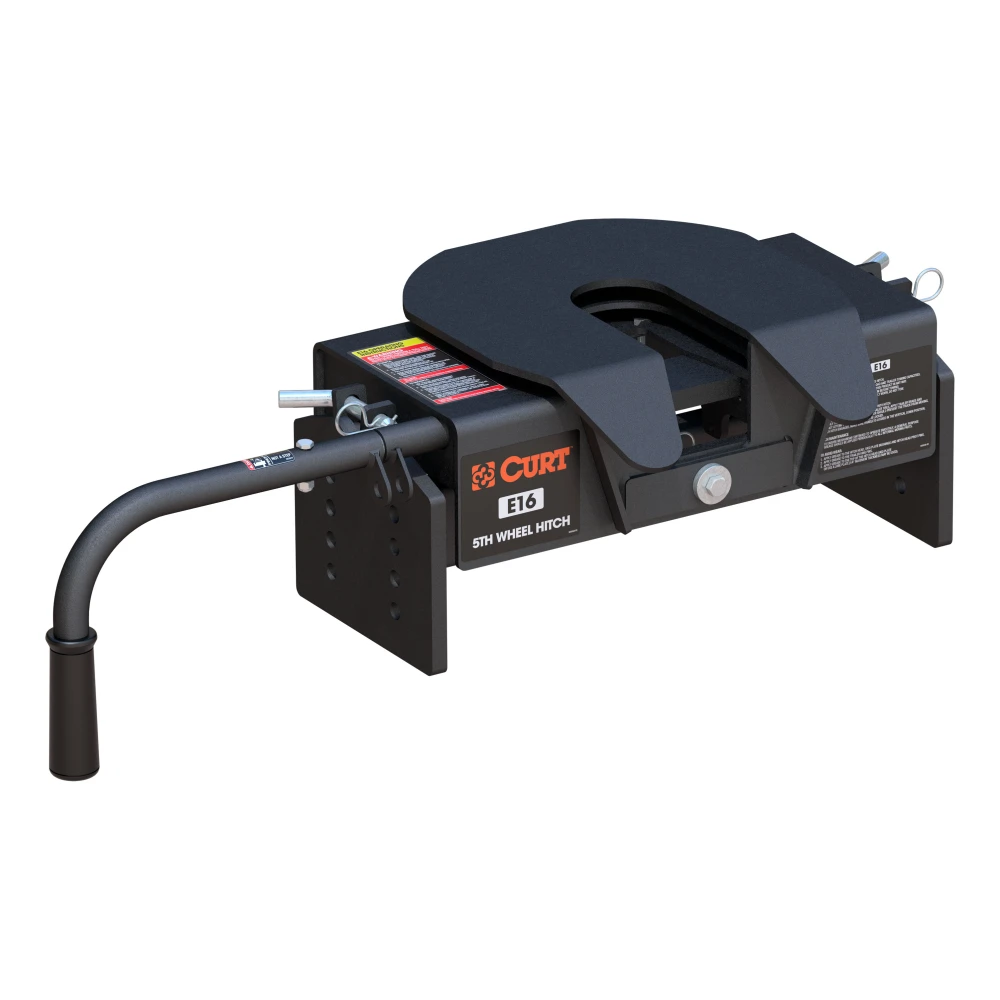

CURT E16 5th Wheel Hitch Head Assembly Sixteen Thousand Pound Capacity Legs Required 16515 Install Notes
Installation Instructions for CURT E16 5th Wheel Hitch (Model 16515) ### Part Numbers: - 16515 ### Wiring Access Location: Not mentioned. ### Tools Required: - Wrenches - Torque wrench - Drill (for mounting brackets) - Level ### Step-by-Step Instructions: 1. Unpacking: - The 16515 5th Wheel Assembly ships in three boxes: - Box 1: Contains Hitch Head Assembly, Handle, Handle Grip, Cross Member Weldment, and Bolt Kit. - Box 2: Contains R5 Roller (Sold Separately). - Box 3: Contains Base Rails (Sold Separately). 2. Hitch Handle Assembly: - Rotate the handle shaft so the bolt hole is at the top. - Slide the handle onto the handle shaft with the grip pointed downward. - Fasten the hitch handle using the supplied bolt and nylock nut. 3. Hitch Assembly: - Attach the hitch handle to the hitch head. - Place the mounting rails in the bed of the truck following the installation instructions. - Secure the R5 Roller into the mounting rails using clevis pins and hairpin clips. - Slide the cross member weldment into the R5 Roller. - Insert ½” x 1 ¾” bolts into the cross member and torque to 75 ft-lbs. - Place the hitch head onto the cross member weldment and secure it with clevis pins and hairpin clips. 4. Setting Up the Hitch: - Ensure the cross member is set to the proper height, providing at least 5½” clearance between the trailer’s nose and the truck’s bed. - Adjust the hitch height for a level towing attitude. If necessary, adjust the cross member and re-torque fasteners to 75 ft-lbs. 5. Coupling the Trailer: - Verify the trailer is level and the truck’s parking brake is engaged. - Rotate the hitch handle and pull it to the open position. - Back the truck to align the kingpin with the skid plate and slide the kingpin into the hitch head. - Lock the hitch by rotating the handle to the "down" position. - Attach electrical and breakaway connectors and remove wheel chocks. 6. Uncoupling the Trailer: - Block the trailer’s wheels. - Rotate the handle to open the hitch and ensure the kingpin is fully disengaged. - Check that the slide bar is open and the kingpin box is off the skid plate. ### Hardware List: - 2x 16200 Base Rails (Sold Separately) - 1x 16500 R5 Roller (Sold Separately) - 1x CM-16515-HHA Hitch Head Assembly - 1x CM-16515-H Handle - 1x CM-16515-HG Handle Grip - 1x CM-16515-CMW Cross Member Weldment - 1x CM-16515-BK Bolt Kit (includes all hardware) ### Safety Notes: - Warning: Do not position yourself or others between the truck and trailer or under the trailer's kingpin area during coupling or uncoupling. - Always ensure proper clearance between the trailer nose and truck bed sides. - Do not exceed the hitch’s rated capacity of 16,000 lbs for trailer weight and 3,750 lbs for kingpin weight. - Ensure all fasteners are tightened and re-torqued to 75 ft-lbs periodically. ### Specifications: - Gross Load Capacity (Weight Carrying Hitch): 16,000 lbs trailer weight, 3,750 lbs tongue weight. - Adjustable Height: From 14¼” to 18¼” in 1” increments. - Install Time: Varies depending on experience.
Installation Instructions for E16 5th Wheel Hitch (Model 16515)
Part Numbers:
- 16515
Wiring Access Location:
- Not mentioned.
Tools Required:
- Wrenches
- Torque wrench
- Drill (for mounting brackets)
- Level
Step-by-Step Instructions:
-
Unpacking:
- The 16515 5th Wheel Assembly ships in three boxes:
- Box 1: Contains Hitch Head Assembly, Handle, Handle Grip, Cross Member Weldment, and Bolt Kit.
- Box 2: Contains R5 Roller (Sold Separately).
- Box 3: Contains Base Rails (Sold Separately).
- The 16515 5th Wheel Assembly ships in three boxes:
-
Hitch Handle Assembly:
- Rotate the handle shaft so the bolt hole is at the top.
- Slide the handle onto the handle shaft with the grip pointed downward.
- Fasten the hitch handle using the supplied bolt and nylock nut.
-

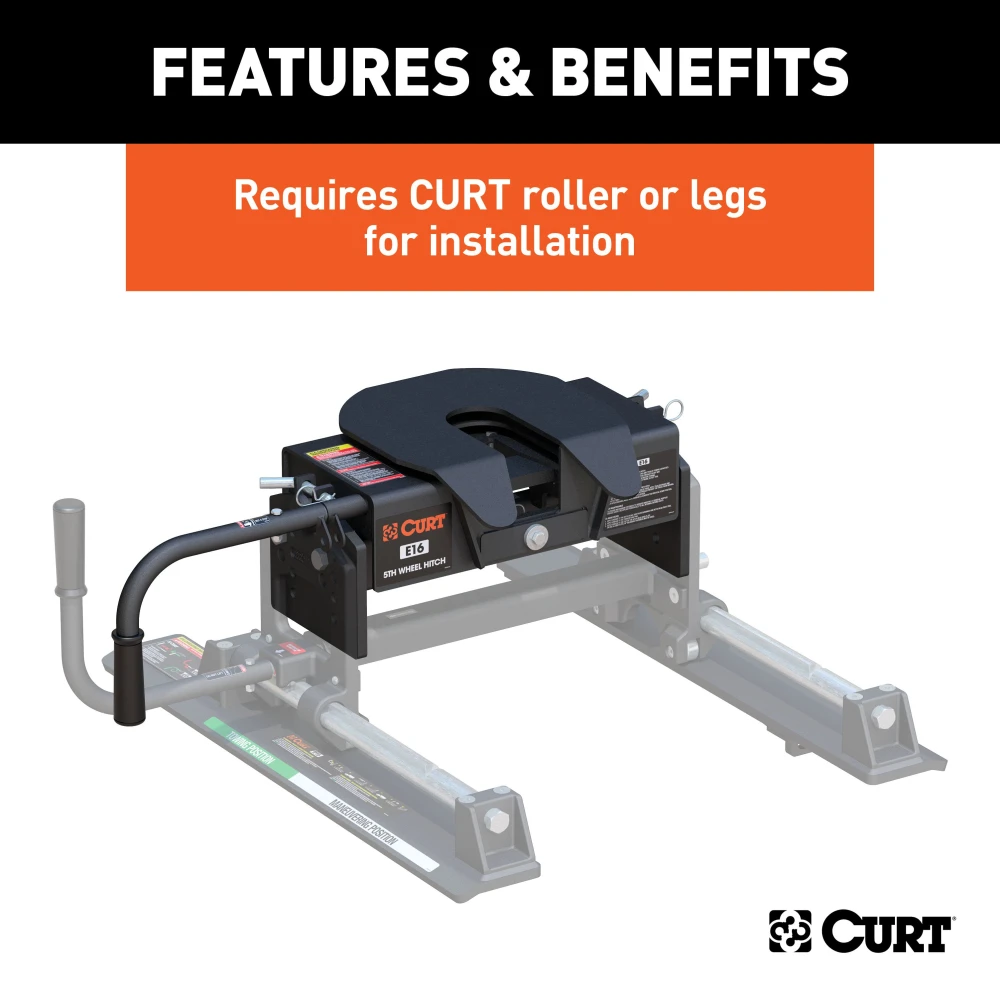

Hitch Assembly:
- Attach the hitch handle to the hitch head.
- Place the mounting rails in the bed of the truck following the installation instructions.
- Secure the R5 Roller into the mounting rails using clevis pins and hairpin clips.

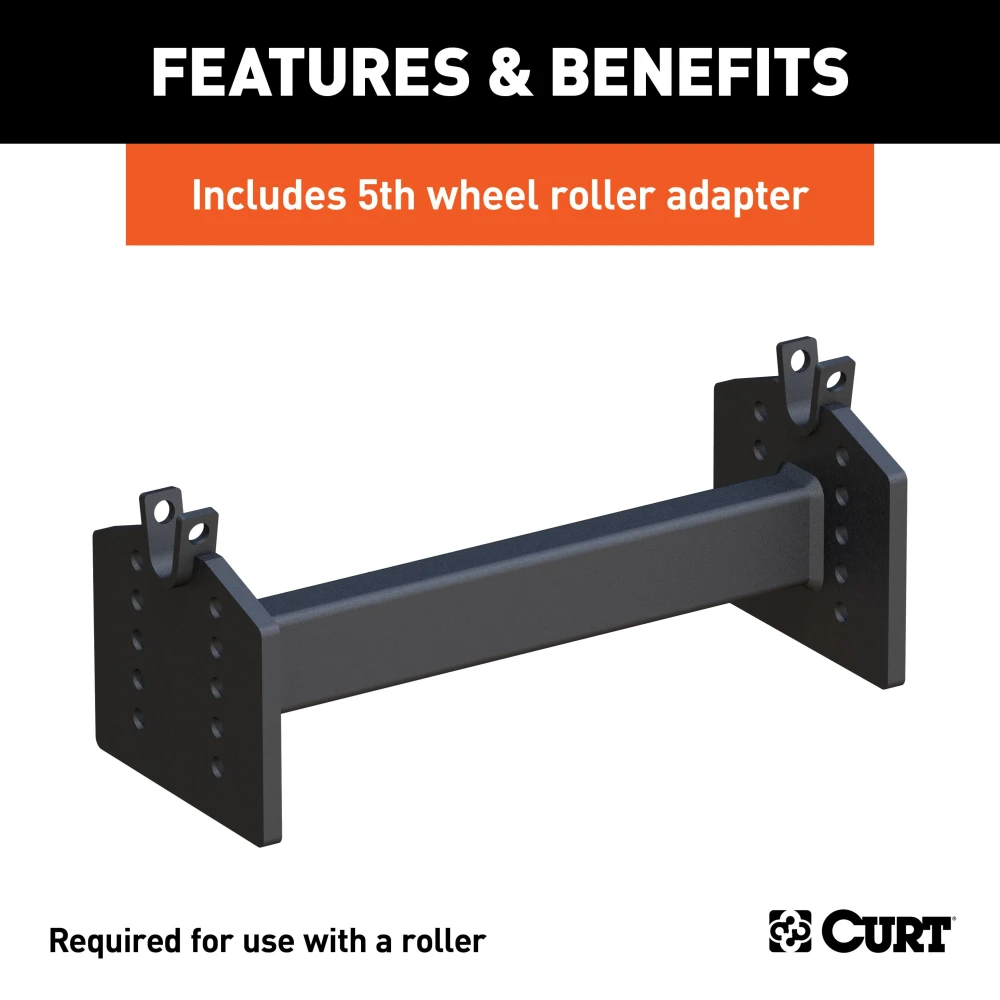

- Slide the cross member weldment into the R5 Roller.
- Insert ½” x 1 ¾” bolts into the cross member and torque to 75 ft-lbs.
- Place the hitch head onto the cross member weldment and secure it with clevis pins and hairpin clips.
-
Setting Up the Hitch:
- Ensure the cross member is set to the proper height, providing at least 5½” clearance between the trailer’s nose and the truck’s bed.
- Adjust the hitch height for a level towing attitude. If necessary, adjust the cross member and re-torque fasteners to 75 ft-lbs.
-
Coupling the Trailer:
- Verify the trailer is level and the truck’s parking brake is engaged.
- Rotate the hitch handle and pull it to the open position.

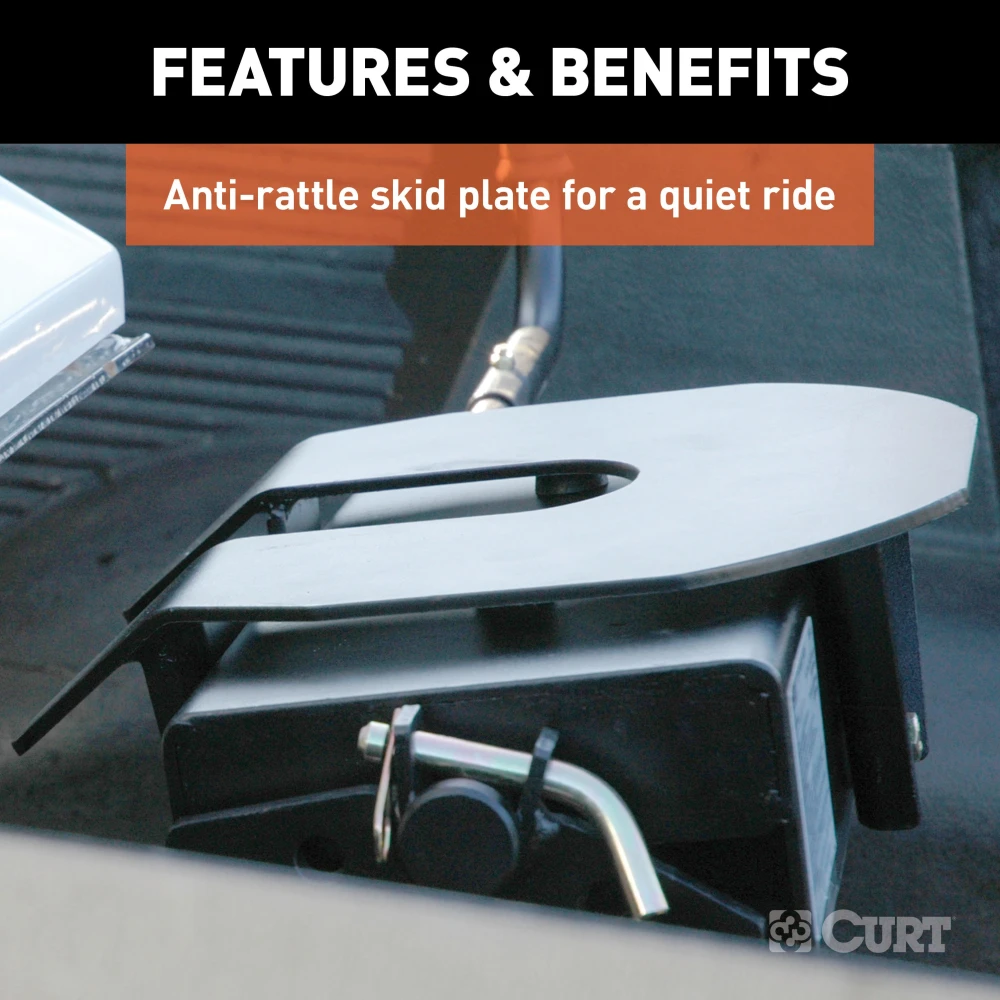

- Back the truck to align the kingpin with the skid plate and slide the kingpin into the hitch head.
- Lock the hitch by rotating the handle to the "down" position.
- Attach electrical and breakaway connectors and remove wheel chocks.
-
Uncoupling the Trailer:
- Block the trailer’s wheels.
- Rotate the handle to open the hitch and ensure the kingpin is fully disengaged.
- Check that the slide bar is open and the kingpin box is off the skid plate.
Hardware List:
- 2x Base Rails (Sold Separately)
- 1x R5 Roller (Sold Separately)
- 1x Hitch Head Assembly
- 1x Handle
- 1x Handle Grip
- 1x Cross Member Weldment
- 1x Bolt Kit (includes all hardware)
Safety Notes:
- Warning: Do not position yourself or others between the truck and trailer or under the trailer's kingpin area during coupling or uncoupling.
- Always ensure proper clearance between the trailer nose and truck bed sides.
- Do not exceed the hitch’s rated capacity of 16,000 lbs for trailer weight and 3,750 lbs for kingpin weight.
- Ensure all fasteners are tightened and re-torqued to 75 ft-lbs periodically.
Specifications:

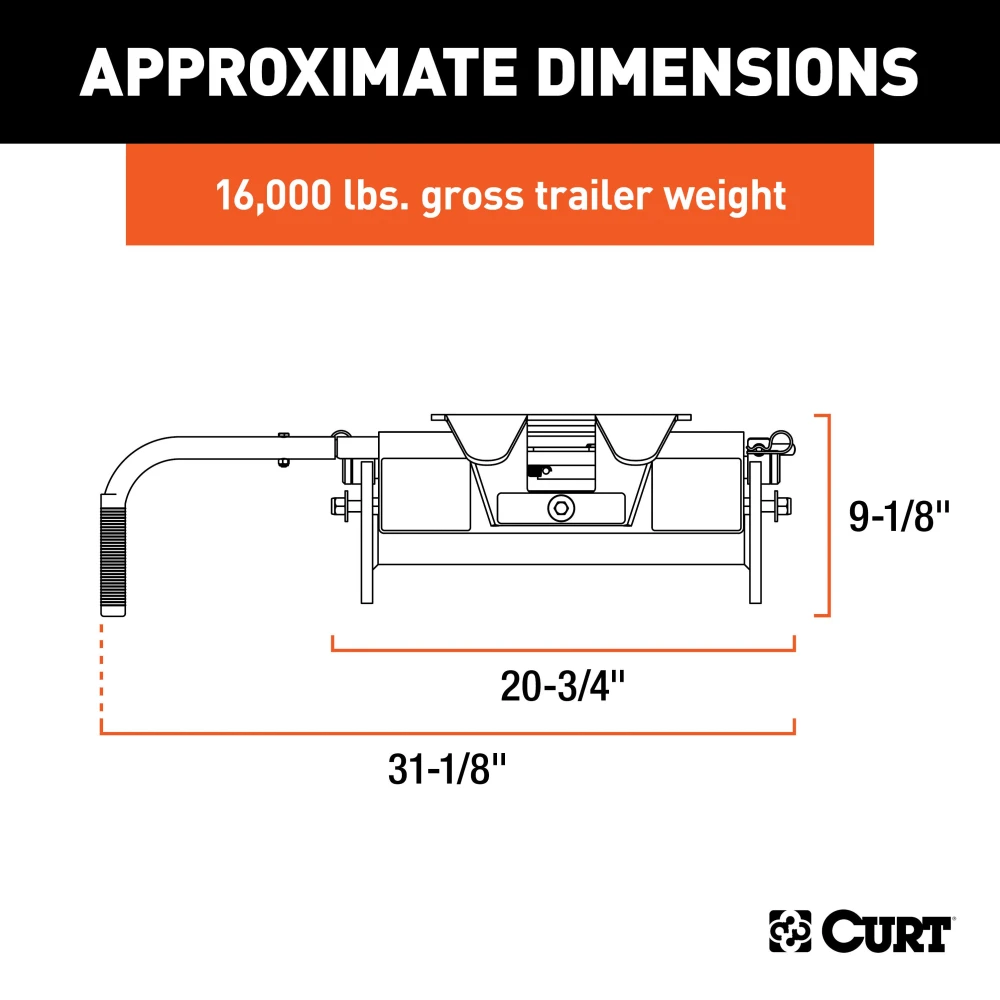

- Gross Load Capacity (Weight Carrying Hitch): 16,000 lbs trailer weight, 3,750 lbs tongue weight.
- Adjustable Height: From 14¼” to 18¼” in 1” increments.
- Install Time: Varies depending on experience.
Installation Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
