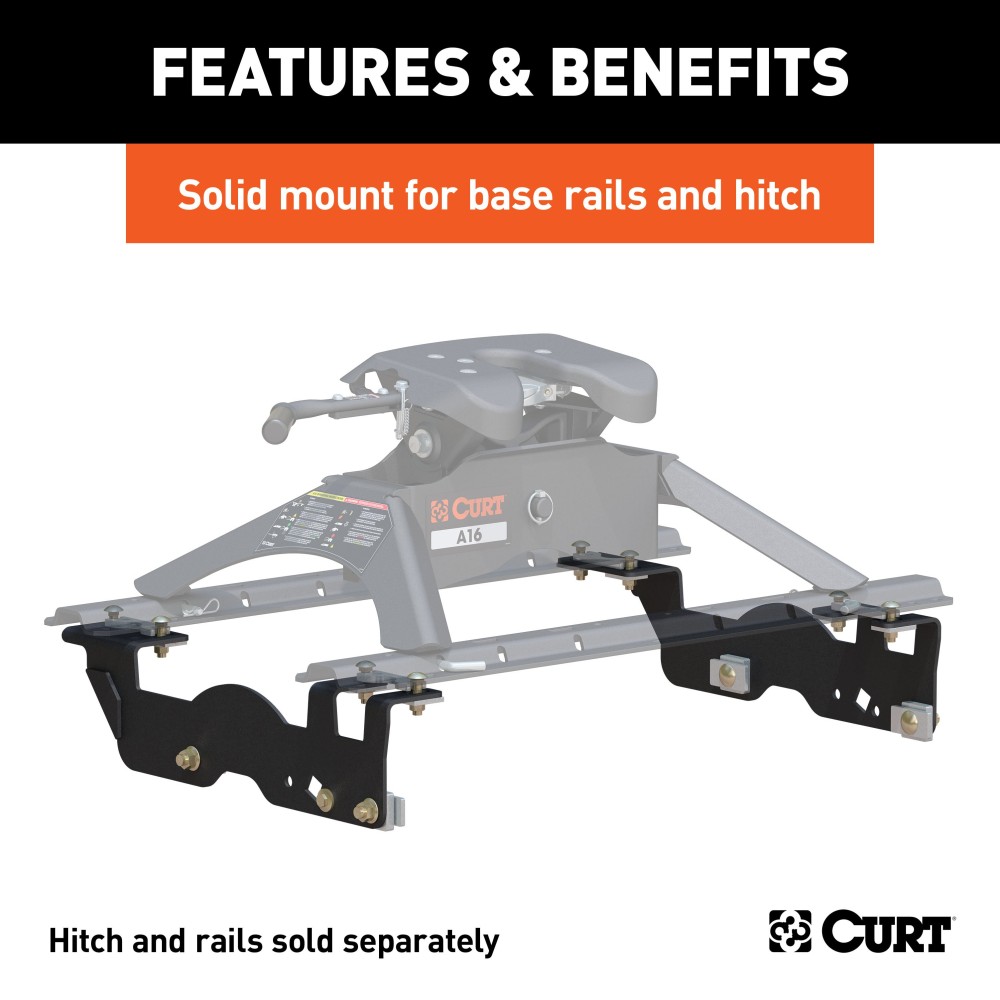

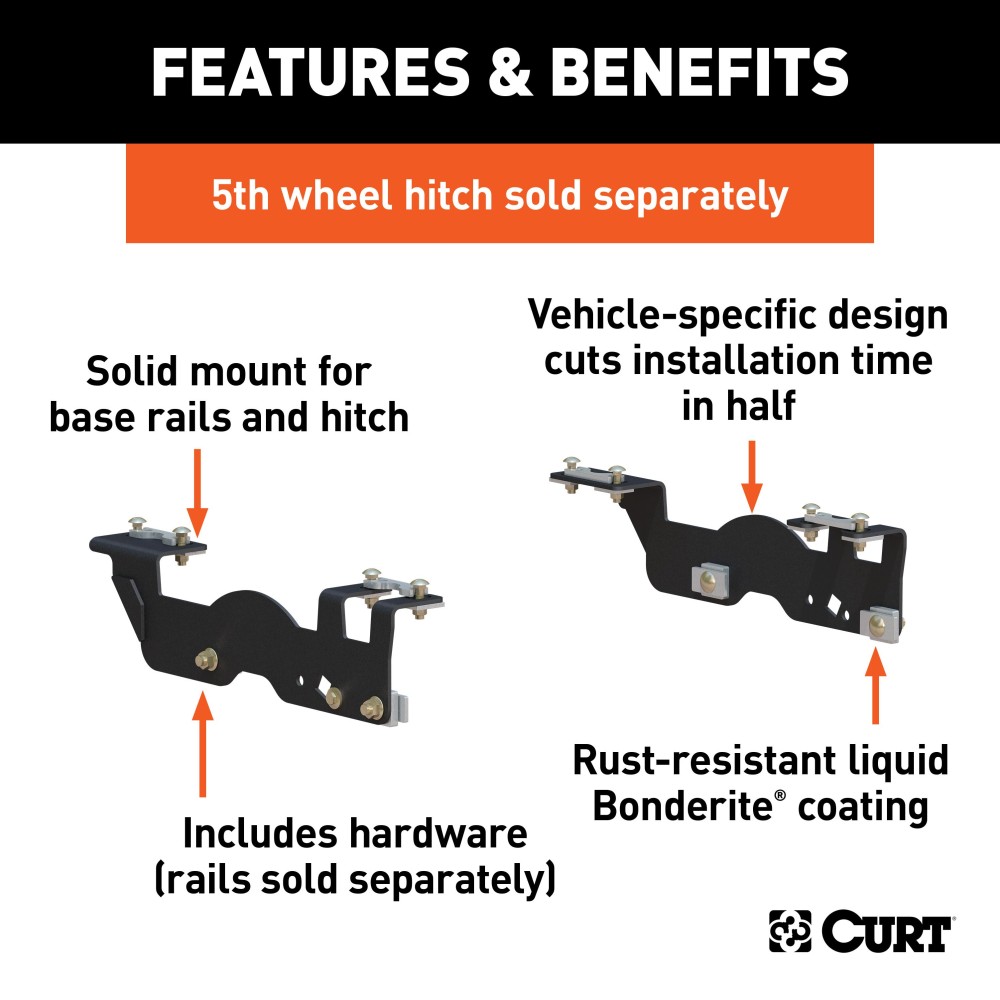

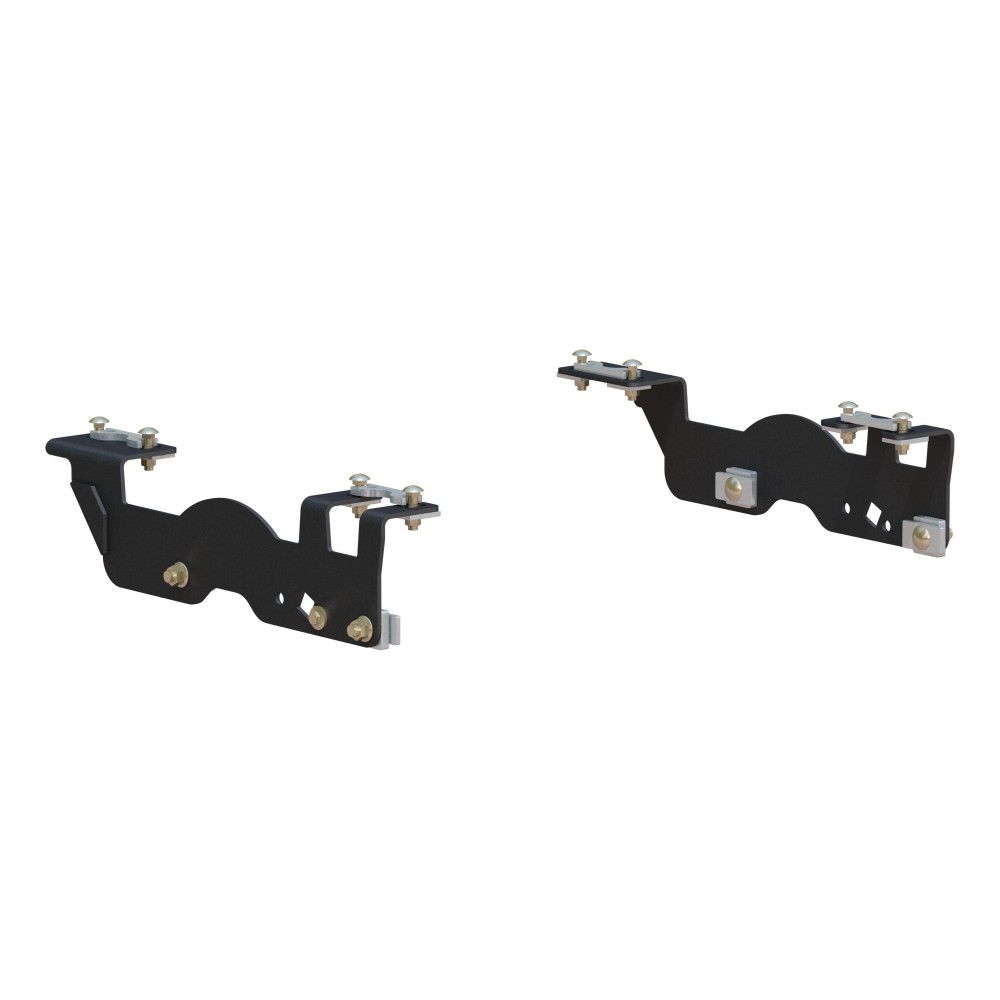

CURT 16911 5th Wheel Installation Brackets (QTY 1)

Manufactured by: Curt

When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch.

A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy Depending on your model of pickup truck, they also reduce or eliminate the need for drilling These particular custom 5th wheel brackets offer a custom fit for certain model years of the Ford F-150 (see application info to verify fitment).

Finished in a durable liquid A-coat, CURT custom 5th wheel brackets are made to last They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16104 or #16204 (base rails sold separately)..

Features:

• Provides a solid mounting point for 5th wheel base rails and a 5th wheel hitch
• Designed to be used in combination with CURT base rails #16104 or #16204
• Protected by a rust-resistant liquid A-coat
• Made in USA (may include imported hardware)
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16204 Industry-Standard 5th Wheel Hitch Rails, Carbide Black, 25,000 Pounds (QTY 1)

Manufactured by: Curt

CURT 5th wheel base rails are industry-standard, meaning they can be used with any 5th wheel trailer hitch with industry-standard anchoring points They are compatible with virtually all CURT 5th wheel trailer hitches and many competitors Installation of CURT universal 5th wheel base rails is quick and simple.

They mount with high-strength hardware, providing a solid mounting place for a new 5th wheel hitch 5th wheel base rail bolts and other hardware can also be purchased separately to aid in reinstalling used rails To protect our 5th wheel base rails from corrosion, scratches and UV damage, we coat each one in a co-cured finish of A-coat and powder coat.

This gives them the tough skin they need for hauling that RV trailer, flatbed or other heavy-duty trailer and gives you the confidence to tow wherever the horizon leads This set of 5th wheel rails is rated for 25,000 pound gross trailer weight and has a carbide black finish Knowing that your 5th wheel trailer hitch is properly mounted in your truck bed is vitally important to the success of your towing.

Without a firm attachment point, a 5th wheel hitch is rendered useless to your tow vehicle When you choose a 5th wheel hitch for your pickup, install it with confidence with a CURT 5th wheel bracket kit and a set of CURT 5th wheel base rails..

Features:

• Helps provide a solid mounting point for a 5th wheel hitch
• Industry-standard mounting point to accept most 5th wheel hitches
• Protected by a highly durable carbide powder coat finish
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

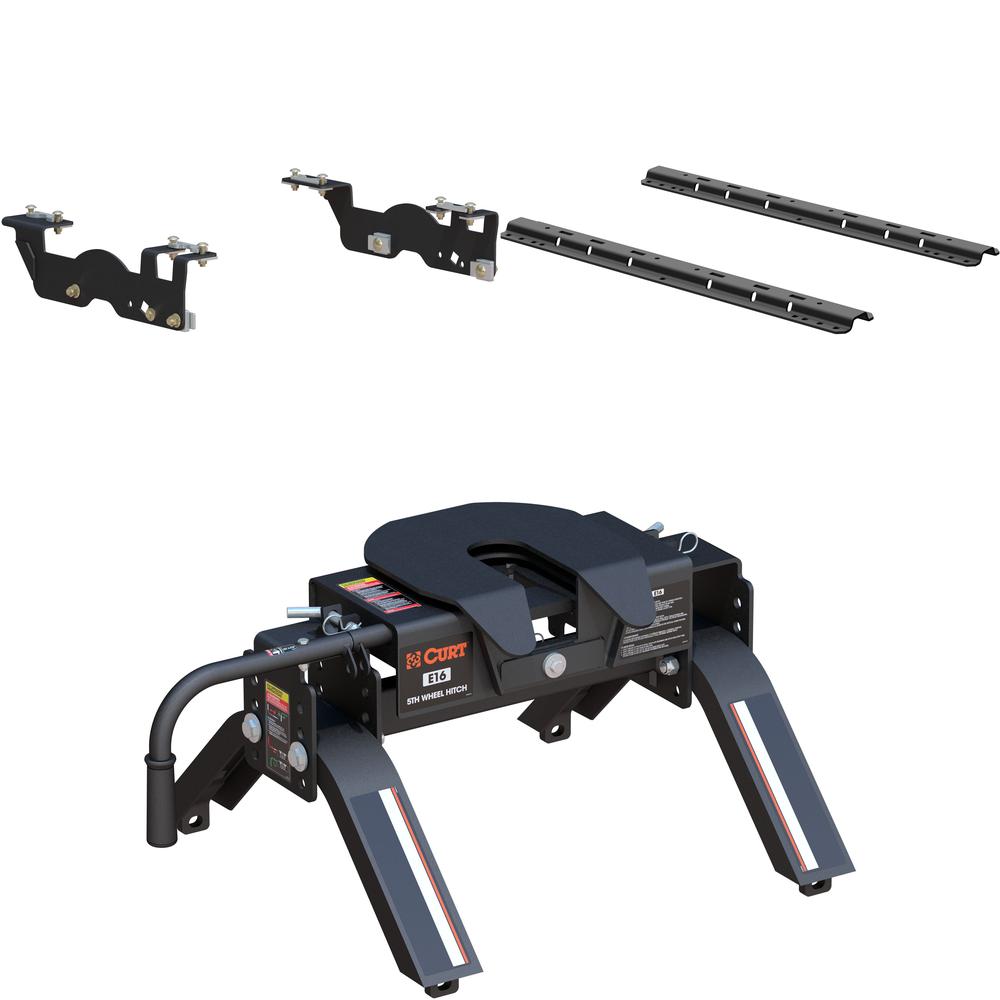

CURT 16115 E16 5th Wheel Hitch, 16,000 lbs (QTY 1)

Manufactured by: Curt

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches The E16 has a gross trailer weight rating of 16,000 lbs and can withstand a vertical load up to 4,000 lbs.

It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty.

This 16K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately)..

Features:

• Pivots on dual axes for 10 degrees of lateral movement
• Automatically locks for easy, secure coupling
• Operates using a single handle
• Features an anti-rattle skid plate to help reduce noise
• Compatible with kingpin extension boxes, including common pivoting pin boxes
• Mounts to all industry-standard base rails
• Offers four height adjustment positions to adapt to each unique truck bed
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
