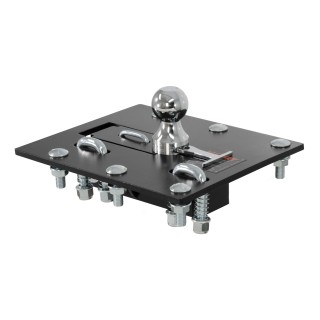

CURT Over‑Bed Folding Ball Gooseneck Hitch 30000 lbs 2‑5/16 Inch Ball 61052
Model: 61052CURT Folding Ball Gooseneck Hitch
Discover the innovation in gooseneck technology with the CURT Folding Ball Gooseneck Hitch. This cutting-edge solution addresses common issues related to misplaced or stolen trailer balls, allowing for a seamless towing experience.

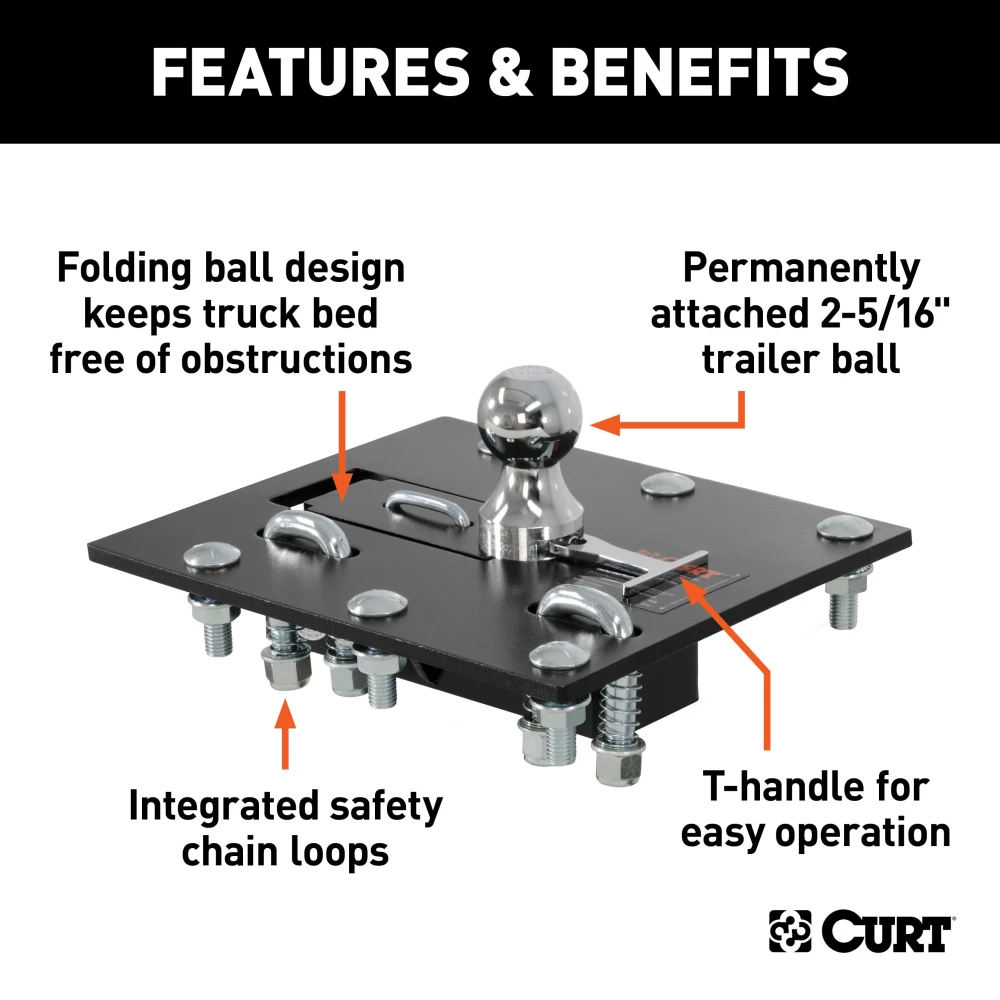

Key Features:

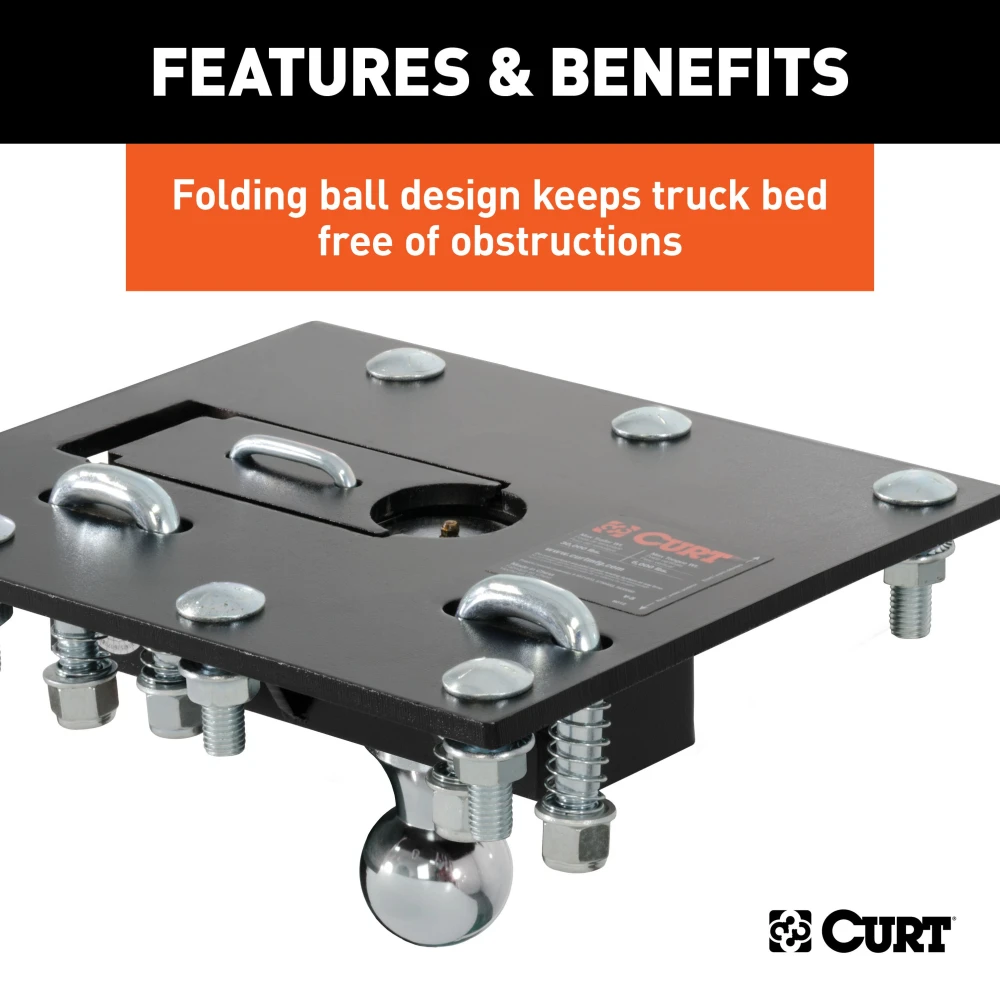

- Over-Bed Folding Ball Design: Enjoy a clutter-free truck bed with a folding mechanism that keeps the gooseneck ball out of the way when not in use.

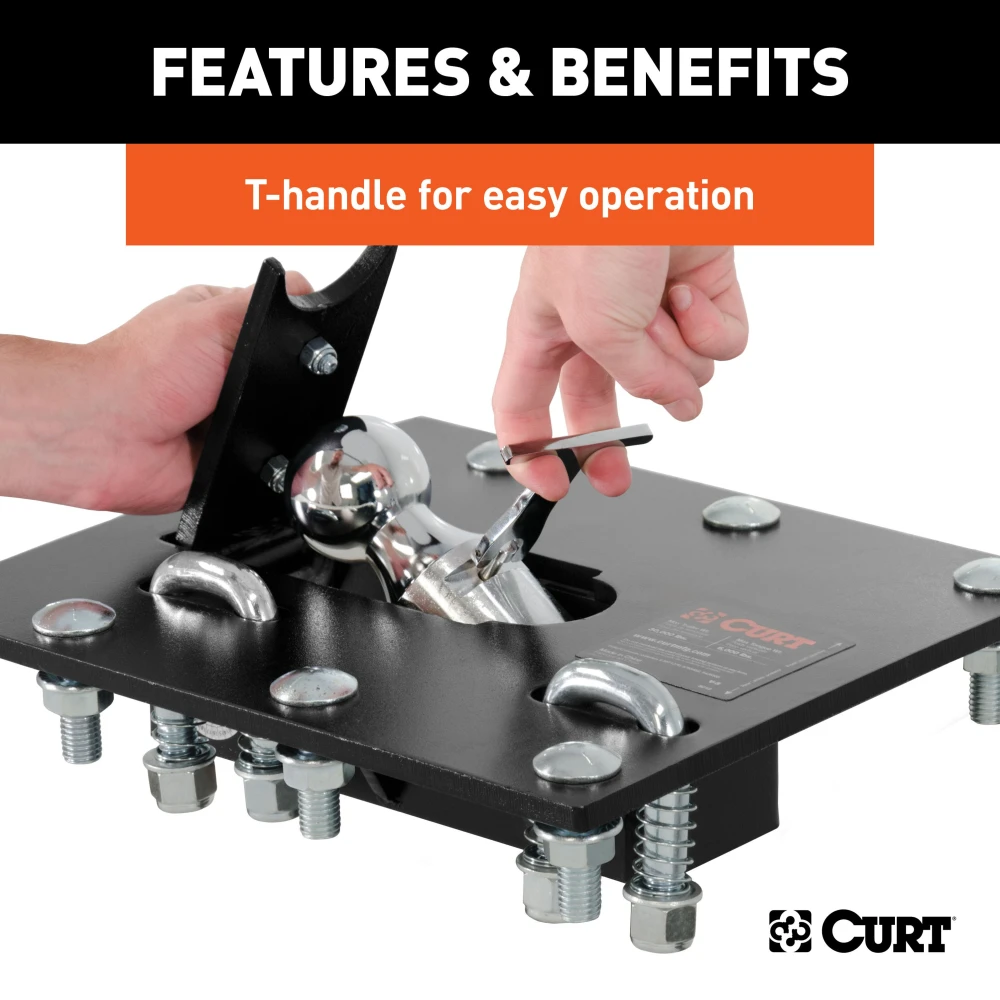

- Easy Operation: The included T-handle makes it simple to maneuver the ball into position when needed for reliable towing.
- Secure Connection: A stainless steel safety pin and pivot spring ensure that the ball remains firmly in place, preventing binding and enhancing safety.
- Theft Deterrent: With a permanently attached ball, your hitch is less susceptible to theft, providing peace of mind with every use.

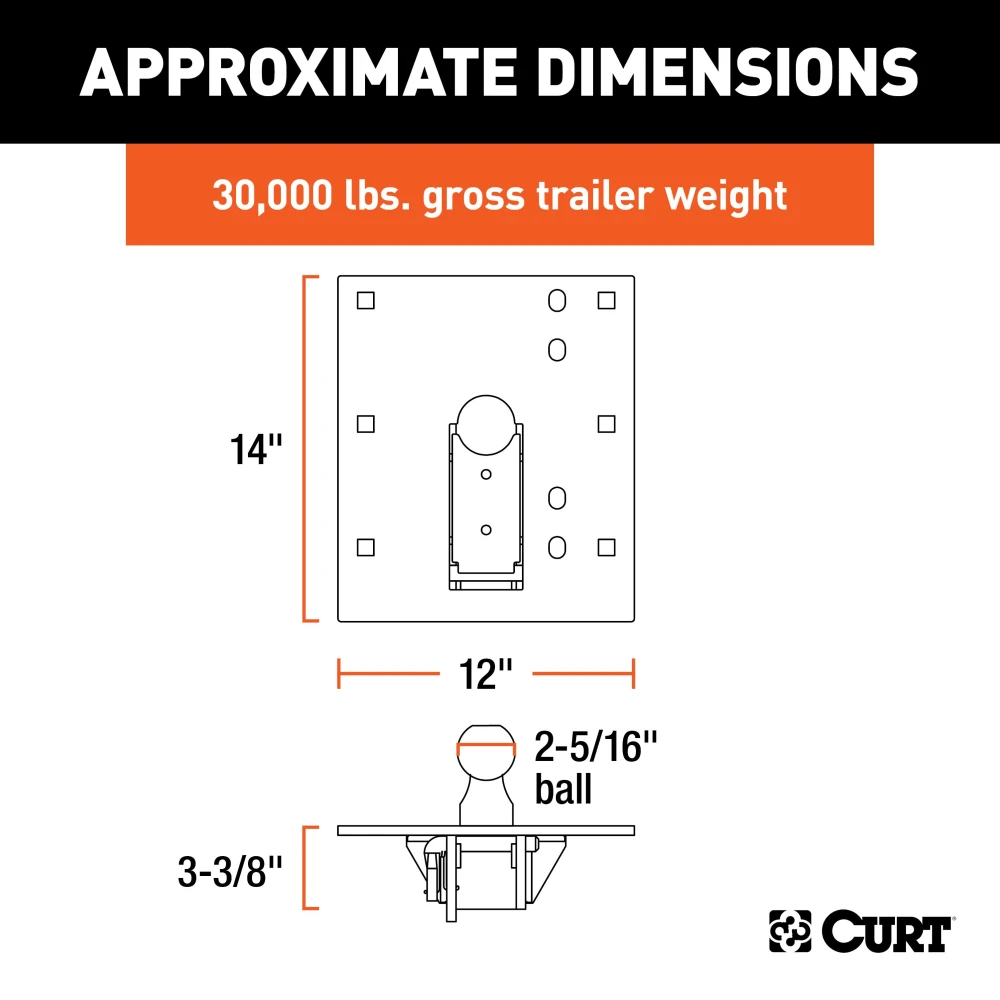

- High Capacity: Boasting a gross trailer weight capacity of up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs., this hitch is built to handle heavy-duty tasks.

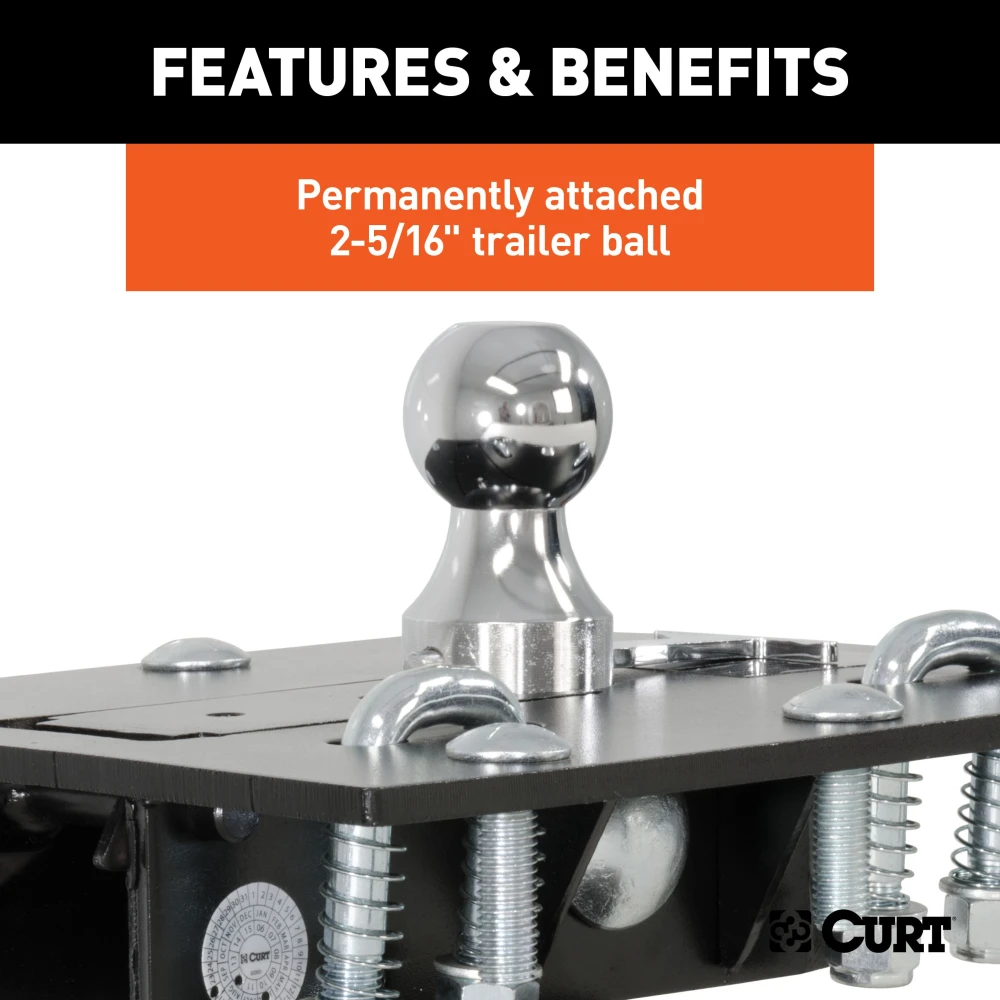

The CURT Folding Ball Gooseneck Hitch also includes a chrome-plated 2-5/16" trailer ball compatible with all standard gooseneck trailers. With U-bolt safety chain hookups and a six-hole mounting design, your trailer stays securely attached, no matter the journey.
Durability and Assurance:
This hitch is protected by a durable carbide powder coat finish to withstand the elements, and comes with a limited lifetime warranty for added confidence (one-year finish, one-year parts).
Installation and Specifications:
- Requires over-bed gooseneck installation brackets.
- Patent Numbers: 5,571,270; 5,755,452; 5,435,585.
- Note: Capacity is limited to the lowest-rated towing component.
| Specifications: | |
|---|---|
| Gross Towing Weight | 30000 LB GTW |
| Compatible Trucks | Gooseneck Trailer |
| Hitch Type | Trucks with Existing Underbed Rail Kit |
| Features | Fold Down Ball Gooseneck |
| Features | 2-5/16 Inch Ball |
$244 99 $332.95 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$332.95 $244 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 61052
- UPC: 612314000524
- Includes: Folding Ball Hitch
Get Expert Help
CURT Over-Bed Folding Ball Gooseneck Hitch 30000 lbs 2-5/16 Inch Ball 61052 Install Notes
Installation Instructions for Folding Ball Gooseneck Hitch ## Part Number: - 61052 ## Tools Required: - Drill - 7/16" drill bit - 11/16" drill bit - Torque wrench - Cutting fluid - Safety glasses - Grease (e.g., wheel bearing grease) ## Parts List: - Folding Hitch Ball (C-52) - 6 Carriage Bolts, 5/8-11 x 2 1/2" - 6 Flange Nuts, 5/8-11 - U-Bolt Kit (Included) - Optional: Frame Brackets (not included) ## Safety Notes: - Do not exceed your vehicle’s rated towing capacity. - Ensure the hitch is centered between the sides of the truck bed and located 2" to 6" forward of the rear axle. - Check for clearance of at least 6 inches between the trailer overhang and truck bed sides. - Verify clearance between the truck and trailer at all corners during sharp turns. ## Step-by-Step Instructions: ### Location and Cut-Out: 1. Measure and mark a 7 1/2" x 11" cut-out in the truck bed, centered 2" to 6" forward of the rear axle. 2. Check the marked area for gas lines, brake lines, and other obstructions before cutting. 3. Make the cut-out and ensure the hitch ball is centered in the bed. ### Installation with Bed Plate Support: 1. Use a steel bed plate (3/8" x 26" x 40") with angle braces (2" x 2") and frame brackets (3/8" x 2") for proper support. 2. Align the bed plate and hitch assembly with the cut-out in the truck bed. 3. Secure the hitch assembly with 5/8" carriage bolts and flange nuts. Use shims to accommodate corrugation in the truck bed. 4. Tighten all nuts to 110 ft-lbs of torque. ### Installation with Frame Support: 1. Use a steel frame (1/2" x 2") for the frame support structure. 2. Align the fold-down hitch assembly with the cut-out in the truck bed. 3. Drill holes in the frame support and attach using 5/8" carriage bolts and flange nuts. 4. Tighten all bolts to 110 ft-lbs of torque. ### Operation: 1. To raise the ball, lift the locking plate and pull the T-handle upward. 2. Close the locking plate to lock the ball in the raised position. 3. To fold the ball down, lift the locking plate, lower the ball, and close the locking plate. ### Maintenance: 1. Grease the hitch ball regularly with wheel bearing grease to prevent wear and rust. 2. Oil hinge points of the locking plate every two months. 3. Keep the hitch assembly free of dirt and debris. 4. Inspect nuts, bolts, and all hardware for tightness and wear before each use. ## Specifications: - Minimum Clearance: 6 inches between trailer and truck bed. - Torque Values: 5/8" bolts to 110 ft-lbs, 1/2" bolts to 75 ft-lbs. ## Warranty Information: Curt Manufacturing LLC. warrants this product to be free of defects in materials and workmanship at the time of purchase. Misuse, alteration, or improper installation voids the warranty. Liability is limited to repair or replacement of the product. ## Additional Notes: - Use shims as needed to ensure secure installation. - Do not weld brackets to the truck frame; bolted connections are required for structural integrity.
Installation Instructions for Folding Ball Gooseneck Hitch
Part Number:
- 61052
Tools Required:
- Drill
- 7/16" drill bit
- 11/16" drill bit
- Torque wrench
- Cutting fluid
- Safety glasses
- Grease (e.g., wheel bearing grease)
Parts List:
- Folding Hitch Ball (C-52)
- 6 Carriage Bolts, 5/8-11 x 2 1/2"
- 6 Flange Nuts, 5/8-11
- U-Bolt Kit (Included)
- Optional: Frame Brackets (not included)
Safety Notes:
- Do not exceed your vehicle’s rated towing capacity.
- Ensure the hitch is centered between the sides of the truck bed and located 2" to 6" forward of the rear axle.
- Check for clearance of at least 6 inches between the trailer overhang and truck bed sides.
- Verify clearance between the truck and trailer at all corners during sharp turns.
Step-by-Step Instructions:
Location and Cut-Out:
- Measure and mark a 7 1/2" x 11" cut-out in the truck bed, centered 2" to 6" forward of the rear axle.
- Check the marked area for gas lines, brake lines, and other obstructions before cutting.
- Make the cut-out and ensure the hitch ball is centered in the bed.
Installation with Bed Plate Support:
- Use a steel bed plate (3/8" x 26" x 40") with angle braces (2" x 2") and frame brackets (3/8" x 2") for proper support.
- Align the bed plate and hitch assembly with the cut-out in the truck bed.
- Secure the hitch assembly with 5/8" carriage bolts and flange nuts. Use shims to accommodate corrugation in the truck bed.
- Tighten all nuts to 110 ft-lbs of torque.
Installation with Frame Support:
- Use a steel frame (1/2" x 2") for the frame support structure.
- Align the fold-down hitch assembly with the cut-out in the truck bed.
- Drill holes in the frame support and attach using 5/8" carriage bolts and flange nuts.
- Tighten all bolts to 110 ft-lbs of torque.
Operation:
- To raise the ball, lift the locking plate and pull the T-handle upward.
- Close the locking plate to lock the ball in the raised position.
- To fold the ball down, lift the locking plate, lower the ball, and close the locking plate.
Maintenance:
- Grease the hitch ball regularly with wheel bearing grease to prevent wear and rust.
- Oil hinge points of the locking plate every two months.
- Keep the hitch assembly free of dirt and debris.
- Inspect nuts, bolts, and all hardware for tightness and wear before each use.
Specifications:
- Minimum Clearance: 6 inches between trailer and truck bed.
- Torque Values: 5/8" bolts to 110 ft-lbs, 1/2" bolts to 75 ft-lbs.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Use shims as needed to ensure secure installation.
- Do not weld brackets to the truck frame; bolted connections are required for structural integrity.
Installation Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
