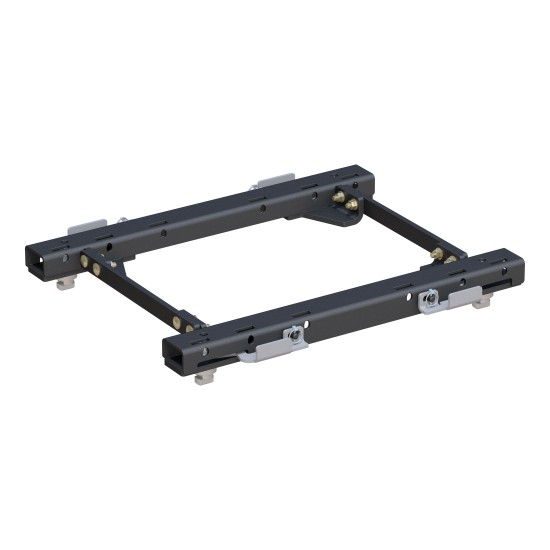

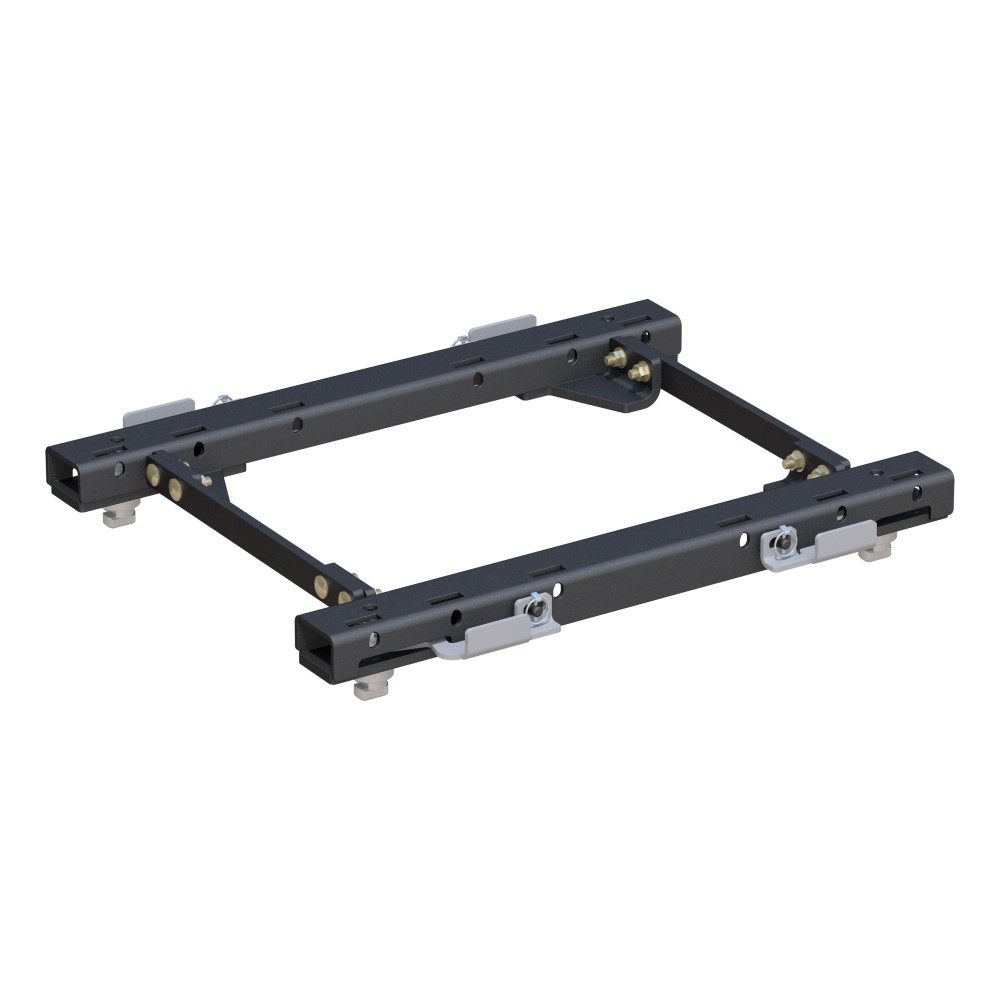

CURT 16050 Puck System 5th Wheel Rails, 30,000 lbs (QTY 1)

Manufactured by: Curt

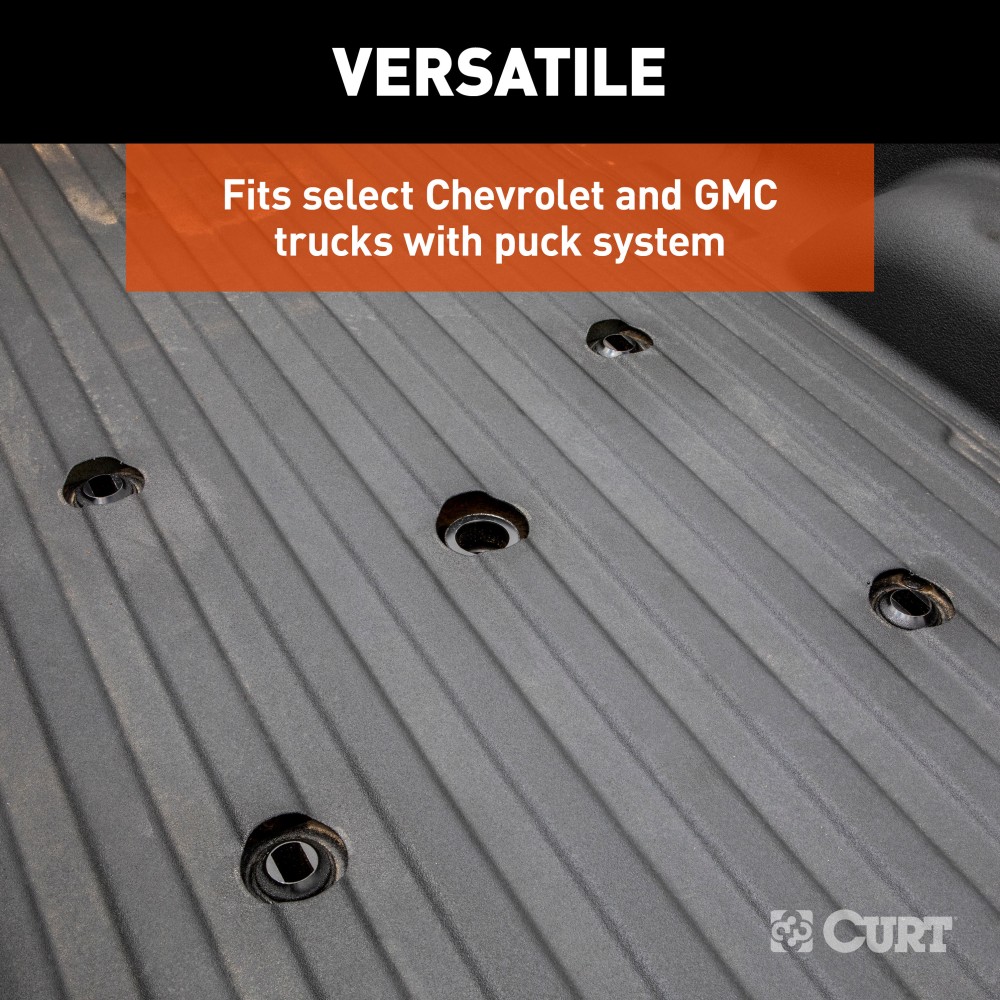

CURT OEM puck system 5th wheel rails for Chevrolet and GMC trucks combine the functionality of CURT 5th wheel puck system products with the strength and convenience of the factory truck bed puck system The rails are industry-standard to securely mount a CURT 5th wheel hitch or any other 5th wheel with industry-standard mounts They are designed to fit select model years of the Chevrolet Silverado 2500 HD and 3500 HD and GMC Sierra 2500 HD and 3500 HD (see application info to verify fitment).

The rails feature a set of adjustable, quarter-turn anchors to quickly and easily drop into the pucks and provide a moveable platform for the 5th wheel coupling point This puck system adapter requires a specific puck system for installation (year range specific) It features a capacity of 30,000 lbs.

GTW and a vertical load limit of 7,500 lbs (weight capacities are limited to the lowest-rated towing component) Like our other OEM puck system 5th wheel products, the key feature of these puck system 5th wheel rails are their quarter-turn anchors.

The rails can easily be dropped into place whenever needed and secured with the quarter-turn anchors The anchors can also be adjusted to help eliminate chucking noises between the rails and under-bed platform while towing When you are finished towing, simply turn the anchors to remove the entire assembly within seconds.

CURT 5th wheel rails for Chevrolet and GMC pickup trucks provide the ultimate in versatility for the CURT 5th wheel line They are tested for safety in accordance with SAE J2638 and are coated in a highly durable carbide black powder coat finish to protect against scratches and rust..

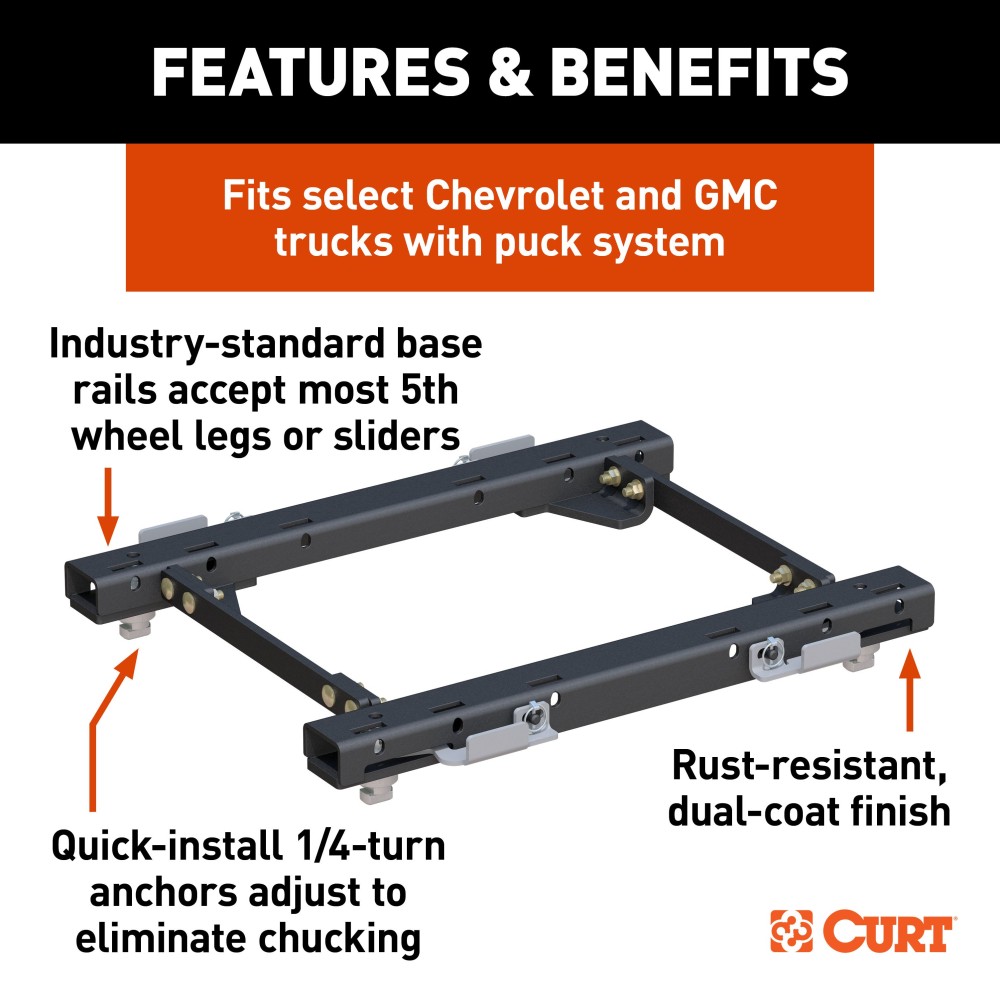

Features:

• Easily transfer existing hitch from previous truck to new puck-equipped truck
• No hitch leg reconfiguring or disassembly required
• Converts Chevy / GMC puck system (year range specific) to standard rails

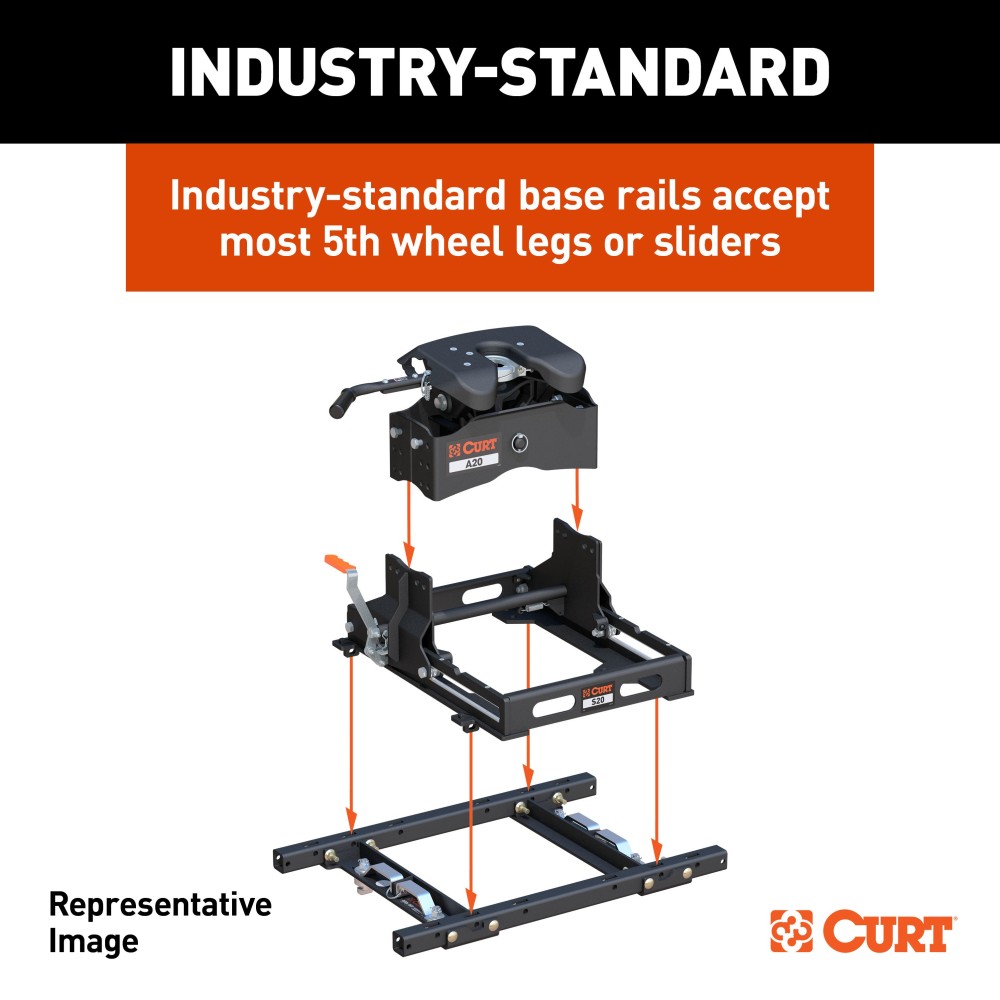

• Industry-standard rails accept most 5th wheel legs and rollers

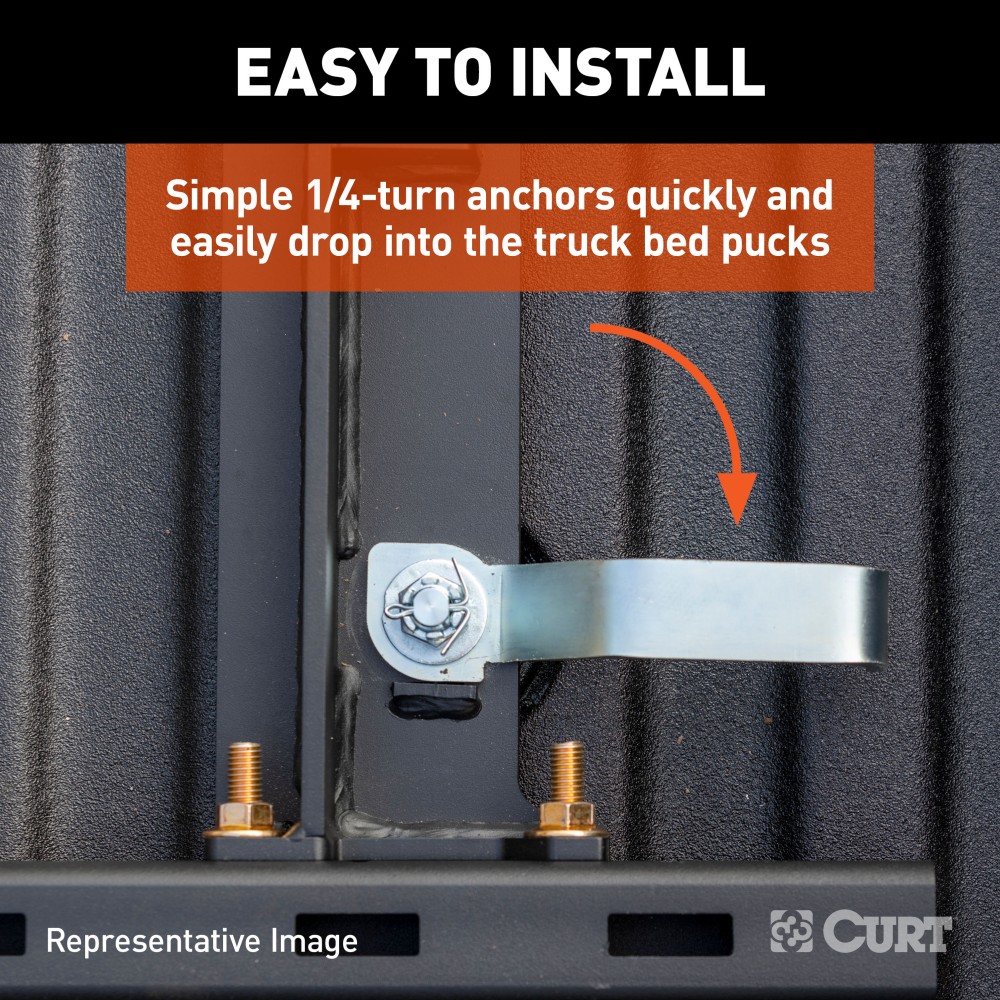

• Quarter-turn anchoring system provides quick installation and removal

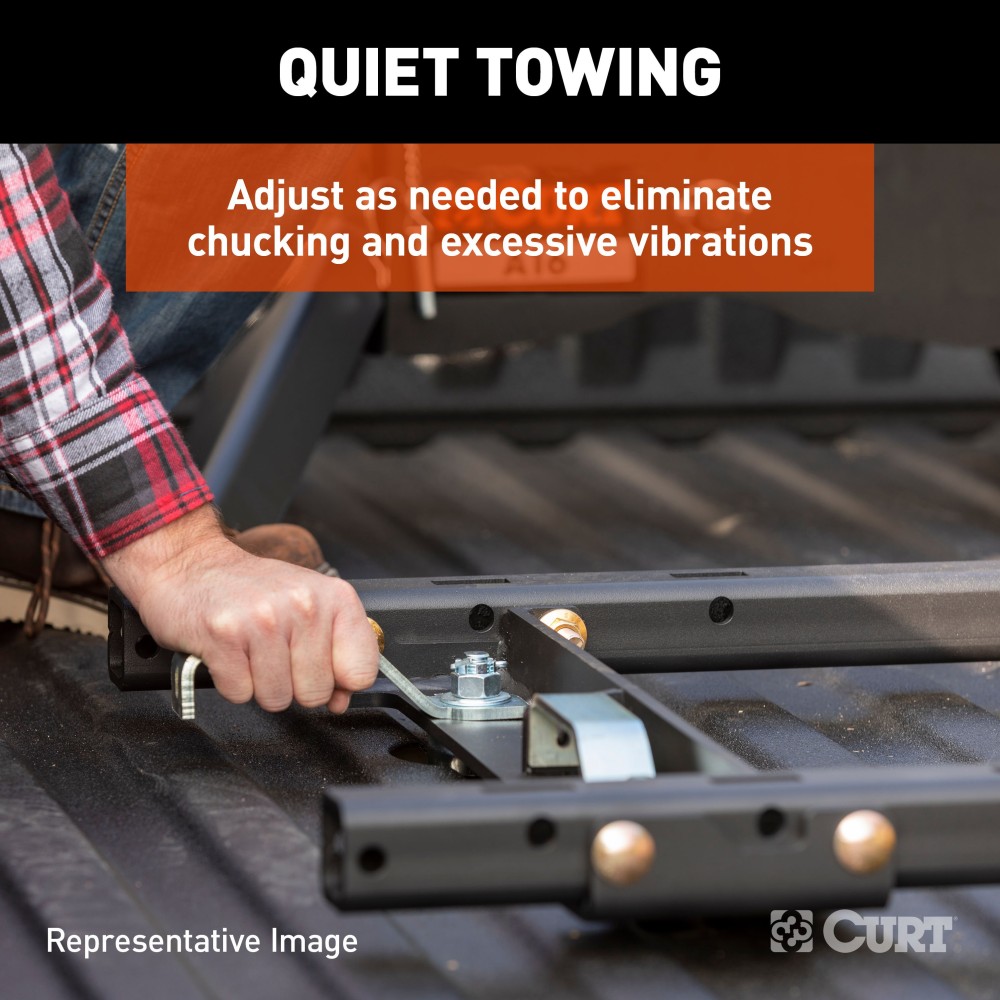

• Adjustable anchors to eliminate chucking between the legs and puck system
• Tested for safety in accordance with SAE J2638

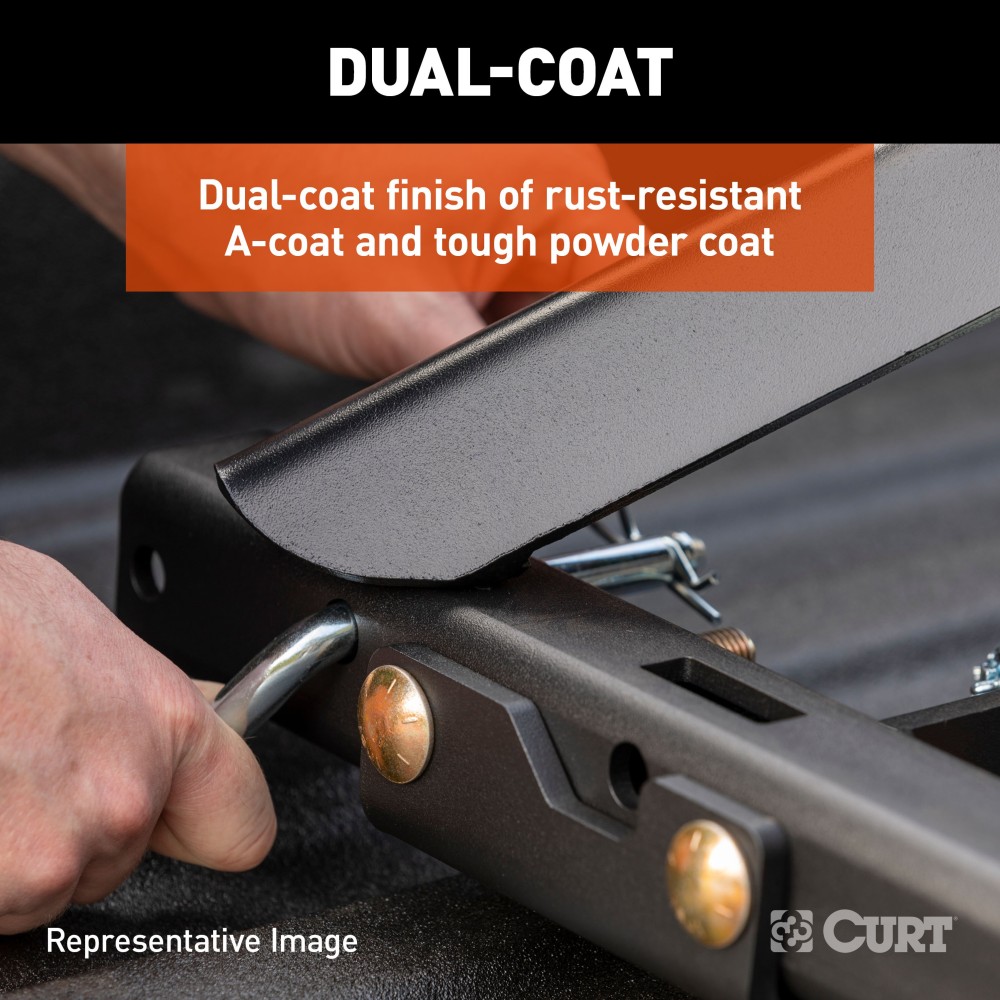

• Protected by a highly durable carbide black powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

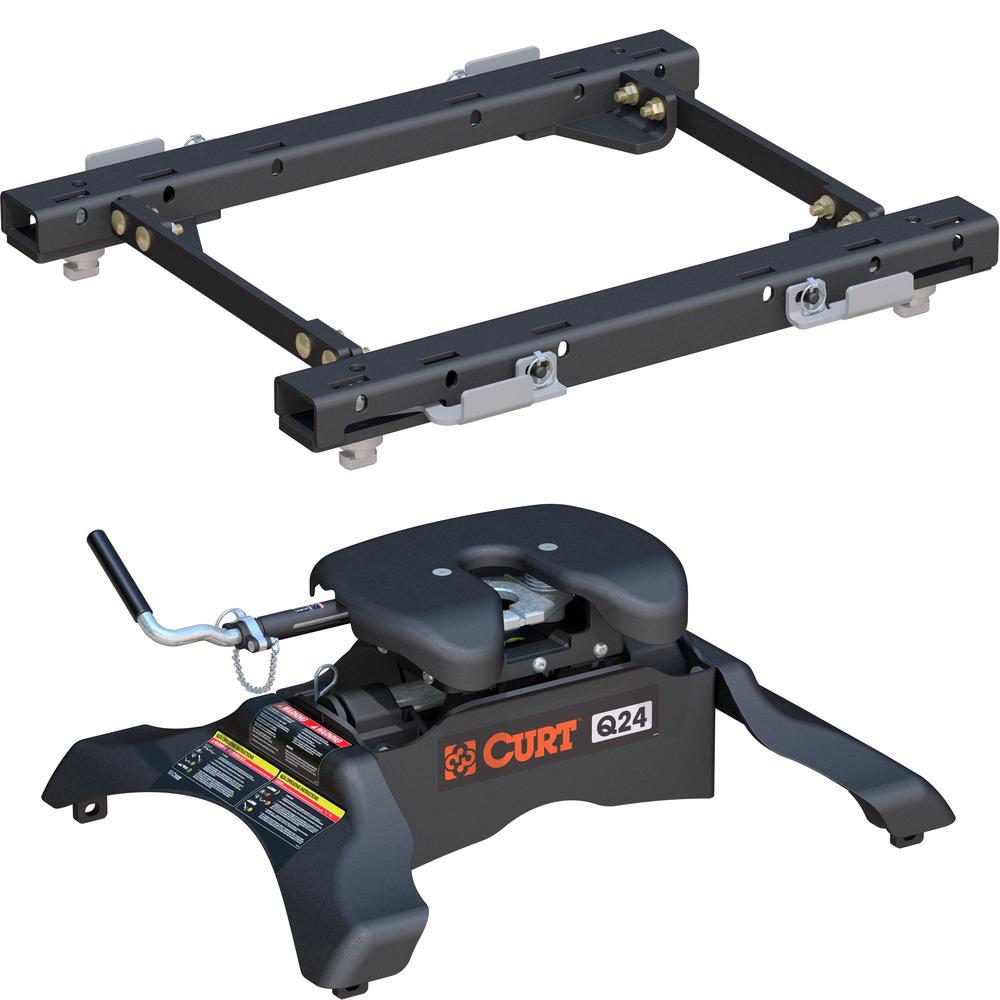

CURT 16245 Q24 5th Wheel Hitch, 24,000 lbs (QTY 1)

Manufactured by: Curt

The CURT Q24 is the heavyweight champion of 5th wheel hitches With a gross trailer weight capacity of 24,000 lbs and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers.

Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction This means smoother turns, a quieter ride and less strain on your towing equipment and truck.

The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately).

Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards Please contact CURT Product Support for compatibility information..

Features:

• Spherical axial bearing tilts head in any direction for a smooth, quiet ride
• Dual jaws fully wrap the kingpin to reduce chucking and increase security
• Wide, self-aligning head helps eliminate errors when backing up to the trailer
• Lockable, short-throw handle automatically engages with the kingpin
• Three easy-access grease fittings for lubrication
• Three-position coupling indicator clearly shows coupling status
• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
