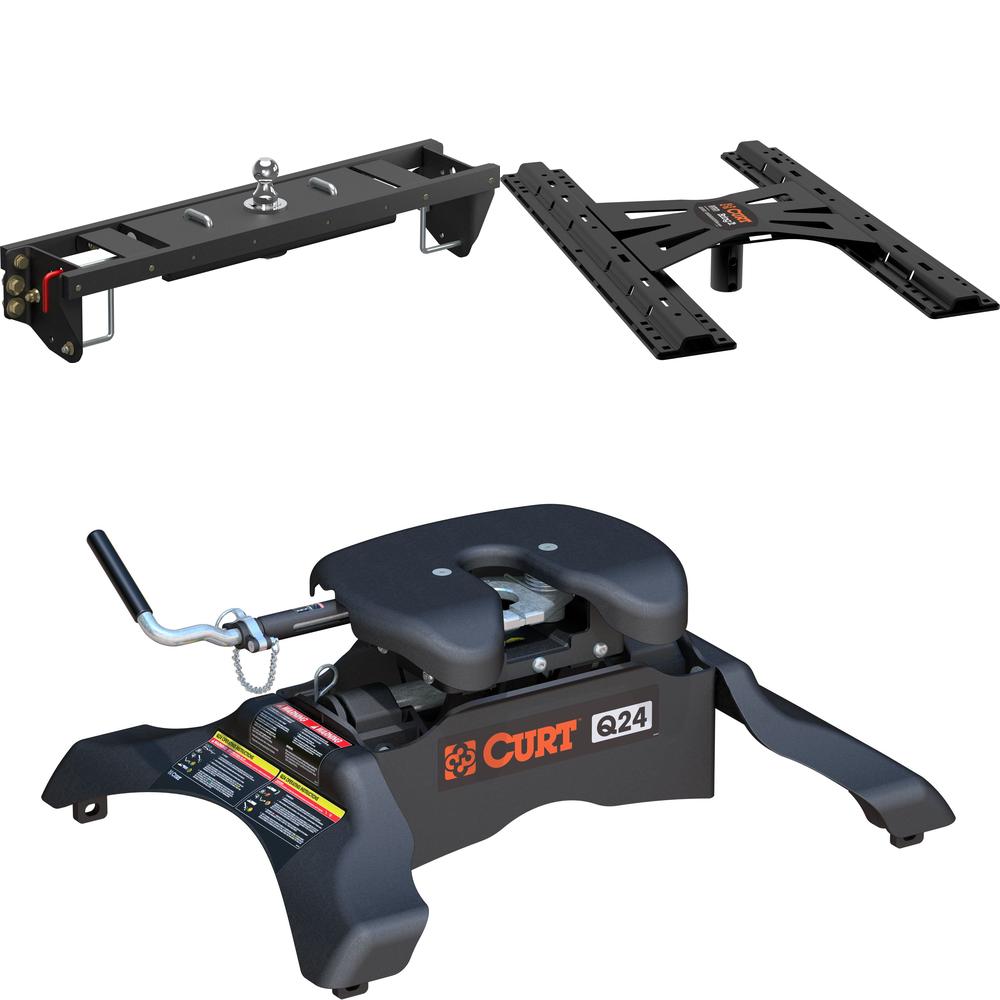

CURT 60690 Double Lock EZr Gooseneck Hitch, 2-5/16-In. Flip-Over Ball 25K (QTY 1)

Manufactured by: Curt

They've made the truck said to turn the world under its tires and the trailer that moves mountains in a day But what about the hitch powerful enough to connect the two? The CURT Double Lock EZr gooseneck hitch boasts easier installation, easier operation and 25,000 lbs of towing capacity to make towing that oversize gooseneck trailer look easy.

To make things even easier, this gooseneck hitch kit includes both the under-bed gooseneck hitch and the vehicle-specific installation brackets The combined kit makes it simple to get your truck ready for towing by eliminating the need to purchase two different parts It includes the #60611 gooseneck hitch and the #60624 installation brackets to fit certain years of the Chevy Silverado or GMC Sierra 2500 HD and 3500 HD (for a complete listing of compatibility, see the CURT fitment guide).

Installation of the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place It also uses our patented center locator to eliminate meticulous measuring and ensure error-free drilling The EZr also uses carriage bolts whenever possible for one-wrench tightening.

Operation of the Double Lock EZr is simple and safe It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions.

With a fortified center section, this hitch offers a gross trailer weight capacity up to 25,000 lbs and a vertical load limit of 6,250 lbs., giving you the power you need to get the job done right This CURT Double Lock EZr gooseneck hitch kit features a durable A-coat finish and includes a limited lifetime warranty.

For safe, reliable towing you can count on, it is tested in accordance with SAE J2638 for safety..

Features:

• One-person installation requires no welding or truck bed removal
• Center locator eliminates the need to measure where the ball hole should be
• Double locking pins for superior trailer and trailer ball security
• Flip-and-store ball keeps truck bed free of obstructions
• Vehicle-specific design optimizes strength and installation time
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Chrome-plated trim ring provides a finished look
• Rubber hole cover helps prevent corrosion in trailer ball hole
• Heavy-duty 3/8" diameter handle for solid operation
• Includes strong 5/8" safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Tested for safety in accordance with SAE J2638
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16220 X5 Gooseneck to 5th Wheel Adapter for Double Lock EZr Hitches, Industry-Standard Base Rails, 20,000 lbs (QTY 1)

Manufactured by: Curt

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails.

This CURT 5th wheel adapter plate features a round shank and is compatible with CURT Double Lock EZr gooseneck hitches It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller..

Features:

• Converts CURT Double Lock EZr gooseneck hitches to 5th wheel rails
• For use with CURT and competitive 5th wheels up to 20,000 lbs.
• Industry-standard base rails accept 5th wheel hitches and rollers
• Protected by a highly durable carbide powder coat finish
• No assembly or tools required – just drop it in, lock it and go
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16245 Q24 5th Wheel Hitch, 24,000 lbs (QTY 1)

Manufactured by: Curt

The CURT Q24 is the heavyweight champion of 5th wheel hitches With a gross trailer weight capacity of 24,000 lbs and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers.

Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction This means smoother turns, a quieter ride and less strain on your towing equipment and truck.

The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately).

Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards Please contact CURT Product Support for compatibility information..

Features:

• Spherical axial bearing tilts head in any direction for a smooth, quiet ride
• Dual jaws fully wrap the kingpin to reduce chucking and increase security
• Wide, self-aligning head helps eliminate errors when backing up to the trailer
• Lockable, short-throw handle automatically engages with the kingpin
• Three easy-access grease fittings for lubrication
• Three-position coupling indicator clearly shows coupling status
• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
