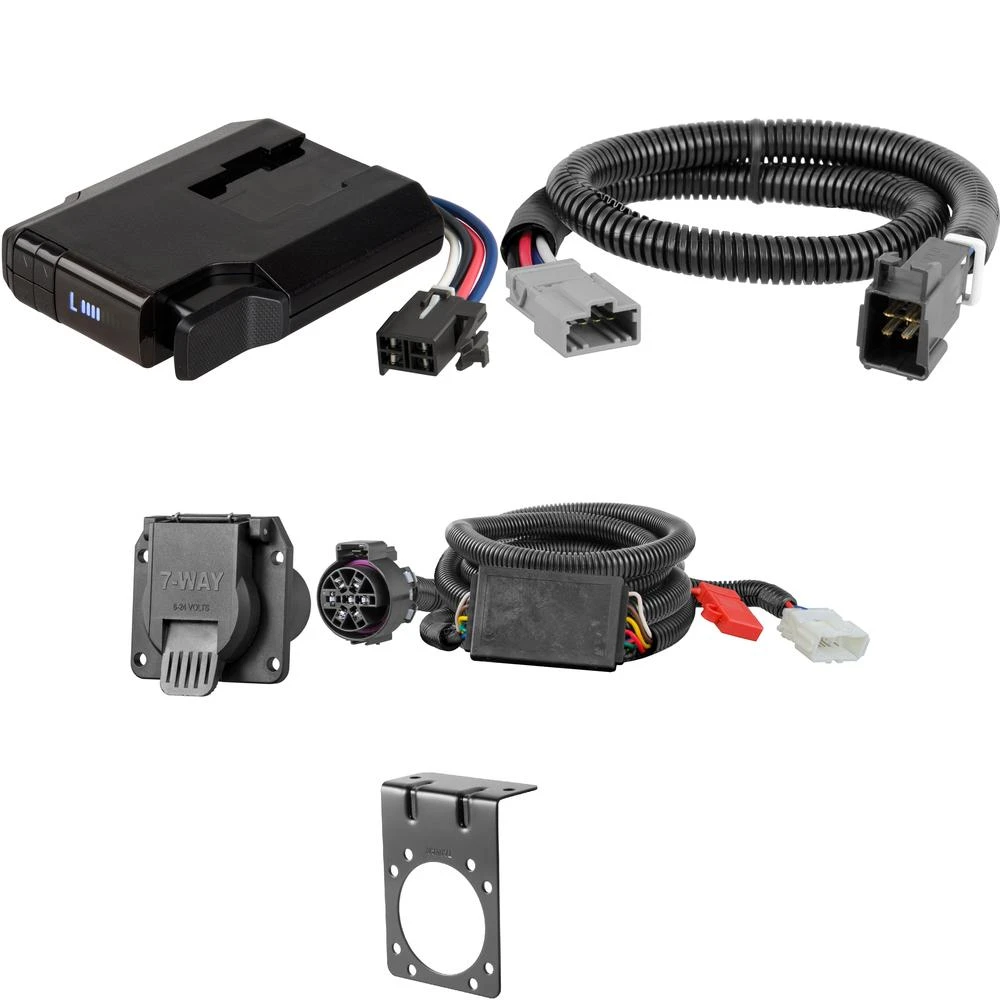

Curt Venturer Electric Trailer Brake Control w/ 7-Way Wiring Kit For 16-22 Honda Pilot 19-25 Passport
Model: CU63BIConnector Mounting Bracket for 7-Way RV Blade (Black)
Venturer NEXT Trailer Brake Controller Time-Delay
Trailer Brake Controller Harness
Installation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)
This Trailer Wiring Harness Fits The Following Vehicles:
- 2019 - 2025 Honda Passport All Models
- 2016 - 2022 Honda Pilot All Models

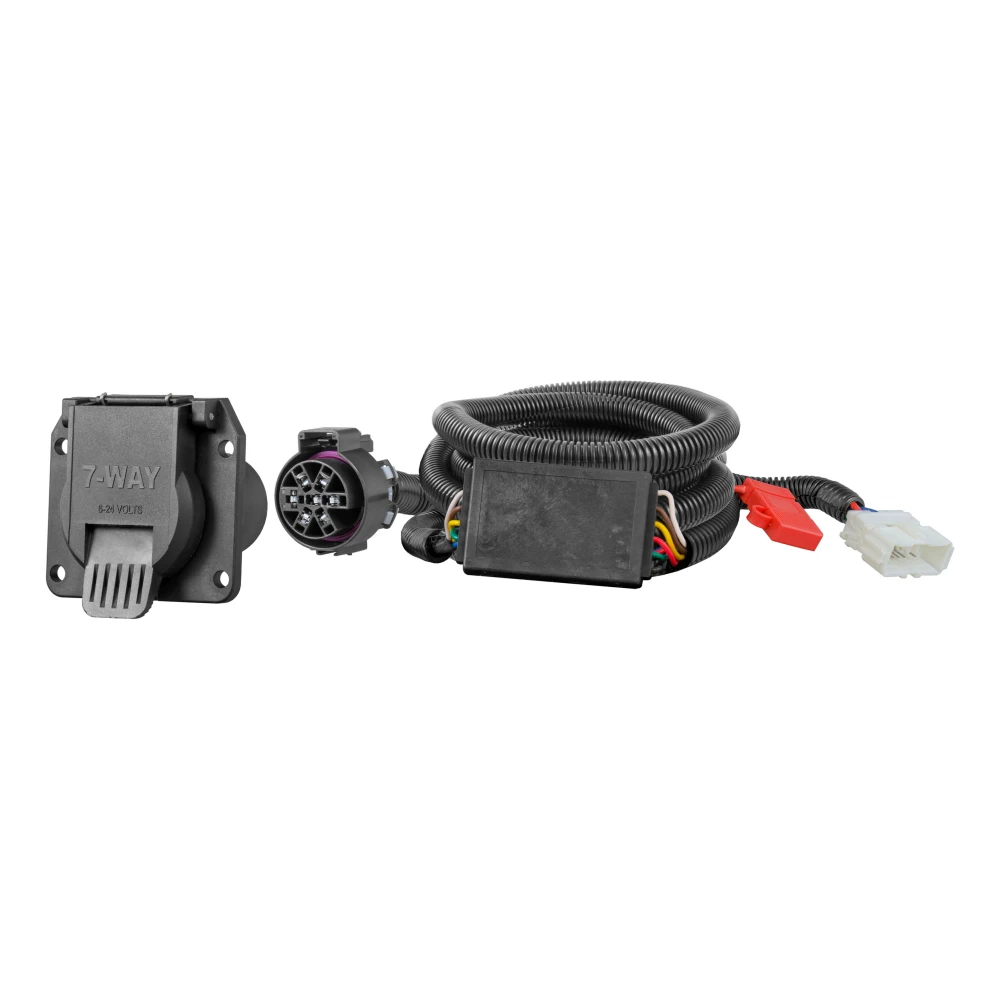

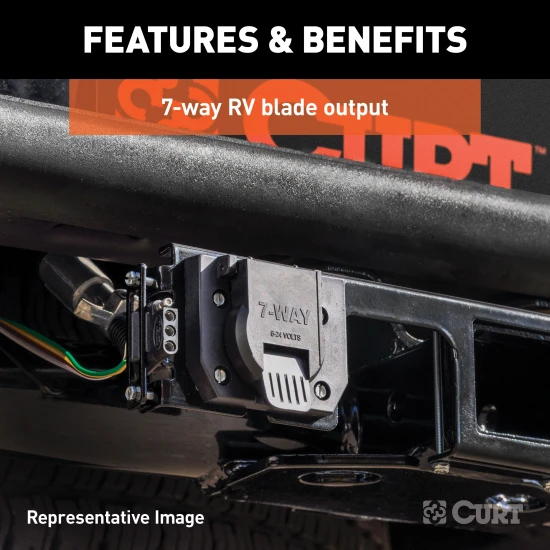

CURT 56421 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness (QTY 1)
Manufactured by: Curt
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing Each one is custom-fitted to work with a specific make and model This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Honda Pilot and Passport (see application info to verify fitment).

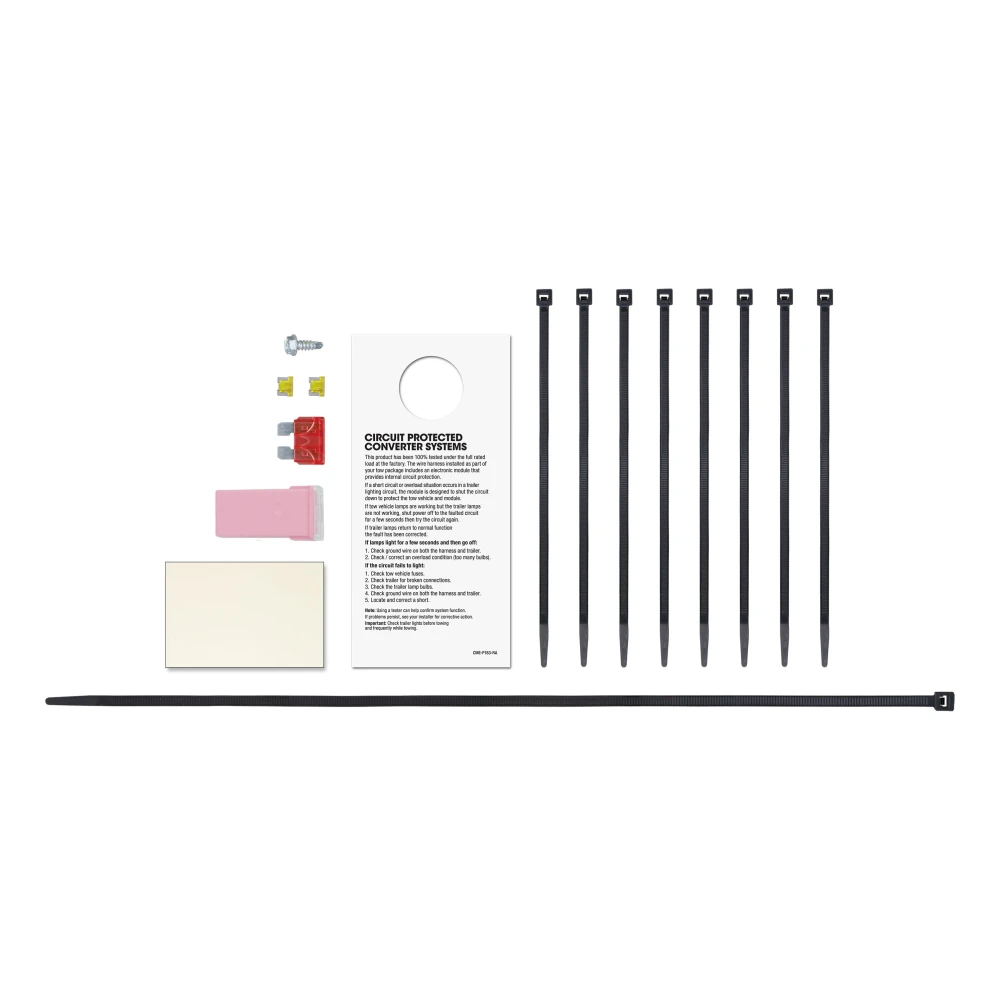

It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use.
All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.
Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality..
Features:

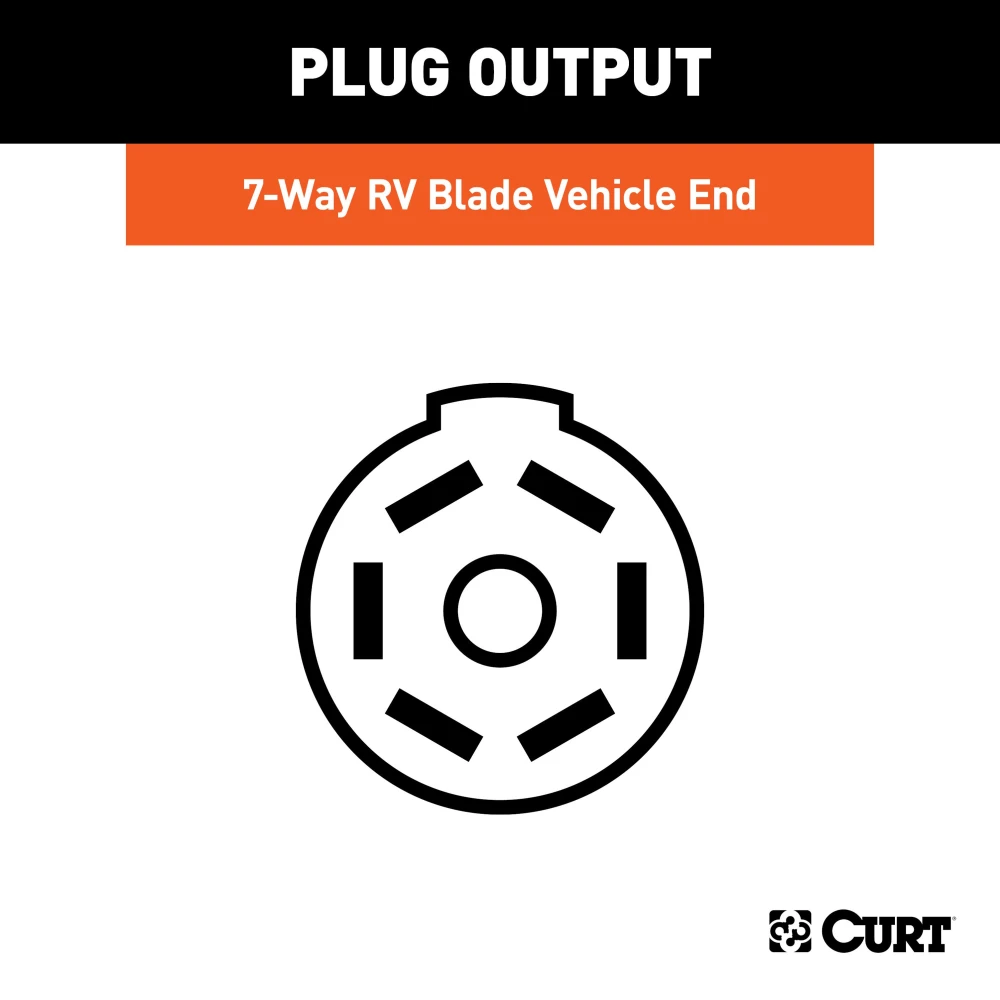

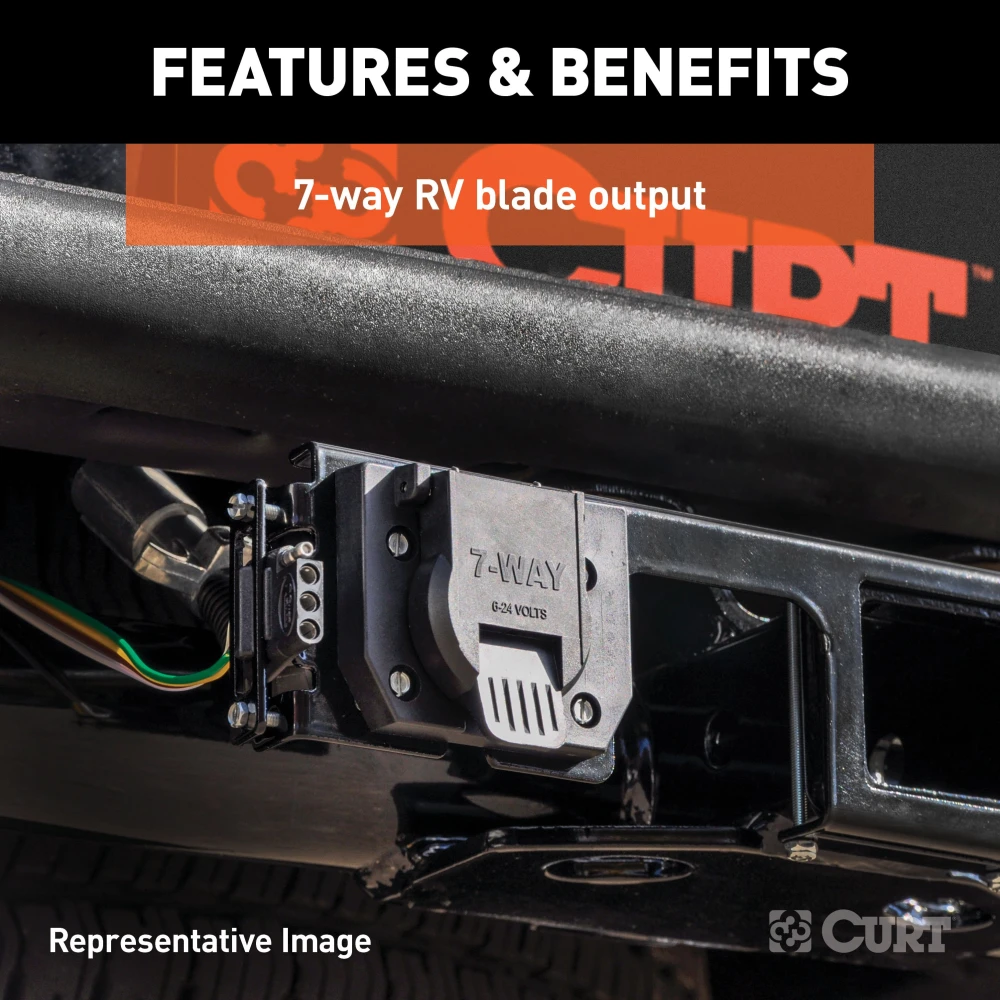

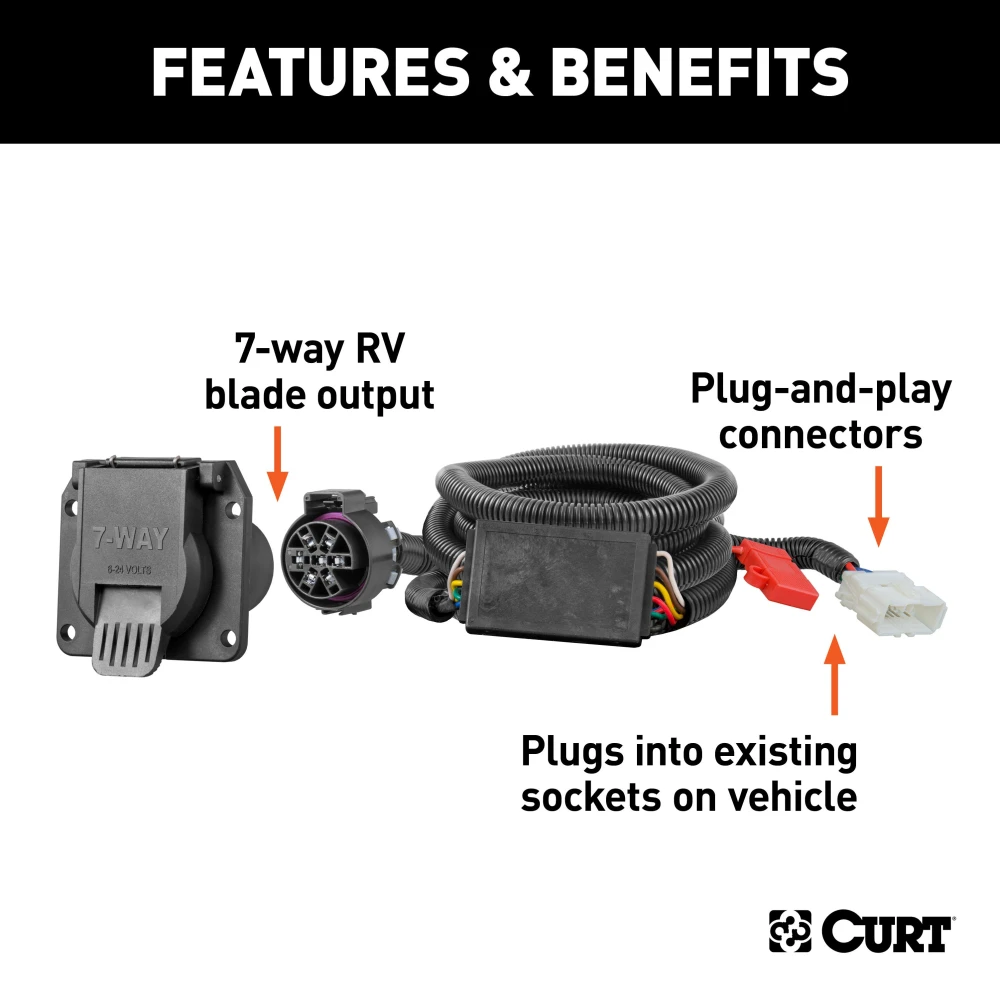

- Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Spring-loaded dust cover keeps connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
CURT 58290 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 7-Way RV Blade (QTY 1)
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.
An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 7-way RV blade socket.
It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch When it comes to plugging in your trailer lights, it pays not to skimp out CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead.
Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT..
Features:
- Securely mounts 7-way RV blade connector sockets
- Allows for attachment to the vehicle or trailer hitch
- Multiple screw holes offer flexible mounting options
- Constructed from high-strength steel
- Protected by a durable gloss black finish
CURT 51116 Venturer NEXT Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 1-3 Axles, Plug-and-Play (QTY 1)
Manufactured by: Curt
Experience the reliability and efficiency of the CURT Venturer NEXT, an intuitive and compact brake controller designed to ensure dependable operation of your electric trailer brakes directly from your vehicle's cabin Featuring a sleek and modern design, this advanced controller is equipped with a low-profile bracket that adds clearance for enhanced functionality With the ability to control 2-6 trailer brakes at a time (1-3 axles), it offers fully adjustable settings to perfectly adapt to your unique vehicle-trailer setup.
The Venturer NEXT is a redesigned and improved version of our popular Venturer brake controller, offering compatibility with low-volt, PWM, ABS, cruise control, and electric over hydraulic brakes Its slim profile provides a functional and contemporary aesthetic, allowing for powerful brake control at your fingertips without dominating your vehicle's dashboard The LED display conveniently shows power adjustments in 1.0 increments, allowing you to quickly check your settings, and the brightness is adjustable for optimal visibility during day or night towing.
Additionally, the included unique mounting bracket further enhances clearance, ensuring a seamless and unobtrusive installation Equipped with a time-delay feature, the Venturer NEXT brake controller provides fully adjustable power and ramp time Choose from a wide range of 10 gain settings and nine load settings to perfectly match your specific towing requirements.
The ramp-up progress is clearly displayed through LED indicators, and the brightness can be adjusted to suit day or night-time towing conditions This time-based brake controller is quick and easy to set up, with no internal moving parts or leveling required It offers versatile mounting options, allowing installation at any desired location and angle within your vehicle.
For convenient plug-and-play installation, it is recommended to use a CURT brake controller wiring harness (sold separately)..
Features:
- Slim, low-profile design for a functional, modern aesthetic
- Unique bracket system for improved dash clearance
- Fully adjustable power and ramp time
- Operates 2-6 trailer brakes at a time (1-3 axles)
- No internal moving parts and no leveling required
- 10 gain settings and 9 load settings to adapt to various driving conditions
- LED indicator lengthens as controller applies power
- Digital display shows power adjustments in 1.0 increments
- Adjustable brightness for optimal visibility
- Mounts anywhere in the vehicle, at any angle
- Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
- Auto-sleep mode prevents battery drain after five minutes of idle time
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)

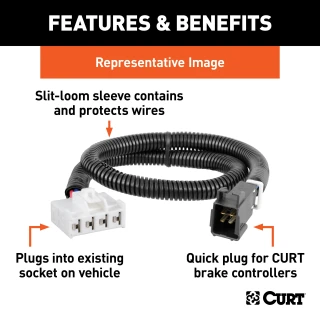

CURT 51392 Quick Plug Electric Trailer Brake Controller Wiring Harness (QTY 1)
Manufactured by: Curt
A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket The other end plugs into your CURT trailer brake controller.
Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation This particular brake controller harness fits certain years of the Honda Passport, Pilot and Ridgeline (see application info to verify fitment) CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation.
They're also great for towing all types of trailers with electric brakes For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long It also features a slit loom sleeve to keep the wires protected against crushing and abrasions.
CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight..
Features:
- Allows a CURT trailer brake controller to be plugged into OEM socket
- Quick plug harness installs with plug-and-play convenience
- Wire colors match standard brake controller harnesses
- Includes 24" of 12 gauge wire for flexible installation
- Slit-loom sleeve keeps wires contained and protected
List of Fitment Years:
2025, 2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016$275 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$275 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Curt
- Model: CU63BI
- Includes: Trailer Wiring 7-Way Plug w/ Bracket, Venturer Brake Control
-
Fitment CodesCWPPBCP259 16-22 Honda Pilot 19-25 Passport
Compatibility Chart
| Year Range | Make | Model | Style | Fitment Code |
|---|
