Product Details
- Brand: Curt
- Model: 16210
- UPC: 612314162109

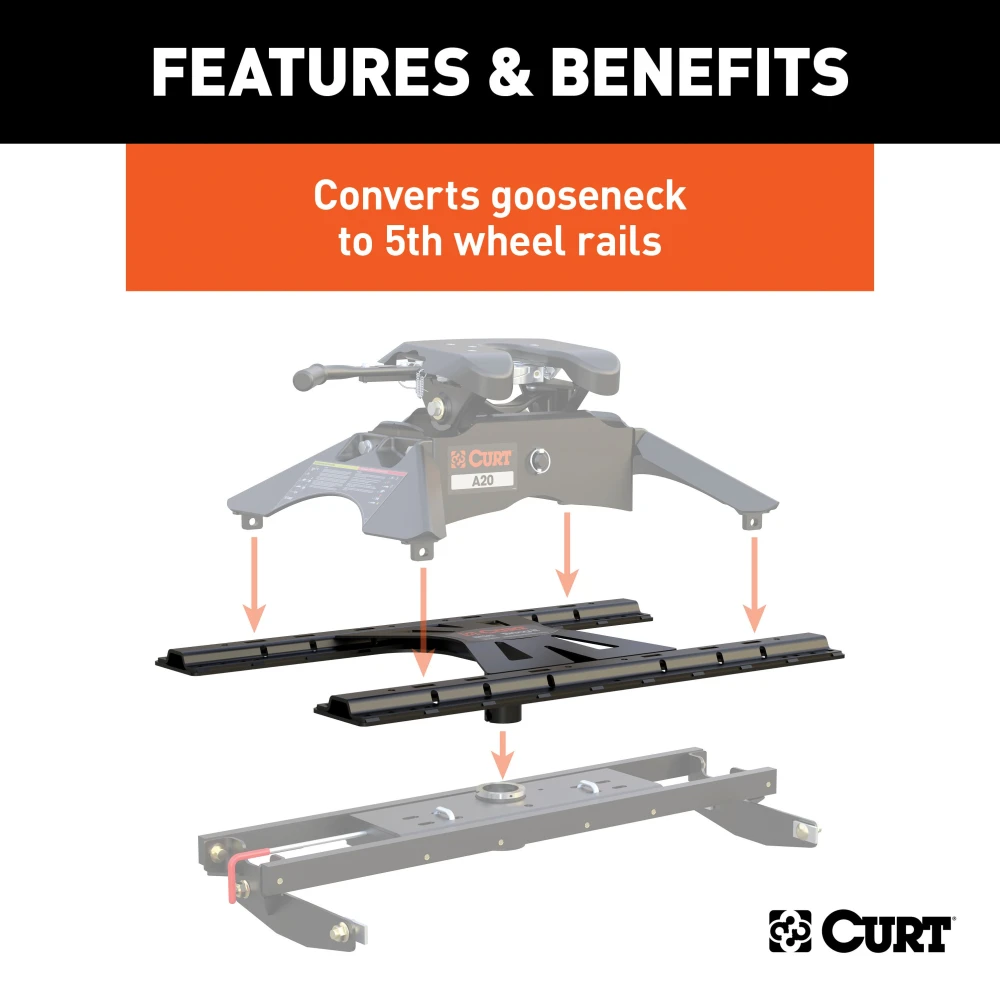

- Includes: Gooseneck to 5th Wheel Adapter
Description
Get Expert Help

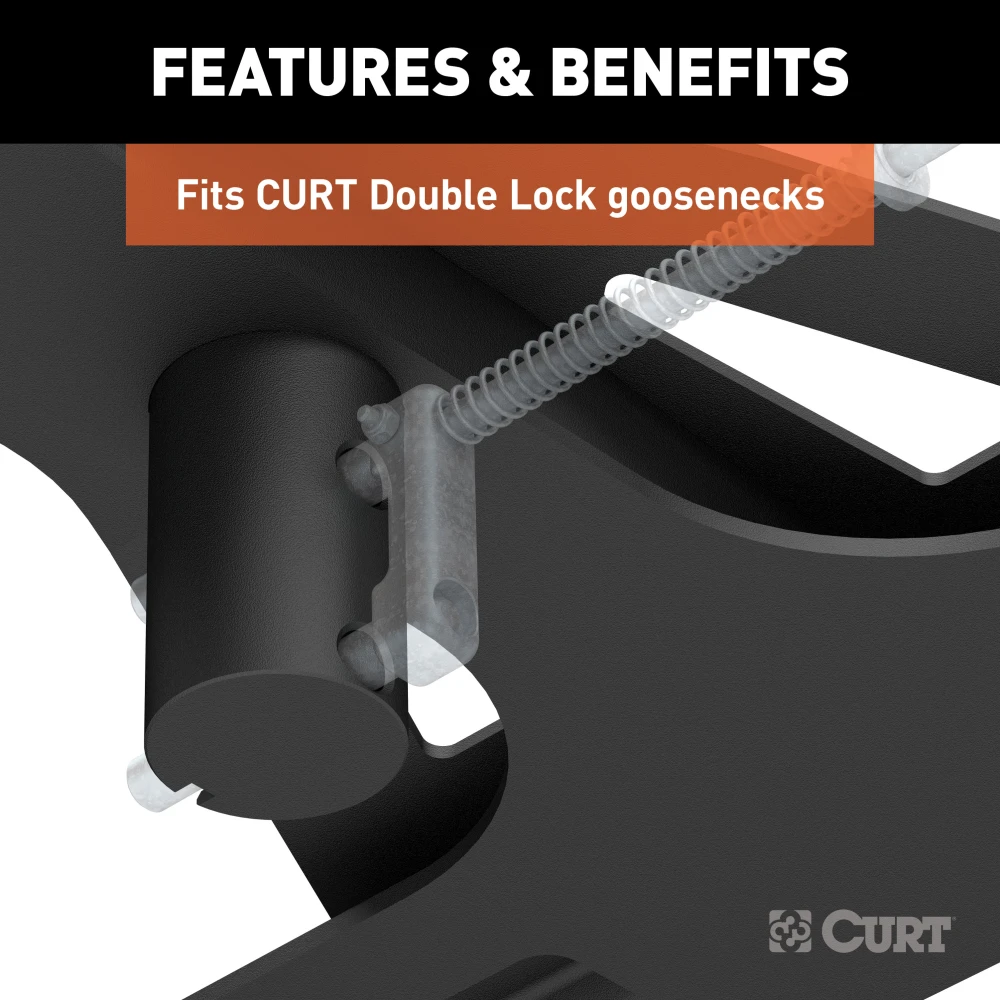

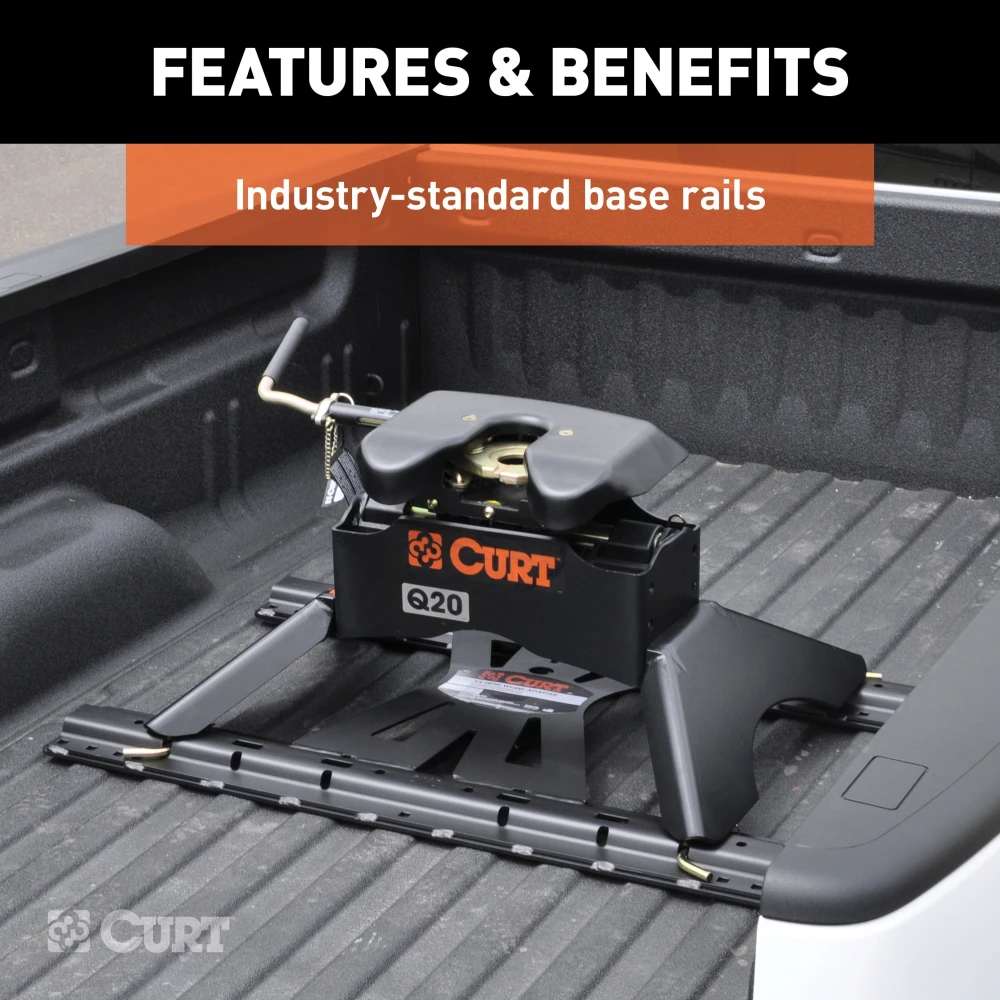

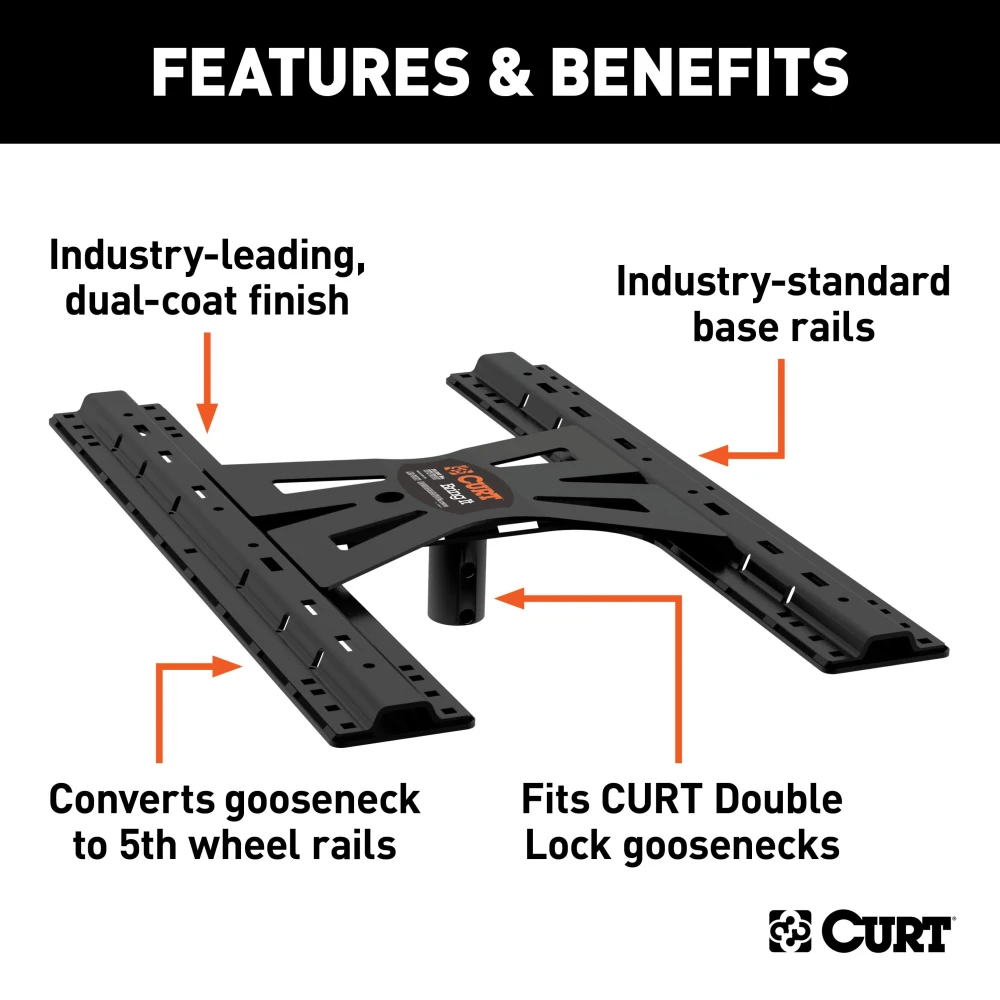

CURT X5 Gooseneck to 5th Wheel Adapter for Double Lock Hitches Industry Standard Base Rails 20000 Pounds 16210 Install Notes
Installation Instructions for CURT X5 5th Wheel Adapter Plate (Model 16210) ### Part Numbers: - 16210 ### Wiring Access Location: Not mentioned. ### Tools Required: - No tools required ### Step-by-Step Instructions: 1. Remove Existing Gooseneck Ball: - Remove the existing gooseneck ball from the vehicle's gooseneck cylinder. Ensure the handle is in the "unlocked" position. - Return the gooseneck ball to the vehicle owner for future use. 2. Install the X5 5th Wheel Adapter Plate: - Insert the X5 5th Wheel Adapter Plate into the gooseneck cylinder. - Rotate the double lock handle to lock the unit securely in place. ### Hardware List: - 1x X5 5th Wheel Adapter Plate (Model 16210) ### Safety Notes: - Warning: Always ensure that the receiver hitch is properly installed and all fasteners are tightened before use. - Periodically check the receiver hitch to ensure that all fasteners remain tight and that the structural components are sound. - Do not exceed the vehicle manufacturer's recommended towing capacity. ### Specifications: - Gross Load Capacity (Weight Carrying Hitch): 20,000 lbs trailer weight, 4,000 lbs tongue weight. - Hitch Weight: 100 lbs. - Install Time: 10 minutes.
Installation Instructions for X5 5th Wheel Adapter Plate (Model 16210)
Part Numbers:
- 16210
Wiring Access Location:
- Not mentioned.
Tools Required:
- No tools required
Step-by-Step Instructions:
-
Remove Existing Gooseneck Ball:
- Remove the existing gooseneck ball from the vehicle's gooseneck cylinder. Ensure the handle is in the "unlocked" position.
- Return the gooseneck ball to the vehicle owner for future use.
-

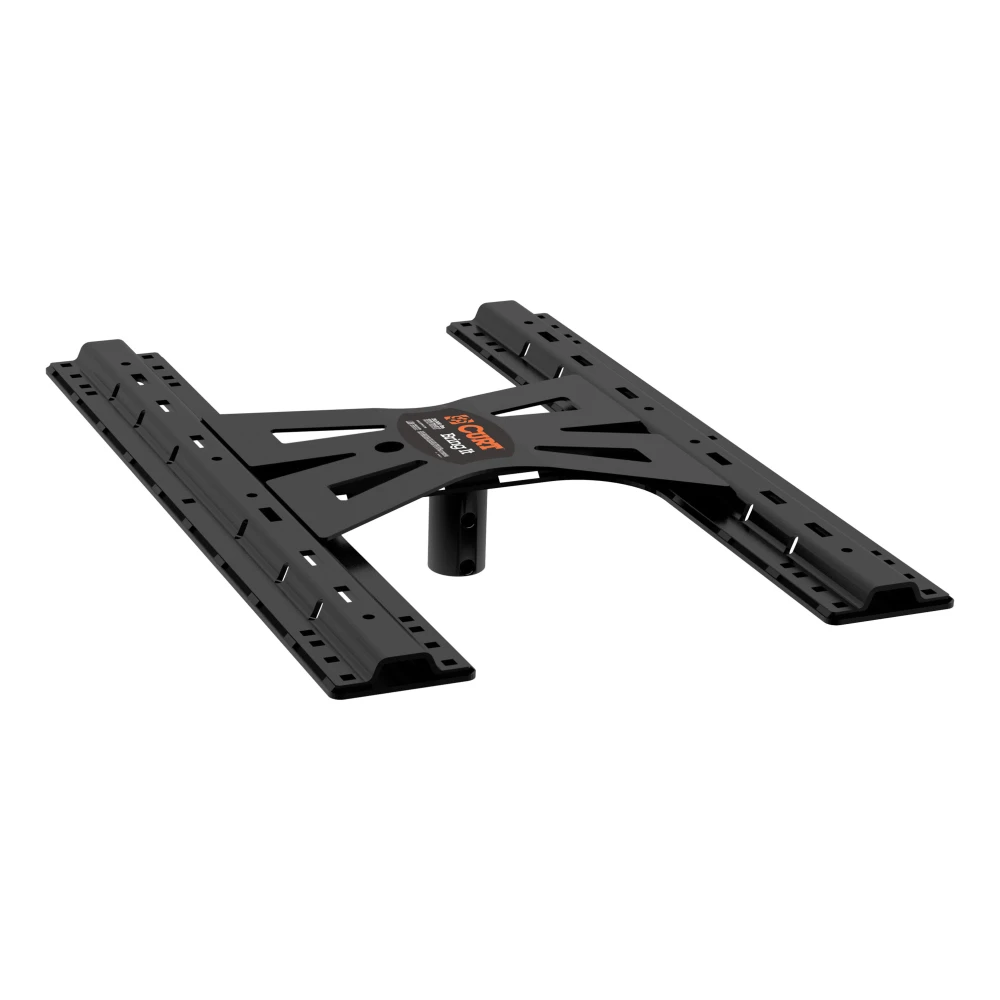

Install the X5 5th Wheel Adapter Plate:
- Insert the X5 5th Wheel Adapter Plate into the gooseneck cylinder.
- Rotate the double lock handle to lock the unit securely in place.
Hardware List:
- 1x X5 5th Wheel Adapter Plate (Model 16210)
Safety Notes:
- Warning: Always ensure that the receiver hitch is properly installed and all fasteners are tightened before use.
- Periodically check the receiver hitch to ensure that all fasteners remain tight and that the structural components are sound.
- Do not exceed the vehicle manufacturer's recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch): 20,000 lbs trailer weight, 4,000 lbs tongue weight.
- Hitch Weight: 100 lbs.
- Install Time: 10 minutes.
Installation Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
