Draw‑Tite Fold‑Down Gooseneck Hitch Head 25000 lbs Capacity 8339
Model: 8339REESE Above Bed Fold-Down Gooseneck Hitch

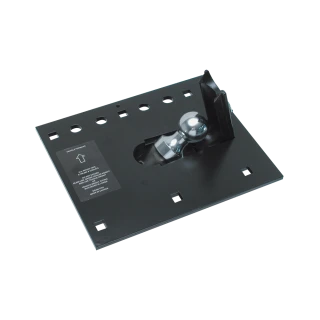

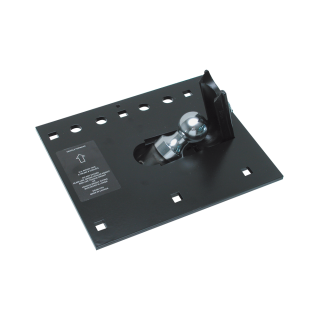

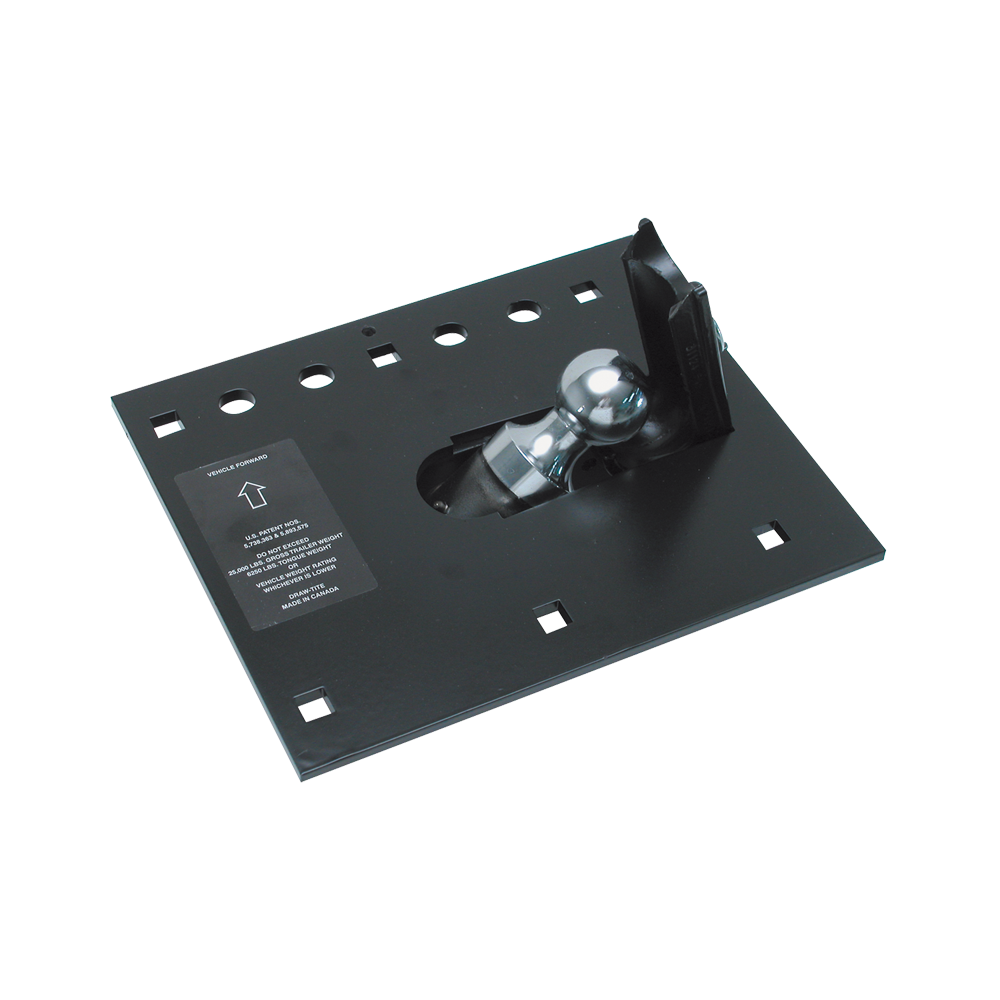

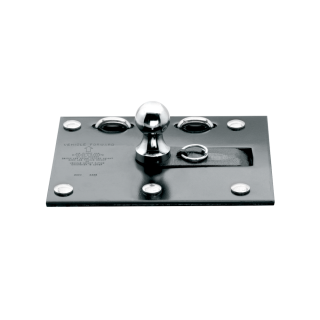

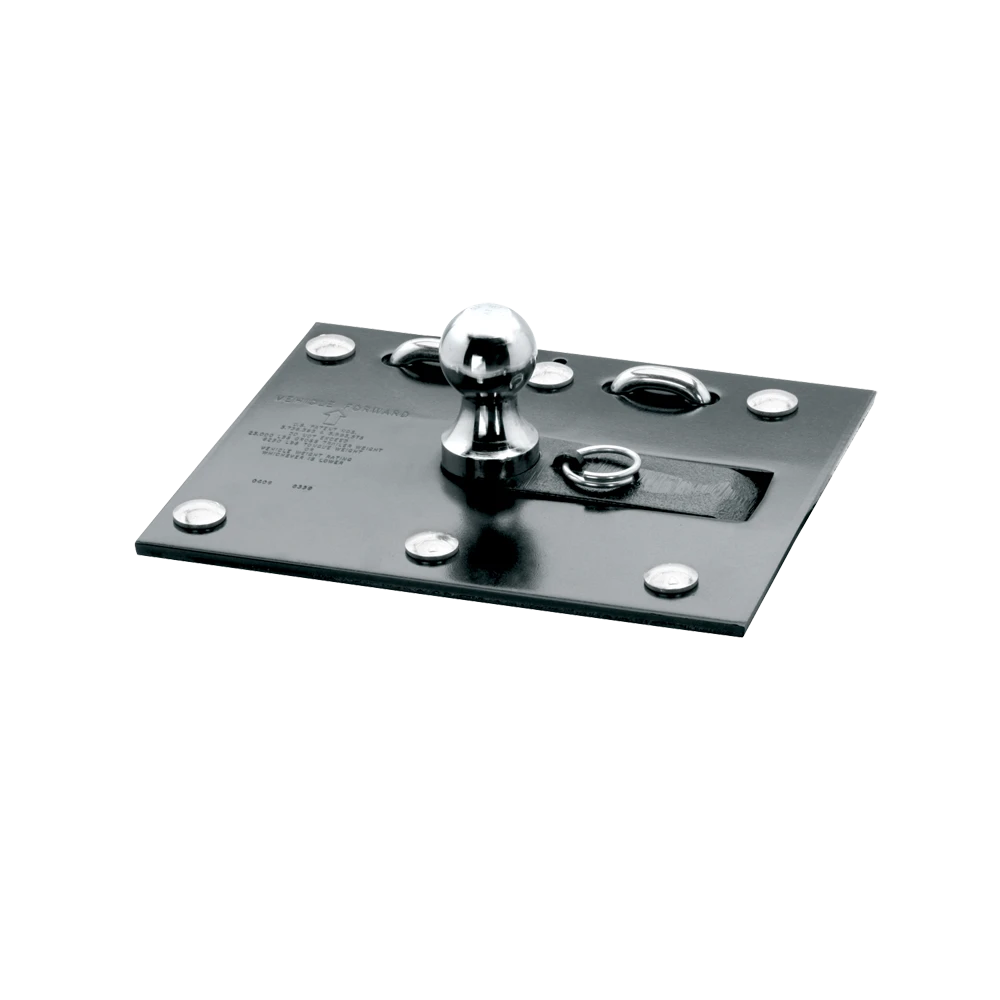

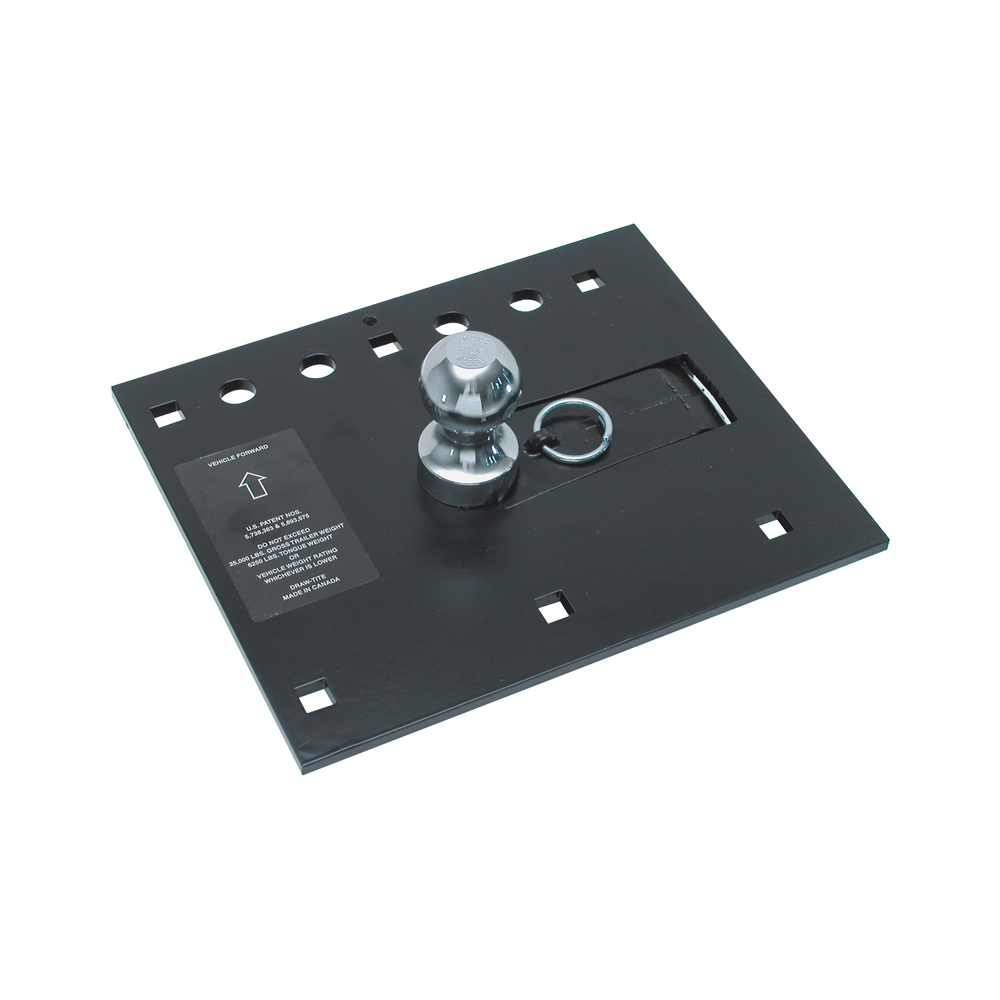

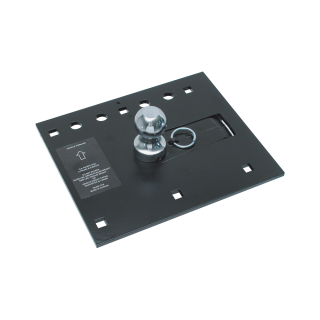

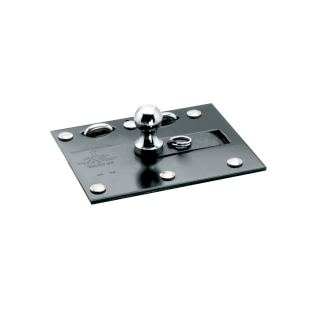

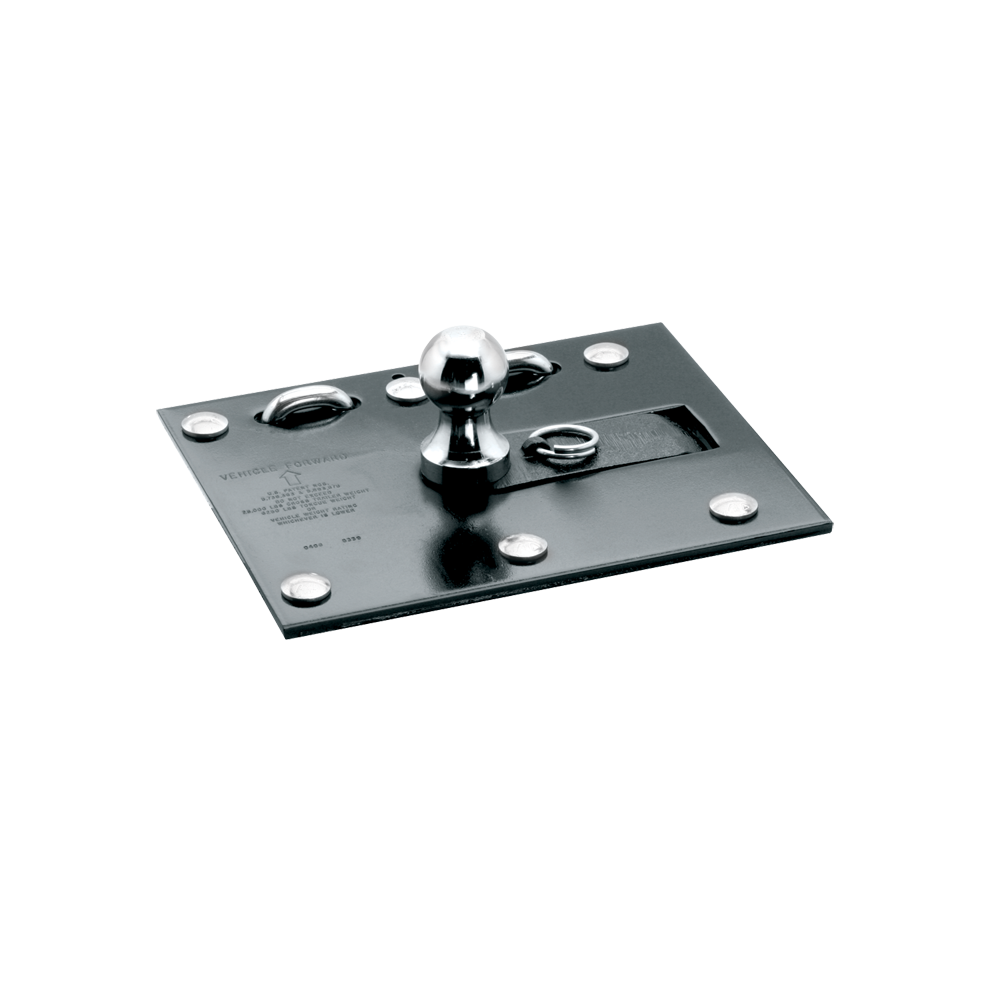

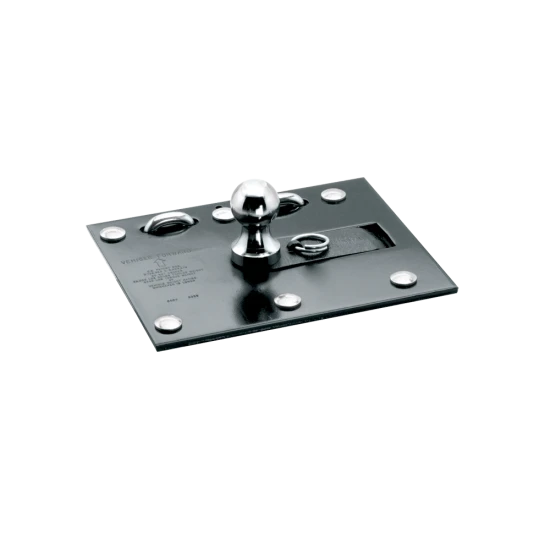

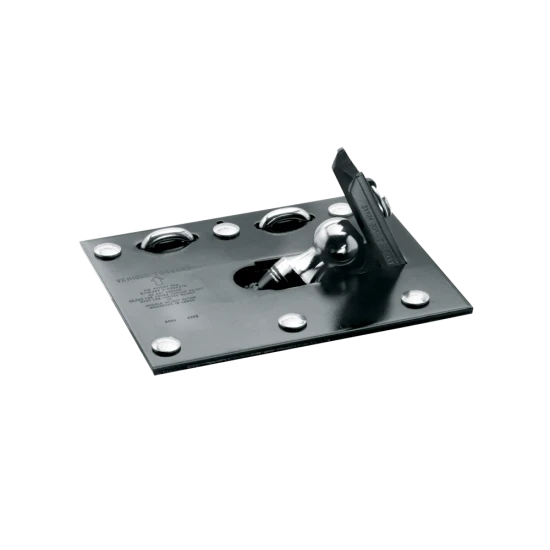

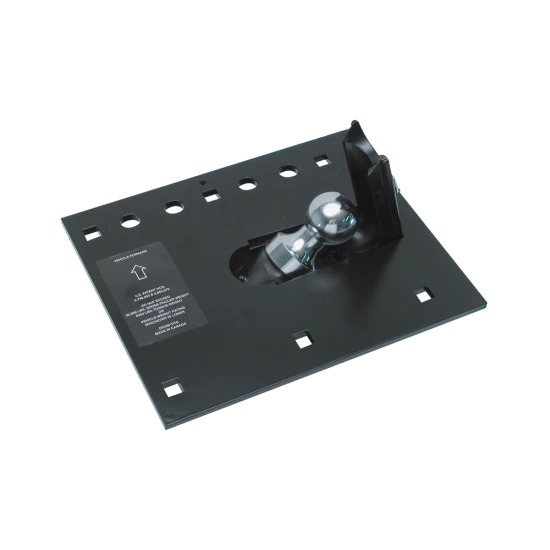

The REESE Above Bed Fold-Down Gooseneck Hitch is the ultimate solution for those seeking versatility and efficiency in their towing setup. Tailored for truck owners, this hitch effortlessly combines functionality with convenient features, ensuring you have unrestricted use of your truck bed when not towing.

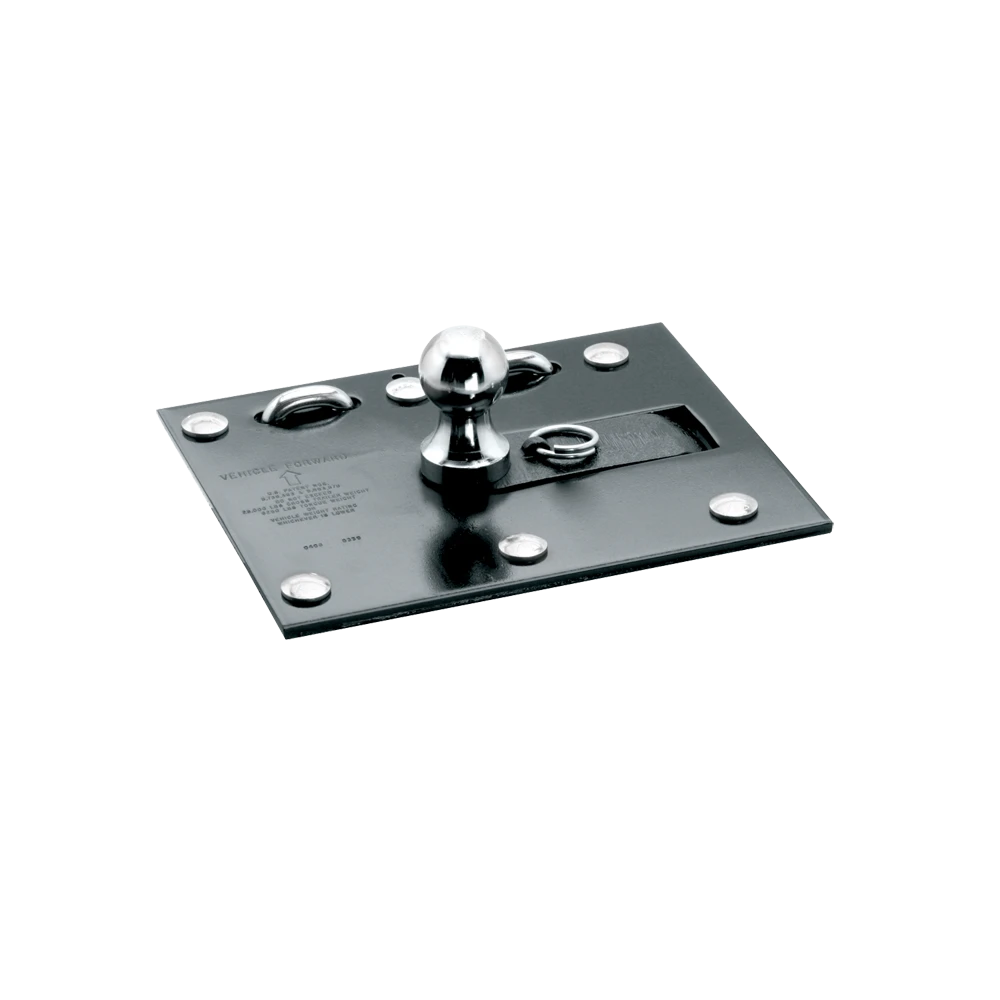

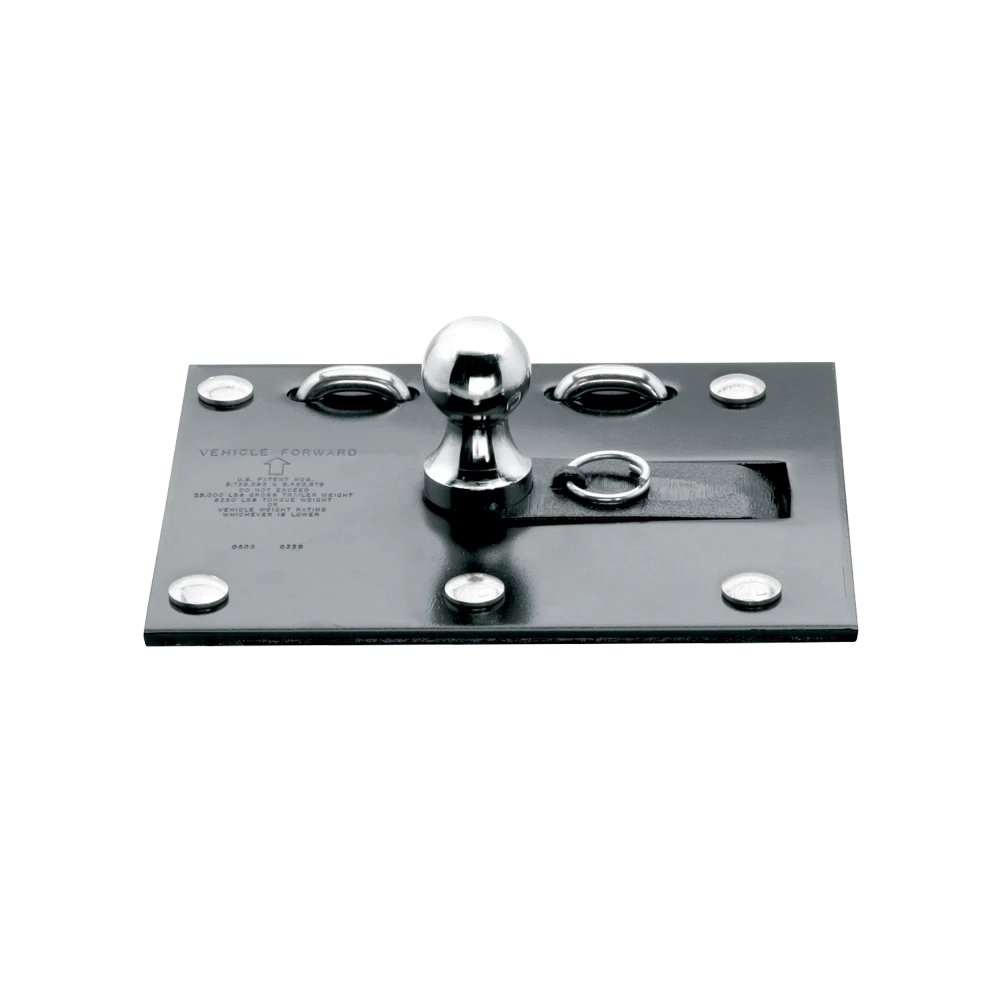

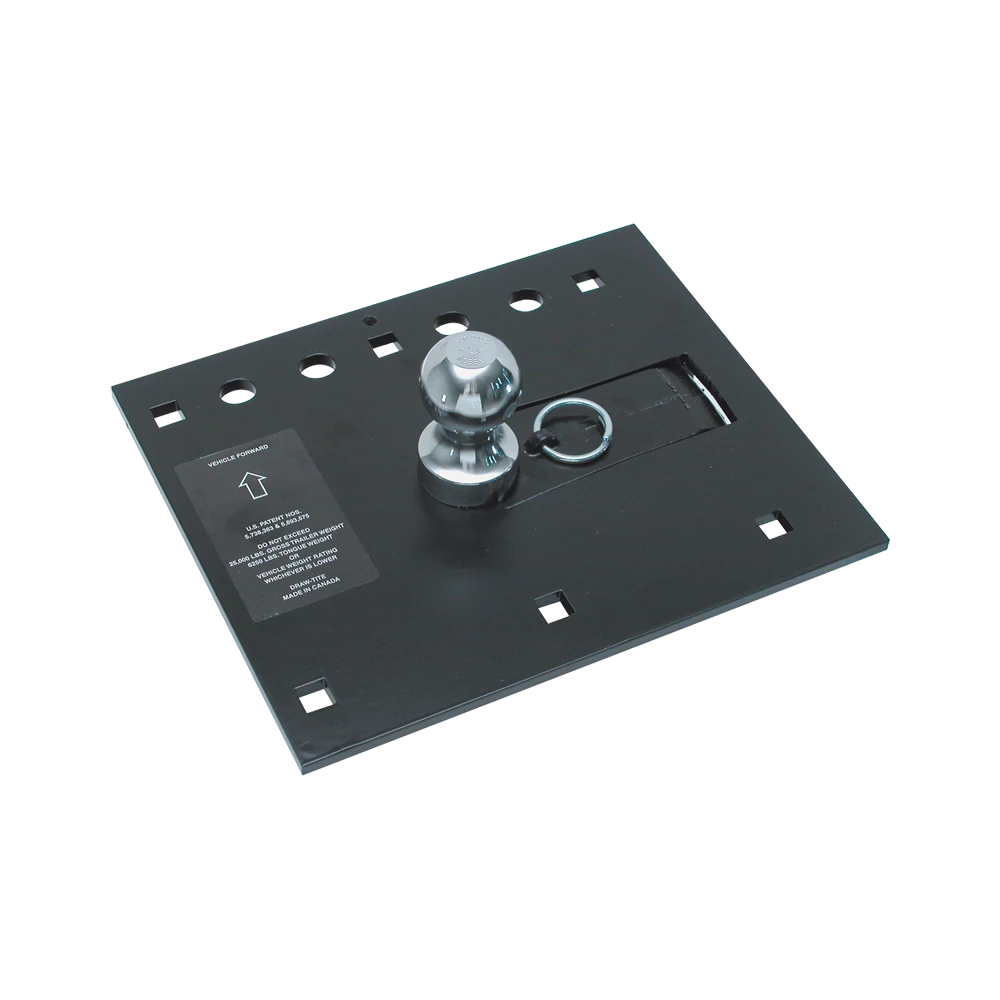

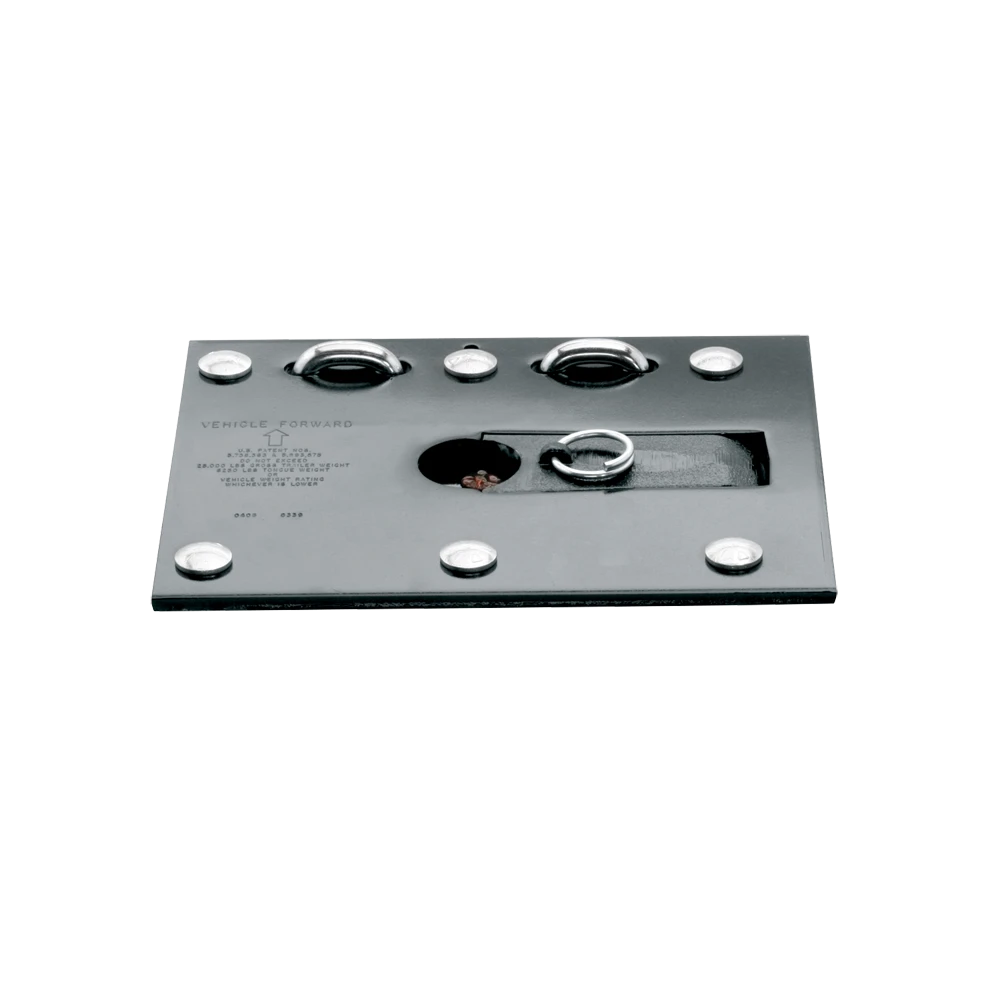

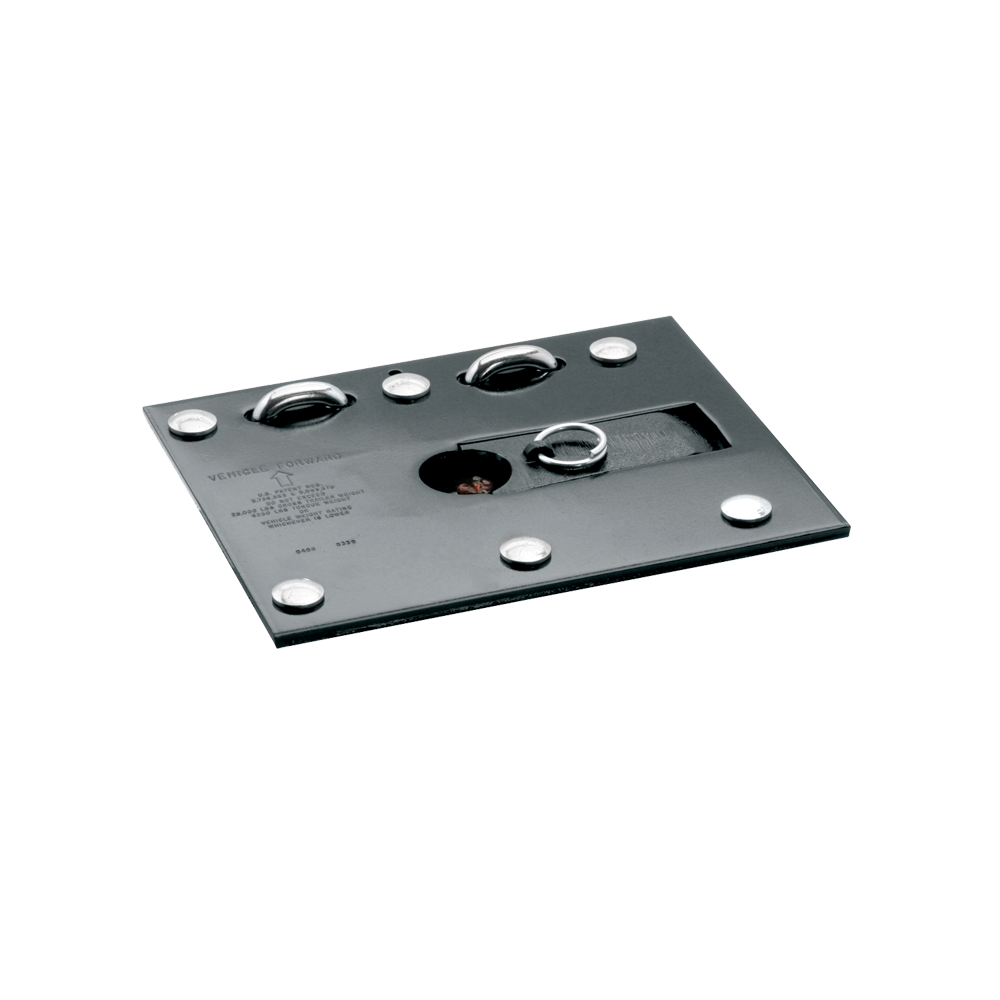

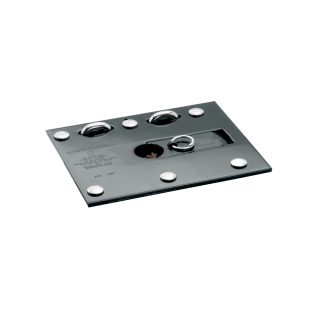

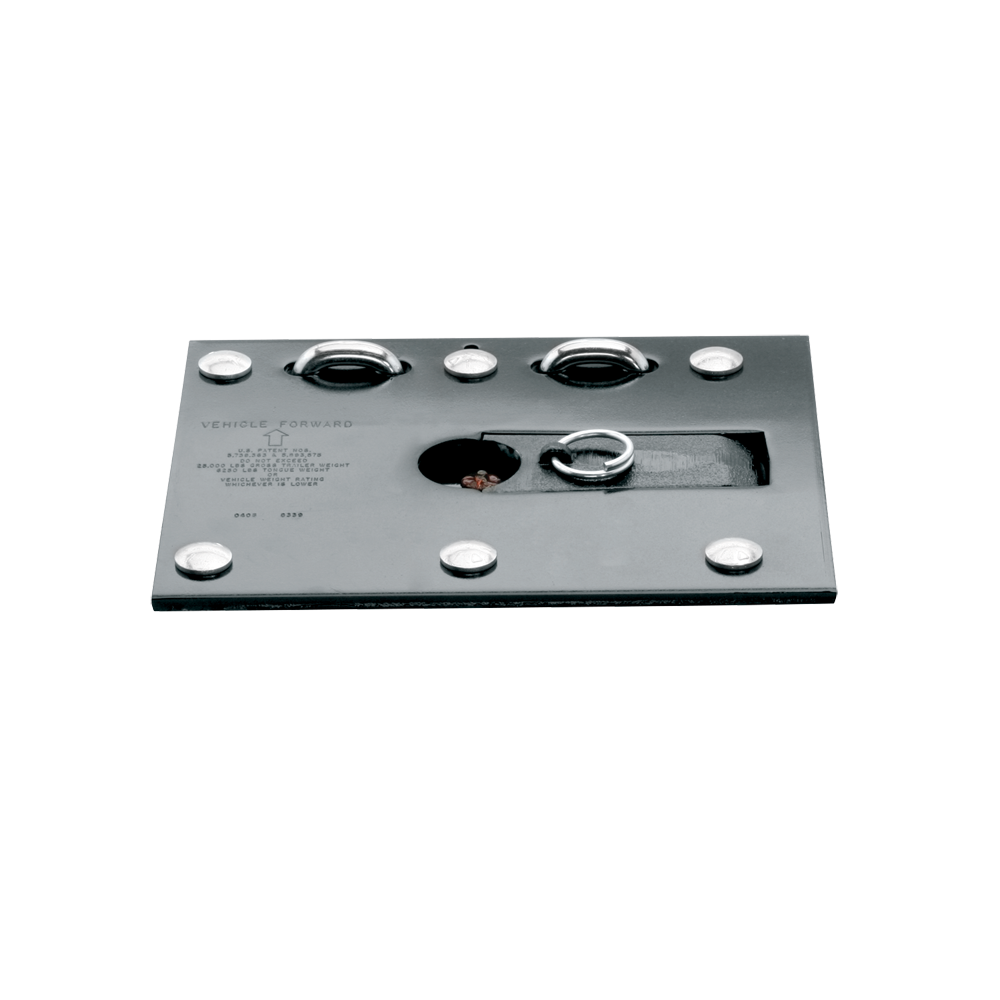

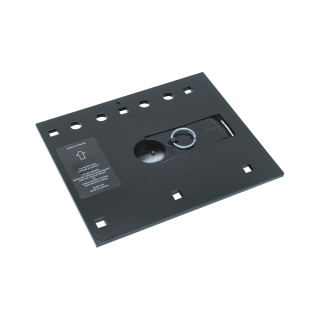

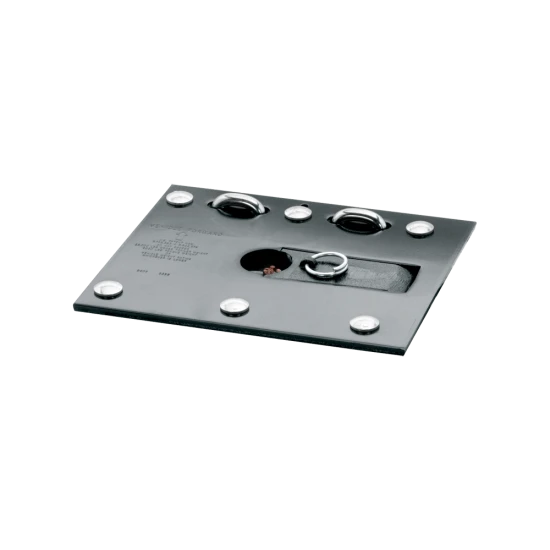

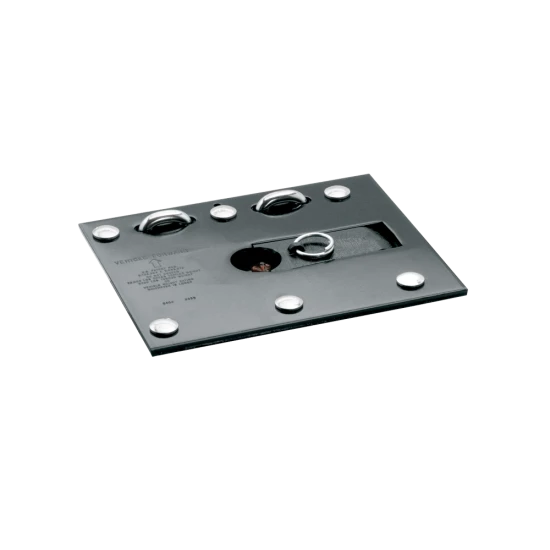

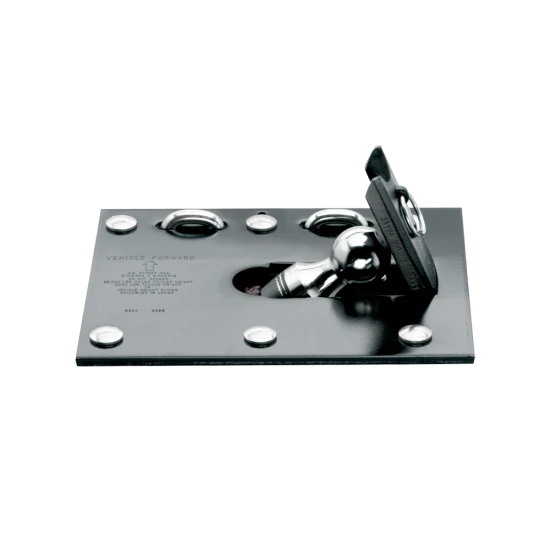

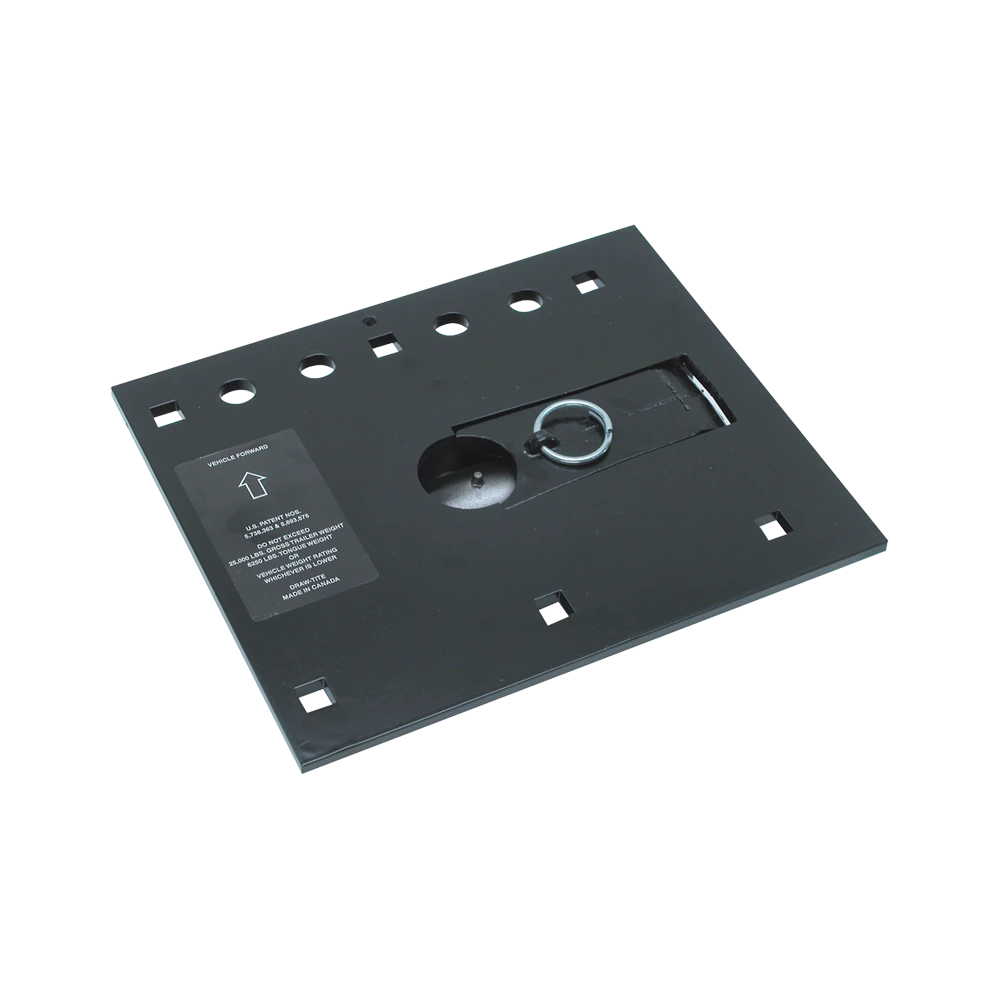

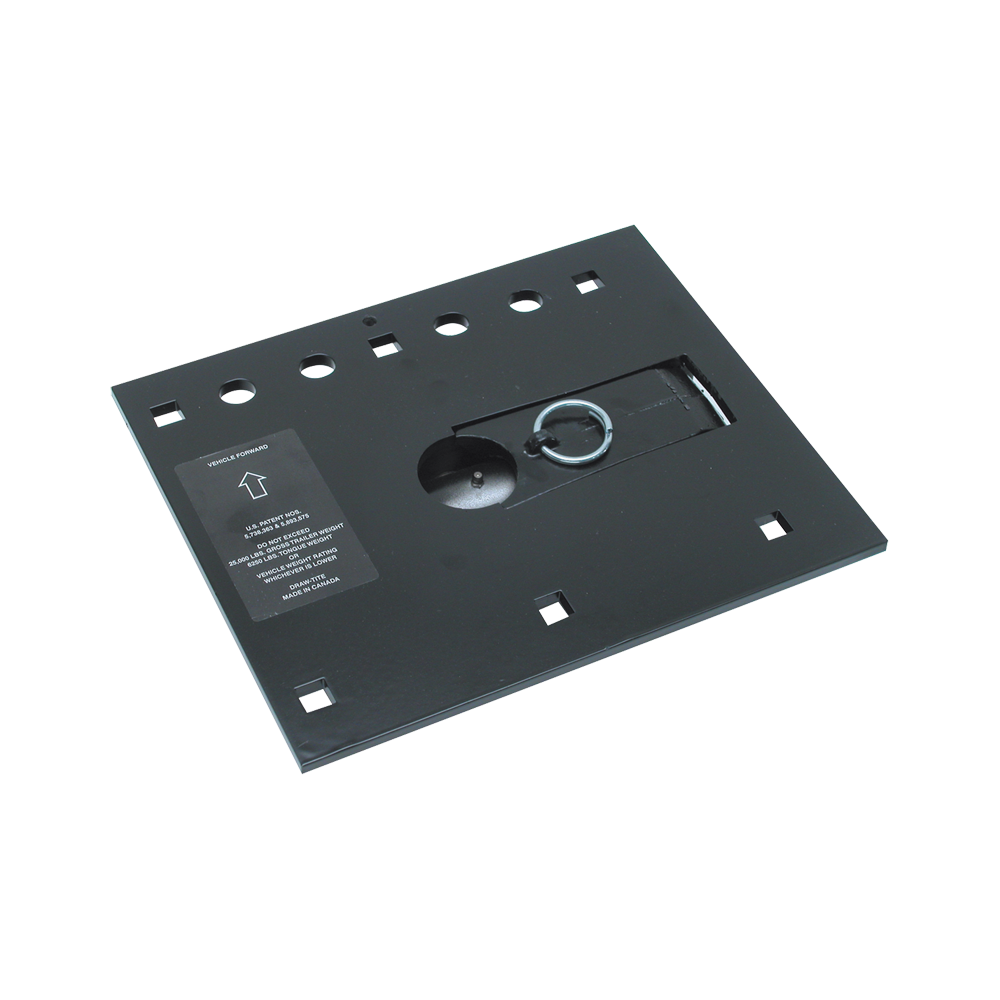

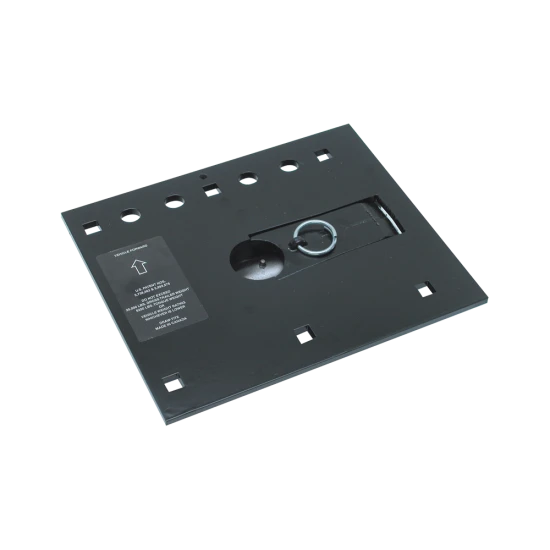

- Fold Down Design: Experience uninterrupted use of your truck bed with its innovative fold down design, ideal for multifaceted trucking needs.

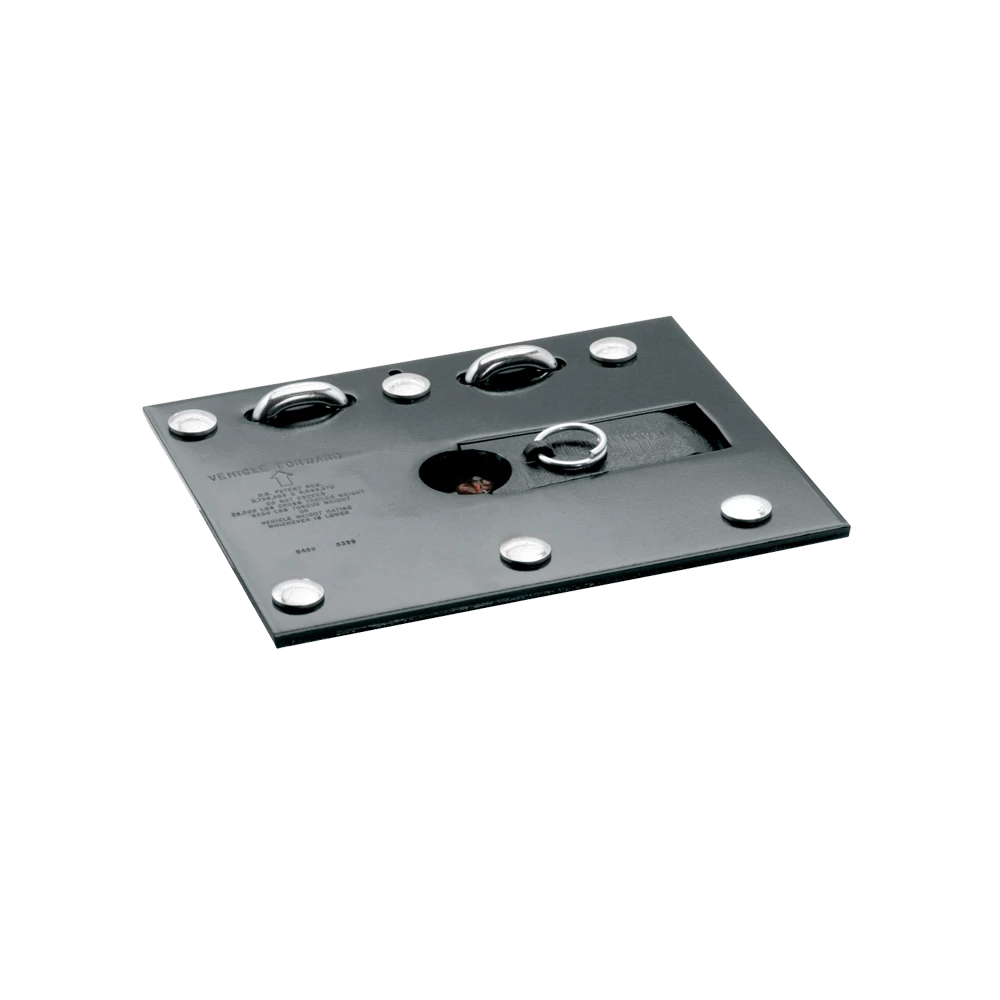

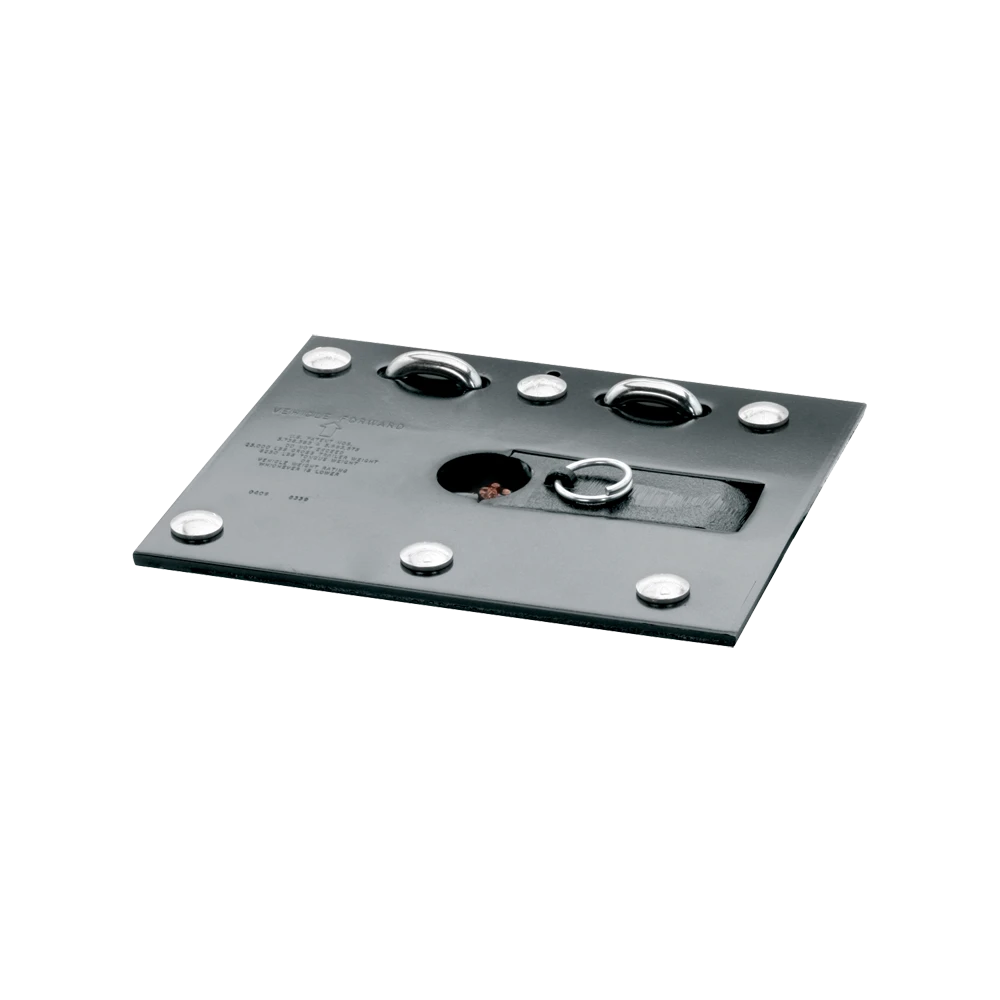

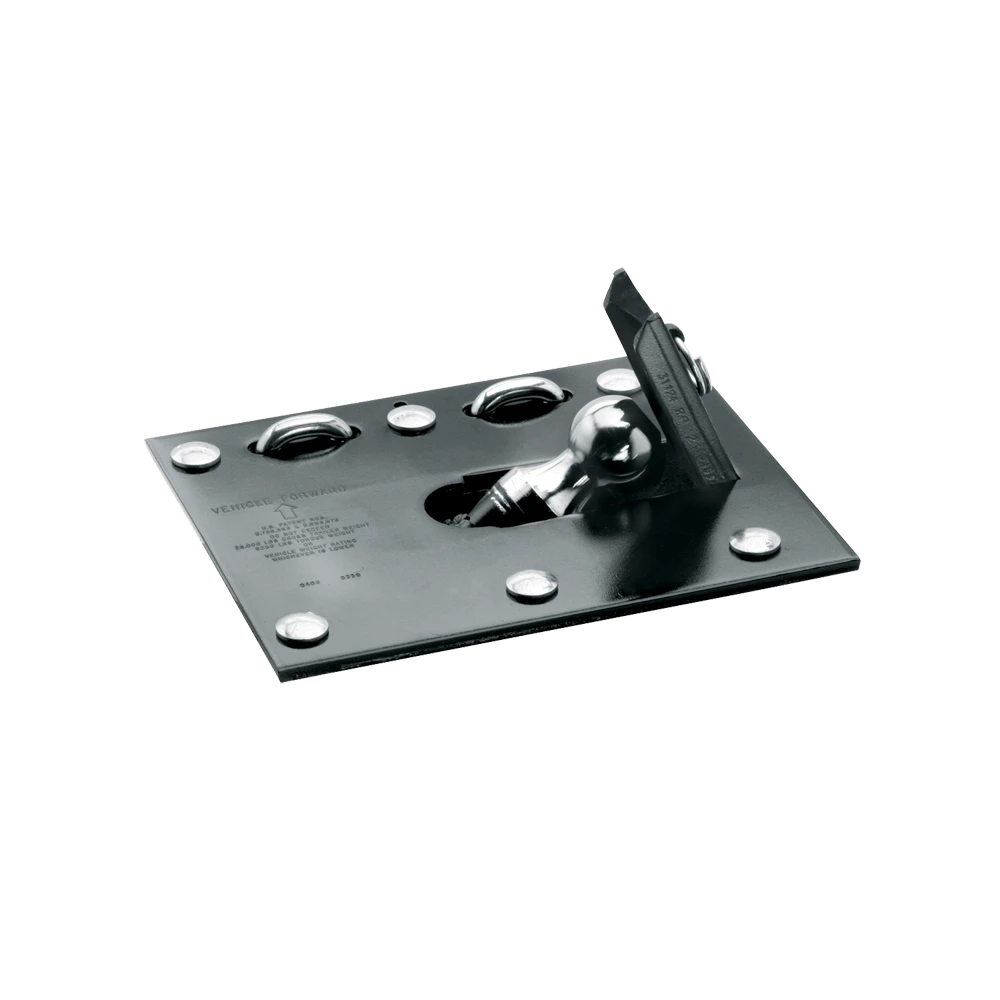

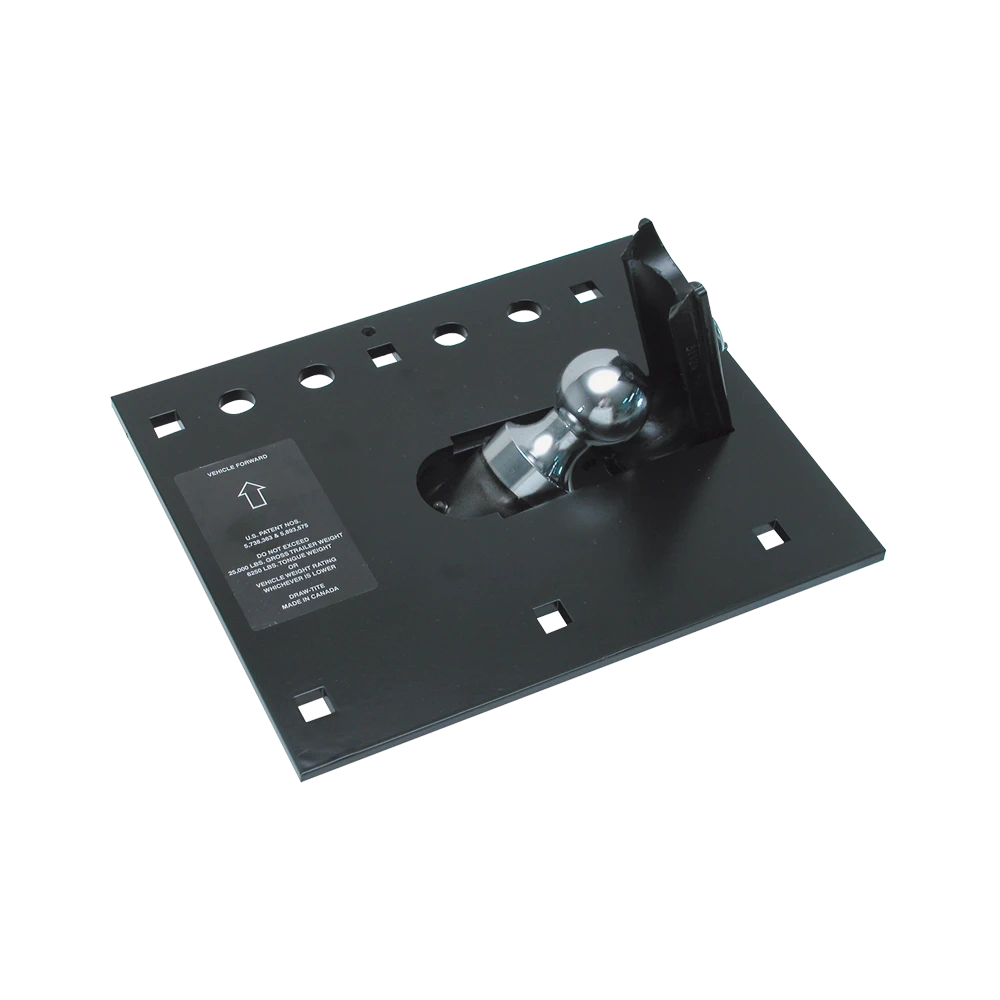

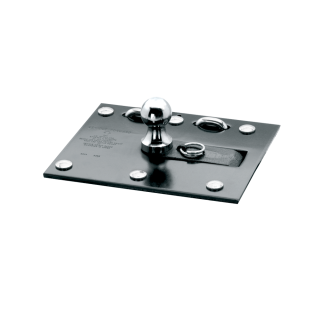

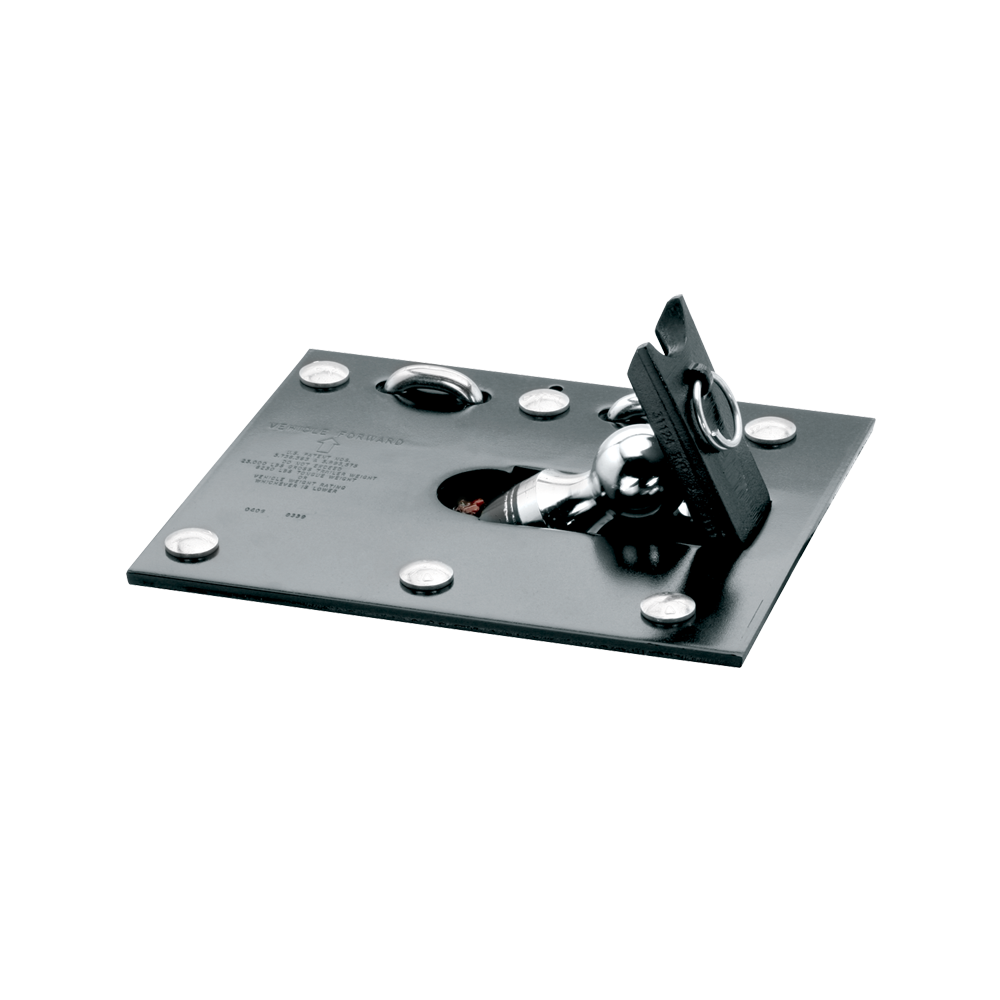

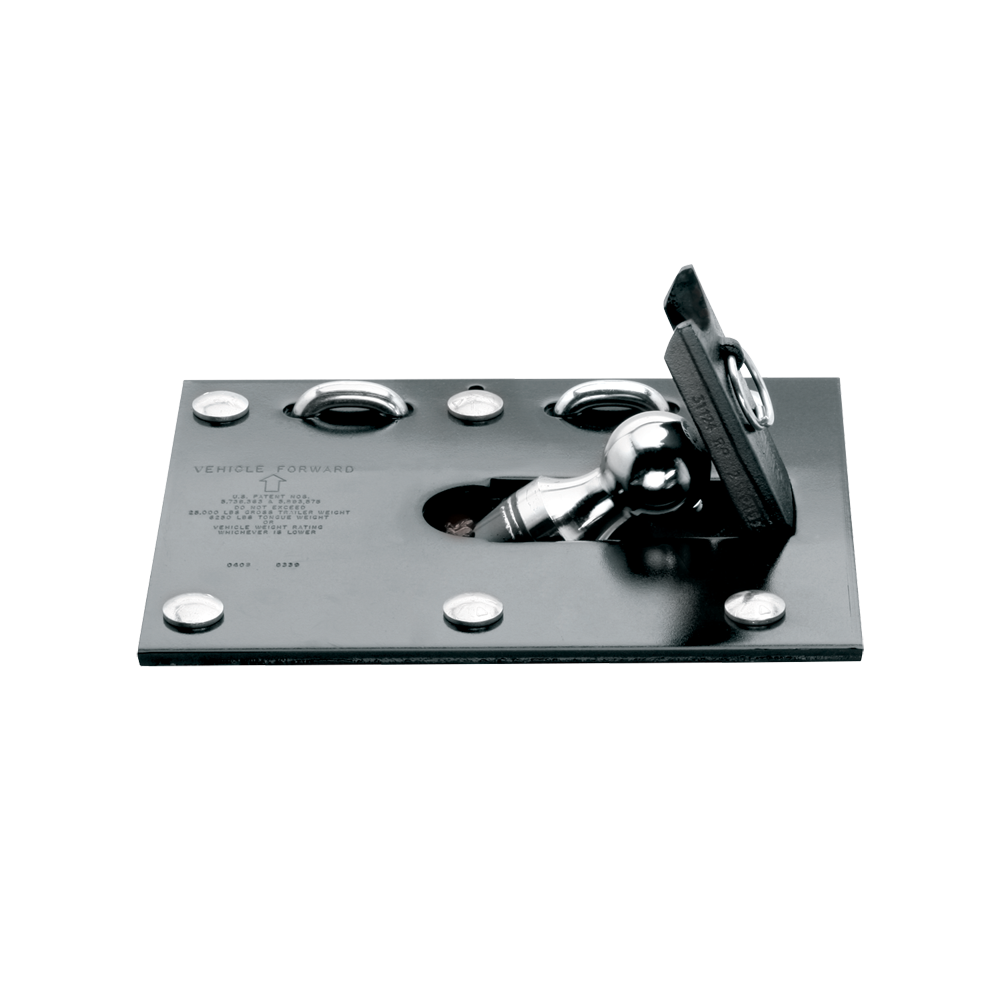

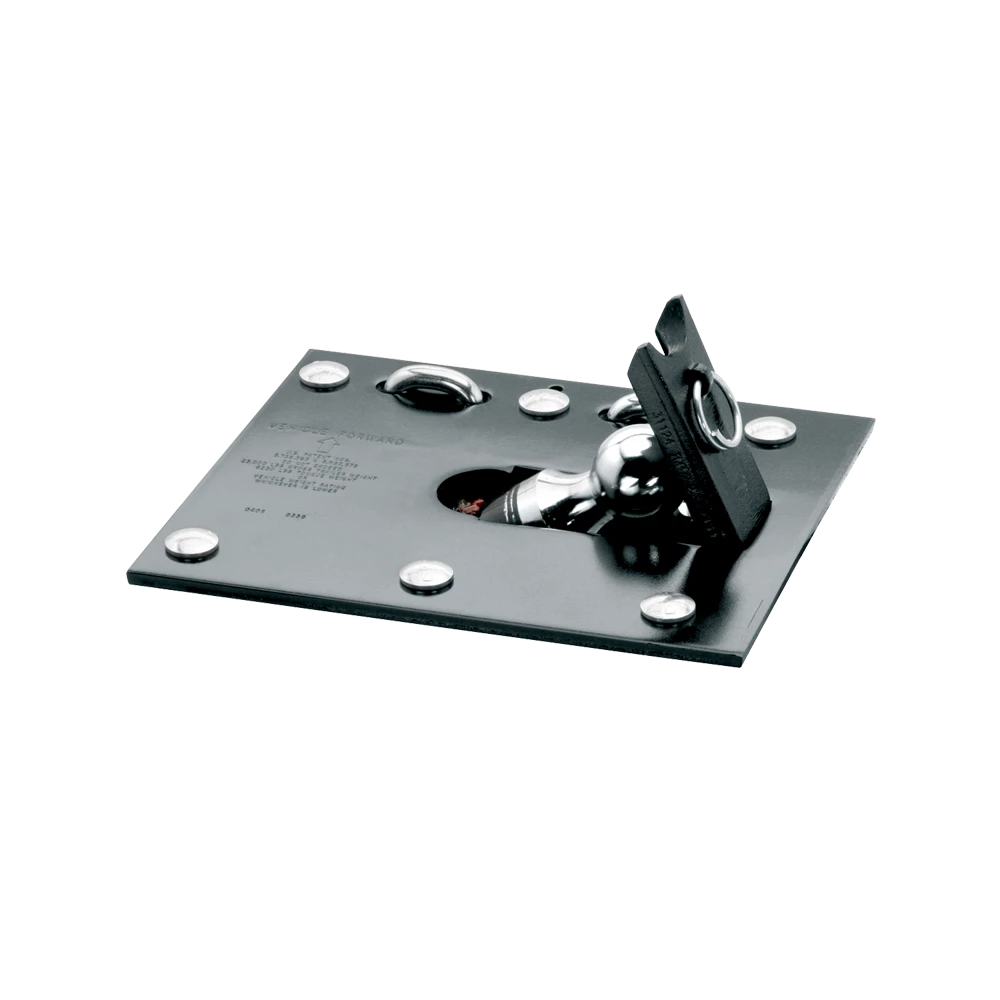

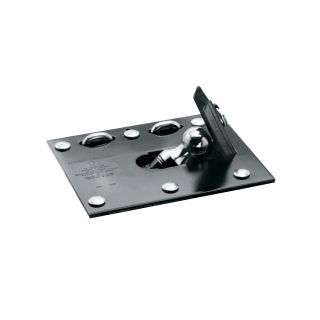

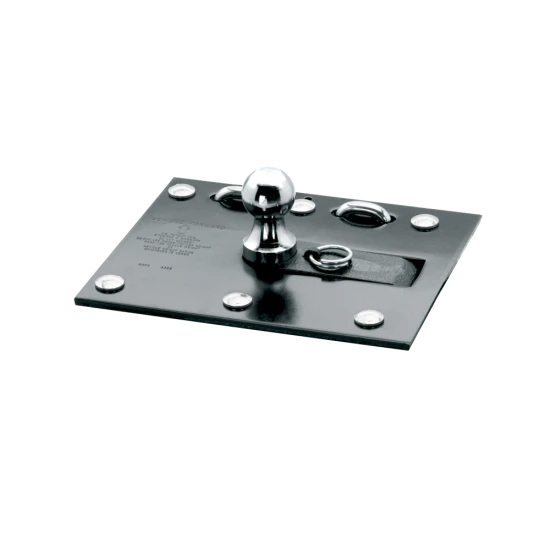

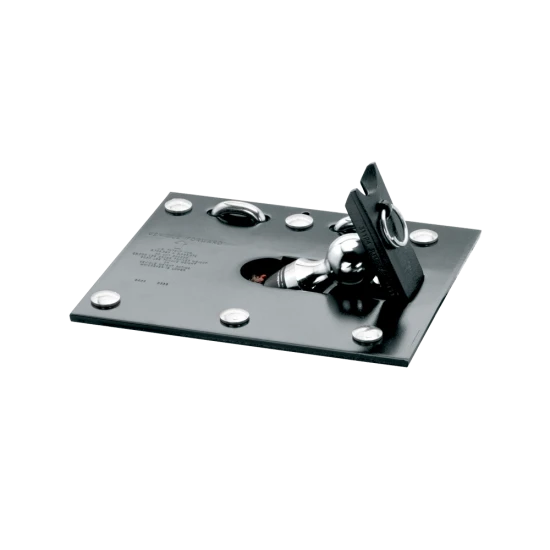

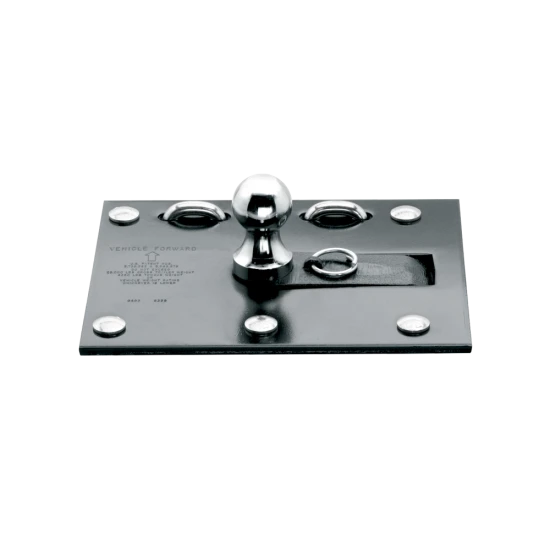

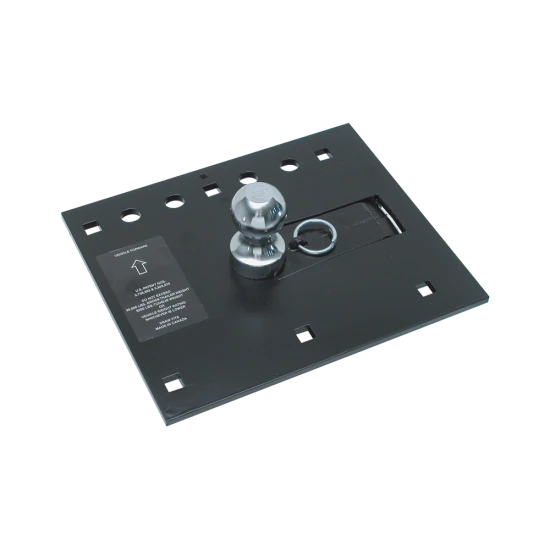

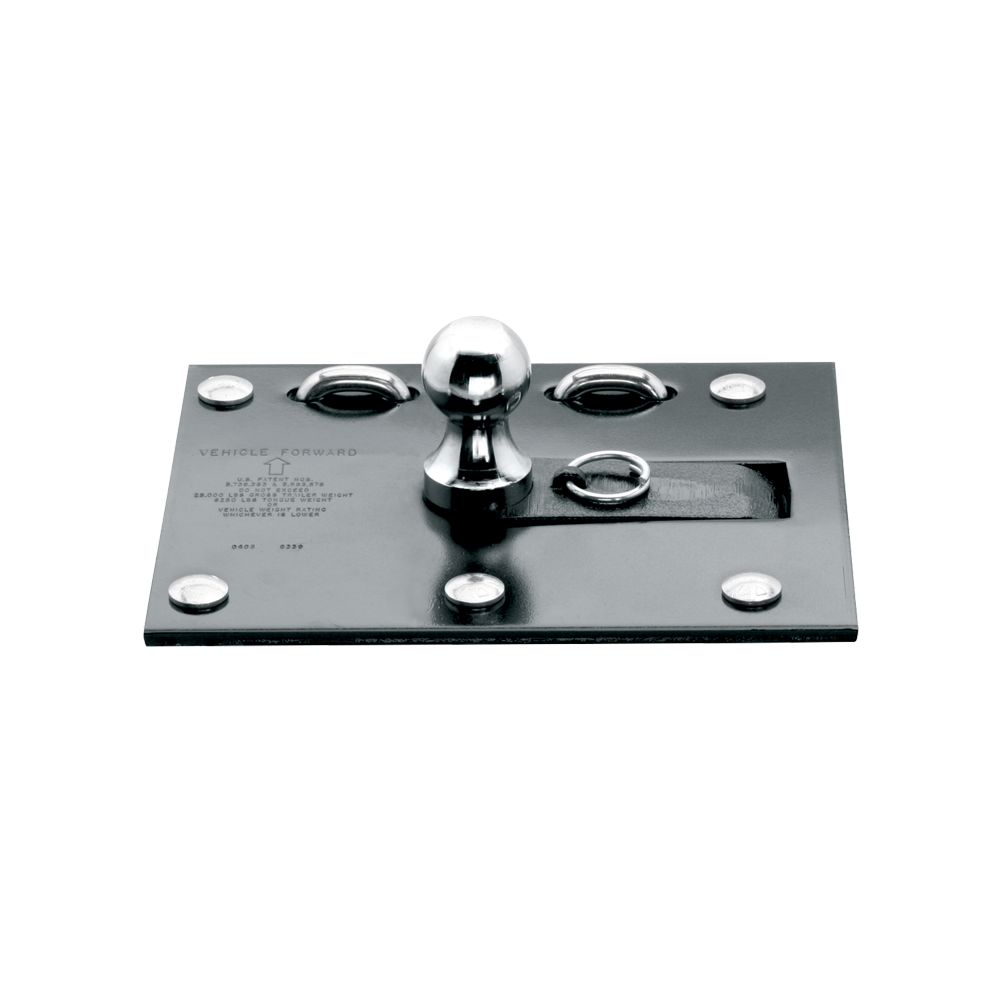

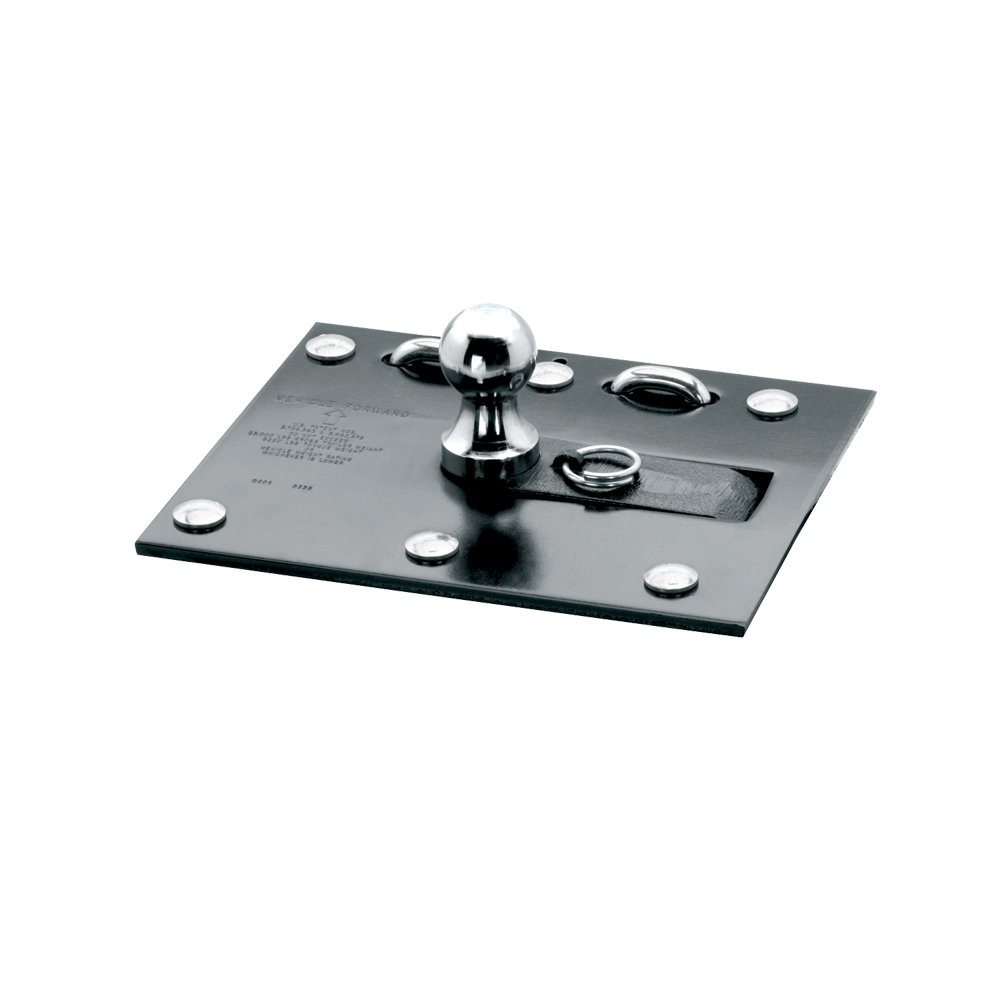

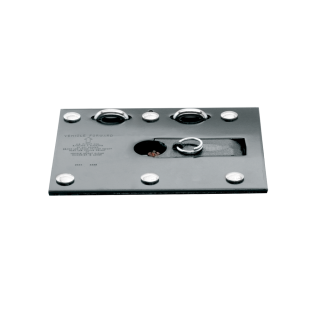

- Quick Position Adjustment: Transform from towing to a flat bed in mere seconds by raising or lowering the ball with absolute ease.
- Durable Construction: Features a forged, heat-treated 2-5/16" chrome ball, promising resilience and reliability for all your towing challenges.
- Comprehensive Package: Comes with necessary mounting hardware and integrated, drop-down, spring-loaded safety chain loops.
- User-Friendly Operation: The oversized pull ring enables convenient ball positioning, even with gloves on.
- Maintenance Friendly: Equipped with an easily accessible integrated grease fitting for simple upkeep.
- High Load Capacity: Designed to handle a gross vehicle towing weight of up to 25,000 lbs. and a vertical load of 6,250 lbs.
- Compatible Rail Kits: Rail kits are customized to align with the vehicle's weight ratings, making it a perfect fit for every truck.
- Seamless Integration: No modification of factory exhaust systems needed, ensuring easy installation.
- Durable Finish: Finished with a black powder coat, enhancing longevity and aesthetic appeal.
- Installation Requirements: Installation rail kit required, ensuring a secure and stable setup.
This gooseneck hitch is not only a practical choice but a strategic upgrade for your towing system.
| Specifications: | |
|---|---|
| Gross Towing Weight | 25000 LB GTW |
| Compatible Trucks | Gooseneck Trailer |
| Hitch Type | Trucks with Existing Underbed Rail Kit |

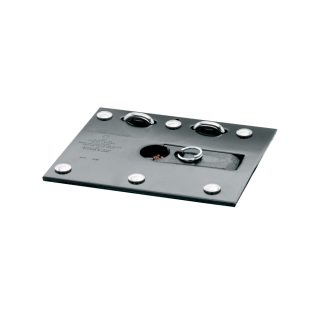

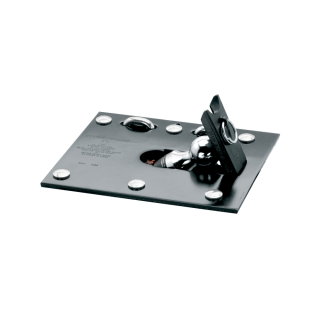

| Features | Fold Down Ball Gooseneck |
| Features | 2-5/16 Inch Ball |
$287 84 $343.75 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$343.75 $287 84
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 8339
- UPC: 742512083392
- Includes: Gooseneck Hitch Head
Get Expert Help
Draw-Tite Fold-Down Gooseneck Hitch Head 25000 lbs Capacity 8339 Install Notes
Installation Instructions for 2 5/16" Folding Ball Gooseneck Hitch
Part Numbers:
- 8339
Rated Capacity:
- Maximum Trailer Weight: 25,000 lbs
- Maximum Vertical Load: 6,250 lbs
Tools Required:
- Hand Drill
- Drill Bits: 1/4”, 5/8”, 3/4”
- Sockets and Wrenches: 9/16” & 15/16”
- Center Punch
- Torque Wrench
- Saber Saw
- Round and Flat Files
- Hammer
Hardware List:
- 5/8-11 x 2.5" Grade 5 Carriage Bolt - 4
- 5/8-11 Nut - 4
- 5/8 Lock Washer - 4
- 5/8 U-Bolt (Zinc Plated) - 2
- 5” Spring - 4
- 5/8-18 Locknut - 4
- 9/16 Flat Washer - 8
- 5/16” x 1” x 2” Shim - 1
Warnings:
- DO NOT exceed the towing vehicle manufacturer’s ratings.
- Regularly inspect all fasteners and components for tightness and damage.
- Follow safety precautions when working under the vehicle, and wear eye protection.
Step-by-Step Installation Instructions:
1. Preparation:
- Locate the hitch ball along the truck's fore/aft centerline, ensuring the centerline is above and forward of the rear axle.
- Ensure adequate clearance between the gooseneck trailer and the truck’s cab and bed.
2. Bed Modification:
- Use the provided template to mark the hitch ball centerline in the truck bed.
- Cut a 14.5” x 12” section out of the bed liner if present.
- Center punch the marked locations and drill 1/4” pilot holes.
- Cut the truck bed along the markings using a saber saw and file edges as necessary.
3. Platform Installation:
- Place the platform into the opening and ensure it is square to the truck’s centerline.
- Use the platform as a guide to drill 5/8” diameter holes for the carriage bolts and 3/4” diameter holes for U-bolts.
4. Installing Hardware:
- Insert 5/8" carriage bolts through the platform and under-vehicle supports. Secure with lock washers and nuts. Torque to 150 ft-lbs.
- Install U-bolts through the platform. From underneath, add a large washer, spring, another washer, and secure with a jam nut.
- Tighten jam nuts until three threads are visible beyond the nut.

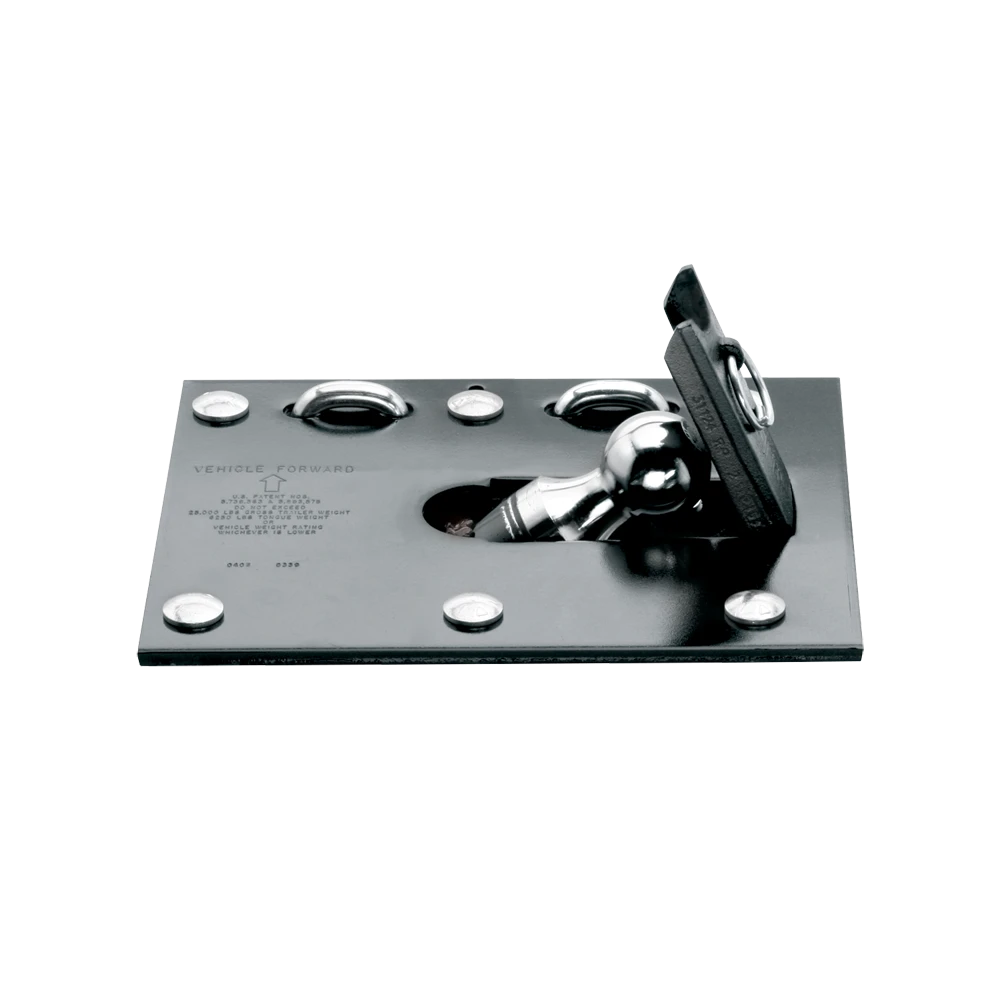

5. Folding Ball Operation:
