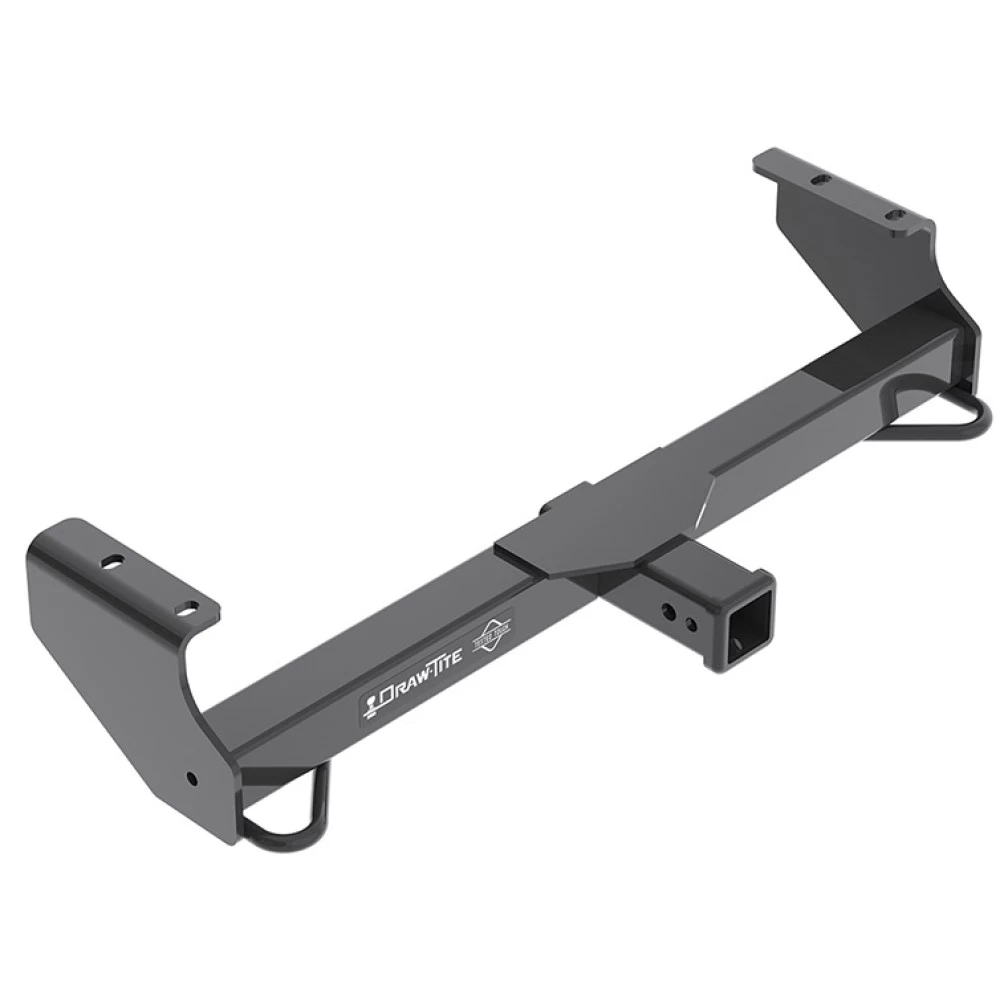

Installation Instructions for Nissan Frontier, Nissan Pathfinder, and Suzuki Equator (Front Mounted Receiver)

Part Numbers:

• 65075
• CQT65075

Tools Required:

• Ratchet
• Torque Wrench
• 10mm Socket
• 17mm Socket
• 19mm Socket
• Utility Knife (for trimming air dam, if required)
• Tape Measure
• Marker

Step-by-Step Instructions:

1. Remove the Air Dam (Optional Trim):

   • Remove (6) hex fasteners securing the center lower air dam using a 10mm socket.
   • Return the air dam to the vehicle owner or trim as shown in Figure 2.
   • If trimming, reinstall the modified air dam with the original fasteners.

2. Remove Front Tow Hooks:

   • Remove (2) hex bolts per front tow hook using a 17mm socket.
   • Remove the tow hooks and return them to the vehicle owner.

3. Raise the Hitch into Position:

   • Raise the hitch into place and align the mounting holes with the existing weldnuts in the vehicle frame.

4. Install Fasteners:

   • Install the hitch using the supplied:
     • M12 x 1.25 x 40mm hex bolts (Qty. 4)
     • 1/2” lock washers (Qty. 4)
     • 7/16” flat washers (Qty. 4)
   • Refer to Figure 1 for the proper order of fasteners.

5. Torque Fasteners:

   • Torque all M12 fasteners to 76 lb-ft (103 N-m) using a torque wrench.

6. Reinstall Air Dam (If Trimmed):

   • If the air dam was trimmed, reinstall it using the original fasteners removed in Step 1.

Hardware List:

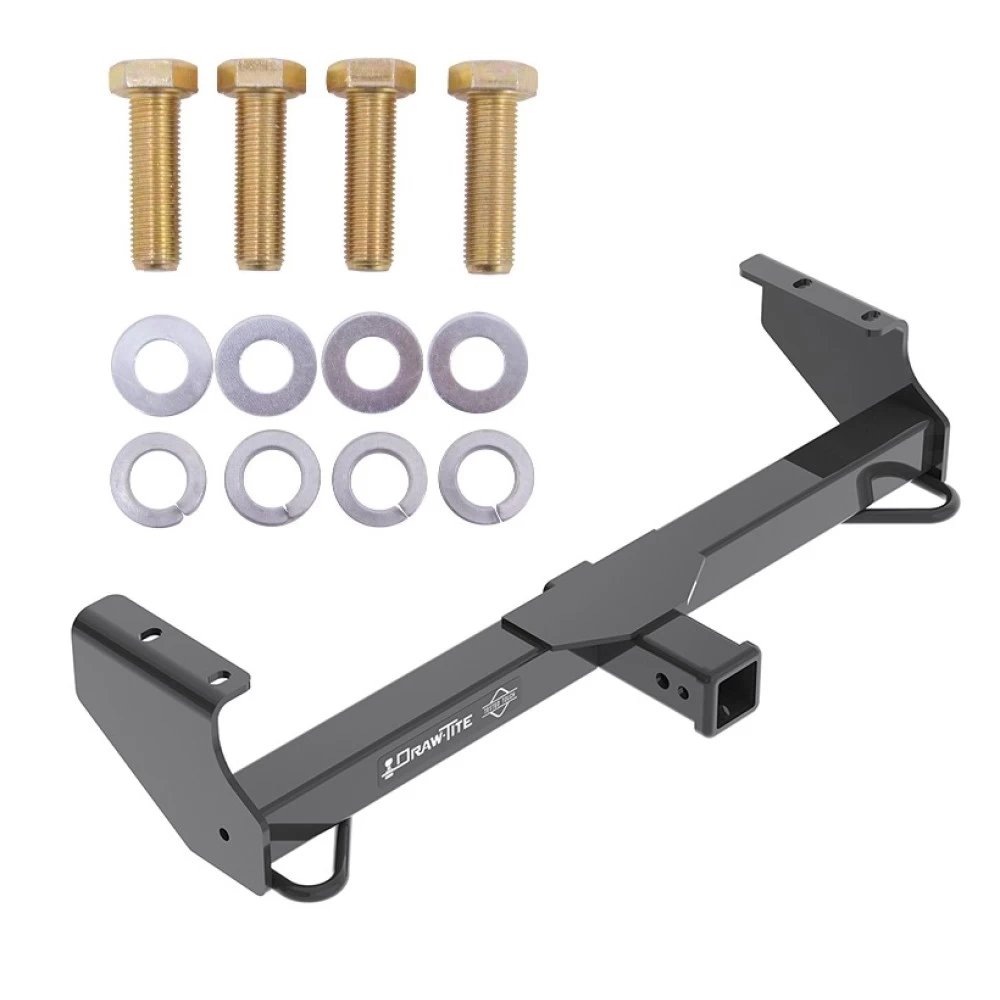

• (4) M12 x 1.25 x 40mm CL 10.9 Hex Bolts
• (4) 1/2” Lock Washers
• (4) 7/16” Flat Washers

Safety Notes:

• Check the hitch periodically to ensure all fasteners are tight and structural components remain sound.
• If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering the vehicle.
• Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
• Maximum Cargo Capacity: 500 lbs.
• Maximum Winch Line Pull: 9,000 lbs.

Manufacturer Notes:

• Always wear eye protection when working under the vehicle.
• Do NOT use a torch to cut or enlarge holes in the frame.
• This product complies with SAE J684 and VESC Regulation V-5 safety standards.

End of Instructions

Installation Instructions for Front Mounted Receiver

Part Numbers:

• 65075
• CQT65075

Tools Required:

• Ratchet
• Torque Wrench
• 10mm Socket
• 17mm Socket
• 19mm Socket
• Utility Knife (for trimming air dam, if required)
• Tape Measure
• Marker

Step-by-Step Instructions:

1. Remove the Air Dam (Optional Trim):

   • Remove (6) hex fasteners securing the center lower air dam using a 10mm socket.
   • Return the air dam to the vehicle owner or trim as shown in Figure 2.
   • If trimming, reinstall the modified air dam with the original fasteners.

2. Remove Front Tow Hooks:

   • Remove (2) hex bolts per front tow hook using a 17mm socket.
   • Remove the tow hooks and return them to the vehicle owner.

3. Raise the Hitch into Position:

   • Raise the hitch into place and align the mounting holes with the existing weldnuts in the vehicle frame.

4. Install Fasteners:

   • Install the hitch using the supplied:
     • M12 x 1.25 x 40mm hex bolts (Qty. 4)
     • 1/2” lock washers (Qty. 4)
     • 7/16” flat washers (Qty. 4)
   • Refer to Figure 1 for the proper order of fasteners.

5. Torque Fasteners:

   • Torque all M12 fasteners to 76 lb-ft (103 N-m) using a torque wrench.

6. Reinstall Air Dam (If Trimmed):

   • If the air dam was trimmed, reinstall it using the original fasteners removed in Step 1.

Hardware List:

• (4) M12 x 1.25 x 40mm CL 10.9 Hex Bolts
• (4) 1/2” Lock Washers
• (4) 7/16” Flat Washers

Safety Notes:

• Check the hitch periodically to ensure all fasteners are tight and structural components remain sound.
• If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering the vehicle.
• Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
• Maximum Cargo Capacity: 500 lbs.
• Maximum Winch Line Pull: 9,000 lbs.

Manufacturer Notes:

• Always wear eye protection when working under the vehicle.
• Do NOT use a torch to cut or enlarge holes in the frame.
• This product complies with SAE J684 and VESC Regulation V-5 safety standards.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
