Front Mount Trailer Tow Hitch Hardware Fastener Kit For 00‑07 Toyota Tundra Sequoia
Model: HWKIT3(65031F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2000 - 2006 Toyota, Tundra, All Styles
2001 - 2007 Toyota, Sequoia, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65031
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 2000 2001 2002 2003 2004 2005 2006 2007
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(65031F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2000 - 2006 Toyota, Tundra, All Styles
2001 - 2007 Toyota, Sequoia, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65031
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 07 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Front Mount Trailer Tow Hitch Hardware Fastener Kit For 00-07 Toyota Tundra Sequoia Install Notes
Installation Instructions for Toyota Tundra and Toyota Sequoia
Part Numbers:
- 65031
Tools Required:
- 3/4” Wrench
- 18mm Wrench
- 19mm Wrench
- Drill with 1/2” Drill Bit
- Torque Wrench

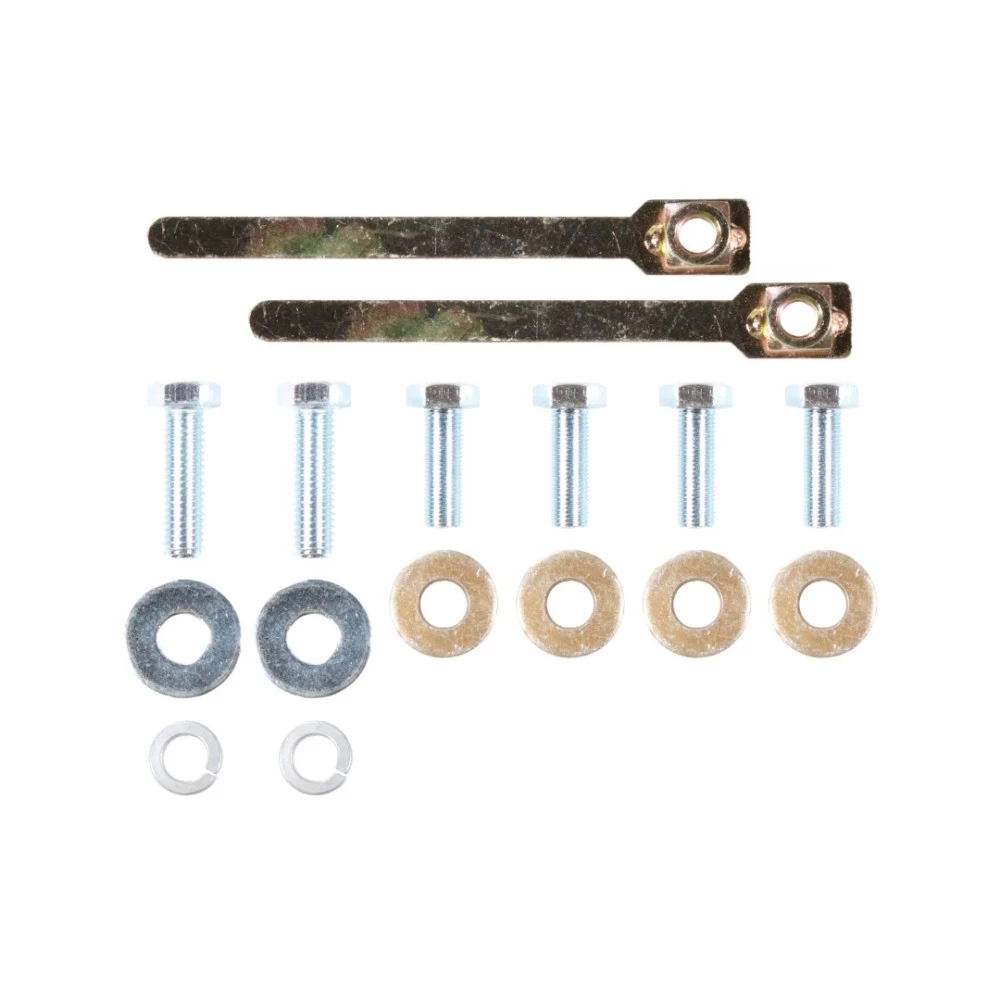

Parts List:
- (2) 1/2”-13 x 1-3/4” Hex Bolts
- (4) M12 x 1.25 x 35 Hex Bolts
- (4) 1/2” Conical Washers
- (2) 1/2” Flat Washers
- (2) 1/2” Handle Nuts
- (2) 1/2” Lock Washers
Step-by-Step Instructions:
-
Remove Skid Plates and Tow Hooks:
- Remove the skid plates and tow hooks from the vehicle.
- Return these components to the vehicle owner.
-
Position the Receiver:
- Raise the receiver into position against the frame rails.
- Install (4) M12 hex bolts through the hitch into the existing weldnuts on the frame rails.
-
Drill Frame Holes:
- Using the receiver as a template, drill (2) 1/2” holes into the frame rail.
-
Install Handle Nuts and Additional Bolts:
- Insert the 1/2” handle nuts through the frame rail access holes.
- Install the 1/2”-13 x 1-3/4” hex bolts and secure them using the provided 1/2” flat washers and lock washers.
-
Torque Fasteners:
- Torque all 1/2” Grade 5 fasteners to 50 lb-ft (68 N-m).
- Torque all M12 Class 8.8 fasteners to 68 lb-ft (92 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- If the hitch or any components become damaged, replace them immediately.
Manufacturer Notes:
- Use caution when drilling to avoid damaging vehicle components.
- Follow proper safety procedures, including wearing eye protection when working beneath the vehicle.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
- For installation questions, contact Technical Support.
End of Instructions
Installation Instructions for Toyota Tundra and Toyota Sequoia
Part Numbers:
- 65031
Tools Required:
- 3/4” Wrench
- 18mm Wrench
- 19mm Wrench
- Drill with 1/2” Drill Bit
- Torque Wrench
Parts List:
- (2) 1/2”-13 x 1-3/4” Hex Bolts
- (4) M12 x 1.25 x 35 Hex Bolts
- (4) 1/2” Conical Washers
- (2) 1/2” Flat Washers
- (2) 1/2” Handle Nuts
- (2) 1/2” Lock Washers
Step-by-Step Instructions:
-
Remove Skid Plates and Tow Hooks:
- Remove the skid plates and tow hooks from the vehicle.
- Return these components to the vehicle owner.
-
Position the Receiver:
- Raise the receiver into position against the frame rails.
- Install (4) M12 hex bolts through the hitch into the existing weldnuts on the frame rails.
-
Drill Frame Holes:
- Using the receiver as a template, drill (2) 1/2” holes into the frame rail.
-
Install Handle Nuts and Additional Bolts:
- Insert the 1/2” handle nuts through the frame rail access holes.
- Install the 1/2”-13 x 1-3/4” hex bolts and secure them using the provided 1/2” flat washers and lock washers.
-
Torque Fasteners:
- Torque all 1/2” Grade 5 fasteners to 50 lb-ft (68 N-m).
- Torque all M12 Class 8.8 fasteners to 68 lb-ft (92 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- If the hitch or any components become damaged, replace them immediately.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
