Front Mount Trailer Tow Hitch Hardware Fastener Kit For 88‑00 Chevy GMC C/K 1500 2500 3500 Suburban Yukon Tahoe
Model: HWKIT3(65005F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1988 - 1999 Chevrolet, C1500, 2 Dr. Regular & Extended Cabs
1988 - 1999 Chevrolet, C2500, 2 Dr. Regular & Extended Cabs
1988 - 2000 Chevrolet, C3500, 2 Dr. Regular & Extended Cabs
1988 - 1999 Chevrolet, K1500, 2 Dr. Regular & Extended Cabs
1988 - 1999 Chevrolet, K2500, 2 Dr. Regular & Extended Cabs
1988 - 2000 Chevrolet, K3500, 2 Dr. Regular & Extended Cabs
1988 - 1999 GMC, C1500, 2 Dr. Regular & Extended Cabs
1988 - 2000 GMC, C2500, 2 Dr. Regular & Extended Cabs
1988 - 2000 GMC, C3500, 2 Dr. Regular & Extended Cabs
1988 - 1999 GMC, K1500, 2 Dr. Regular & Extended Cabs
1992 - 1994 Chevrolet, Blazer, Full Size
1992 - 2000 Chevrolet, K2500, 4 Dr. Crew Cab
1992 - 2000 Chevrolet, K3500, 4 Dr. Crew Cab
1992 - 1999 Chevrolet, Suburban C1500, All Styles
1992 - 1999 Chevrolet, Suburban C2500, All Styles
1992 - 1999 Chevrolet, Suburban K1500, All Styles
1992 - 1999 Chevrolet, Suburban K2500, All Styles
1992 - 1999 GMC, K1500, 4 Dr. Crew Cab
1992 - 2000 GMC, K2500, 4 Dr. Crew Cab
1992 - 2000 GMC, K3500, 4 Dr. Crew Cab
1992 - 1999 GMC, Suburban C1500, All Styles
1992 - 1999 GMC, Suburban C2500, All Styles
1992 - 1999 GMC, Suburban K1500, All Styles
1992 - 1999 GMC, Suburban K2500, All Styles
1992 - 2000 GMC, Yukon, All Styles
1995 - 2000 Chevrolet, Tahoe, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65005
Installation Instructions: ¸E
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(65005F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
Front Mount Trailer Tow Hitch Hardware Fastener Kit For 88-00 Chevy GMC C/K 1500 2500 3500 Suburban Yukon Tahoe Install Notes
Installation Instructions for Chevrolet Tahoe, GMC Yukon, Suburban, Blazer, and Full-Size Pickup (1500, 2500 & 3500 Series)
Part Numbers:
- 65005
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Wrench
- 18mm Wrench
- 7/8" Wrench
- Drill with 1/2" Drill Bit

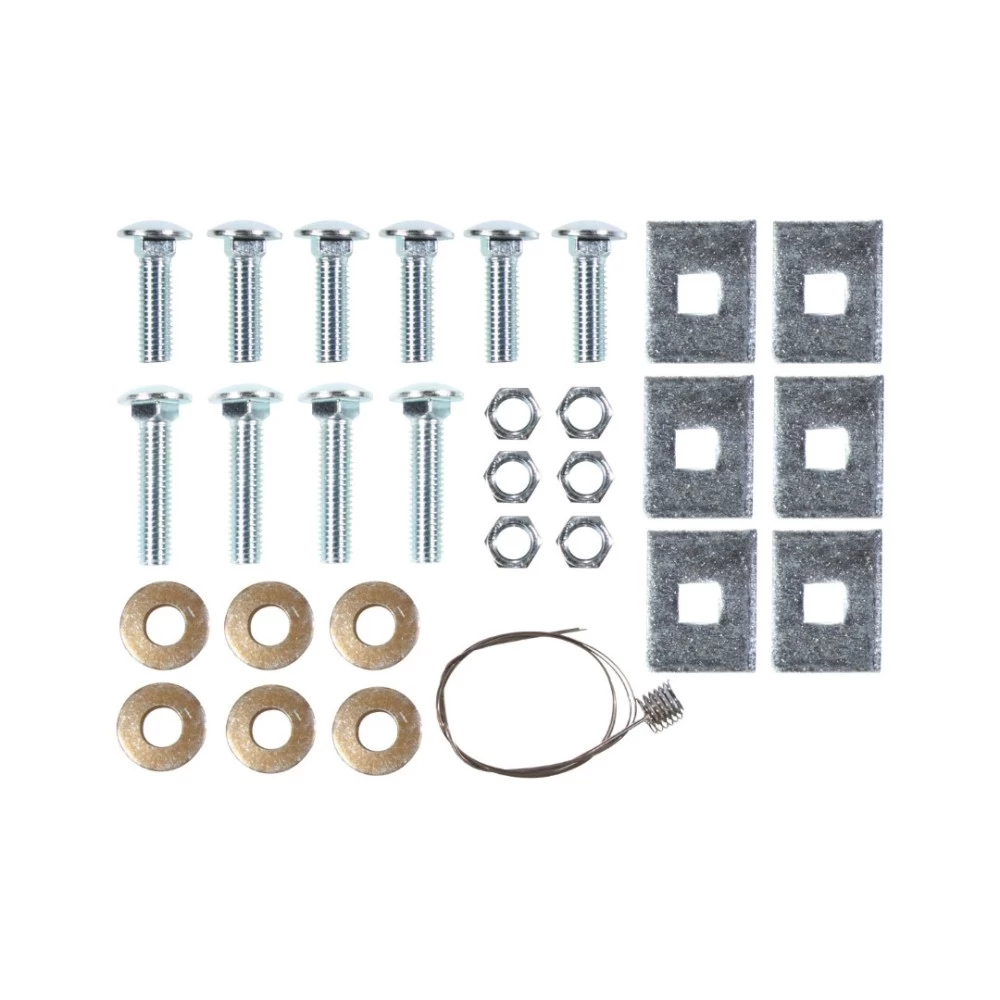

Parts List:
- (4) 1/2"-13 x 2-1/2" Carriage Bolts
- (6) 1/2"-13 x 1-3/4" Carriage Bolts
- (6) 1/2"-13 Hex Nuts
- (6) 1/2" Conical Toothed Washers
- (6) 1-1/2" x 2" x 1/4" Spacers
- (2) Pull Wire Tools
Step-by-Step Instructions:
-
Remove Lower Fascia (If Present):
- Remove the lower fascia under the front bumper to provide access for hitch installation.
-
Remove Vehicle Tow Hooks (If Present):
- Remove the OEM tow hooks from the vehicle frame.
- These tow hooks can be reused with the hitch installation if desired.
-
Fishwire Carriage Bolts and Spacers into Position:
- Use the supplied pull wire tools to fishwire the 1/2"-13 x 2-1/2" carriage bolts and spacers through the end of the vehicle frame and out the mounting holes.
- Repeat this step for all attachment points on the vehicle frame.
-
Raise the Hitch into Position:
- Position the hitch so the mounting holes align with the carriage bolts and spacers fishwired in Step 3.
-
Attach and Secure the Hitch:
- Attach the hitch using the supplied 1/2"-13 hex nuts and conical toothed washers.
- Reinstall the OEM tow hooks (if desired) using the provided fasteners.
-
Drill Additional Mounting Holes (If Needed):
- If a large slot is not present on the frame, drill a 1/2" hole using the hitch as a template.
-
Torque Fasteners:
- Torque all 1/2"-13 hardware to 75 lb-ft (102 N-m) using a torque wrench.
-
Trim and Reinstall Lower Fascia (Optional):
- If desired, trim the lower fascia to clear the hitch and reinstall it.
- Consult the vehicle owner before trimming.
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Observe all proper safety precautions when working beneath the vehicle, including wearing eye protection.
- If the hitch is removed, plug all holes in body panels to prevent water or exhaust fume intrusion.
- Damaged hitches must be removed and replaced immediately.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
- For installation questions, contact Technical Support.
End of Instructions
Installation Instructions for Chevrolet Tahoe, GMC Yukon, Suburban, Blazer, and Full-Size Pickup (1500, 2500 & 3500 Series)
Part Numbers:
- 65005
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Wrench
- 18mm Wrench
- 7/8" Wrench
- Drill with 1/2" Drill Bit
Parts List:
- (4) 1/2"-13 x 2-1/2" Carriage Bolts
- (6) 1/2"-13 x 1-3/4" Carriage Bolts
- (6) 1/2"-13 Hex Nuts
- (6) 1/2" Conical Toothed Washers
- (6) 1-1/2" x 2" x 1/4" Spacers
- (2) Pull Wire Tools
Step-by-Step Instructions:
-
Remove Lower Fascia (If Present):
- Remove the lower fascia under the front bumper to provide access for hitch installation.
-
Remove Vehicle Tow Hooks (If Present):
- Remove the OEM tow hooks from the vehicle frame.
- These tow hooks can be reused with the hitch installation if desired.
-
Fishwire Carriage Bolts and Spacers into Position:
- Use the supplied pull wire tools to fishwire the 1/2"-13 x 2-1/2" carriage bolts and spacers through the end of the vehicle frame and out the mounting holes.
- Repeat this step for all attachment points on the vehicle frame.
-
Raise the Hitch into Position:
- Position the hitch so the mounting holes align with the carriage bolts and spacers fishwired in Step 3.
-
Attach and Secure the Hitch:
- Attach the hitch using the supplied 1/2"-13 hex nuts and conical toothed washers.
- Reinstall the OEM tow hooks (if desired) using the provided fasteners.
-
Drill Additional Mounting Holes (If Needed):
- If a large slot is not present on the frame, drill a 1/2" hole using the hitch as a template.
-
Torque Fasteners:
- Torque all 1/2"-13 hardware to 75 lb-ft (102 N-m) using a torque wrench.
-
Trim and Reinstall Lower Fascia (Optional):
- If desired, trim the lower fascia to clear the hitch and reinstall it.
- Consult the vehicle owner before trimming.
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
