Front Mount Trailer Tow Hitch Hardware Fastener Kit For 91‑07 Ford E‑150 E‑250 E350 00‑07 E‑450
Model: HWKIT3(65001F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1991 - 2007 Ford, E-150 Econoline, All Styles
1991 - 2007 Ford, E-250 Econoline, All Styles
1991 - 2007 Ford, E-350 Econoline, Inc. RV Cutaway
2000 - 2002 Ford, E-450 Econoline Super Duty Stripped, RV Cutaway
2003 - 2007 Ford, E-450 Econoline Super Duty, RV Cutaway
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65001
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(65001F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1991 - 2007 Ford, E-150 Econoline, All Styles
1991 - 2007 Ford, E-250 Econoline, All Styles
1991 - 2007 Ford, E-350 Econoline, Inc. RV Cutaway
2000 - 2002 Ford, E-450 Econoline Super Duty Stripped, RV Cutaway
2003 - 2007 Ford, E-450 Econoline Super Duty, RV Cutaway
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65001
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Front Mount Trailer Tow Hitch Hardware Fastener Kit For 91-07 Ford E-150 E-250 E350 00-07 E-450 Install Notes
Installation Instructions for Ford Econoline (Front Mounted Receiver)
Part Numbers:
- 65001
Tools Required:
- Ratchet
- Torque Wrench
- 7/8" Wrench
- Drill
- 1/2" Drill Bit
Step-by-Step Instructions:
-
Remove Plastic Rivets (If Present):
- Remove any plastic rivets from the forward attachment point on the vehicle.
-
Enlarge Forward Hole:
- Use a 1/2" drill bit to enlarge the forward hole on the vehicle's frame.
-
Fishwire Carriage Bolts and Spacers:
- Use the supplied pull wire to feed the 1/2"-13 x 1-3/4" carriage bolts and 1/4” x 1” x 3” spacers through the access hole into the mounting location.
- Refer to the Fishwire Technique Diagram for proper guidance.
-
Raise the Hitch into Position:
- Position the hitch receiver into place on the vehicle frame.
- Fasten the hitch using the supplied hardware:
- 1/2"-13 hex nuts
- 1/2" conical toothed washers
-
Torque Fasteners:
- Torque all 1/2" Grade 5 fasteners to 75 ft-lbs (102 N-m) using a torque wrench.

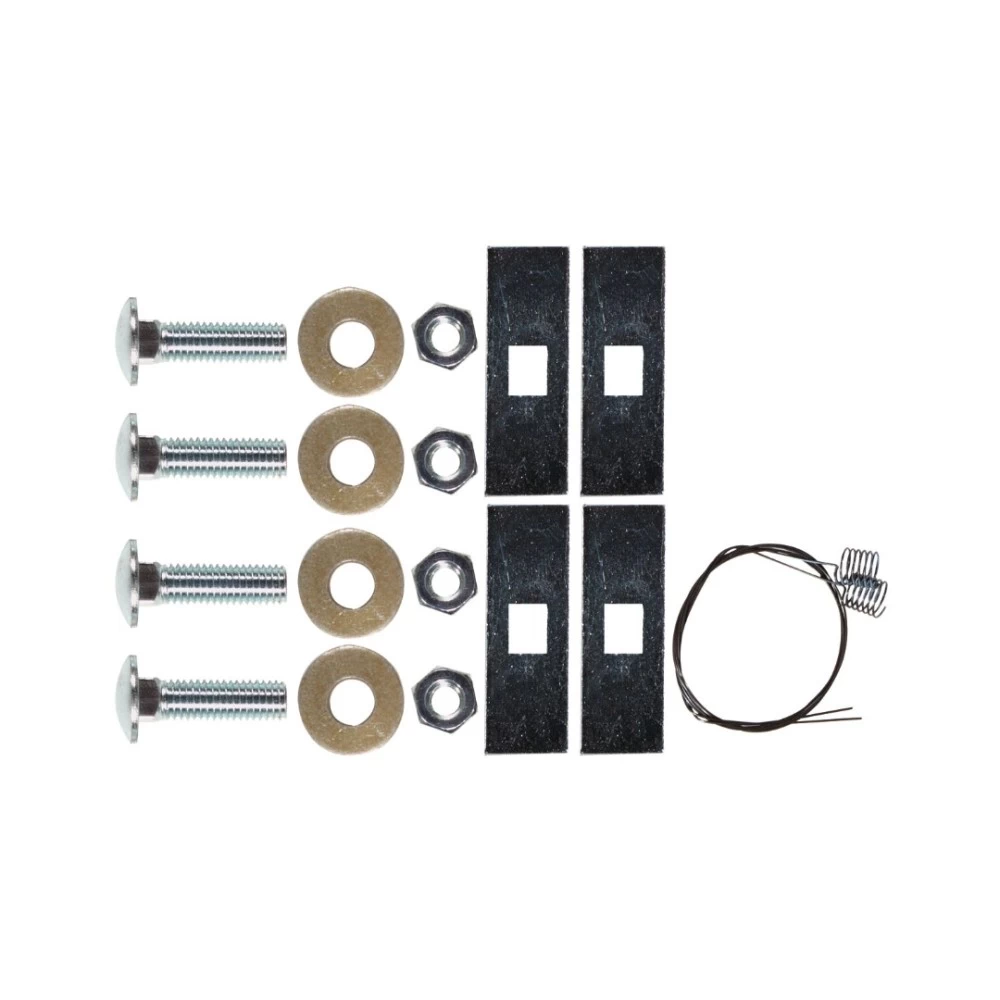

Hardware List:
- (4) 1/2"-13 x 1-3/4" Carriage Bolts
- (4) 1/2" Conical Toothed Washers
- (4) 1/2"-13 Hex Nuts
- (4) 1/4” x 1” x 3” Spacers
- (2) Pull Wire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle's body panels to prevent water and exhaust fumes from entering.
- Warning: Do not cut access or mounting holes using a torch.
- Damaged hitches or balls must be replaced immediately.
Specifications:
- Load Capacity (Front Hitch):
- 500 lbs. Cargo Capacity or the vehicle’s front Gross Axle Weight Rating (GAWR).
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Compliant with SAE J684 and VESC Regulation V-5 for towing systems.
- Observe proper safety precautions, including the use of eye protection when working beneath the vehicle.
- For installation questions, contact Technical Support.
End of Instructions
Installation Instructions for Front Mounted Receiver (Ford Econoline)
Part Numbers:
- 65001
Tools Required:
- Ratchet
- Torque Wrench
- 7/8" Wrench
- Drill
- 1/2" Drill Bit
Step-by-Step Instructions:
-
Remove Plastic Rivets (If Present):
- Remove any plastic rivets from the forward attachment point on the vehicle.
-
Enlarge Forward Hole:
- Use a 1/2" drill bit to enlarge the forward hole on the vehicle's frame.
-
Fishwire Carriage Bolts and Spacers:
- Use the supplied pull wire to feed the 1/2"-13 x 1-3/4" carriage bolts and 1/4” x 1” x 3” spacers through the access hole into the mounting location.
- Refer to the Fishwire Technique Diagram for proper guidance.
-
Raise the Hitch into Position:
- Position the hitch receiver into place on the vehicle frame.
- Fasten the hitch using the supplied hardware:
- 1/2"-13 hex nuts
- 1/2" conical toothed washers
-
Torque Fasteners:
- Torque all 1/2" Grade 5 fasteners to 75 ft-lbs (102 N-m) using a torque wrench.
Hardware List:
- (4) 1/2"-13 x 1-3/4" Carriage Bolts
- (4) 1/2" Conical Toothed Washers
- (4) 1/2"-13 Hex Nuts
- (4) 1/4” x 1” x 3” Spacers
- (2) Pull Wire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle's body panels to prevent water and exhaust fumes from entering.
- Warning: Do not cut access or mounting holes using a torch.
- Damaged hitches or balls must be replaced immediately.
Specifications:
- Load Capacity (Front Hitch):
- 500 lbs. Cargo Capacity or the vehicle’s front Gross Axle Weight Rating (GAWR).
- Maximum Winch Line Pull: 9,000 lbs.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
