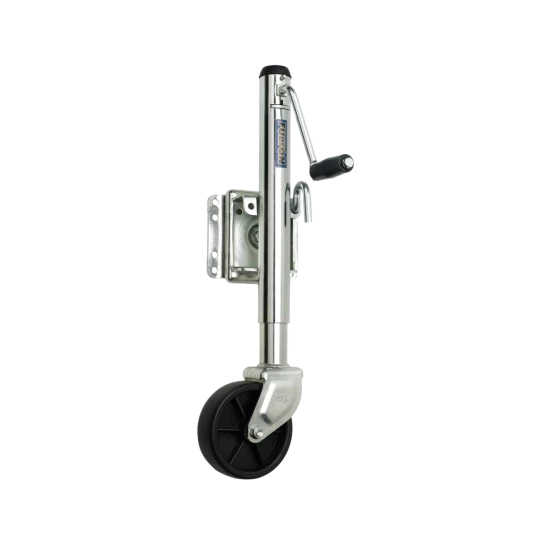

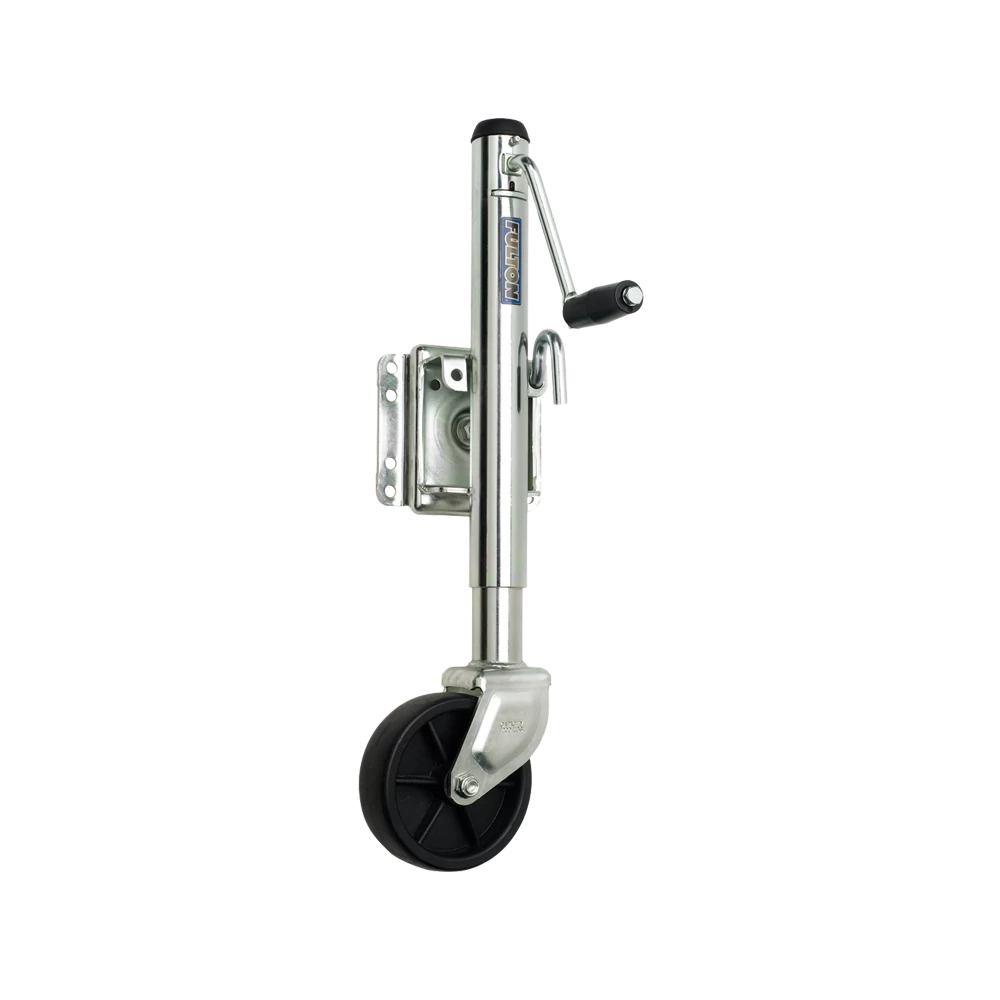

Fulton 1200 lbs Trailer Jack 6" Wheel Zinc Bolt‑Thru Swivel 10" Lift Corrosion Resistant Bolt‑On for Marine Boat and Recreational Applications 600 Hour Salt Spray Testing
Model: XP10 0101Fulton Trailer Jack
Engineered for marine and utility trailers, Fulton brand tongue jacks are renowned for their durability and functionality. Equipped with bolt-on versions that include all necessary mounting hardware, these jacks feature Fulton's patented bolt-thru swivel mounts (U.S. PAT. 6,302,381), utilizing 3-D formed heavy-gauge steel stampings and proprietary bushing materials for optimal support with minimal deflection. Designed to fit up to a 3"x5" trailer frame, these jacks offer a blend of strength and convenience for various applications.
Features:
- Available in a wide range of popular models, featuring Sidewind Crank with either Round or Square Tubes.
- Constructed with strong proprietary bushing materials for lasting performance.
- Formed heavy-gauge steel construction ensures stability and durability.
- Dependable design with a lift capacity starting from 1,200 lbs, suitable for trailers with a weight capacity between 1001-2000 lbs.
- Includes a 6" wheel for easy maneuverability and a 10" lift for adequate clearance.
- Zinc Bolt-Thru Swivel for corrosion resistance, tested with 600 hours of salt spray to ensure longevity.
Specifications:
- Jack Style: Bolt-On/Weld-On, versatile for both marine boat and recreational applications.
- Static and Lift Capacity: 1,200 lbs
- Lift Style: Sidewind
- Travel: 10" with a retracted height of 12.5" and an extended height of 22.5", offering flexibility for various needs.
- Finish: Zinc, providing a corrosion-resistant exterior for extended use.
- Swivel feature with a fixed leg for easy positioning and stability.
- Foot: 6" Diameter Wheel, enhancing portability and convenience.
To learn more or to place an order, please call us at 877-869-6690.
$90 24 $125.00 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$125.00 $90 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: XP10 0101
- Includes: 1200 lbs Jack
Description
Get Expert Help
Fulton 1200 lbs Trailer Jack 6" Wheel Zinc Bolt-Thru Swivel 10" Lift Corrosion Resistant Bolt-On for Marine Boat and Recreational Applications 600 Hour Salt Spray Testing Install Notes
Installation Instructions for Tongue Jacks
General Installation Notes:
- Ensure no interference from the tow vehicle, tongue, ground, or mounted accessories during use.
- Verify proper clearance in all positions, including handle swing and swivel positions, before and after installation.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert supplied bolts into holes matching the tongue width.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure bolts with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the correct mounting hole pattern for your tongue size.
- Align the jack against the tongue and position mounting straps on the opposite side.
- Insert bolts through the mounting bracket and straps, ensuring the upper bolts rest on the top of the tongue and lower bolts are close to the bottom without exceeding a 1/16" gap.
- Secure with locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Instructions:
- For snap ring models, place the jack bracket over the mount and fully seat the snap ring into the groove.
- For bolt-through models, align the bushing and bolt with the jack bracket and mount. Tighten the locknut to minimize movement.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be done by an AWS-certified welder.
- Align the jack and foot with the coupler and weld using a 3/16" fillet weld.
- Bolt the jack A-plate to the coupler using 3/8-16 grade-5 bolts and torque to 15-20 ft-lbs.
- Weld the support plate to the bottom of the trailer frame using a 3/16" fillet weld.
Direct-Mount Instructions:
- Position the jack at the desired location and weld 1" in two places on both sides of the jack using a 3/16" fillet weld.
Maintenance:
- Lubricate internal gearing and bushings with automotive grease annually.
- Apply lightweight oil to all moving components such as handles, screw stems, and caster assemblies.
- Flush the jack with fresh water in marine environments and reapply lubricant.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Avoid exceeding rated capacities for the jack, footplate, or caster wheel.
- Do not adjust the drop foot or leg under load.
- Avoid side forces to prevent jack failure.
Warranty Information:
- Coverage: 5 years for supported products; 1 year for select products.
- Exclusions: Damage due to misuse, overloading, or improper installation.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. Visit www.trailerjacks.com or call 877-869-6690.
