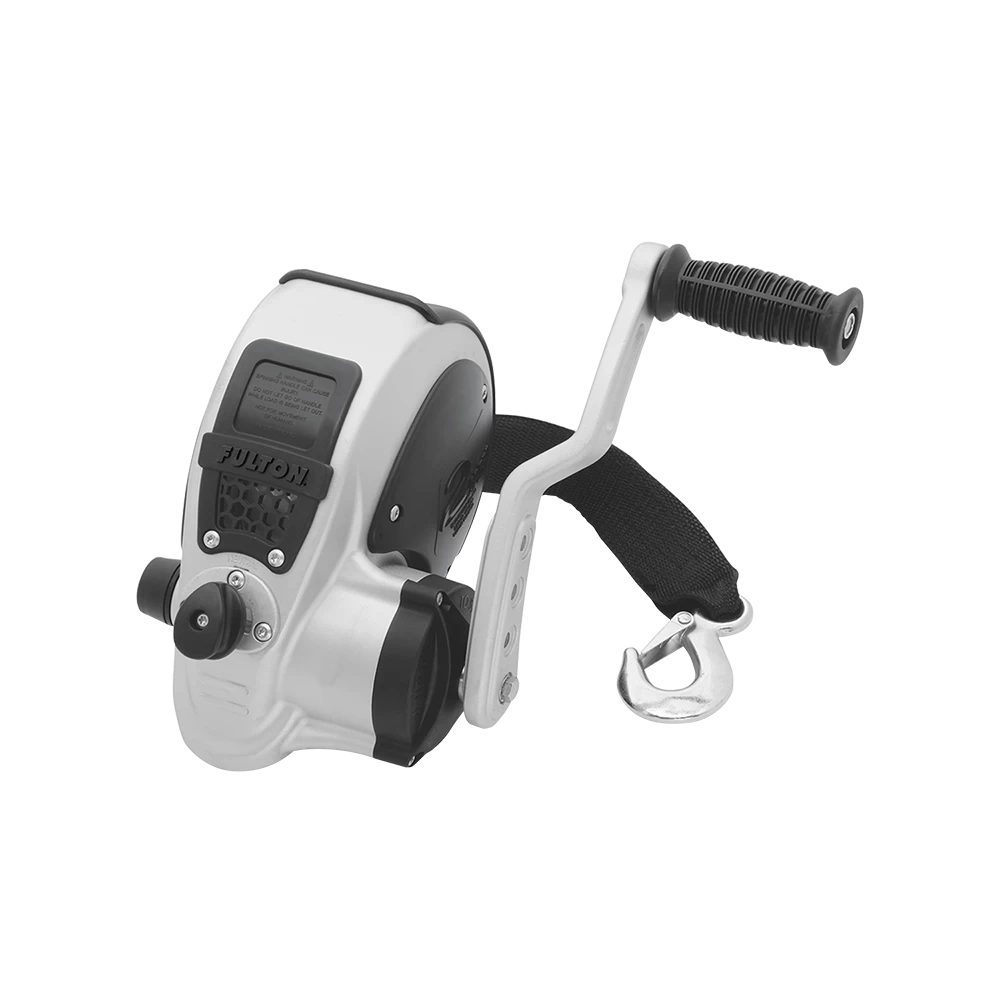

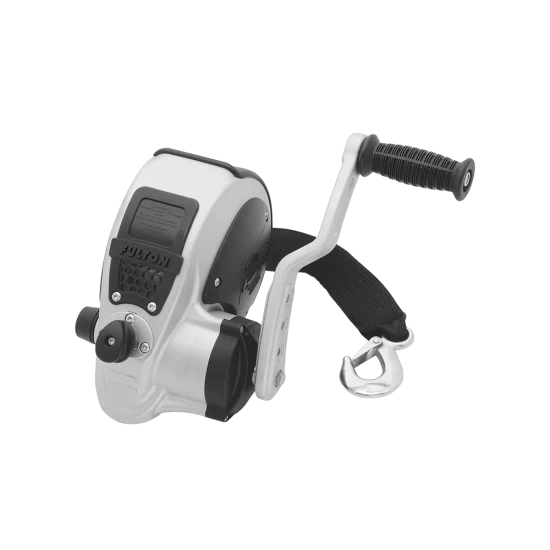

Fulton F2 Marine Trailer Winch Two‑Speed 3,200 lbs Capacity 20 ft Sharkskin Strap Adjustable Handle Lifetime Warranty - FW32000101 Boat Winch
Model: FW32000101Fulton® FW32000101 - The Ultimate Marine Winch
Embark on a new era of boating convenience with the Fulton® FW32000101. Crafted by industry-leading engineers and backed by decades of expertise, this winch is the epitome of innovation and reliability. Designed to effortlessly handle the demands of marine environments, the FW32000101 ensures smooth and reliable boat launching and retrieval, making your boating adventures more enjoyable and stress-free.
F2® Series - Elegance Meets Functionality
The F2® Series Trailer Winches represent the culmination of Fulton's commitment to excellence. With its sleek and stylish design, the FW32000101 seamlessly integrates with high-end boats and trailers, enhancing both their appearance and functionality. Its enclosed frame not only provides a robust and durable structure but also adds a touch of sophistication to your marine setup. The patented Easy Install System simplifies installation, saving you time and effort while ensuring a secure fit.
Advanced Features for Superior Performance
- High Capacity: With a robust 3200 lbs capacity, the FW32000101 is capable of handling larger boats and marine craft with ease, providing unmatched reliability and peace of mind.
- Adjustable Handle Lengths: Customize your winching experience with adjustable handle lengths ranging from 6 to 9 inches, allowing for ergonomic operation and precise control.
- Efficient Gear Ratio: Featuring a 5.1:1 single-speed and 3.16:1 two-speed gear ratio, the FW32000101 delivers exceptional pulling power and speed, ensuring smooth and effortless winching in any situation.
- Premium Finish: The Sharkskin™ finish not only enhances the winch's aesthetic appeal but also provides maximum corrosion resistance, making it suitable for saltwater environments and harsh weather conditions.
- Two-Speed Model: The 3200 lbs two-speed winch model features a center drive enclosed ratchet system, user-friendly pull-turn knob to engage ratchet plunger pin, and a self-engaging one-hand system that shifts from high to low speed, offering unparalleled versatility and control in various winching scenarios.
Expert Guidance for Optimal Selection
To select the correct winch capacity for your needs, consider the total weight of your boat, including motor, fuel, and gear. As a rule of thumb:
Minimum Winch Capacity = Maximum Weight of Boat, Including Motor, Fuel, Gear ÷ 2
Example Calculation:
- Boat, Motor, Fuel, Gear Weight = 6400 lbs
- Minimum Winch Capacity = 6400 ÷ 2 = 3200 lbs
This calculation matches the capacity of the FW32000101, making it the ideal choice for ensuring safety and efficiency in your boating endeavors. Note: For steep inclines or shallow water launches, consider dividing the maximum weight by 1.5 for added safety margin.
Specifications
| Feature | Specification |
|---|---|
| Capacity | 3200 lbs |
| Handle Lengths | 6 to 9 inches |
| Gear Ratio | 5.1:1 / 3.16:1 |
| Strap | 20 ft. x 2 in. |
| Finish | Sharkskin |
| Warranty | Lifetime |
$218 49 $312.50 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$312.50 $218 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: FW32000101
- Includes: F2 Marine Trailer Winch
Description
Get Expert Help
Fulton F2 Marine Trailer Winch Two-Speed 3,200 lbs Capacity 20 ft Sharkskin Strap Adjustable Handle Lifetime Warranty - FW32000101 Boat Winch Install Notes
Installation Instructions for Trailer Winch
Part Numbers:
- FW32000101
Tools Required:
- 9/16" socket or wrench
- Torque wrench
Step-by-Step Instructions:
Mounting the Winch:
- Ensure the mounting surface is at least as large as the winch frame footprint.
- Use the three (3) supplied 3/8” diameter grade-5 carriage bolts and lock nuts.
- Torque the bolts to 28-30 ft-lbs.
- Verify the winch is securely mounted before use.
Installing the Handle Roller Assembly:
- Assemble the handle roller as shown in the diagram.
- Tighten the lock nut to 20-25 ft-lbs using a 9/16” socket.
Adjusting the Handle:
- Adjust the handle for length (6” to 9”) and for right or left-hand drive:
- Remove the bolt and washers on each side of the drive shaft.
- Push the hex shaft 1/2”-3/4” through to the opposite side, keeping internal gears aligned.
- Attach the handle bolt and washers on the handle side and torque to 22-25 ft-lbs.
- Repeat for the other side of the shaft without overtightening.
Attaching the Winch Strap:
- Use the strap anchor provided with the winch.
- Pass the strap loop under the cross bolt and through the anchor slot.
- Insert the strap anchor into the strap loop and pull tight.
- Maintain a minimum of three complete wraps of strap on the drum.
Operating the Winch:
- Letting Out Line/Load:
- Firmly grip the winch handle.
- Disengage the ratchet plunger or engage it in the reverse direction.
- Slowly let out the strap while ensuring the ratchet plunger is engaged to hold the load when paused.
- Taking In Line/Load:
- Engage the ratchet plunger in the forward/loading position.
- Turn the handle to wind the strap properly onto the drum.
- Pause by ensuring the ratchet plunger holds the load.
Maintenance:
- Inspect and replace any damaged or worn parts before use.
- Keep gears, ratchet contact points, and shaft bushings lubricated with light oil or grease.
- Clean the winch occasionally with mild soap and water to maintain its performance and appearance.
Safety Notes:
- Never release the crank handle unless the ratchet plunger is fully engaged.
- Avoid standing alongside the winch or guiding the strap with hands.
- Do not exceed the maximum rated capacity as stamped on the winch.
- Use tie-downs to secure boats during towing; winches are not designed for this purpose.
- Ensure a loud clicking sound is heard from the ratchet when pulling a load.
Specifications:
- Capacity: Based on direct line pull on the third layer of strap on the drum.
- Handle Force: Requires a maximum of 45 lbs to pull the rated load.
Warranty Information:
- Limited Lifetime Warranty:
- Covers material defects and workmanship under normal use.
- Excludes normal wear, misuse, or improper installation.
- For complete warranty instructions, please download the full installation PDF.
Compliance References:
- Conforms to EN-12100-2:2003 Safety Machinery standards and Machinery Directive 98/37/EC.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
