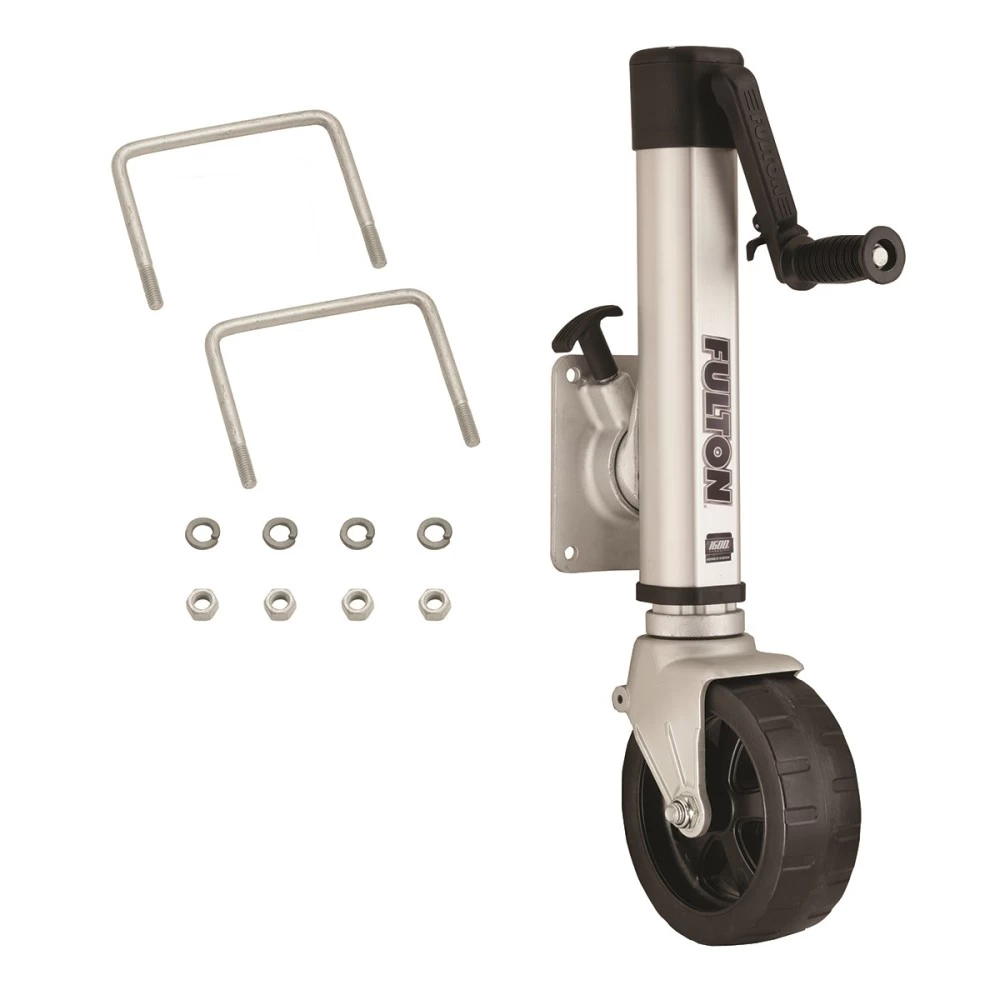

Fulton F2 Trailer Jack 1,600 lbs. Bolt‑On w/ Single Wide Wheel Fits 4"-5" Frames
Model: 1413140334Fulton, the industry leader for high performance marine jacks, is proud to introduce a revolution in trailer jack engineering. The F2®, designed for use with marine, recreational and utility trailers, continues the Fulton heritage of innovation rethinking every feature and challenging industry conventions. The result is a reengineered high quality product that will transform the industry. It’s so strong and reliable that Fulton is backing it with an unprecedented LIMITED LIFETIME WARRANTY.
-
Maintenance free - designed to eliminate the need for lubrication and maintenance
-
Corrosion resistant coatings cover internal and external components - will hold up in harsh environments
-
Ergonomic design - crank, release pin and wheel wedge (sold separately) are made of strong, engineered plastic for a comfortable touch
-
Stylish design - compliment your boat and customize your trailer’s styling
-
Sealed and lubricated one-piece gearbox
-
Handle Hold-Up secures handle to jack tube when in stowed position
-
Limited Lifetime Warranty
Specifications:
-
Lift Capacity: 1,600 lbs.
-
Bracket range of adjustment: 8" (adjust to any height for mounting)
-
Bolt-On bracket & hardware for 3"-5" frames is included
-
Travel/Lift: 10"
-
Wide Track model w/ single 3" wide wheel
-
Pull Pin diameter: 9/16"
-
Outer tube diameter: 2-3/4"
-
Foot activated wheel stop wedge is not included - sold separately
-
Sidewind model
-
4-1/2" x 5-1/2" bolt pattern on center
$227 90 $314.86 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$314.86 $227 90
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 1413140334
- UPC: 016118096644
- Includes: 1600 lbs Jack
Description
Get Expert Help
Fulton F2 Trailer Jack 1,600 lbs. Bolt-On w/ Single Wide Wheel Fits 4"-5" Frames Install Notes
Installation Instructions for F2 Trailer Jack
General Installation Notes:
- Verify no interference from the tow vehicle, tongue, ground, or other mounted accessories, whether stationary or in motion.
- Check for interference in all positions, including handle swing and swivel positions, before and after installation.
- Swivel mount height is pre-set by the factory for most applications.
Tools Required:
- Torque wrench
- Ratchet set
- 3/8” bolts with lock washers
- 1/2” bolt
Step-by-Step Instructions:
Weld-On Mounting Plate:
- The mounting plate is included only on weld-on models.
- All welding must be performed by a certified professional.
- Position the plate flat against the trailer with the top aligned flush with the trailer tube's top.
- Weld completely around using a 3/16” fillet weld.
Adjusting Swivel Mount Height (If Necessary):
- Remove the jack from the trailer and loosen the two swivel fasteners until the slide block moves freely along the outer tube.
- Rotate the swivel bracket to the horizontal (3” mounting) position to access the upper bolt.
- Adjust the swivel mount to the desired location and re-torque to 60-70 ft-lbs.
- Check for proper swivel and pin engagement after adjustment.
Bolt-On Installation:
- Available for 3"x3", 3"x4", or 3"x5" trailer tubes only.
- Position the swivel bracket and U-bolts for proper mounting to the trailer.
- Tighten nuts and torque to 20-25 ft-lbs.
Optional Wheel Wedge:
- Assemble the optional wheel wedge as shown in the manual and torque to 6-9 in-lbs.
- To activate, press downward until the wedge locks into place.
- To release, lift up until the pressure is removed from the wheels.
- Note: The wheel wedge is not intended to act as a wheel brake or stop.
Footplate Assembly:
- Thread the footplate into the bottom of the jack tube.
- Torque the footplate to 60-70 ft-lbs.
Maintenance:
- Clean with mild soap and water occasionally.
- Apply light oil lubrication to pivot points to prolong performance and appearance.
Safety Notes:
- Fully retract the jack and rotate it into the stowed position before towing.
- Do not exceed the rated capacity.
- Avoid excessive side forces to prevent jack failure.
- Replace bent, broken, or worn parts before use.
Warranty Information:
- Coverage: Protects against material defects in workmanship and materials under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Compliance:
- The F2 Trailer Jack conforms to EN-12100-2:2003 Safety Machinery standards and the Machinery Directive 98/37/EC.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
