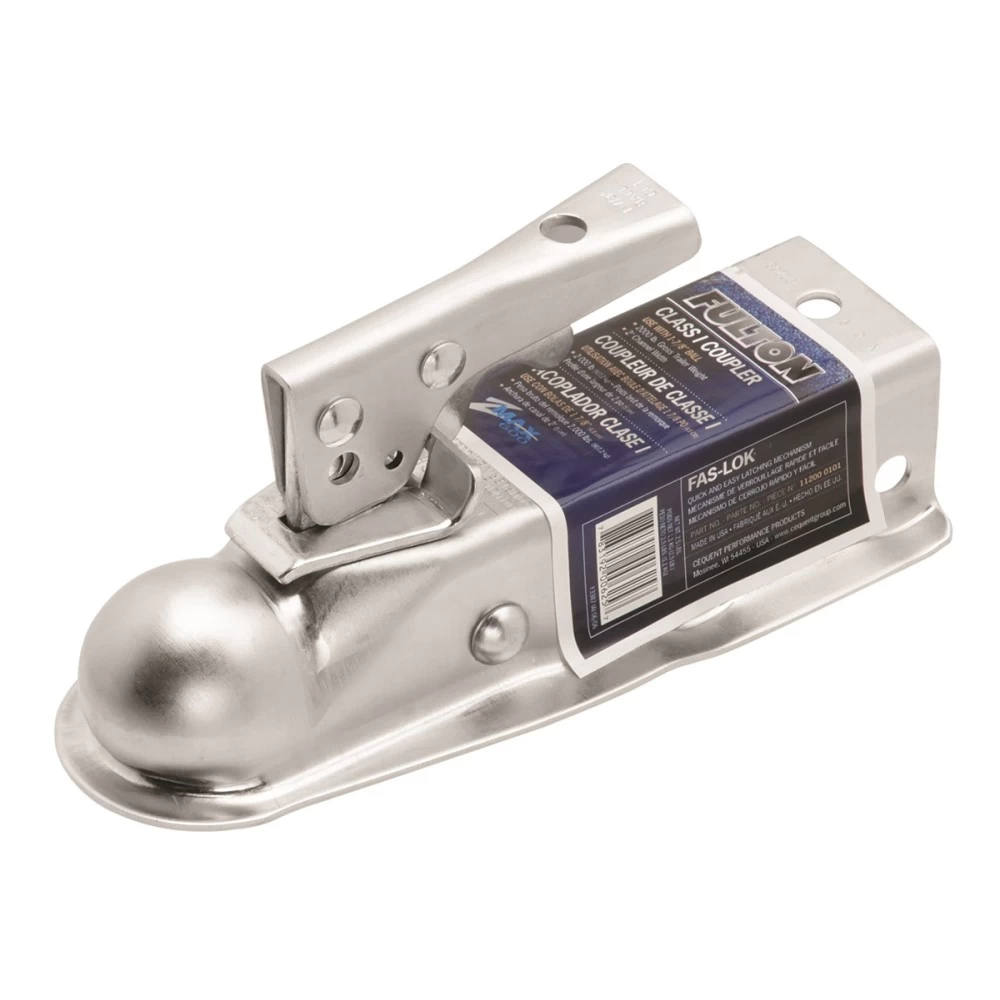

Fulton Fas‑Lok Trailer Coupler 2" Channel Tongue 1‑7/8" Ball 2,000 lbs. Trigger Latch Zinc
Model: 11200 0101*STAMPED COUPLERS
The most popular coupler mechanism ever developed, the Fas-Lok®
originated as a Fulton brand and is offered in a full line of SAE Class
I through IV rated straight tongue stamped couplers. The Fas-Lok®
latching mechanism allows quick and easy trailer hook-up, and is factory
adjusted for convenience.
| Part Number | 11200 0101 |
| Brand | Fulton |
| Gross Trailer Weight | 2,000 lbs. |
| Ball Size | 1-7/8" |
| SAE Class | I |
| Channel Width | 2" |
| Finish | Clear Zinc 100 hours salt spray testing |
| Warranty | 5 Year |
| Installation Instructions |  |
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
$31 88
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$31 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $7.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 11200 0101*
- UPC: 783192006257
- Includes: Channel Coupler
Description
STAMPED COUPLERS
The most popular coupler mechanism ever developed, the Fas-Lok®
originated as a Fulton brand and is offered in a full line of SAE Class
I through IV rated straight tongue stamped couplers. The Fas-Lok®
latching mechanism allows quick and easy trailer hook-up, and is factory
adjusted for convenience.
| Part Number | 11200 0101 |
| Brand | Fulton |
| Gross Trailer Weight | 2,000 lbs. |
| Ball Size | 1-7/8" |
| SAE Class | I |
| Channel Width | 2" |
| Finish | Clear Zinc 100 hours salt spray testing |
| Warranty | 5 Year |
| Installation Instructions | |
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
Get Expert Help
Fulton Fas-Lok Trailer Coupler 2" Channel Tongue 1-7/8" Ball 2,000 lbs. Trigger Latch Zinc Install Notes
Installation and Maintenance Instructions for Stamped Couplers
Specifications:
- Rated according to SAE J684.
- Minimum coupler/tongue overlap:
- Straight Tongue Couplers: 6.5 inches.
- A-Frame Couplers: Only compatible with 50° trailer tongues.
Tools Required:
- Torque wrench
- Grade 5 bolts with locknuts
- Grease for ball pocket
- SAE 30 wt. motor oil
Step-by-Step Instructions:
Straight Tongue Couplers:
- Align the coupler's internal stop against the end of the trailer tongue for maximum overlap.
- Use (4) 3/8" Grade 5 bolts through side holes for Class 1 couplers or (4) 1/2" Grade 5 bolts for Class 2, 3, and 4 couplers.
- Alternate: Use (2) through bolts with locknuts torqued to appropriate SAE proof load specifications.
- Ensure no deformation of the trailer tongue.
A-Frame Couplers:
- Place the coupler on trailer tongue members.
- Bolt the coupler using Grade 5 hardware with locknuts through mounting holes.
- Torque bolts to appropriate SAE proof load specifications:
- Ø 3/8": 23 ft-lbs.
- Ø 1/2": 55 ft-lbs.
- Ø 5/8": 110 ft-lbs.
Adjustable Height Channels:
- For tongues 6" or less in height, gussets are required.
- Center the mounting bracket on the tongue and weld a 1/4" minimum fillet weld around the bracket.
- Secure the coupler with (2) 5/8" x 5" Grade 5 bolts and tighten locknuts to 100-110 ft-lbs.
Weld-On Instructions:
- All welding must be performed by a certified welder.
- Ensure a minimum 6.5" overlap between the coupler and trailer tongue.
- Weld both sides and the top using:
- Straight Tongue Couplers: 1/8" fillet weld.
- A-Frame Couplers: 3/16" fillet weld.
- Remove excess paint or primer from the ball pocket and latch mechanism after installation.
Maintenance Instructions:
- Perform the following at least annually:
- Check welds and mounting bolt torque.
- Grease the ball pocket.
- Oil pivot points with SAE 30 wt. motor oil.
- Inspect and replace retaining pins if necessary.
- Keep the ball pocket clean to avoid debris buildup.
Safety Notes:
- Never exceed the rated capacity of the coupler, hitch, or vehicle.
- Always use the correct hitch ball size as indicated on the coupler body.
- Ensure the hitch ball is fully seated, and the latch is in the closed position before towing.
- Check safety chains, trailer lighting, and other components before use.
- Do not tow if the ball is not fully seated or if the coupler is damaged.
Warranty Information:
- Limited Warranty: Covers material defects and workmanship.
- Warranty Duration:
- 5 years for specific premium-grade couplers.
- 1 year for standard-grade couplers.
- Exclusions:
- Normal wear and tear.
- Damage from abuse, misuse, or improper installation.
- Unauthorized alterations or repairs.
Warranty Instructions:
- For complete warranty details, download the full installation and maintenance PDF.
- To file a warranty claim, provide the product model number and proof of purchase to the designated support team.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation and maintenance procedure. For complete instructions, including diagrams and detailed information, please download the full installation PDF.
