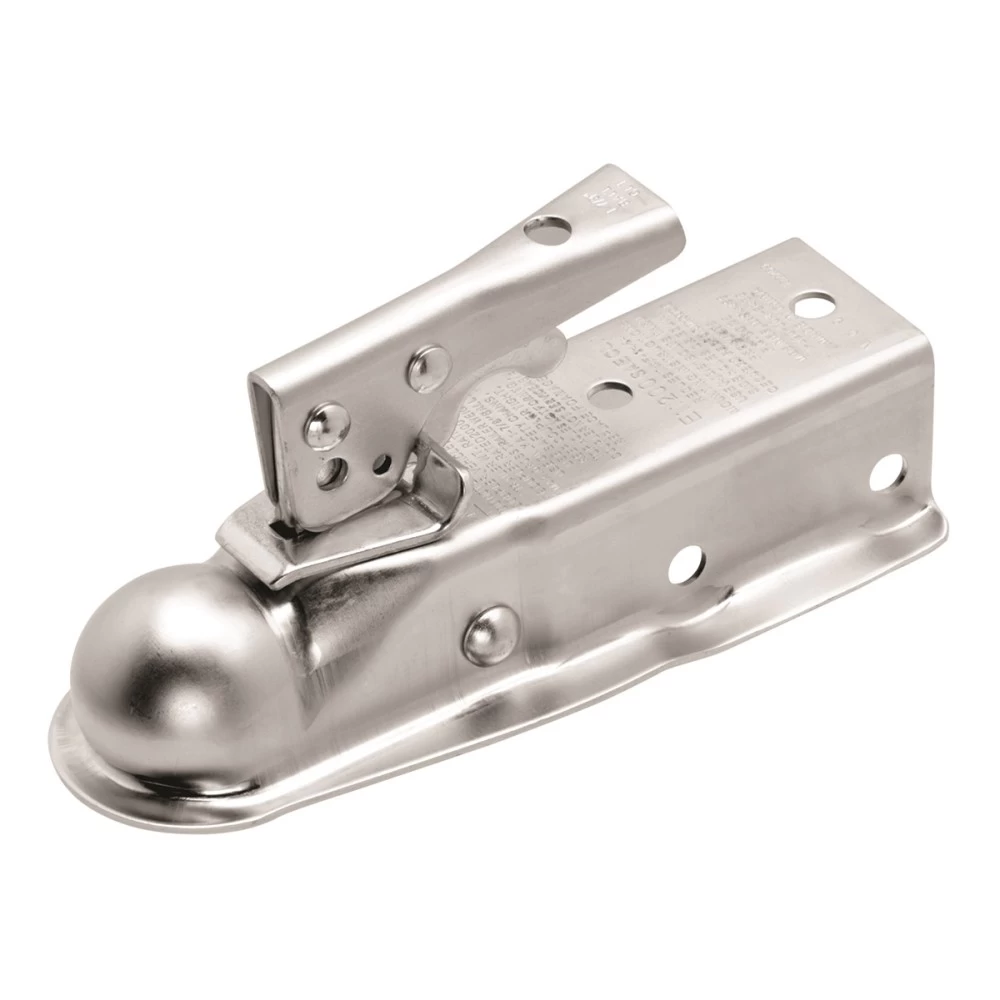

Fulton Fas‑Lok Trailer Coupler 2" Channel Tongue 1‑7/8" Ball 2,000 lbs. Trigger Latch Zinc
Model: E112000340STAMPED COUPLERS
The most popular coupler mechanism ever developed, the Fas-Lok®
originated as a Fulton brand and is offered in a full line of SAE Class
I through IV rated straight tongue stamped couplers. The Fas-Lok®
latching mechanism allows quick and easy trailer hook-up, and is factory
adjusted for convenience.
| Part Number | E112000340 |
| Brand | Fulton |
| Gross Trailer Weight | 2,000 lbs. |
| Ball Size | 1-7/8" |
| SAE Class | I |
| Channel Width | 2" |
| Finish | Zinc |
| Warranty | 5 Year |
| Installation Instructions |  |
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
$28 46
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$28 46
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $7.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: E112000340
- UPC: 016118097061
- Includes: Channel Coupler
Description
STAMPED COUPLERS
The most popular coupler mechanism ever developed, the Fas-Lok®
originated as a Fulton brand and is offered in a full line of SAE Class
I through IV rated straight tongue stamped couplers. The Fas-Lok®
latching mechanism allows quick and easy trailer hook-up, and is factory
adjusted for convenience.
| Part Number | E112000340 |
| Brand | Fulton |
| Gross Trailer Weight | 2,000 lbs. |
| Ball Size | 1-7/8" |
| SAE Class | I |
| Channel Width | 2" |
| Finish | Zinc |
| Warranty | 5 Year |
| Installation Instructions | |
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
Get Expert Help
Fulton Fas-Lok Trailer Coupler 2" Channel Tongue 1-7/8" Ball 2,000 lbs. Trigger Latch Zinc Install Notes
Installation and Maintenance Instructions for Couplers
Specifications:
- Rated according to SAE J684.
- Minimum tongue overlap: 6.5 inches.
Tools Required:
- Torque wrench
- SAE 30 wt. motor oil
- Grade 5 bolts with locknuts
Step-by-Step Instructions:
Weld-On Instructions:
- Ensure all welding is performed by an AWS-certified welder.
- Position the coupler on trailer tongue members with a minimum overlap of 6.5 inches.
- Weld both sides and the top using:
- Straight Tongue Couplers: Minimum 1/8" fillet weld.
- A-Frame Couplers: Minimum 3/16" fillet weld.
- Remove excess paint or primer from the ball pocket and latching mechanism after installation.
Bolt-On Instructions:
- Straight Tongue Couplers:
- Class 1: Use (4) 3/8" Grade 5 bolts through side holes or (2) 3/8" bolts with locknuts, torqued to SAE proof load specifications. No deformation of the tongue end is allowed.
- Class 2, 3, & 4: Use (4) 1/2" Grade 5 bolts through side holes or (2) 1/2" bolts with locknuts, torqued to SAE proof load specifications. No deformation of the tongue end is allowed.
- A-Frame Couplers:
- Designed for 50° trailer tongues. Use available mounting holes to bolt the coupler with Grade 5 bolts and locknuts.
- Torque bolts to SAE specifications:
- Ø 3/8": 23 ft-lbs.
- Ø 1/2": 55 ft-lbs.
- Ø 5/8": 110 ft-lbs.
- Adjustable Height Channels:
- Gussets are required if tongue height is 6 inches or less. Weld a 1/4” fillet weld around the mounting bracket.
- Secure using (2) 5/8” Grade 5 bolts, tightened to 100-110 ft-lbs.
Coupling Instructions:
To Couple:
- Block trailer wheels.
- Align the hitch ball beneath the coupler.
- Open the locking mechanism:
- Fas-Lok® Style: Pull latch trigger and lift locking lever.
- Yoke Style: Lift latch, raise yoke, and pull back.
- Low-Latch Style: Lift latch upward and pull back.
- Lower the coupler over the ball until fully seated.
- Secure the locking mechanism, ensuring proper engagement.
To Uncouple:
- Block trailer wheels.
- Fully open the locking mechanism.
- Raise the coupler off the hitch ball.
Maintenance:
- Perform the following at least annually:
- Check welds and mounting hardware for wear or damage.
- Grease the ball pocket.
- Oil pivot points with SAE 30 wt. motor oil.
- Inspect retaining pins and replace if necessary.
- Keep the ball pocket clean to prevent dirt accumulation.
- Store the coupler off the ground when not in use.
Safety Notes:
- Never exceed the rated capacities of the coupler, hitch, or towing components.
- Use only the specified hitch ball size.
- Replace worn or damaged components immediately.
- Ensure trailer safety chains are secured and lighting complies with SAE J684 standards.
Warranty Information:
- Limited Warranty:
- Premium products: 5 years.
- Standard products: 1 year.
- Exclusions:
- Normal wear and tear.
- Damage due to misuse, overloading, or improper installation.
- For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help.
Visit www.trailerjacks.com or call 877-869-6690.
Safety Notes:
- Never exceed the rated capacities of the coupler, hitch, or towing components.
- Use only the specified hitch ball size.
- Replace worn or damaged components immediately.
- Ensure trailer safety chains are secured and lighting complies with SAE J684 standards.
Warranty Information:
- Limited Warranty:
- Bulldog and Fulton: 5 years.
- Pro-Series and Reese Towpower: 1 year.
- Exclusions:
- Normal wear and tear.
- Damage due to misuse, overloading, or improper installation.
- For warranty claims:
- Contact Cequent Performance Products, Inc.
- Phone: 1-800-632-3290
- Address: 47912 Halyard Dr., Suite 100, Plymouth, MI 48170
- Website: www.cequentgroup.com
Additional Notes:
- Replacement parts are available through authorized distributors.
- Always use parts of equal or superior quality for repairs.
