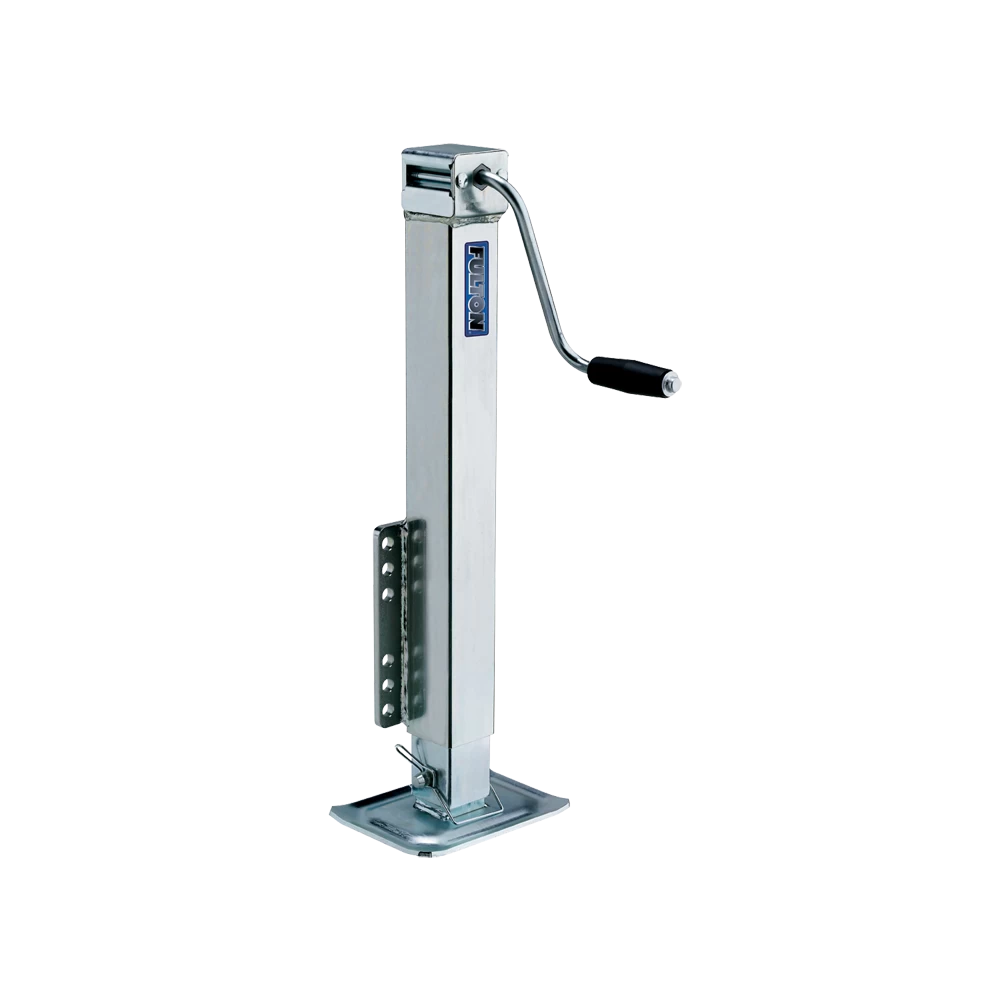

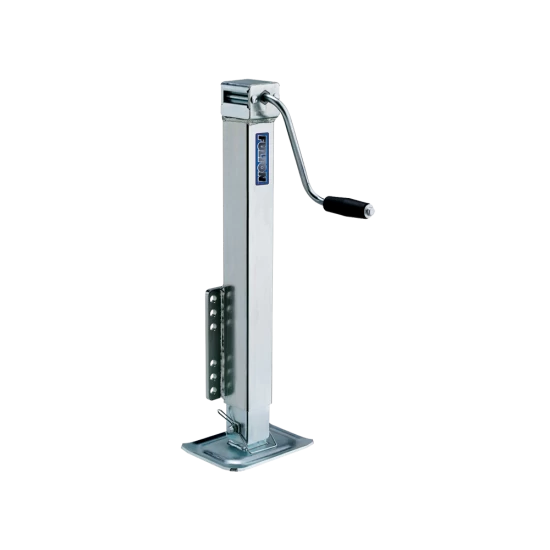

Fulton Fixed Mount Drop Leg Trailer Jack 5,000 lbs 28" Lift Bolt‑On Packaged
Model: HD50000101Fulton Marine and Recreational Fixed Mount Trailer Jack (Bolt-On Hardware Included)
Designed for robust support and versatility, the Fulton Marine and Recreational Fixed Mount Trailer Jack is ideal for a wide array of trailers, including utility, enclosed cargo, construction, horse, livestock, agricultural, and industrial trailers. With a heavy-duty square, drop leg design and a lift capacity of 5,000 lbs, this jack is engineered to meet the demands of a range of applications. The bolt-on version comes with all necessary mounting hardware, fitting trailer frames up to 3"x5".
Specifications:
- Compatible with 3"x3", 3"x4", and 3"x5" trailer frames.
- Lift Capacity: 5,000 lbs, suitable for trailers with a weight capacity of 3001-5000 lbs.
- Sidewind lift style for easy operation with 28" total travel, including a 9" drop leg travel.
- Retracted Bracket Height: 6.5" from bracket to bottom, extending to a height of 35" for versatile use.
- Clearance: 18.5" from bracket to top, ensuring ample space for operation.
- Heavy-duty Z-Max 600 zinc finish for maximum corrosion resistance.
- Footplate dimensions: 6.0" x 8.0", ensuring stable support.
- Includes mounting hardware for 4", 5", & 6" high frames, accommodating a wide range of trailer specifications.
- 5-Year limited warranty for peace of mind.
For inquiries or to order, enhance your trailer's functionality with this durable and reliable jack by calling us now at 877-869-6690.
$218 49 $293.75 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$293.75 $218 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: HD50000101
- Includes: Fixed Mount Drop Leg Jack
Get Expert Help
Fulton Fixed Mount Drop Leg Trailer Jack 5,000 lbs 28" Lift Bolt-On Packaged Install Notes
Installation Instructions for Tongue Jacks
General Installation Notes:
- Confirm no interference from the tow vehicle, tongue, ground, or other mounted accessories while stationary or in motion.
- Verify proper clearance in all positions, including handle swing and swivel positions, before and after installation.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the correct mounting hole pattern for your tongue size, keeping the gap between the mounting bolts and tongue under 1/16".
- Place the jack against the tongue and position the mounting straps on the opposite side of the tongue.
- Insert four bolts through the mounting bracket and straps, ensuring the upper bolts rest on the tongue top and the lower bolts are less than 1/16" from the bottom.
- Secure with locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Instructions:
- Snap Ring Models: Place the jack bracket over the mount and fully seat the snap ring into the groove.
- Bolt-Through Models: Insert the jack bracket into the recessed opening on the mount. Place the small end of the bushing into the jack bracket and onto the bolt. Tighten the locknut until there is minimal movement.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- Welding must be performed by an AWS-certified welder.
- Align the jack and foot with the coupler before welding using a 3/16" fillet weld.
- Use three 3/8"-16 grade-5 bolts with washers for bolt-on applications and torque to 15-20 ft-lbs.
- Weld a support plate to the trailer frame with a 3/16" fillet weld if recommended.
Direct-Mount Instructions:
- Position the jack at the desired location and weld 1" at two points on both sides using a 3/16" fillet weld.
Maintenance:
- Lubricate internal gearing and bushings with automotive grease annually.
- Apply lightweight oil to all moving components such as handles and screw stems.
- In marine environments, flush the jack assembly with fresh water and apply fresh lubricant.
Safety Notes:
- Retract and rotate the jack fully before towing.
- Do not exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid side forces, which may cause jack failure.
- Replace damaged or worn parts before use.
- Do not adjust the drop foot or leg while under load.
Warranty Information:
- Coverage: Up to 5 years depending on the product type.
- Exclusions: Normal wear, misuse, overloading, improper installation, and modifications.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
