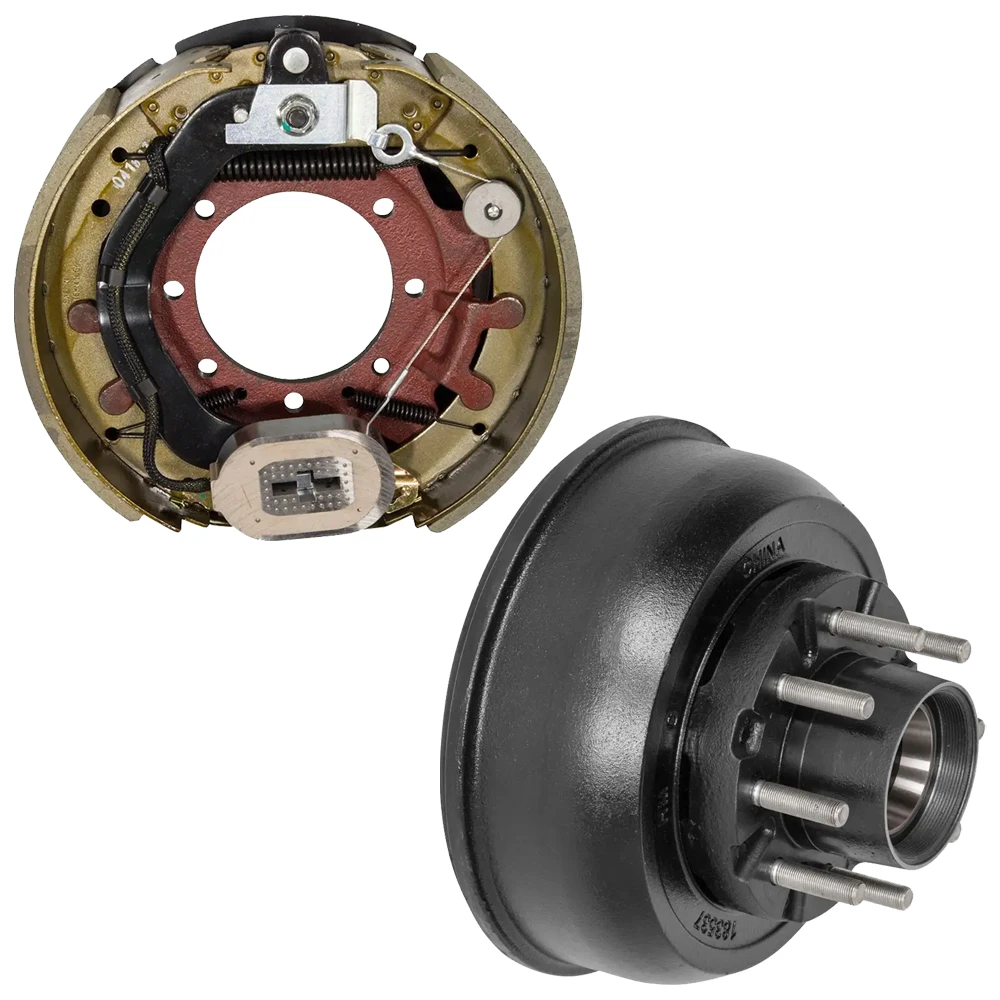

Lippert 10,000-lb Left Electric Brake + Hub & Drum Kit — 12-1/4″ × 3-3/8″, 8 on 6.5, 5/8 Studs — Not Pre-Assembled (Fits Dexter/AL-KO/Rockwell)
Model: LP89HBALippert 10,000-lb Left Electric Brake + Hub & Drum Kit — 12-1/4″ × 3-3/8″ (Not Pre-Assembled)
Keep your trailer’s braking system strong and reliable with this genuine Lippert single-side kit. Built for 10K axles, it combines a left-hand electric brake assembly with a matching 12-1/4″ × 3-3/8″ drum and a separate 8-on-6.5 hub with 5/8″ studs. Broadly compatible with Dexter, AL-KO and Rockwell 10K drum-brake systems—ideal for livestock, flatbed and equipment trailers.
Bundle Contents:
- QTY (1): Left Electric Trailer Brake Assembly — 12-1/4″ × 3-3/8″, 10,000-lb, Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12.25" x 3.38"
- New electric drum brakes will require a break-in period to achieve full performance
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
- QTY (1): Trailer Brake Drum — 12-1/4″ × 3-3/8″, 10,000-lb
- Cast-iron drum optimized for heat dissipation
- Works with 12-1/4″ × 3-3/8″ electric or hydraulic brakes
- Sized for 10K axle applications
- QTY (1): 10,000-lb Brake Wheel Hub (separate component)
- 8-on-6.5 bolt pattern; 5/8″-18 wheel studs pre-installed
- Pairs with the drum above (separate hub + separate drum — not an integrated one-piece)
- Compatible with common 10K drum-brake systems (Dexter, AL-KO, Rockwell)
Notes: This kit is not pre-assembled—product images may show a pre-assembled hub-and-drum for illustration, but the kit ships as separate hub and drum components plus the left brake assembly. Bearings, races, grease/oil seals, caps, and spindle hardware (washer, nut/retainer) are typically sold separately. Always verify axle rating and brake size, and service bearings/seals during installation.
| Specifications: | |
|---|---|
| Kit Type | Single-Side Left Electric Brake + Hub & Drum Kit (Not Pre-Assembled) |
| Axle Rating | 10,000 lb |
| Drum Dimensions | 12-1/4″ diameter × 3-3/8″ shoe width |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8 on 6.5 |
| Stud Size (Hub) | 5/8″-18 (pre-installed) |
| Hub/Drum Format | Separate Hub + Separate Drum (not integrated) |
| Type of Adjustment | Self-Adjusting (brake assembly) |
| Brake Location | Left (Roadside) |
| Wheel Size Compatibility | 16″, 16.5″, 17″, 17.5″ (application dependent) |
| Compatibility | Dexter, AL-KO & Rockwell 10K drum-brake systems |
| Includes | Left electric brake assembly, 1 brake drum, 1 brake hub (bearings, seals, caps, hardware sold separately) |
| Warranty | 1 Year Limited |
$427 99 $662.85 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$662.85 $427 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP89HBA
- Includes: Left Electric Trailer Brake Assembly, Trailer Brake Drum, Brake Hub Assembly
