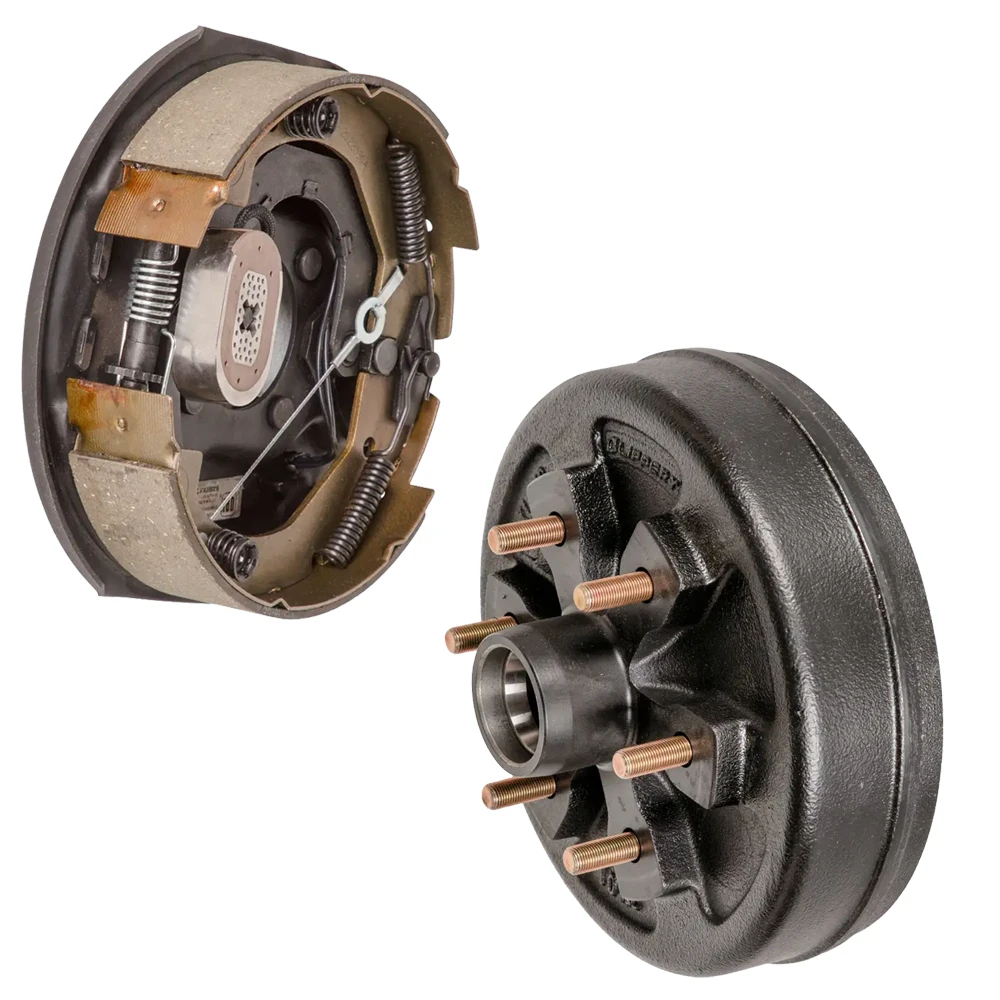

Lippert 10″ LH Self-Adjust Brake & 10″ Bare Hub/Drum Kit – 4,400 lb Axle, 6×5.5"
Model: LP221HBALippert 10″ LH Self-Adjusting Brake & Bare 10″ Hub/Drum Replacement Kit (Not for Dexter D44)
Service one side of your 4,400-lb axle with a genuine Lippert left-hand self-adjusting 10″ brake plus a 10″ bare hub/drum. The brake assembly fits standard 10″ × 2-1/4″, 4-bolt mounting flanges. The hub/drum is machined for Lippert-style 4.4K spindles with a 6 on 5.5″ wheel pattern. Bearings, races, seals, dust cap, and lug nuts sold separately.
**Fitment warning: Hub/drum does NOT fit Dexter D44 (4,400-lb) spindles. Verify by the bearing numbers and seal size on your existing hub. Brake assembly fits standard 4-bolt 10″ brake flanges.Bundle Contents:

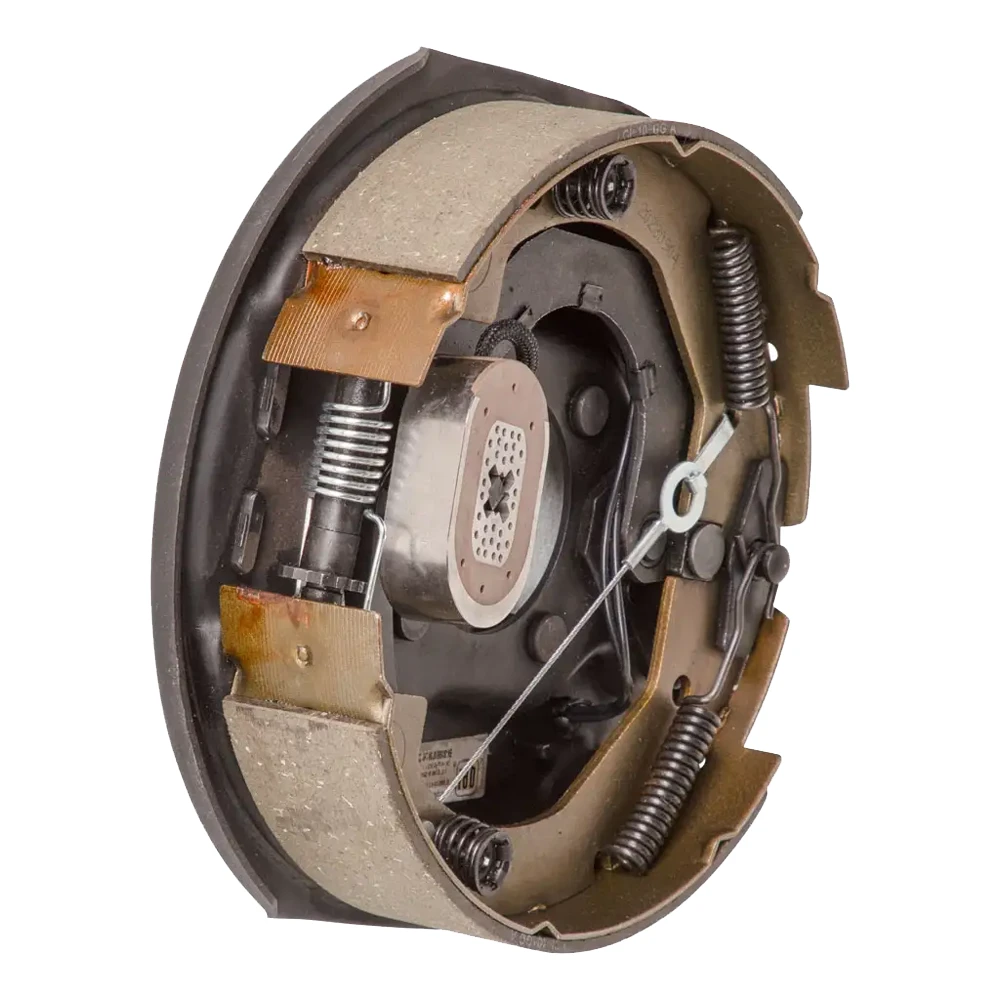

- QTY (1): Forward Self-Adjusting Brake – 10″ × 2-1/4″, Driver-Side, 4,400 lb, 4-Bolt
- Forward self-adjust design keeps shoes properly set
- Fits standard 10″ × 2-1/4″ drums
- Driver-side (left-hand) assembly, 4-bolt mounting flange
- Electric operation—no hydraulic lines required
- Up to 50 % shorter stopping distance
- Dexter compatible part number: K23-478-00 / 023-478-00

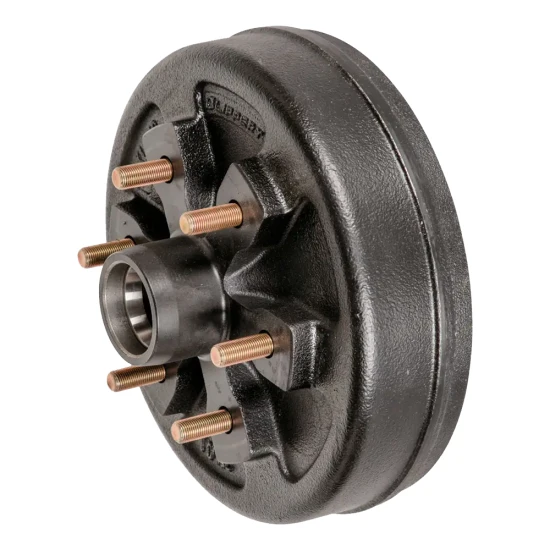

- QTY (1): 10″ Hub/Drum, 6 on 5.5″ Pattern, 1/2″ Studs – 4,400 lb
- Bare hub/drum only – full assembly not included
- Solid iron construction for superior heat dissipation
- 6 on 5.5″ bolt circle with 1/2″ press-in studs
- Rated for 4,400 lb trailer axles
- Accepts 14.5″–16.5″ wheels
- Includes Lippert 1-year limited warranty
Always confirm mounting pattern, axle rating, and original equipment specifications before installation. Inspect and service brakes regularly for optimum performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Left-Hand Brake & Hub/Drum Service Kit |
| Axle Rating | 4,400 lbs |
| Brake Drum Dimensions | 10″ × 2-1/4″ |
| Brake Mounting Pattern | 4-Bolt Brake Flange |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2″ |
| Type of Adjustment | Forward Self-Adjusting |
| Brake Location | Left-Hand / Driver Side |
| Wheel Size Compatibility | 14.5″, 15″, 16″, 16.5″ |
