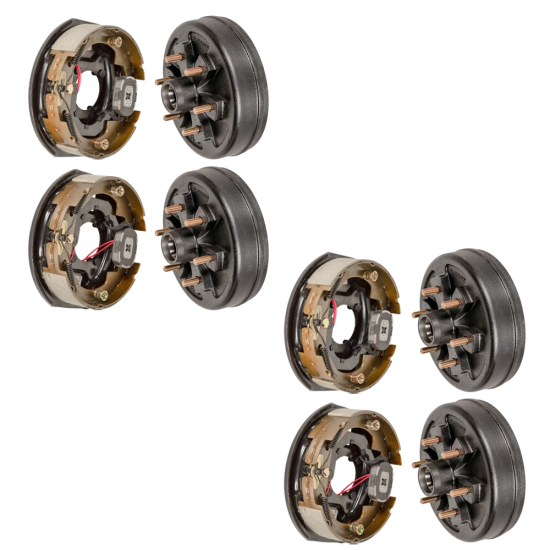

Lippert 10″ Manual-Adjust Electric Brake & Bare Hub/Drum Kit – Tandem 4,400 lb Axles, 6 on 5.5 Pattern – Dexter / Al-Ko / Rockwell Compatible
Model: LP236HBALippert 10″ Manual-Adjust Brake & Bare Hub/Drum Bundle – Tandem-Axle Kit
Restore confident stopping power on your tandem-axle trailer with this genuine Lippert service bundle. Four manual-adjust 10″ electric drum brakes pair with four heavy-duty bare hub/drums, giving you all the core hardware to refresh both 4,400 lb axles that use a 6 on 5.5″ wheel pattern. Compatible with Dexter, Al-Ko, Rockwell and other quality axles.
Bundle Contents:

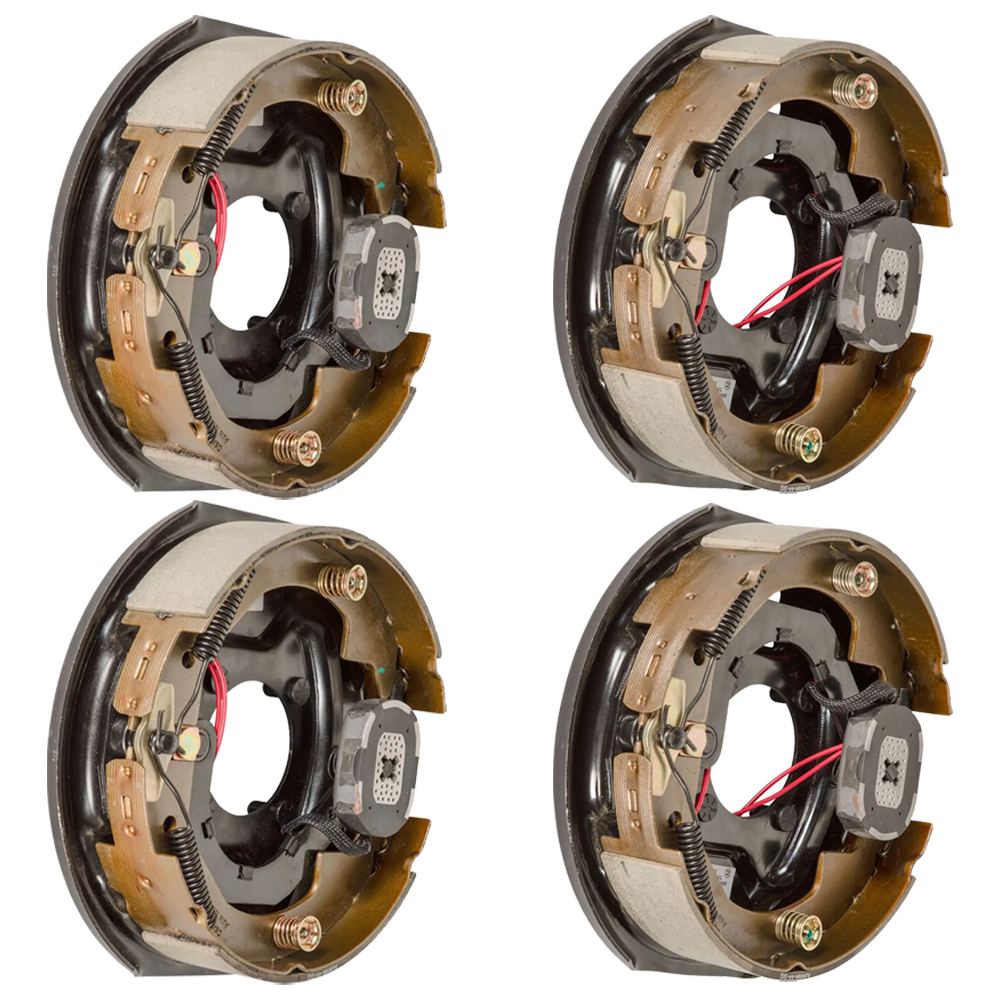

- QTY (2): Lippert 10″ × 2-1/4″ Manual-Adjust Electric Brake Assembly – Driver/Left Side – 4,400 lb Axles
- Pre-wired electric drum brake, 5-bolt mounting flange
- Manual shoe adjuster for long service life
- Dexter Compatible Part Number: K23-462-00 | 023-462-00
- Interchanges with Dexter, Al-Ko & Rockwell 4,400 lb assemblies
- QTY (2): Lippert 10″ × 2-1/4″ Manual-Adjust Electric Brake Assembly – Passenger/Right Side – 4,400 lb Axles
- Mirror-image of left-hand unit with bonded shoes
- Self-centering design for even wear
- Dexter Compatible Part Number: K23-463-00 | 023-463-00
- Ready to bolt on and wire

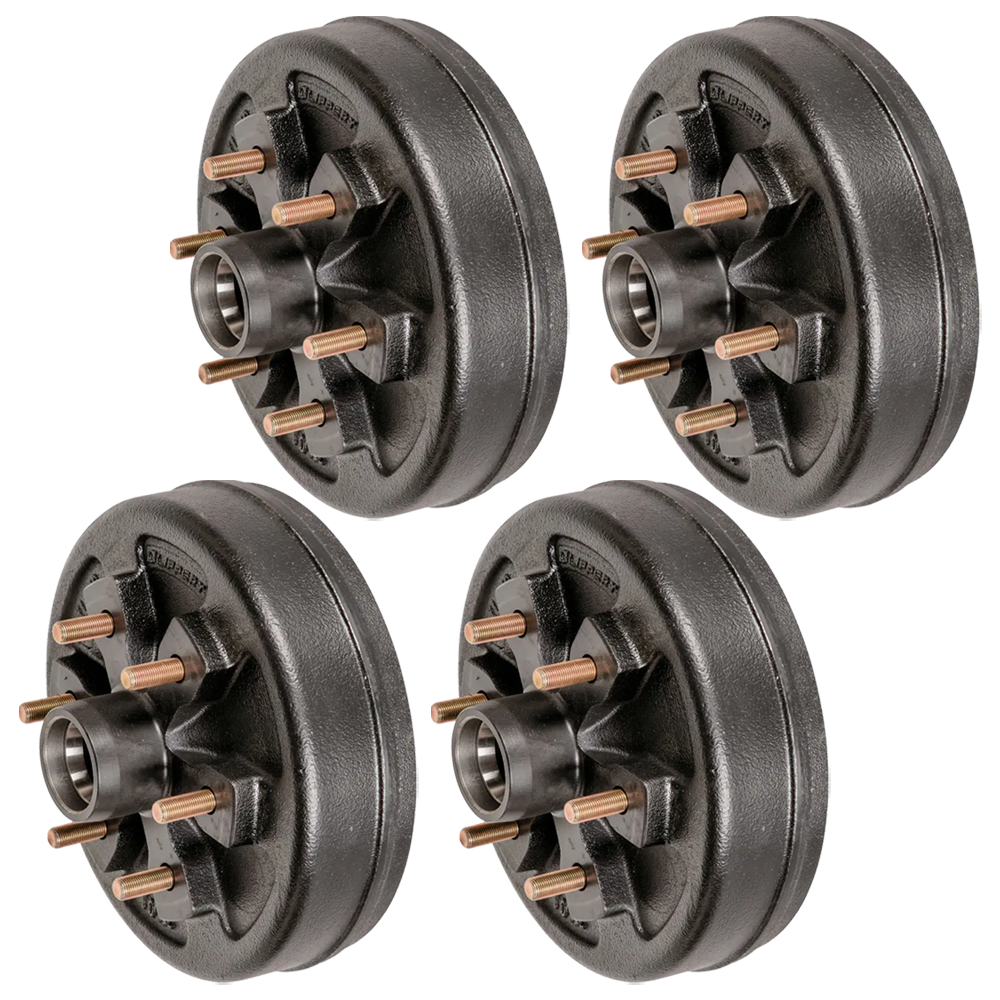

- QTY (4): Lippert 10″ Bare Hub/Drum – 6 on 5.5″, 1/2″ Stud, 4,400 lb (Hub Only)
- High-strength cast-iron construction
- Works with 10″ × 2-1/4″ brakes
- Accepts 14.5″ – 16.5″ wheels
- Hub only – full assembly, bearings & seal not included
Always verify your axle rating, bolt pattern, bearing numbers and brake-mount flange before installation. Adjust brakes after the first 200 miles and at regular intervals for maximum safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem-Axle Brake & Hub Service Kit |
| Axle Rating | 4,400 lb per axle |
| Brake Drum Dimensions | 10″ × 2-1/4″ |
| Brake Mounting Pattern | 5-bolt flange |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Hub with Integrated Drum (bare) |
| Stud Size | 1/2″ press-in |
| Type of Adjustment | Manual-Adjust |
| Brake Location | Left & Right Hand |
| Wheel Size Compatibility | 14.5″ | 15″ | 16″ | 16.5″ |
| Hub Quantity | 4 |
| Brake Assembly Quantity | 4 (2 LH, 2 RH) |
$490 99 $743.60 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$743.60 $490 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP236HBA
- Includes: Left Electric Trailer Brake Assembly (x2), Right Electric Trailer Brake Assembly (x2), Brake Drum Hub (x4)
