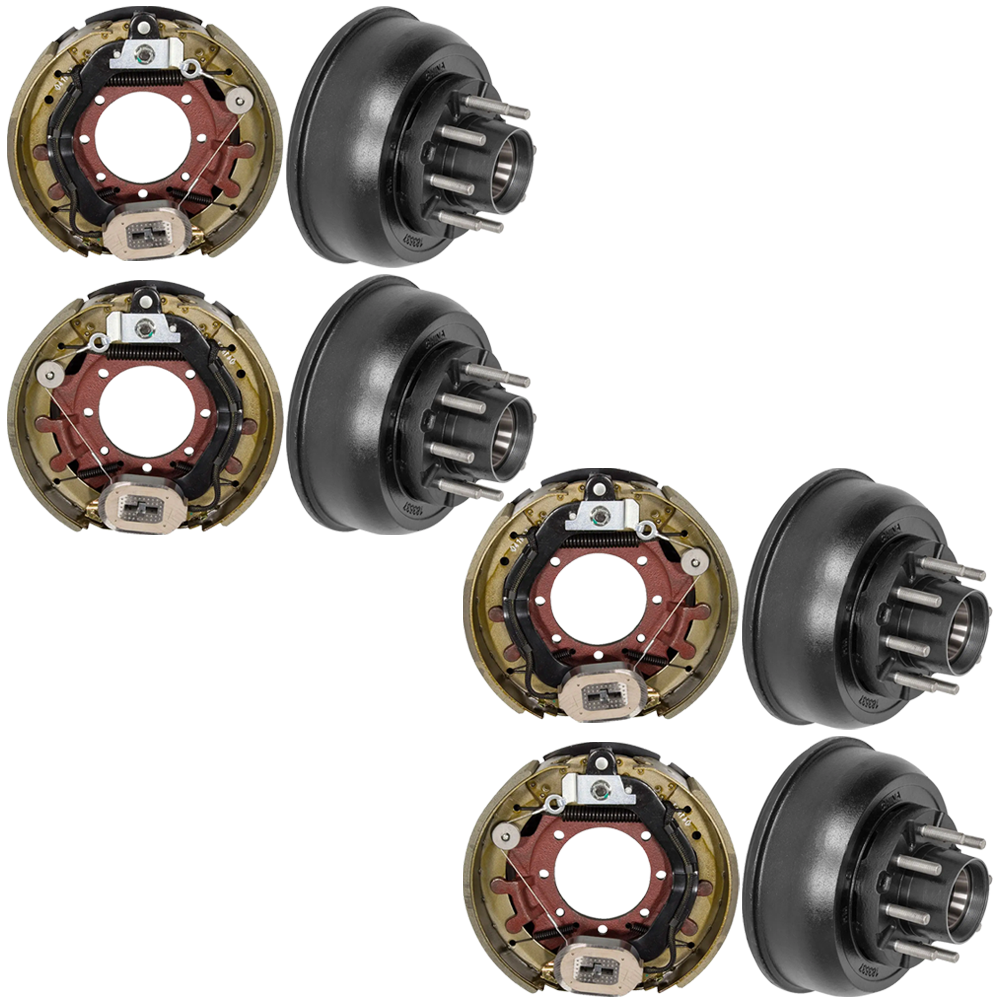

Lippert 10K Electric Brake + Hub & Drum Kits — Tandem Axle (4 Wheels, L/R Sets), 12-1/4″ × 3-3/8″, 8 on 6.5, 5/8 Studs — Not Pre-Assembled
Model: LP92HBALippert 10K Electric Brake + Hub & Drum Kits — Tandem Axle (4 Wheels, Not Pre-Assembled)
This complete Lippert 10K Tandem Electric Brake, Hub & Drum Kit equips four wheels with dependable braking for heavy-duty use. You get self-adjusting left and right brake assemblies for both sides, matched 12-1/4" × 3-3/8" drums, and separate 8-on-6.5 hubs (5/8" studs) built for 10,000-lb axles. Expect smoother towing and straightforward service with genuine Lippert parts. (Ships as separate hub and drum components, not pre-assembled.)
Bundle Contents:
- QTY (2): Left Electric Trailer Brake Assembly — 12.25″ × 3.38″, 10,000 lbs, Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12.25" x 3.38"
- New electric drum brakes will require a break-in period to achieve full performance
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
- QTY (2): Right Electric Trailer Brake Assembly — 12.25″ × 3.38″, 10,000 lbs, Right Side
- Genuine Lippert replacement part for 10,000-lb. axles
- Self-adjusting design eliminates manual adjustments
- Right-hand (curb-side) brake assembly
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- Compatible with 16″, 16.5″, 17″, or 17.5″ wheels
- Replacement standard electric brake assembly with park feature
- Offers up to 50% better braking distance (forward self-adjust)
- Dexter Compatible Part Number: K23-451-00 | 023-451-00
- QTY (4): Trailer Brake Drum — 12-1/4″ × 3-3/8″, 10,000-lb
- Durable cast-iron construction for heat dissipation and longevity
- Works with 12-1/4″ × 3-3/8″ electric or hydraulic drum brakes
- Sized for 10K axle applications

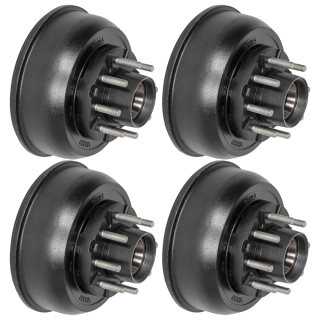

- QTY (4): 10,000-lb Brake Wheel Hub (separate components)
- 8-on-6.5 bolt pattern; 5/8″-18 wheel studs pre-installed
- Pairs with the drums above (separate hub + separate drum — not an integrated one-piece)
- Compatible with common 10K drum-brake systems (Dexter, AL-KO, Rockwell)
Notes: Not pre-assembled—photos may show a pre-assembled hub/drum for illustration, but the kit ships as separate hubs and drums plus left/right brake assemblies. Bearings, races, seals, caps, and spindle hardware sold separately.
| Specifications: | |
|---|---|
| Kit Type | Electric Brake + Hub & Drum Kits — Tandem Axle (4 wheels) |
| Axle Rating | 10,000 lb |
| Drum Size | 12-1/4″ × 3-3/8″ |
| Mounting Pattern (Brakes) | 7-bolt |
| Hub Bolt Pattern | 8 on 6.5 |
| Stud Size (Hubs) | 5/8″-18 |
| Wheel Size Compatibility | 16″, 16.5″, 17″, 17.5″ (application dependent) |
| Includes | 2 left + 2 right brake assemblies, 4 drums, 4 hubs (bearings/seals/caps/hardware sold separately) |
| Warranty | 1 Year Limited |
$1,710 99 $2,651.40 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,651.40 $1,710 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP92HBA
- Includes: Left Electric Trailer Brake Assembly (x2), Right Electric Trailer Brake Assembly (x2), Trailer Brake Drum (x4), Brake Hub Assembly (x4)
