Lippert 10K Tandem Electric Brakes and 8 on 6.5 Drums, 12.25 x 3.38, Trailer Brake Kit

Lippert 10K Electric Brake + Hub & Drum Kits — Tandem Axle (4 Wheels, L/R Sets), 12-1/4″ × 3-3/8″, 8 on 6.5, 5/8 Studs — Not Pre-Assembled

Name: Lippert 10K Tandem Electric Brake & Hub/Drum Kit (12.25" x 3.38")
Brand: LIPPERT
Price: 1710.99 USD
Availability: InStock

Model: LP92HBA

Lippert 10K Electric Brake + Hub & Drum Kits — Tandem Axle (4 Wheels, Not Pre-Assembled)

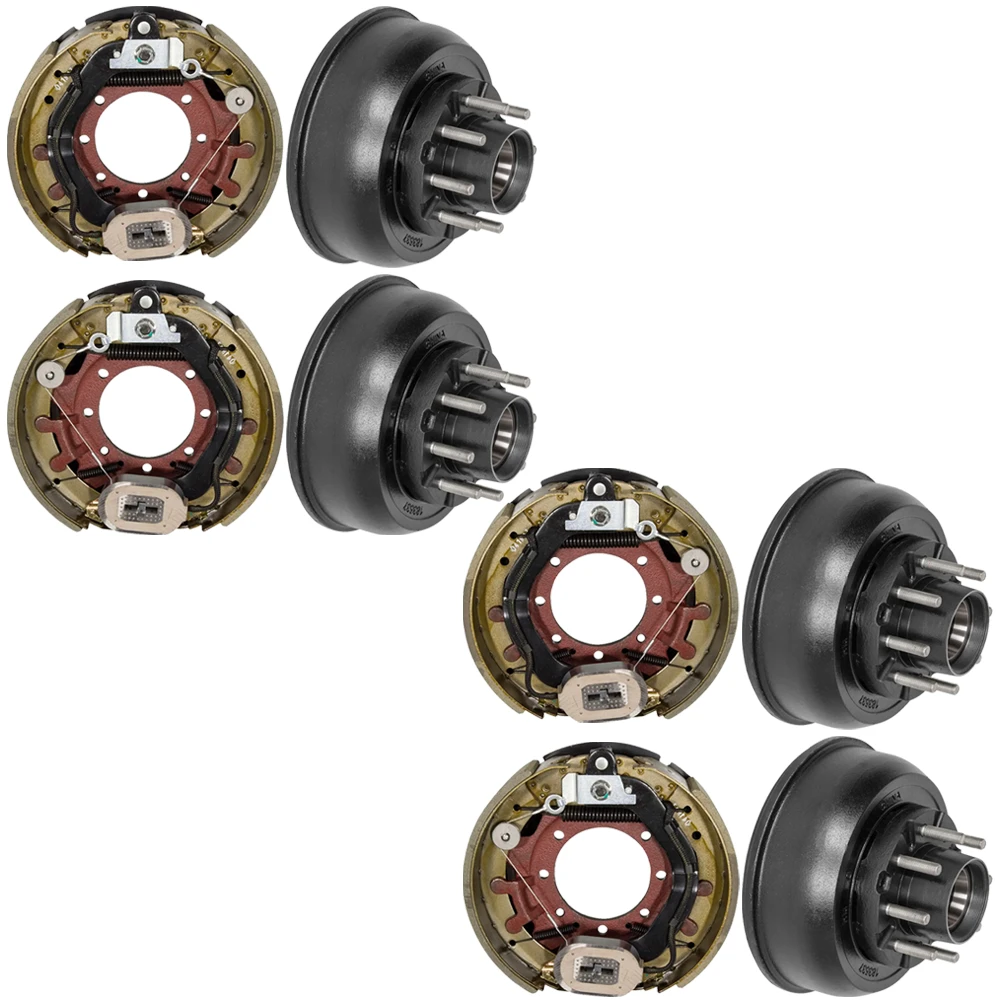

This complete Lippert 10K Tandem Electric Brake, Hub & Drum Kit equips four wheels with dependable braking for heavy-duty use. You get self-adjusting left and right brake assemblies for both sides, matched 12-1/4" × 3-3/8" drums, and separate 8-on-6.5 hubs (5/8" studs) built for 10,000-lb axles. Expect smoother towing and straightforward service with genuine Lippert parts. (Ships as separate hub and drum components, not pre-assembled.)

Bundle Contents:

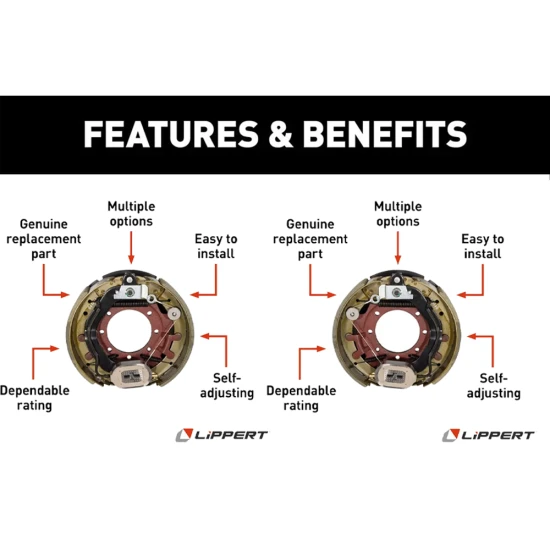

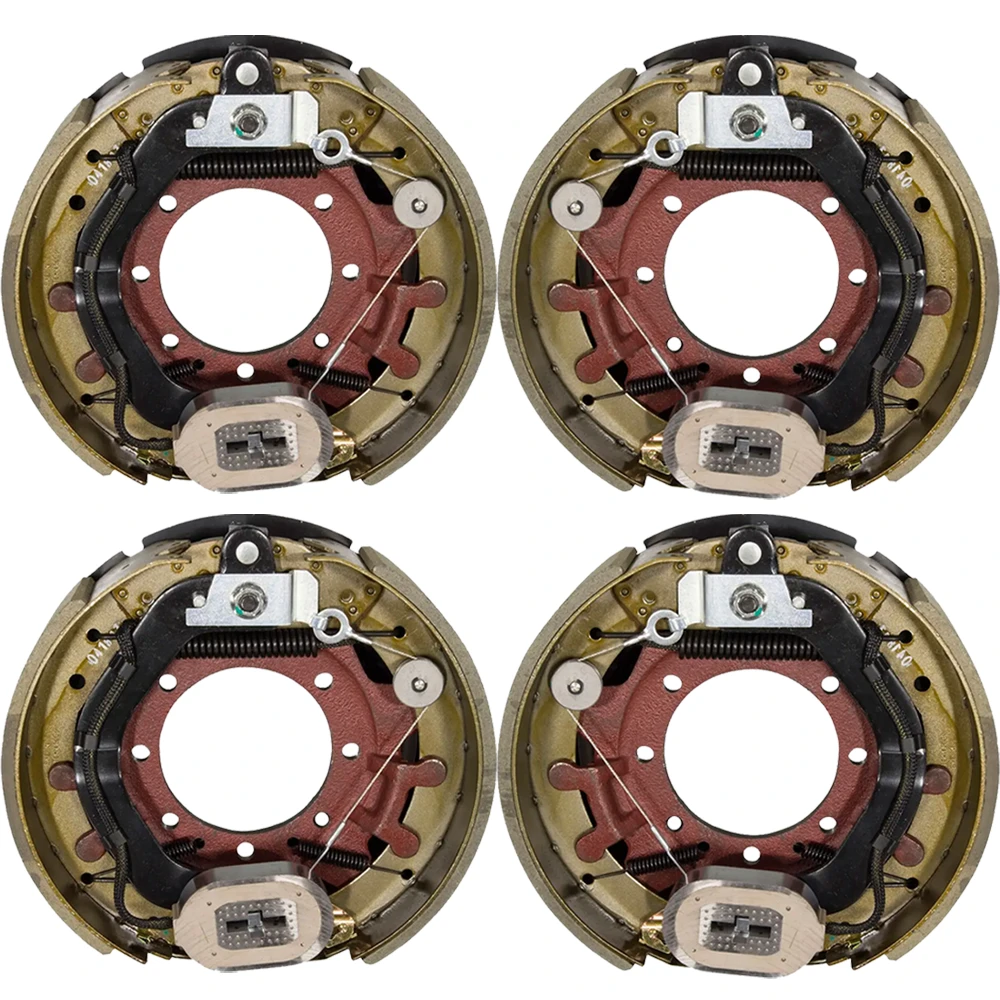

QTY (2): Left Electric Trailer Brake Assembly — 12.25″ × 3.38″, 10,000 lbs, Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12.25" x 3.38"
- New electric drum brakes will require a break-in period to achieve full performance
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
QTY (2): Right Electric Trailer Brake Assembly — 12.25″ × 3.38″, 10,000 lbs, Right Side
- Genuine Lippert replacement part for 10,000-lb. axles
- Self-adjusting design eliminates manual adjustments
- Right-hand (curb-side) brake assembly
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- Compatible with 16″, 16.5″, 17″, or 17.5″ wheels
- Replacement standard electric brake assembly with park feature
- Offers up to 50% better braking distance (forward self-adjust)
- Dexter Compatible Part Number: K23-451-00 | 023-451-00

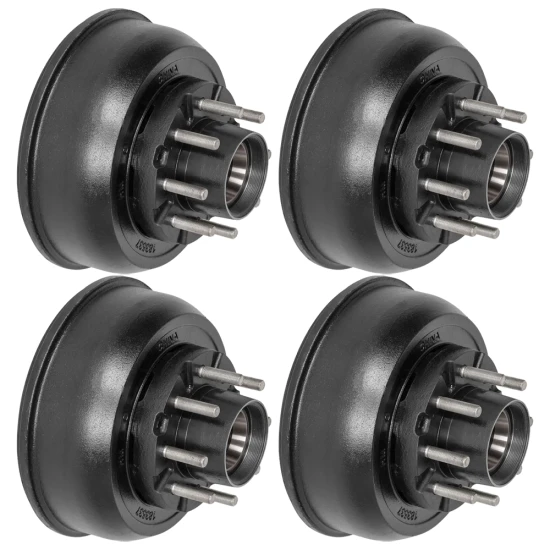

QTY (4): Trailer Brake Drum — 12-1/4″ × 3-3/8″, 10,000-lb
- Durable cast-iron construction for heat dissipation and longevity
- Works with 12-1/4″ × 3-3/8″ electric or hydraulic drum brakes
- Sized for 10K axle applications
QTY (4): 10,000-lb Brake Wheel Hub (separate components)
- 8-on-6.5 bolt pattern; 5/8″-18 wheel studs pre-installed
- Pairs with the drums above (separate hub + separate drum — not an integrated one-piece)
- Compatible with common 10K drum-brake systems (Dexter, AL-KO, Rockwell)

Notes: Not pre-assembled—photos may show a pre-assembled hub/drum for illustration, but the kit ships as separate hubs and drums plus left/right brake assemblies. Bearings, races, seals, caps, and spindle hardware sold separately.

Specifications:
Kit Type	Electric Brake + Hub & Drum Kits — Tandem Axle (4 wheels)
Axle Rating	10,000 lb
Drum Size	12-1/4″ × 3-3/8″
Mounting Pattern (Brakes)	7-bolt
Hub Bolt Pattern	8 on 6.5
Stud Size (Hubs)	5/8″-18
Wheel Size Compatibility	16″, 16.5″, 17″, 17.5″ (application dependent)
Includes	2 left + 2 right brake assemblies, 4 drums, 4 hubs (bearings/seals/caps/hardware sold separately)
Warranty	1 Year Limited
