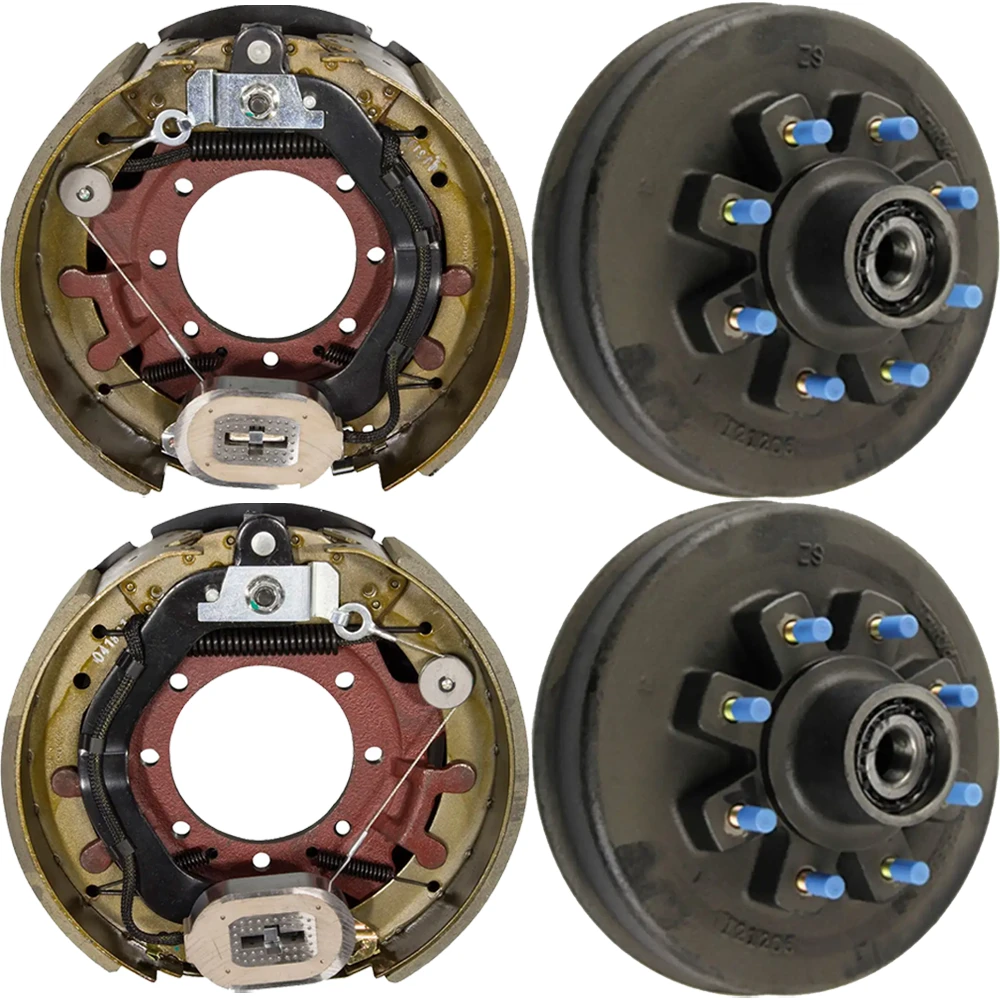

Lippert 12-1/4" x 5" 7-Bolt Self-Adjust Electric Brake & 16K Threaded Hub (8 on 275 mm, M22) Kit – No Drum – Dexter Compatible
Model: LP780HBALippert 16K Single-Axle Electric Brake & Threaded Hub Kit
Upgrade your heavy-duty trailer with this all-in-one Lippert bundle featuring forward self-adjusting 12-1/4" x 5" electric brakes and rugged threaded hubs. Engineered for 16,000-lb axles and universally compatible with Dexter, this kit delivers smoother stops, reduced maintenance, and true OE reliability in one convenient package. Outboard brake drums are not included.
Bundle Contents:

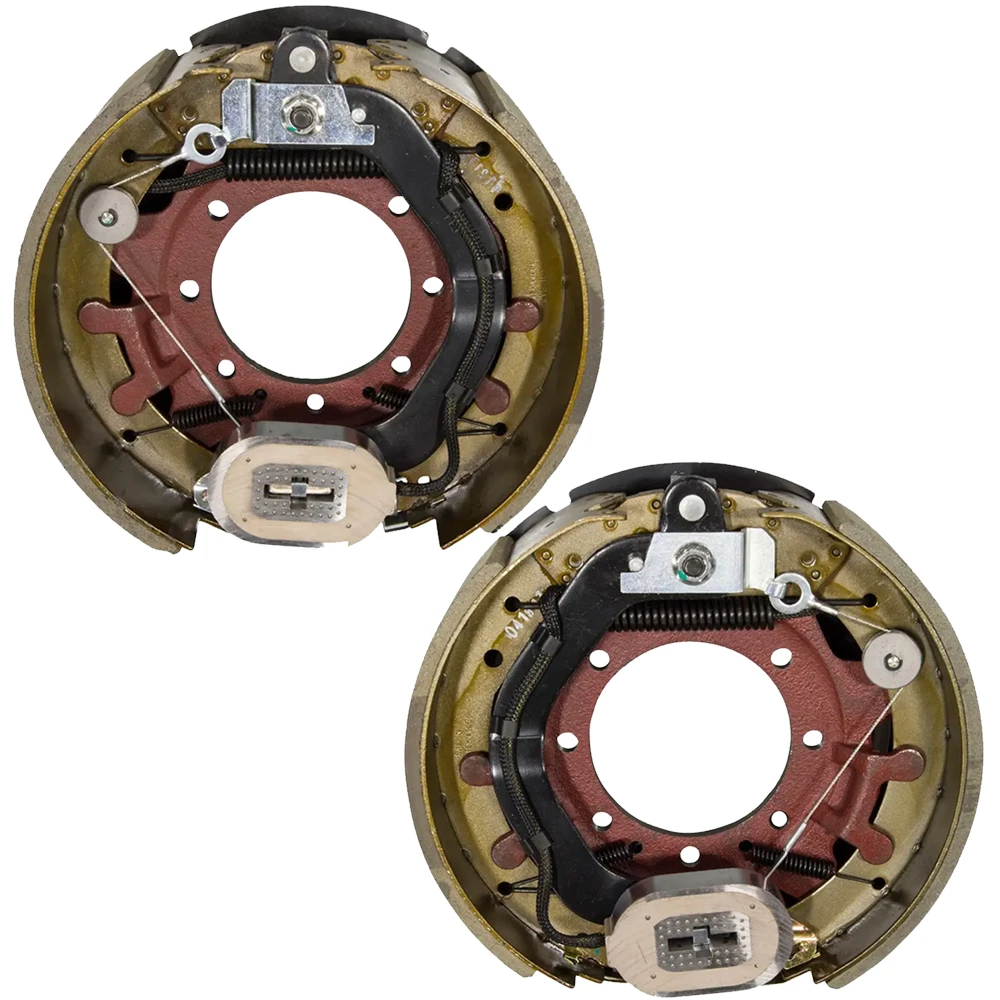

- QTY (1): Forward Self-Adjusting Brake – 12-1/4" x 5" Driver-Side, 12-16K, 7-Bolt
- Brake size: 12-1/4" x 5"
- Driver/left side, 7-bolt mounting flange
- Self-adjusts every forward stop for up to 50% shorter braking distance
- Dexter compatible part numbers: K23-442-00 | 023-442-00
- Fits 12K-16K Lippert & Dexter axles
- Genuine Lippert replacement component
- QTY (1): Forward Self-Adjusting Brake – 12-1/4" x 5" Passenger-Side, 12-16K, 7-Bolt
- Passenger/right side match
- No hydraulic lines required – faster, cleaner install
- Dexter compatible part numbers: K23-443-00 | 023-443-00
- Prevents magnet wear for longer service life
- OEM Lippert quality & support

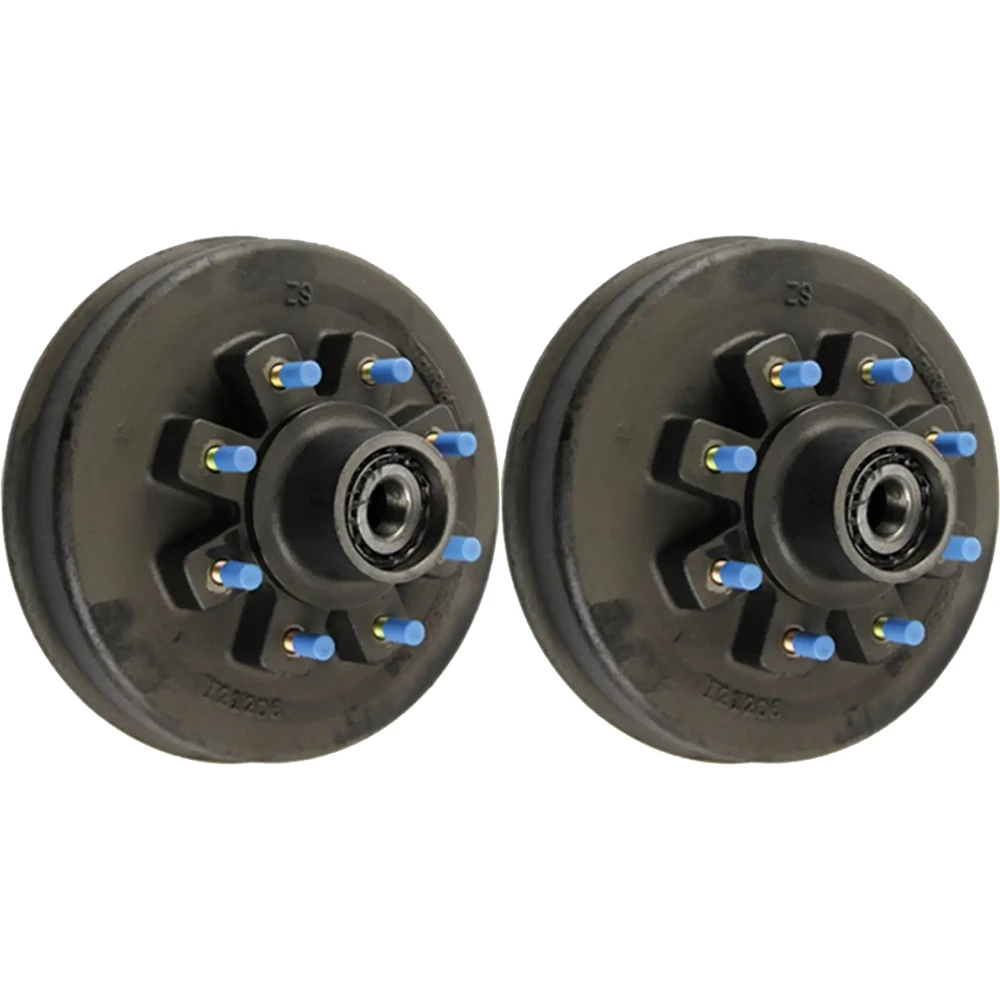

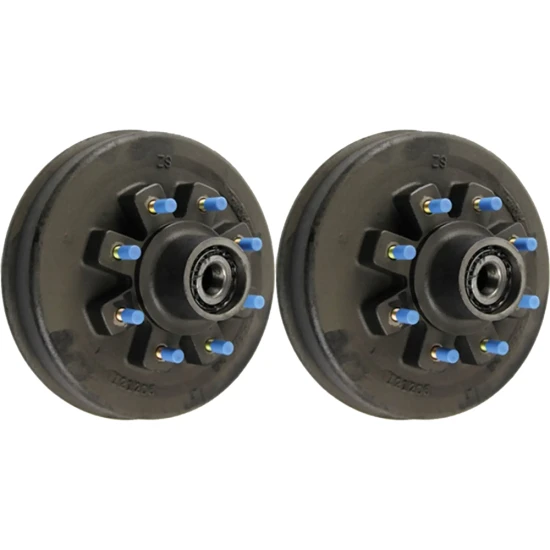

- QTY (2): 12-1/4" Threaded Brake Hubs – 16K, 8 on 275 mm, M22 Studs (Hub Only)
- Outboard drum design – used with 12-1/4" x 5" drums (drums not included)
- 8 on 275 mm bolt pattern with M22 threaded studs
- Races and wheel studs pre-installed
- Durable cast-iron construction; accepts Valcrum threaded oil caps
- Supports electric or hydraulic drum brakes when used with the correct drum
- Backed by a 1-year Lippert warranty
Required to Complete Installation (Sold Separately):
- (2) 12-1/4" x 5" outboard brake drums, 8 on 275 mm
- Inner & outer bearings matched to your spindle, unitized oil seal
- Threaded oil cap (Valcrum-compatible), spindle hardware as required
- Approved hub oil and axle manufacturer’s fill/torque procedure
For best performance, confirm axle specs and follow regular maintenance schedules. Replace components in pairs and torque studs to manufacturer recommendations.
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications | |
|---|---|
| Kit Type | Single-Axle Electric Brake & Threaded Hub Kit (No Drum) |
| Axle Rating | 16,000 lb (bundle maximum) |
| Brake Drum Dimensions | 12-1/4" x 5" |
| Brake Mounting Pattern | 7-Bolt Brake Flange |
| Hub Bolt Pattern | 8 on 275 mm |
| Hub Type | Threaded Hub (hub-only); outboard drum required; races & studs installed |
| Stud Size | M22 |
| Type of Adjustment | Forward Self-Adjust |
| Brake Location | Driver & Passenger Assemblies Included |
| Wheel Size Compatibility | 17-1/2" Wheels |
$1,193 99 $1,291.80 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,291.80 $1,193 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP780HBA
- Includes: Left Forward Self-Adjusting Brake Assembly, Right Forward Self-Adjusting Brake Assembly, Threaded Brake Hub (x2)
