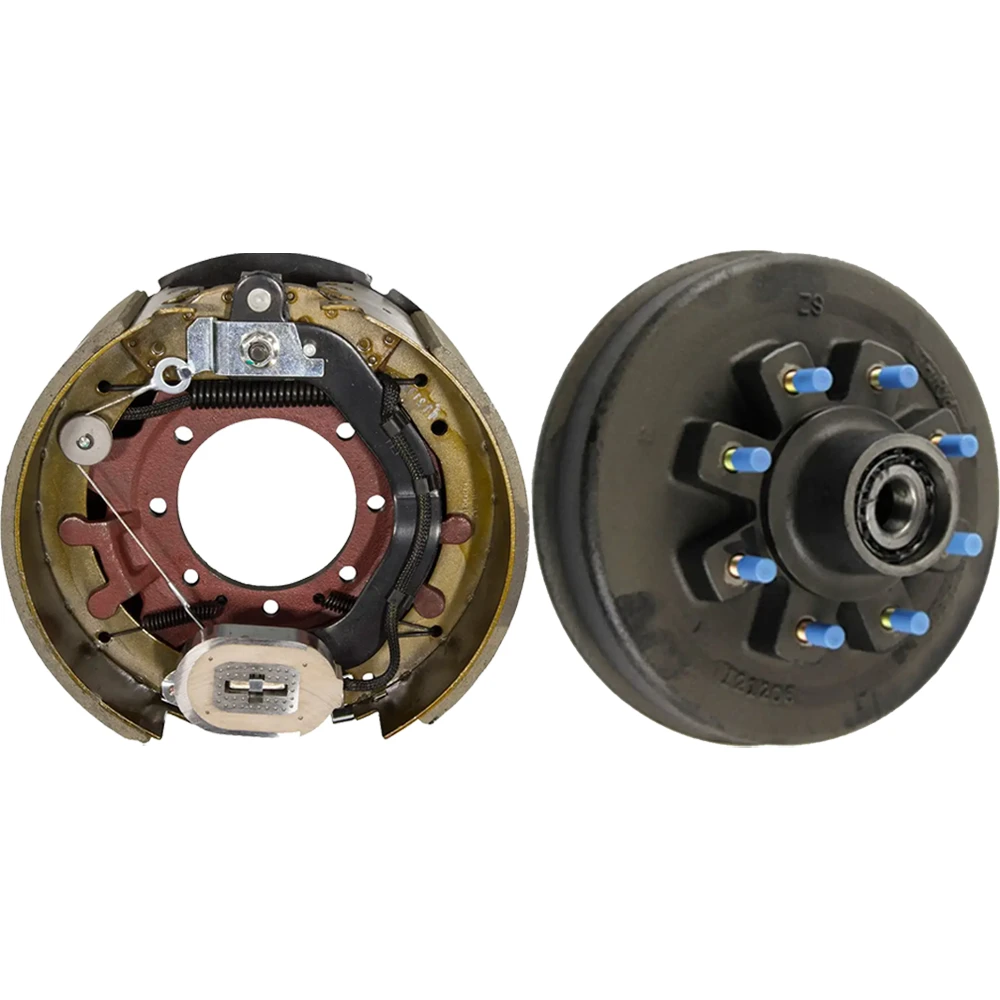

Lippert 12-1/4″ x 5″ LH Self-Adjust Electric Brake (7-Bolt) & Threaded Grease Hub (8 on 275 mm, M22) Kit – 16K Axle (No Drum) – Dexter/AL-KO Compatible
Model: LP772HBALippert 12-1/4″ x 5″ LH Self-Adjust Electric Brake & Threaded Hub Kit – 16K Axle (No Drum)
Upgrade your heavy-duty trailer with this Lippert bundle pairing a forward self-adjusting 12-1/4″ x 5″ left-hand electric brake with a 16K threaded grease hub. Built for axles using an outboard drum (sold separately), it delivers reliable stopping power and simplified service on Dexter, AL-KO and other quality axle systems.
Bundle Contents:

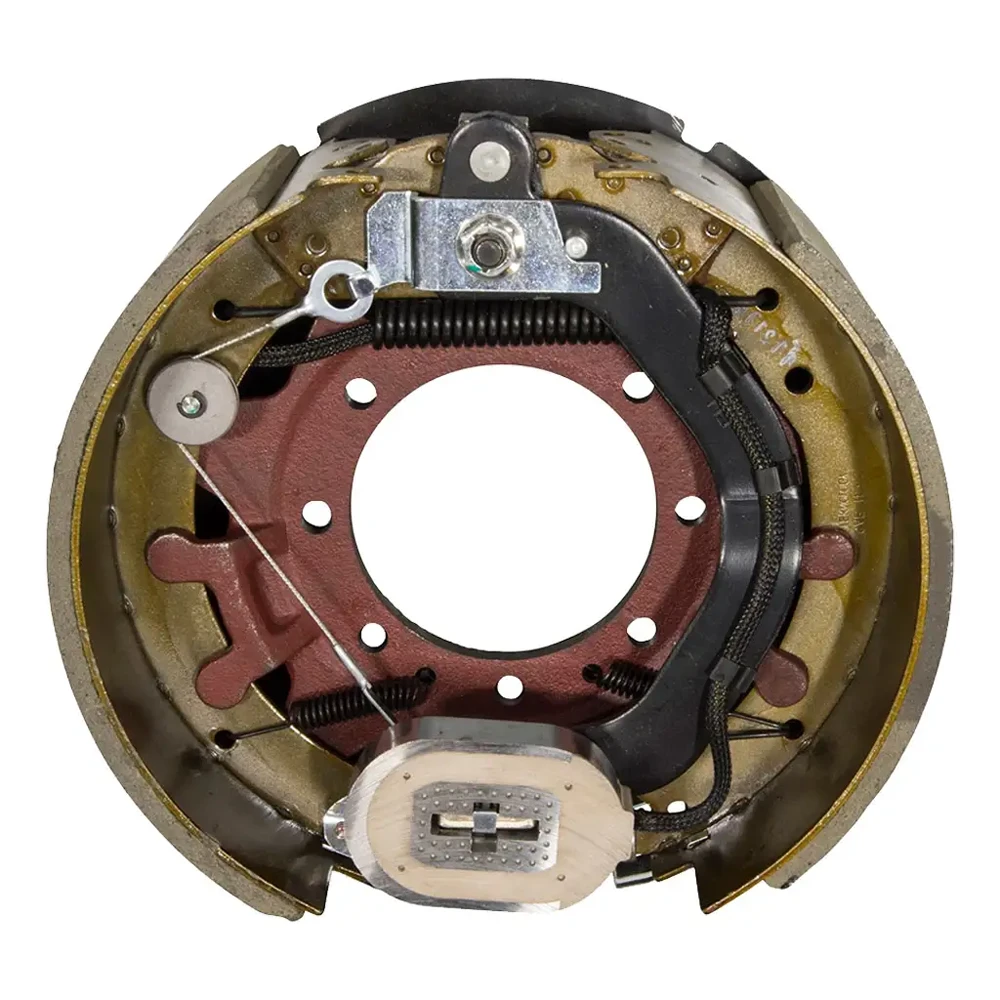

- QTY (1): Forward Self-Adjusting Electric Brake – 12-1/4″ x 5″, Driver-Side (LH), 12–16K, 7-Bolt
- Dexter-compatible PN: K23-442-00 / 023-442-00
- Forward self-adjust design helps maintain optimal shoe clearance
- Fits 12,000–16,000 lb axles; seven-bolt flange
- Electric actuation (no hydraulic lines)

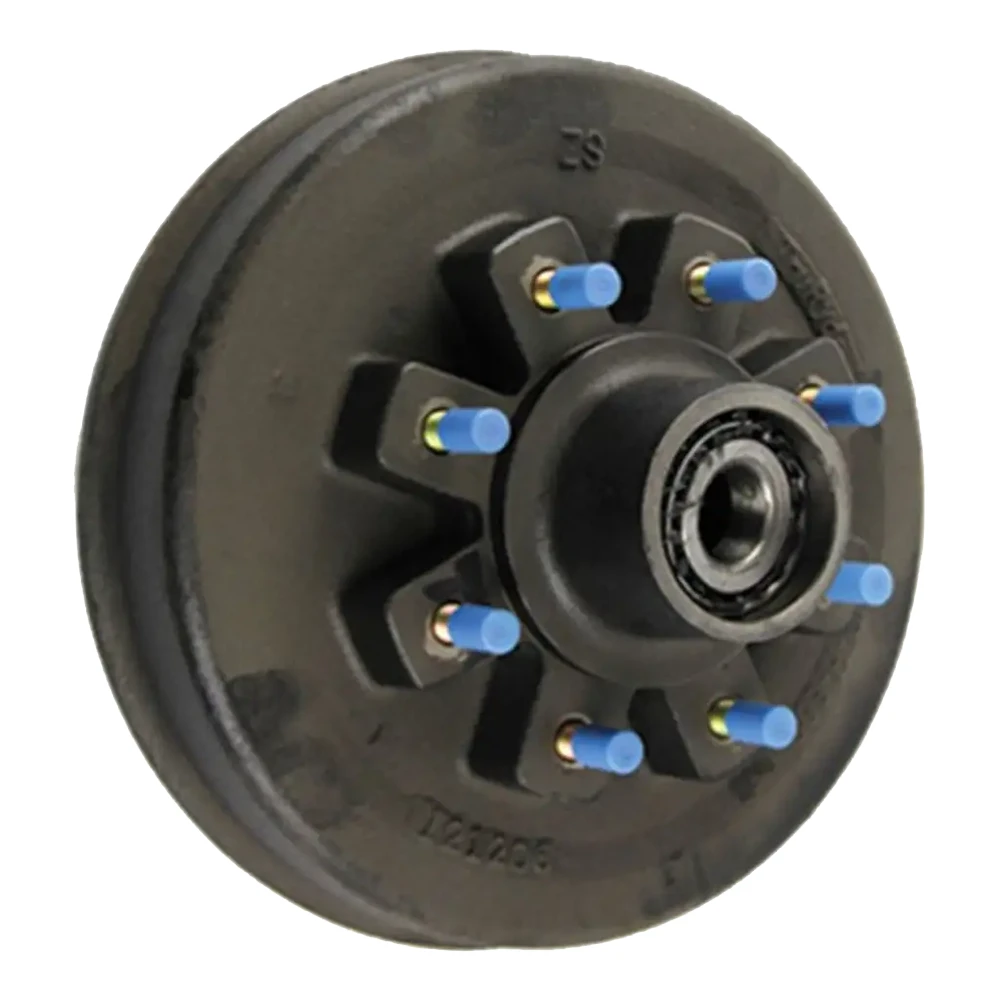

- QTY (1): 12-1/4″ Threaded Brake Hub – 16K, 8 on 275 mm, M22 Studs, Grease (Hub-Only)
- Races & wheel studs pre-installed
- Inner bearing & grease seal installed; outer bearing not included
- Accepts Valcrum™ threaded dust caps (cap sold separately)
- For use with an outboard brake drum (drum sold separately)
- Wheel size: 17-1/2″; cast-iron construction; 1-year Lippert warranty
Required to Complete Installation (Sold Separately):
- 12-1/4″ x 5″ outboard brake drum, 8 on 275 mm
- Outer bearing (M22), threaded dust cap, spindle hardware, and grease as applicable
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications | |
|---|---|
| Kit Type | LH Electric Brake + Threaded Hub (No Drum) |
| Axle Rating | 16,000 lbs |
| Brake Size | 12-1/4″ x 5″ |
| Brake Mounting Pattern | 7-Bolt |
| Hub Bolt Pattern | 8 on 275 mm |
| Hub Type | Threaded Grease Hub (hub-only); races & studs pre-installed; inner bearing & seal installed; outer bearing not included |
| Stud Size | M22 |
| Wheel Size Compatibility | 17-1/2″ |
$701 99 $742.90 6% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$742.90 $701 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP772HBA
- Includes: Left Forward Self-Adjusting Brake Assembly, Threaded Brake Hub Assembly
