Lippert 12x2 RH electric brake & oil‑bath 8‑on‑6.5 drum hub kit, 7K / 8K hybrid axle, Dexter compatible

Lippert 12" RH Electric Brake & Oil‑Bath 8‑on‑6.5 Drum Hub Kit – Up to 7K / 8K Hybrid Axles (Dexter, Al‑Ko, Rockwell Compatible)

Name: Lippert 12" RH Brake & Oil‑Bath 8‑on‑6.5 Hub Kit – 7K / 8K Hybrid
Brand: LIPPERT
Price: 218.99 USD

Model: LP684HBA

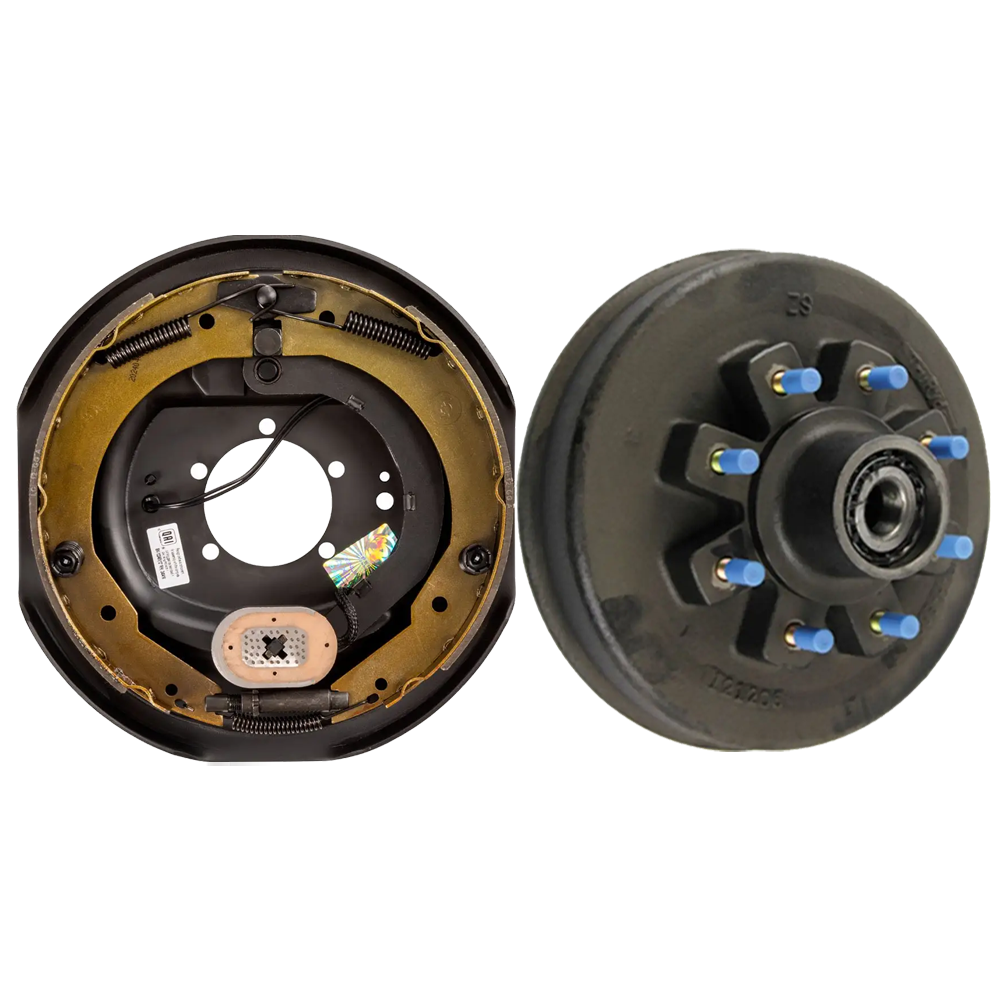

Lippert 12" Electric RH Brake & Oil‑Bath 8‑on‑6.5 Drum Hub Kit – Up to 7K / 8K Hybrid Axles

This matched Lippert bundle combines a manually adjusted 12" × 2" right‑hand electric brake assembly with a factory‑oiled 8‑on‑6.5 drum hub. It supports standard trailer axles up to 7,000 lbs and also accommodates 8,000‑lb hybrid axles that use 12" × 2" brakes—delivering confident stopping power and low‑maintenance performance on Lippert, Dexter, Al‑Ko, Rockwell and other quality axles.

Bundle Contents:

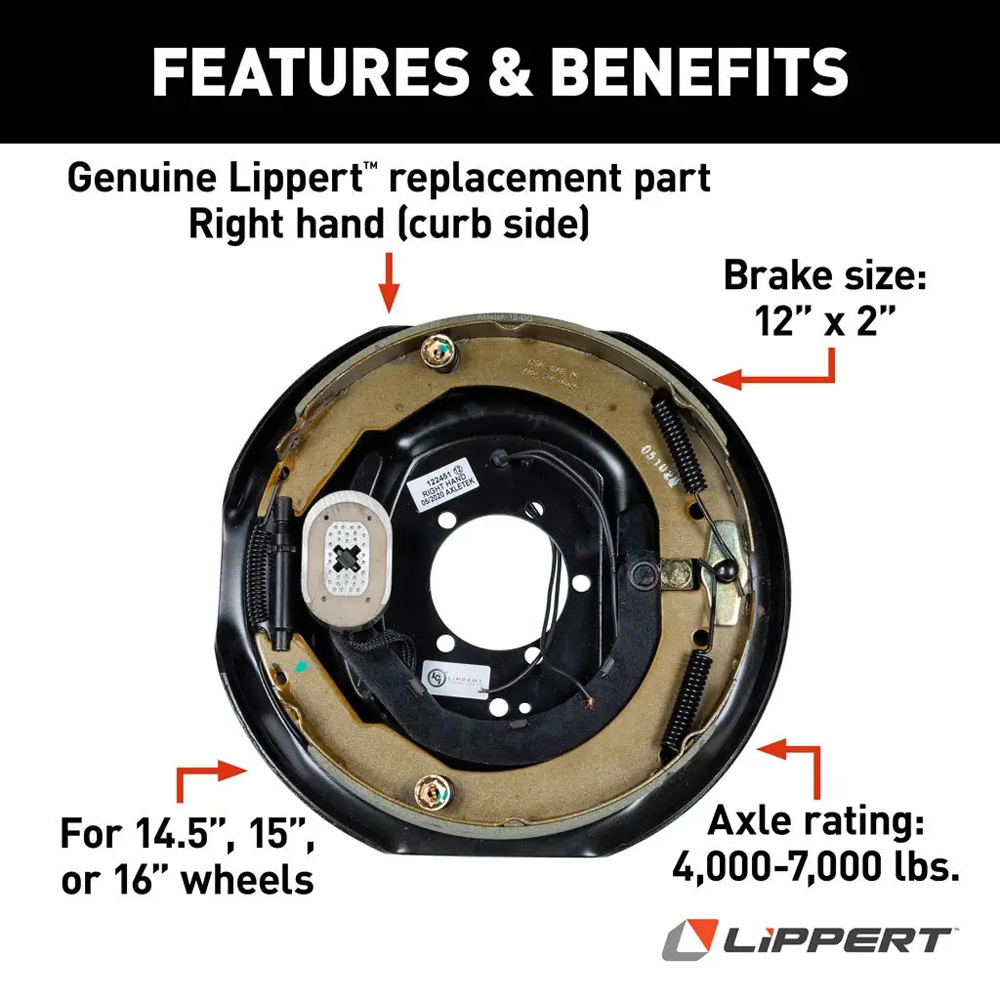

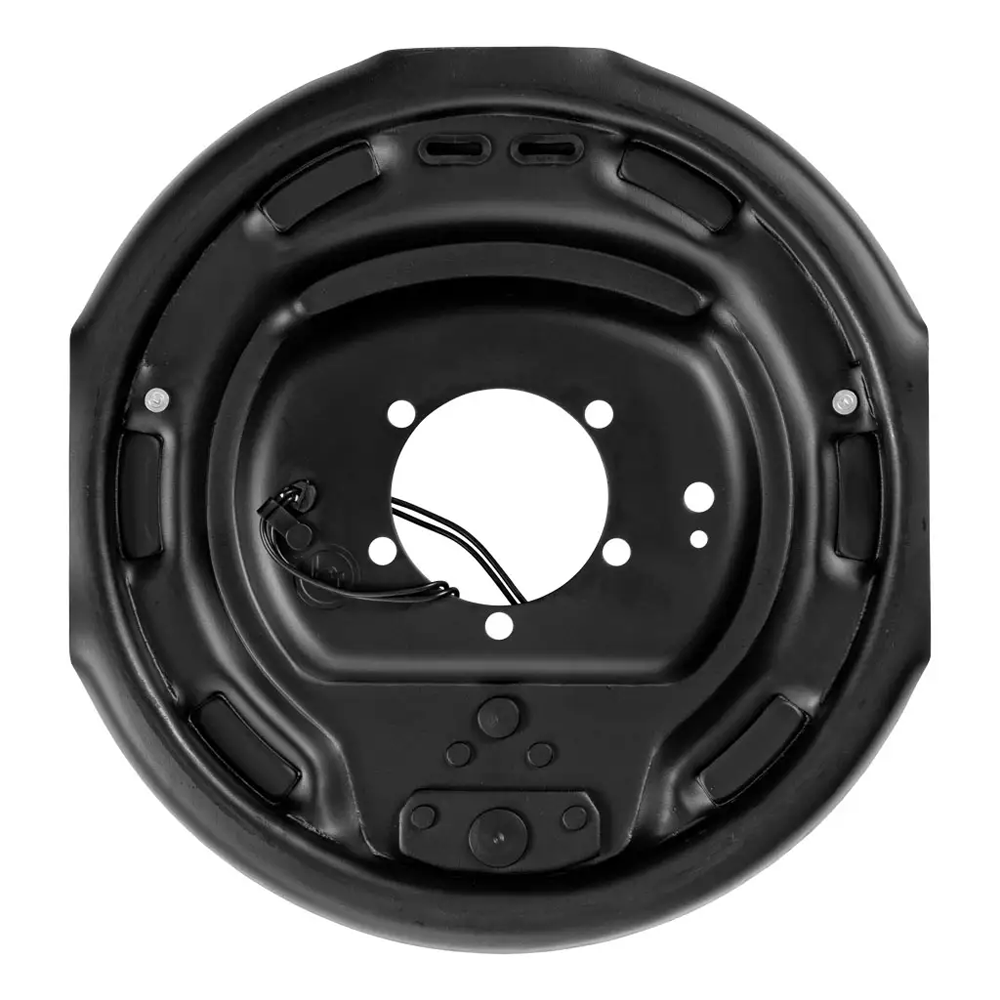

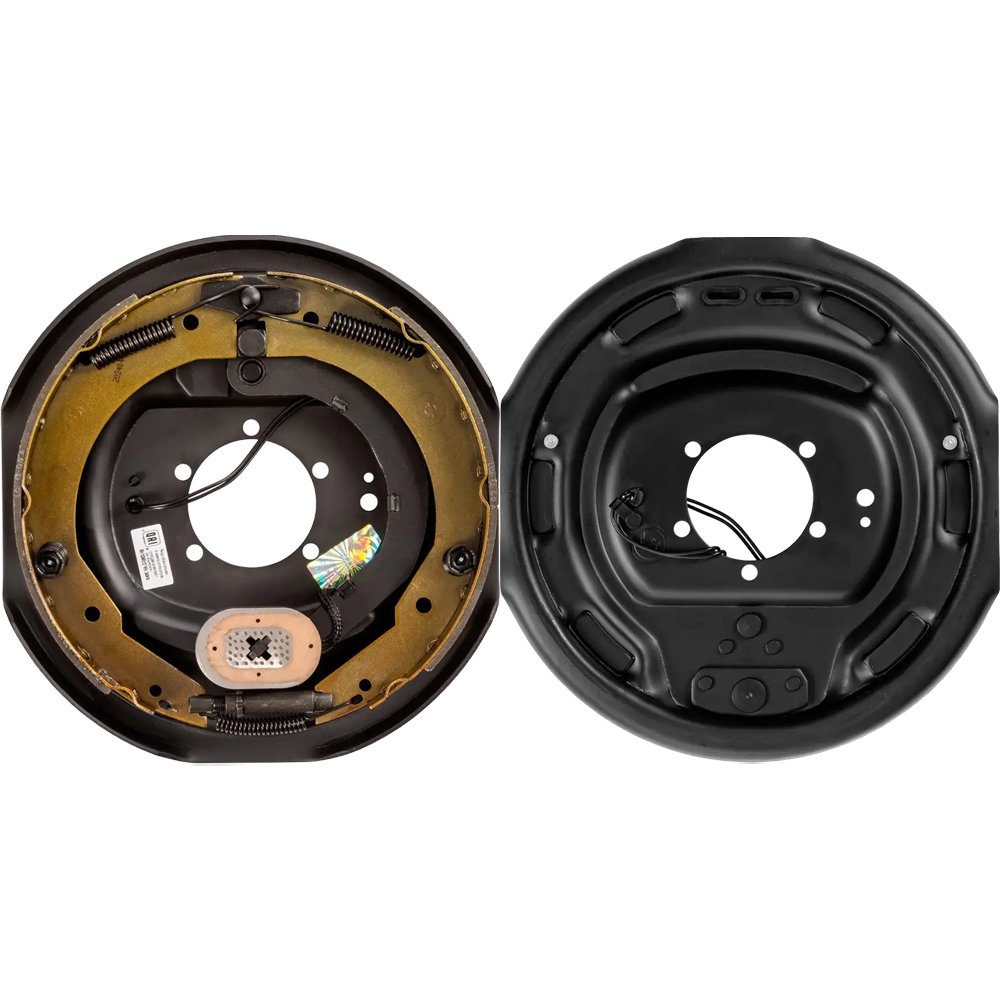

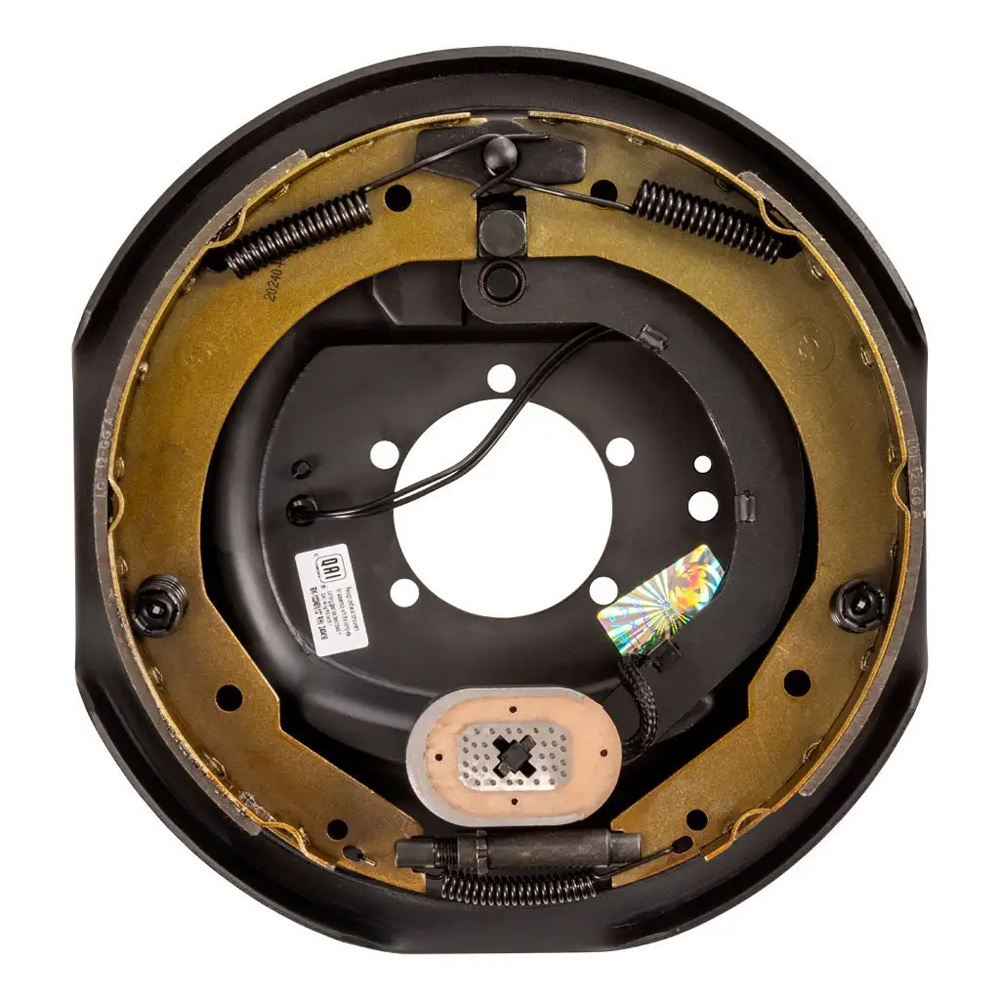

QTY (1): Lippert 12" × 2" Right‑Hand Electric Trailer Brake Assembly
- Replacement standard electric brake with parking feature
- Manual shoe adjustment for precise wear control
- Right‑hand (curb‑side) installation; 5‑bolt mounting flange
- Fits 5,200‑7,000 lb axles and 8,000‑lb hybrid axles
- Works with 15"‑17.5" wheels; 12" × 2" drum
- Dexter compatible PN: K23‑181‑00 | 023‑181‑00
- New brakes require a short break‑in period for full performance

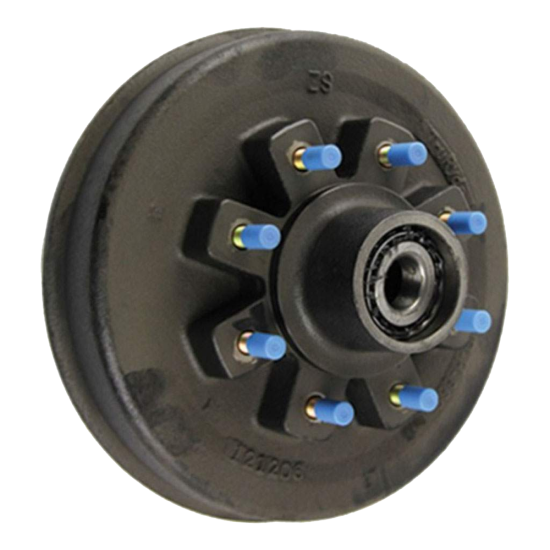

QTY (1): Lippert Oil‑Bath Drum Hub – 8 on 6.5", 5/8" Studs, 8K
- Solid‑iron hub/drum with factory‑installed races, wheel studs & oil seal
- 8 on 6.5" bolt pattern with 5/8" studs
- Rated for 8,000 lb hybrid axles; mates to 12" × 2" brakes
- Includes bearing cones, mounting bolts & oil cap for quick install
- Designed for 17.5" single‑wheel applications

Always verify hub and brake sizes against your original equipment, follow torque specifications on wheel nuts, and perform routine bearing and brake maintenance for safe towing.

Specifications:
Kit Type	Complete Electric Brake & Oil‑Bath Hub Kit
Axle Rating	Up to 7,000 lbs (compatible with 8,000‑lb hybrid axles)
Brake Drum Dimensions	12" × 2"
Brake Mounting Pattern	5‑bolt brake flange
Hub Bolt Pattern	8 on 6.5"
Hub Type	Oil Bath Drum Hub (races & studs pre‑installed)
Stud Size	5/8"
Type of Adjustment	Manual (star‑wheel)
Brake Location	Right‑Hand / Curb Side
Wheel Size Compatibility	Brakes: 15"‑17.5" • Hub: 17.5" single wheel

Order today or call us at 877‑869‑6690 for expert advice and personalized service.
