Lippert 7K standard / 8K hybrid 12-inch brake & threaded hub-drum kit, 8-on-6.5 pattern

Lippert 12″ Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit – 7K Std / 8K Hybrid Axle, 8-on-6.5 5/8″ Stud LH/RH Pair (Dexter · AL-KO · Rockwell · Quality Axles)

Name: Lippert 12″ Brake + 8K Hybrid Hub-Drum Kit | 7K-8K Axle Upgrade
Brand: LIPPERT
Price: 436.99 USD
Availability: InStock

Model: LP583HBA

Lippert 12″ Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit — 7K Standard / 8K Hybrid Single-Axle Upgrade

Give your heavy-duty trailer a true all-in-one upgrade with Lippert’s forward self-adjusting 12″ electric brakes paired to grease-packed threaded hybrid hub-drums. The braking components are engineered for up to 7,000-lb conventional axles and are approved by Lippert for use on their 8,000-lb “hybrid” axle platforms, while the hubs themselves are rated 8,000 lbs. This delivers confident stopping power, extended pad life and seamless fitment with Dexter, AL-KO, Rockwell and other 8-lug axles.

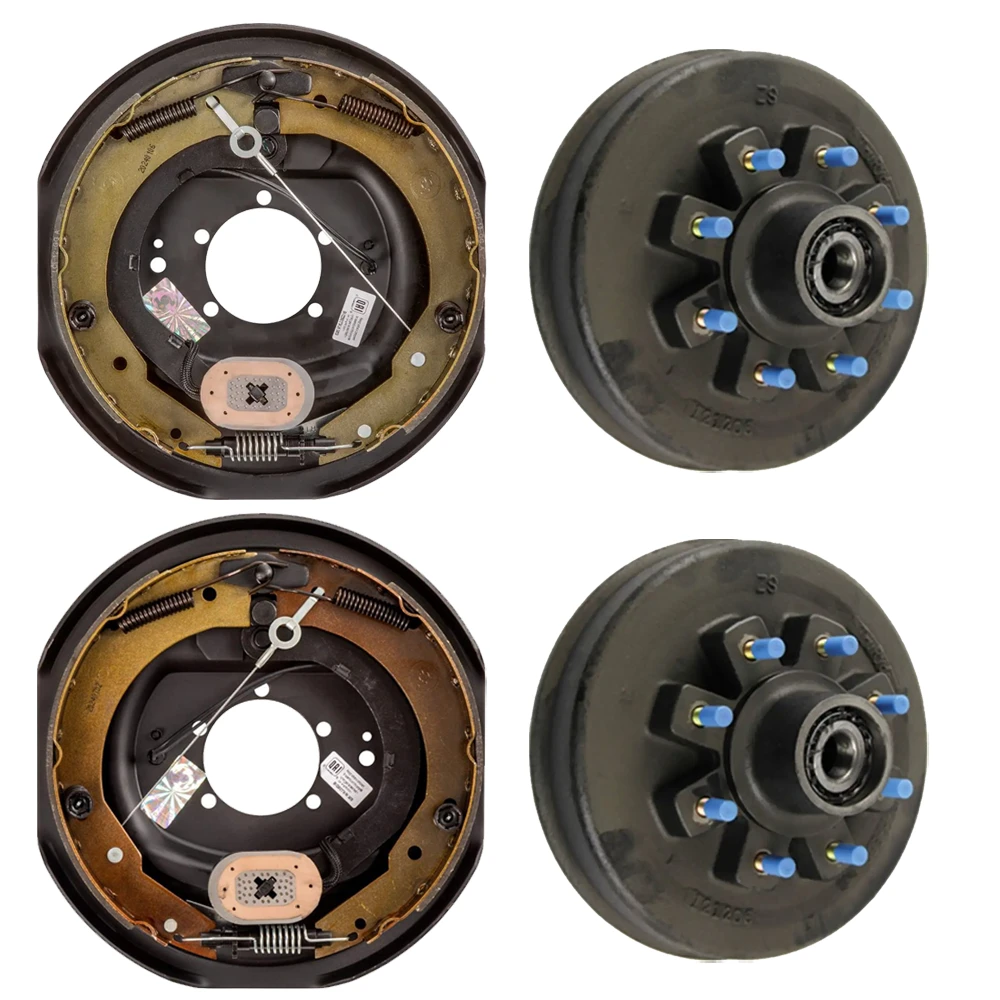

Bundle Contents:

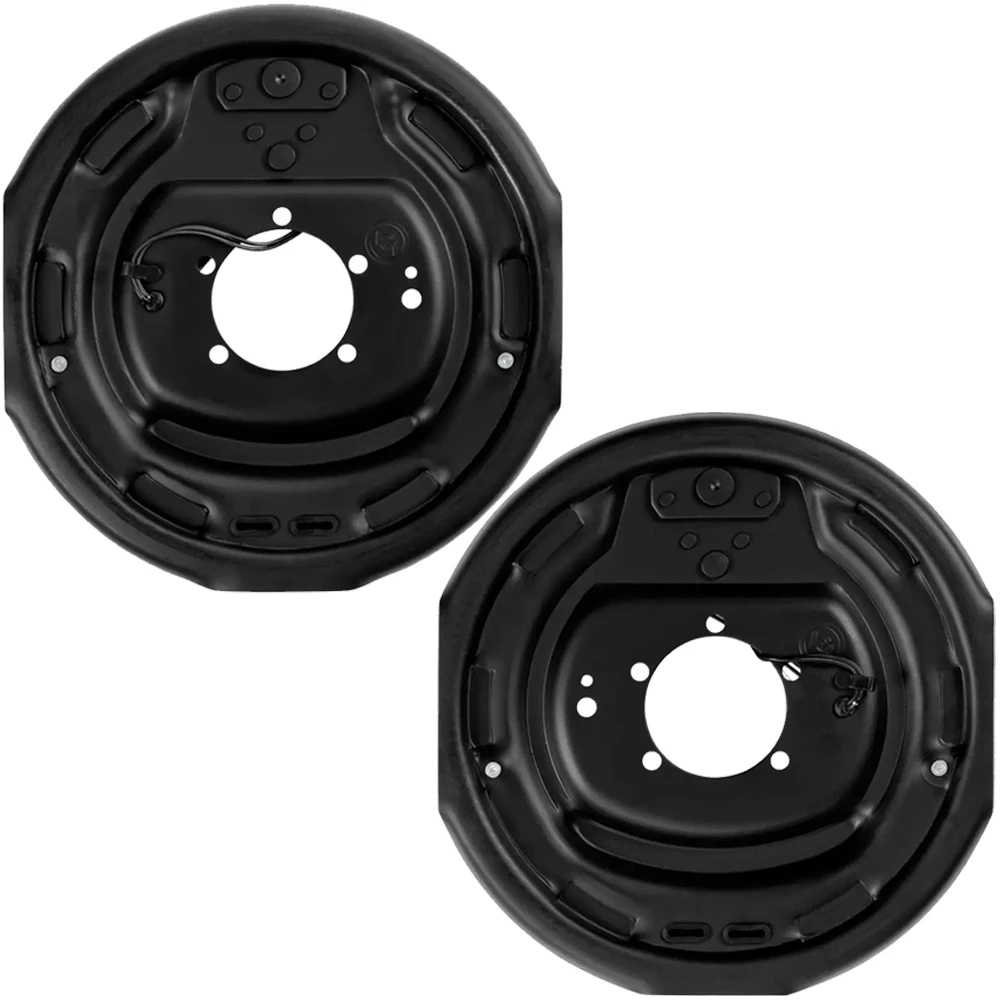

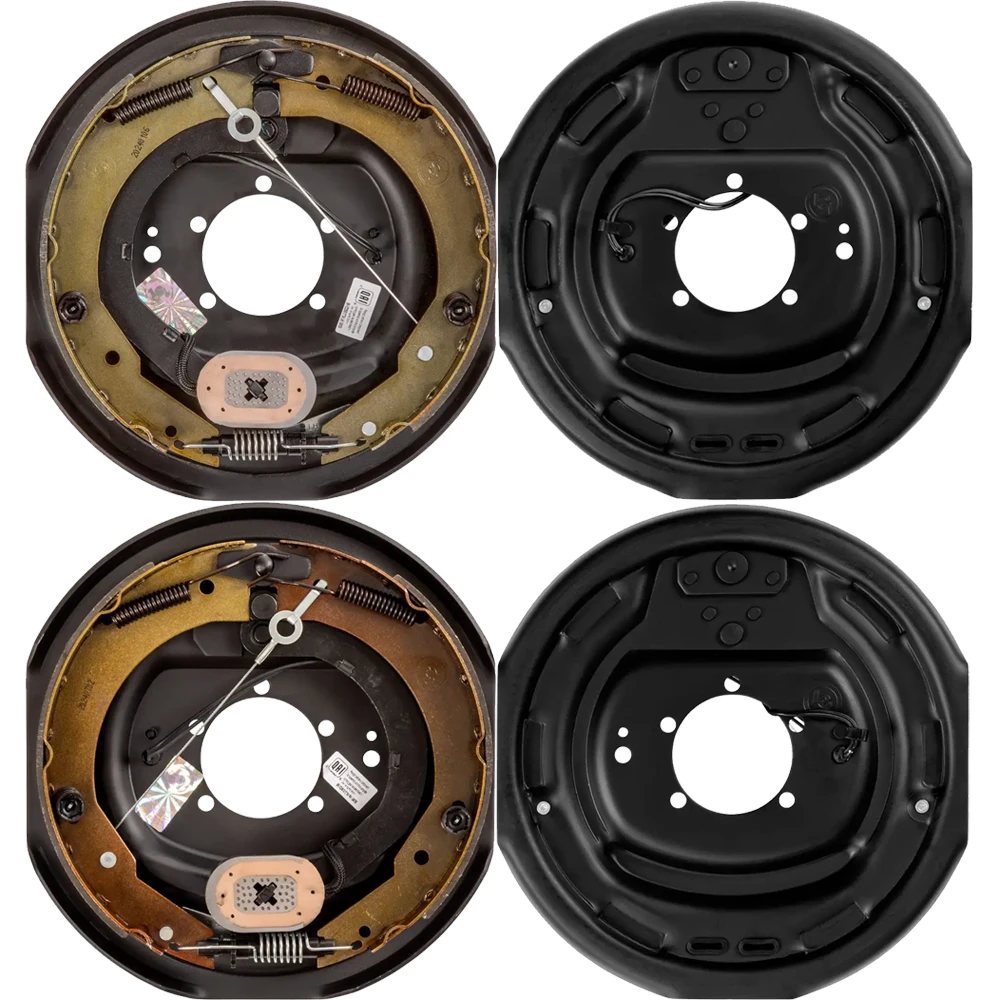

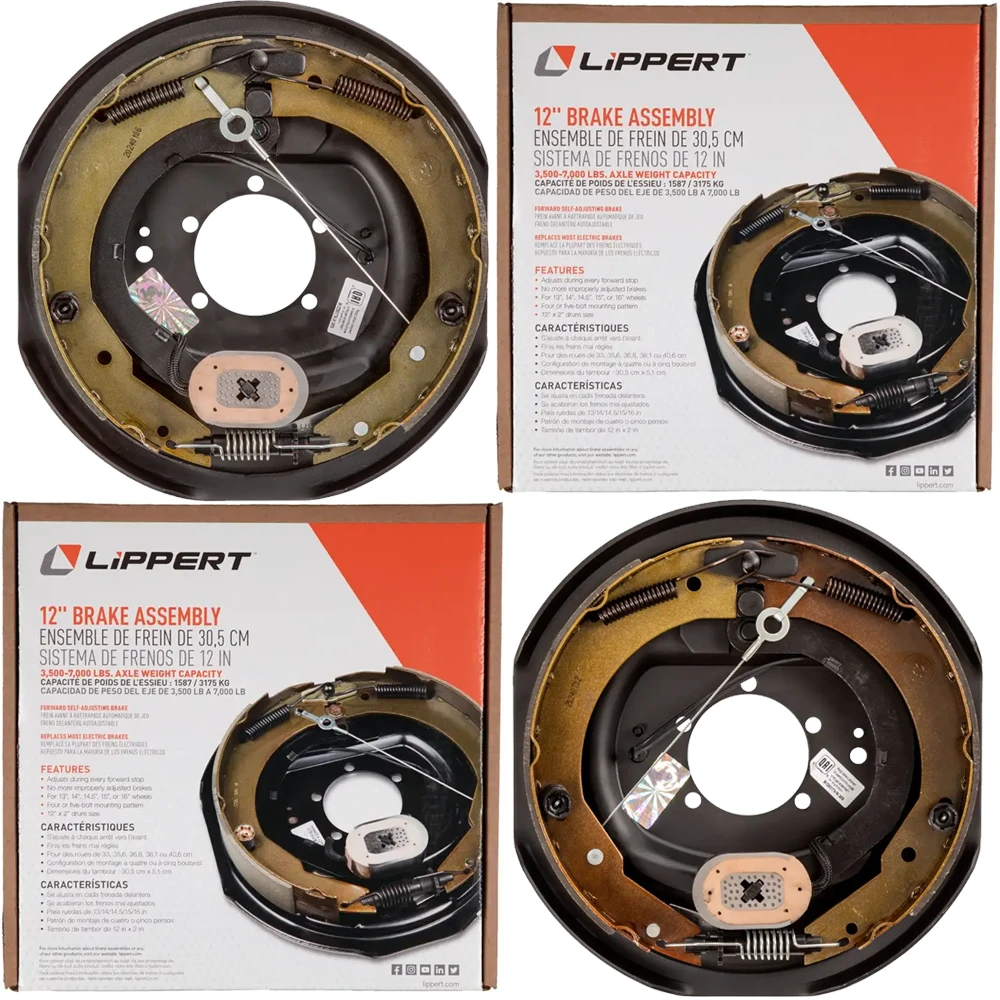

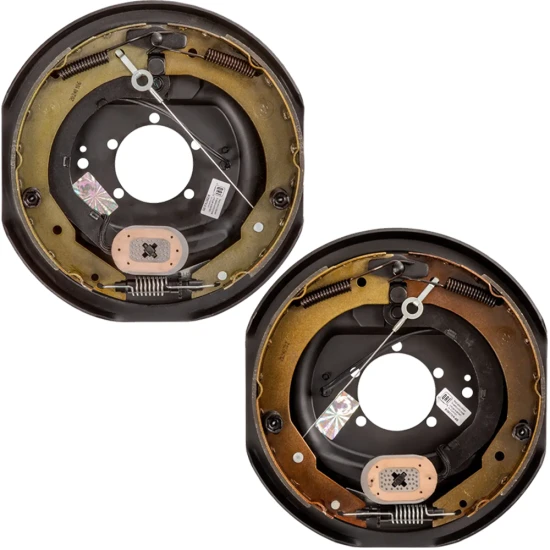

QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7K (Left)
- Road-side electric brake; forward self-adjusting
- Fits 15″–17.5″ wheels; 5-bolt mounting flange
- For 5,200- to 7,000-lb axles & Lippert 8K hybrid axles
- Dexter compatible PN: K23-464-00 | 023-464-00
- Easy DIY install; 1-year Lippert warranty
QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7K (Right)
- Curb-side electric brake; forward self-adjusting
- Fits 15″–17.5″ wheels; 5-bolt mounting flange
- For 5,200- to 7,000-lb axles & Lippert 8K hybrid axles
- Dexter compatible PN: K23-465-00 | 023-465-00
- Easy DIY install; 1-year Lippert warranty

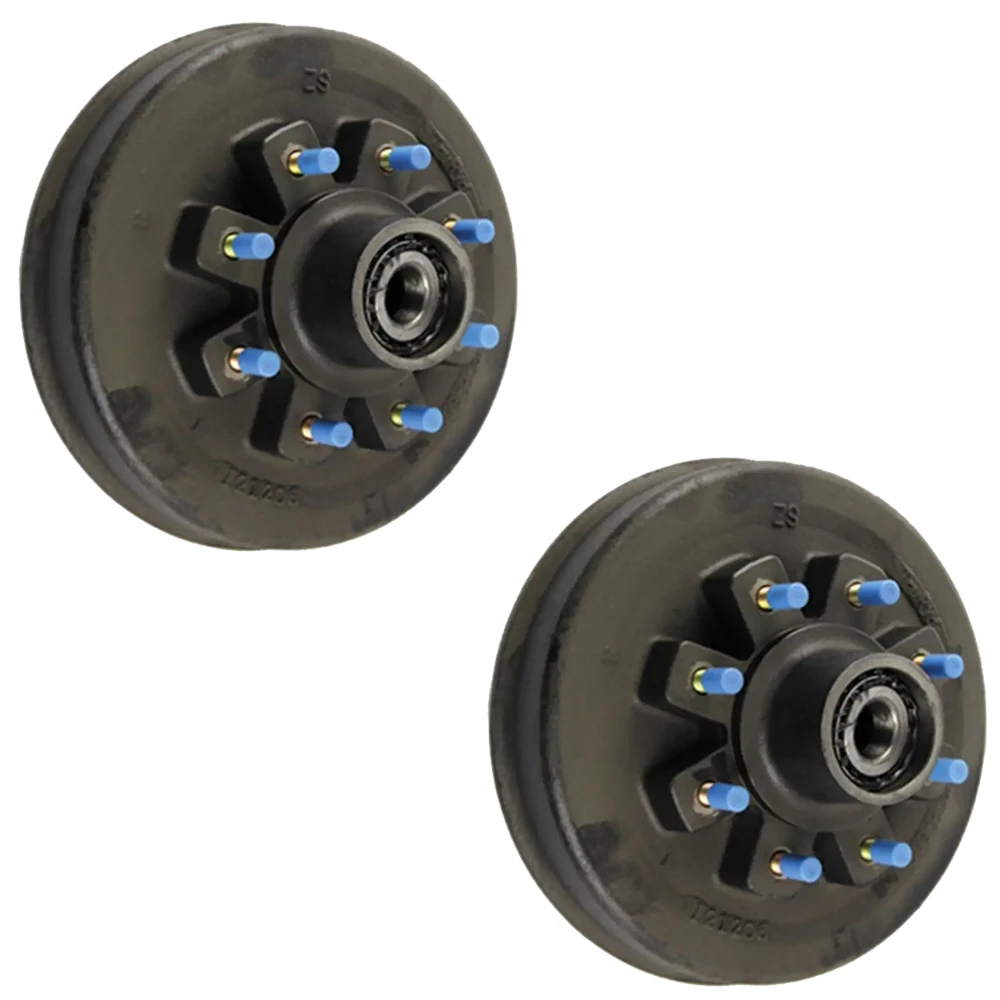

QTY (2): Lippert Threaded Hybrid Hub-Drum – 8K, 8-on-6.5″, 5/8″ Stud (Grease-Packed)
- Cast-iron hybrid hubs with integrated 12″ drums
- Races and wheel studs come pre-installed
- Supports electric or hydraulic drum brakes
- Rated 8,000 lbs; designed for 17.5″ wheels
- Accepts Valcrum threaded dust caps; 1-year warranty

Confirm all dimensions against your original equipment and perform routine hub & brake maintenance for safe, dependable towing.

Specifications:
Kit Type	Complete Brake & Grease-Packed Threaded Hybrid Hub-Drum Kit
Axle Rating	7,000 lbs (standard); up to 8,000 lbs on Lippert hybrid axles
Brake Drum Dimensions	12″ Ø × 2″ Shoe Width
Brake Mounting Pattern	5-bolt brake flange
Hub Bolt Pattern	8 on 6-1/2″
Hub Type	Threaded Hybrid Hub with Integrated Drum (races & studs installed)
Stud Size	5/8″
Type of Adjustment	Forward Self-Adjusting
Brake Location	Left (road) & Right (curb)
Wheel Size Compatibility	Brakes – 15″–17.5″ \| Hubs – 17.5″
