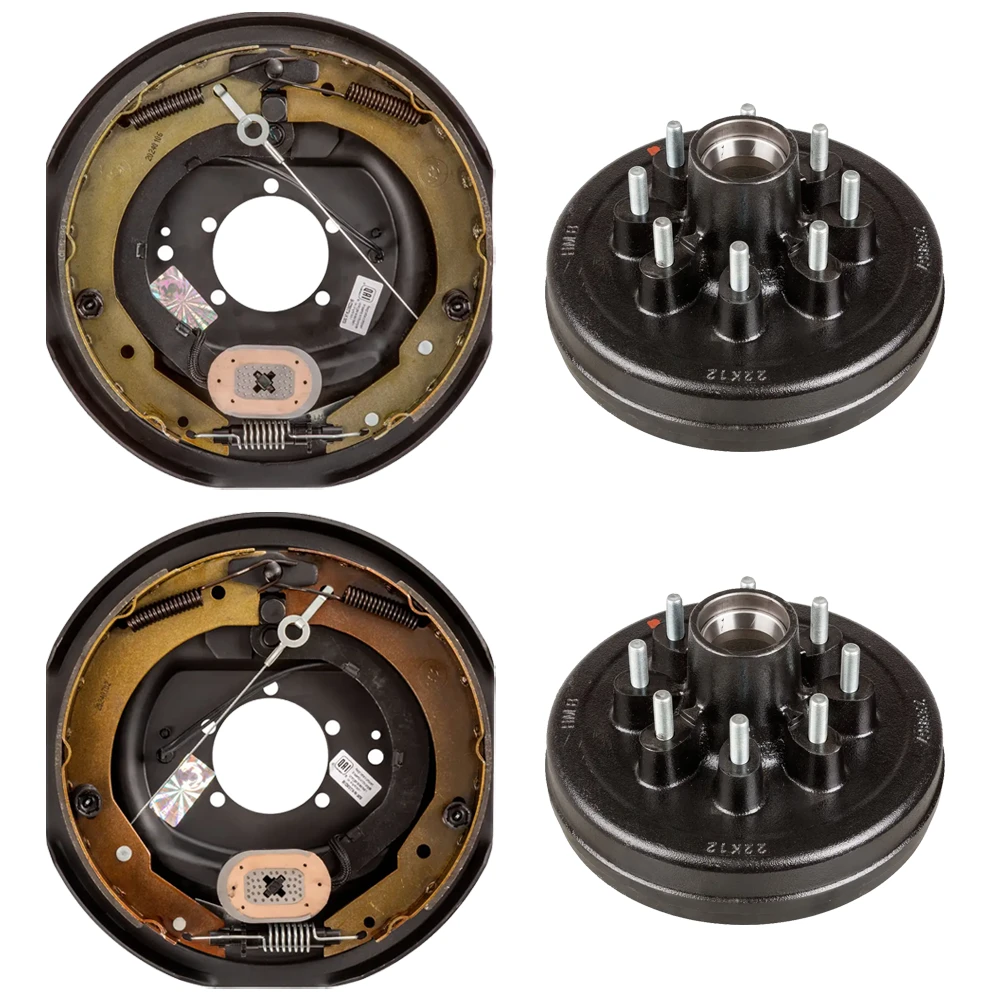

Lippert 12" Self‑Adjusting Electric Brake Assemblies & 12" Bare Drum Hub Pair – 7K Axle, 8‑on‑6.5 BP, 9/16" Studs – Dexter, Alko, Rockwell Compatible
Model: LP301HBALippert 12" Self‑Adjusting Electric Brake Assemblies & 12" Bare Drum Hub Pair
Refresh your 7,000‑lb trailer axle with this complete Lippert bundle. It combines left‑ and right‑hand 12" × 2" forward‑self‑adjusting electric brake assemblies with two matching 12" bare drum hubs, delivering smoother stops, consistent braking performance, and the hardware you need to keep rolling safely.
Bundle Contents:

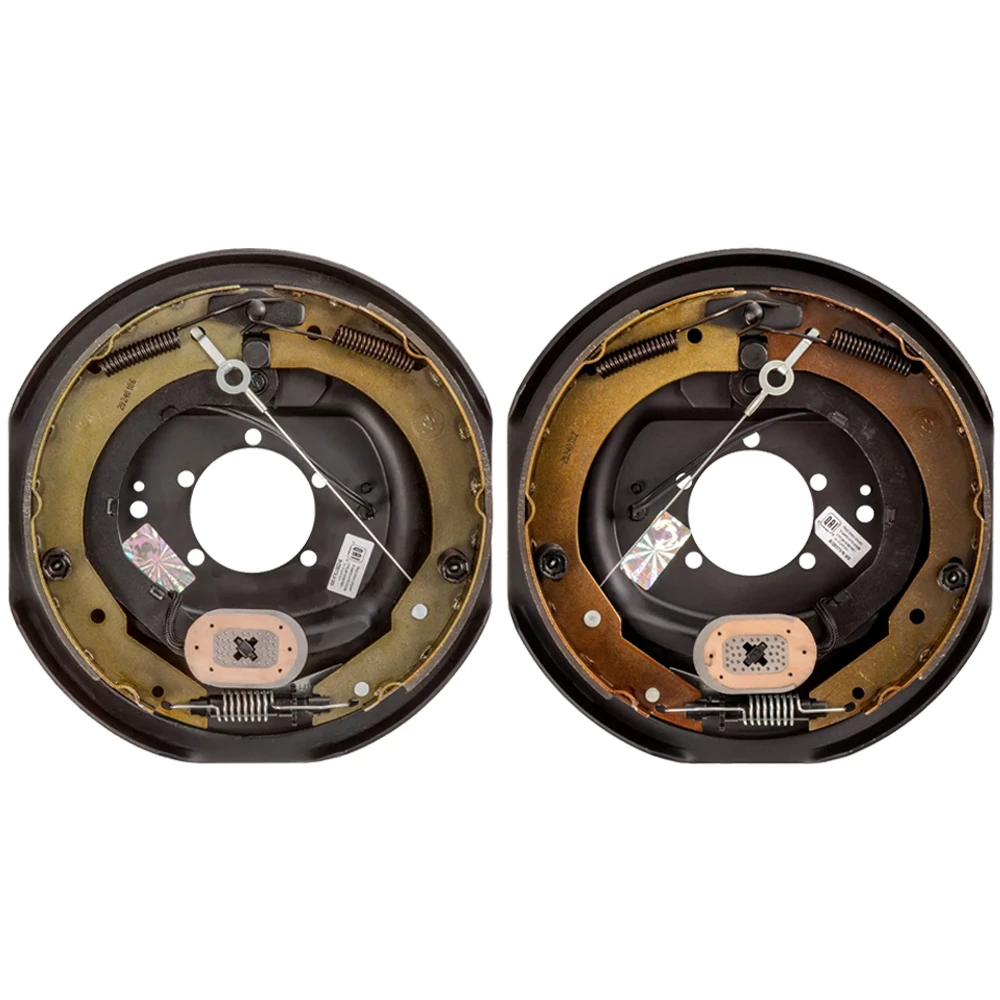

- QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Left/Road Side)
- Forward self‑adjusts at every stop—no manual tweaks
- 12" × 2" shoe surface for reliable braking power
- Five‑bolt mounting fits most 7K axles
- Rated for 4,000‑7,000 lb axles; DIY‑friendly install
- Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
- One‑year limited Lippert warranty
- QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Right/Curb Side)
- Mirror‑image of left unit for balanced braking
- Self‑adjusting mechanism delivers up to 50 % shorter stops
- 12" × 2" brake shoes, five‑bolt backing plate
- Fits 4,000‑7,000 lb axles; includes all‑new components
- Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
- Backed by Lippert’s one‑year warranty

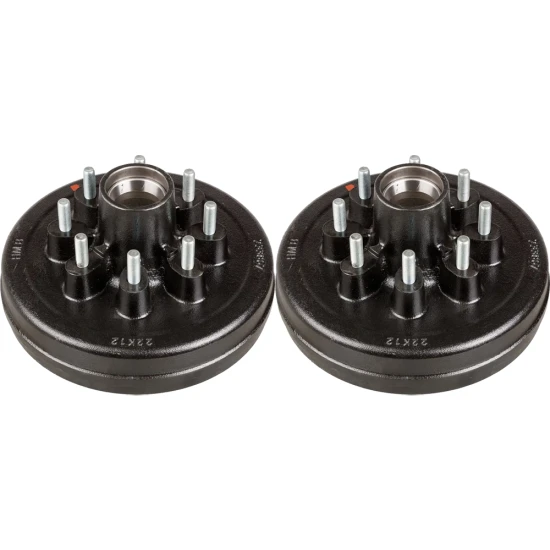

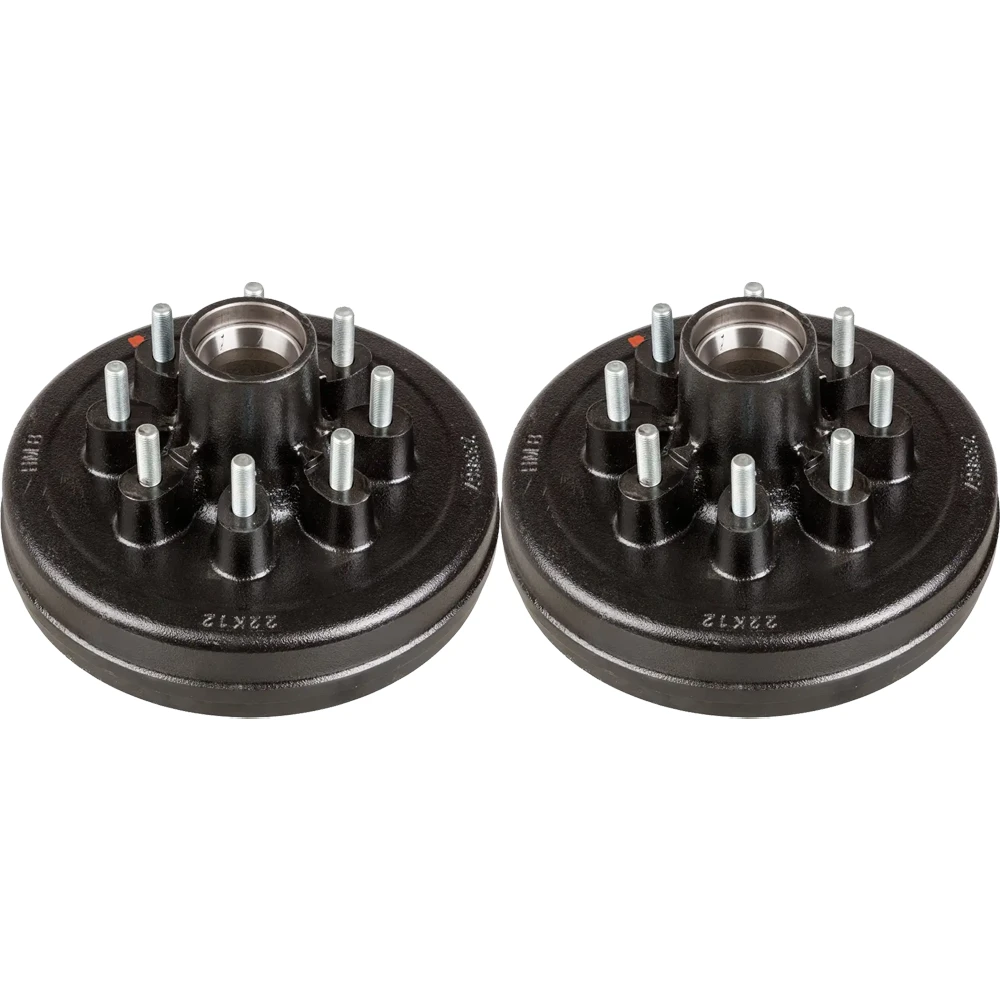

- QTY (2): Lippert 12" Bare Brake Drum Hub – 8‑on‑6.5", 9/16" Stud, 7K Axle
- Brake hub only – full assembly not included
- Cast‑iron hub with integrated 12" drum
- 8‑on‑6.5" bolt circle, 9/16" press‑in studs
- Works with 16"–17.5" wheels on 7,000 lb axles
- Machined races installed for quick bearing pack
- Limited one‑year warranty
Always match replacement parts to your original equipment and perform regular brake maintenance. Inspect linings, magnets, and drums periodically to prevent premature wear or axle damage.
| Specifications: | |
|---|---|
| Kit Type | Self‑Adjusting Brake & Bare Drum Hub Pair |
| Axle Rating | 7,000 lbs |
| Brake Drum Dimensions | 12" × 2" |
| Brake Mounting Pattern | 5‑Bolt (Brake Assemblies) |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub with Integrated Drum (Bare) |
| Stud Size | 9/16" |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Left & Right (Road/Curb) |
| Wheel Size Compatibility | 16" – 17.5" Wheels (Brakes & Drums) |
$343 99 $393.80 13% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$393.80 $343 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP301HBA
- Includes: Left Forward Self-Adjusting Brake Assembly, Right Forward Self-Adjusting Brake Assembly, Brake Drum Hub (x2)
