Lippert 16K RH 12-1/4″ x 5″ Self-Adjust Electric Brake (7-Bolt) & Threaded Grease Hub (8 on 275 mm, M22) – Dexter Compatible (No Drum)
Model: LP773HBALippert 16K RH 12-1/4″ x 5″ Self-Adjust Electric Brake (7-Bolt) & Threaded Grease Hub (8 on 275 mm, M22) – Dexter Compatible (No Drum)
This heavy-duty bundle combines Lippert’s right-hand self-adjusting 12-1/4″ x 5″ electric brake with a matching 16K threaded grease hub. Designed for systems that use an outboard 12-1/4″ x 5″ brake drum (sold separately), it restores confident braking on 17.5″ wheel setups and is cross-compatible with Dexter and other premium axle brands.

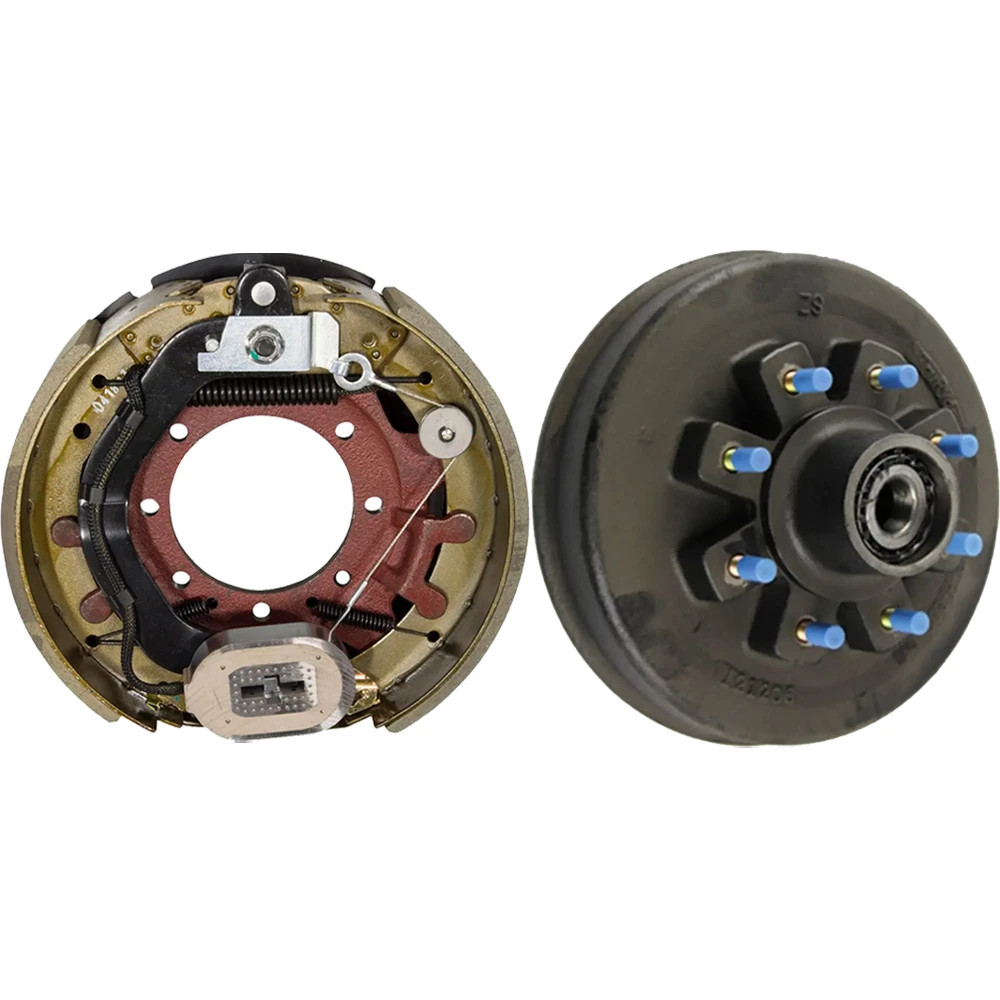

Bundle Contents:

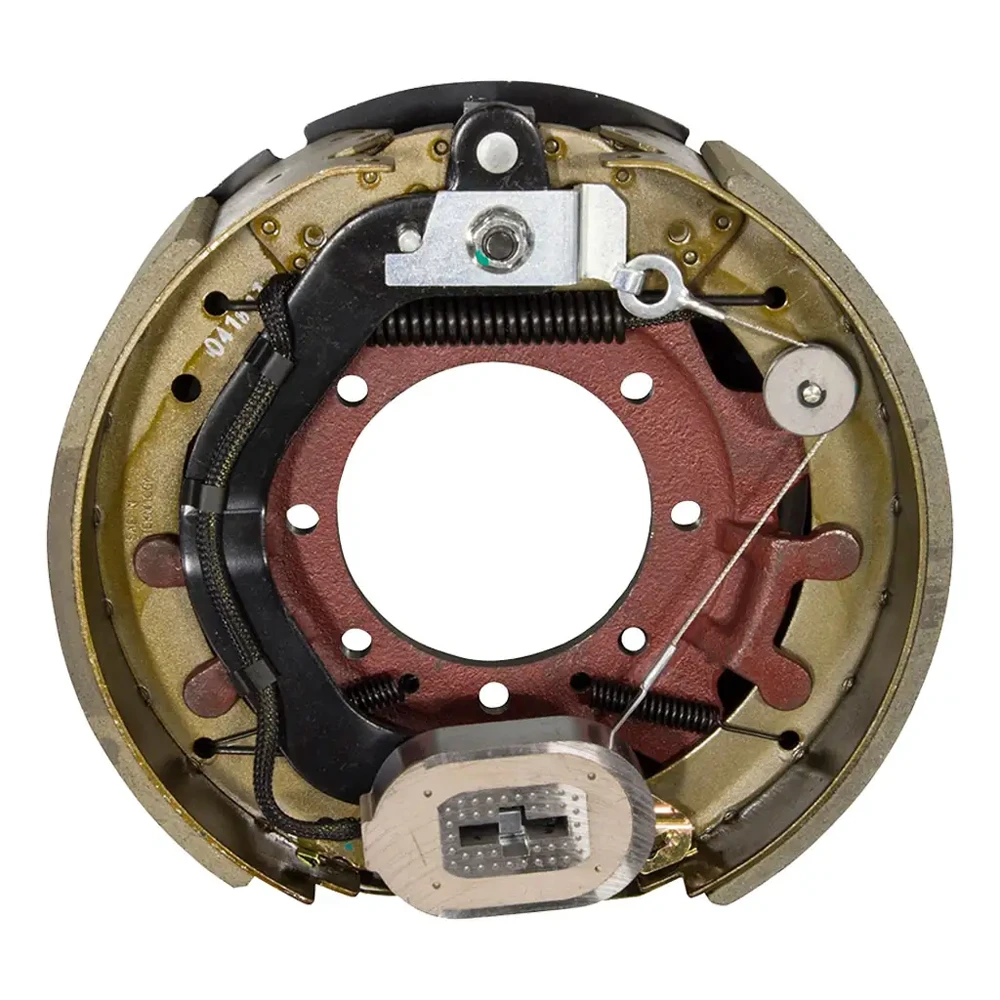

- QTY (1): Forward Self-Adjusting Electric Brake – Passenger-Side (RH), 12-1/4″ x 5″, 12–16K, 7-Bolt
- Right-hand orientation; seven-bolt mounting flange
- Forward self-adjust design maintains shoe clearance for consistent stops
- Fits 12K–16K axles
- Dexter-compatible PN: K23-443-00 / 023-443-00
- QTY (1): Threaded Brake Hub – 16K, Grease, 8 on 275 mm, M22 Studs (Hub-Only)
- Races & wheel studs pre-installed
- Inner bearing & grease seal installed; outer bearing not included
- Accepts Valcrum™ threaded dust caps (cap sold separately)
- Use with an outboard brake drum (drum sold separately)
- Wheel size: 17-1/2″; durable cast-iron construction; 1-year Lippert warranty
Required to Complete Installation (Sold Separately):
- 12-1/4″ x 5″ outboard brake drum, 8 on 275 mm
- Outer bearing (M22), threaded dust cap, spindle hardware, and grease as applicable
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications | |
|---|---|
| Kit Type | Right-Hand Brake + Threaded Hub (No Drum) |
| Axle Rating | 16,000 lb |
| Brake Size | 12-1/4″ x 5″ |
| Brake Mounting Pattern | 7-Bolt |
| Hub Bolt Pattern | 8 on 275 mm |
| Hub Type | Threaded Grease Hub (hub-only); races & studs pre-installed; inner bearing & seal installed; outer bearing not included |
| Stud Size | M22 |
| Wheel Size | 17-1/2″ |
| Brand | Lippert (Dexter compatible) |
$701 99 $742.90 6% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$742.90 $701 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP773HBA
- Includes: Right Forward Self-Adjusting Brake Assembly, Threaded Brake Hub Assembly
