Lippert 2,200-lb Tandem-Axle Electric Brake, Drum Hub & Bearing Kit – 7" x 1.25", 5-on-4.5" Pattern (Dexter, Al-Ko, Rockwell Compatible)
Model: LP260HBALippert 2,200-lb Tandem-Axle Brake, Hub & Bearing Bundle
This ready-to-install — just add grease Lippert® package refreshes both axles on your light-duty trailer. You receive matched left- and right-hand 7" x 1.25" electric brakes, cast-iron 5-on-4.5" hub-drums, and one bearing kit per hub—everything required to service four wheels on a 2,200-lb tandem axle with OE quality and dependable stopping power.
Bundle Contents:

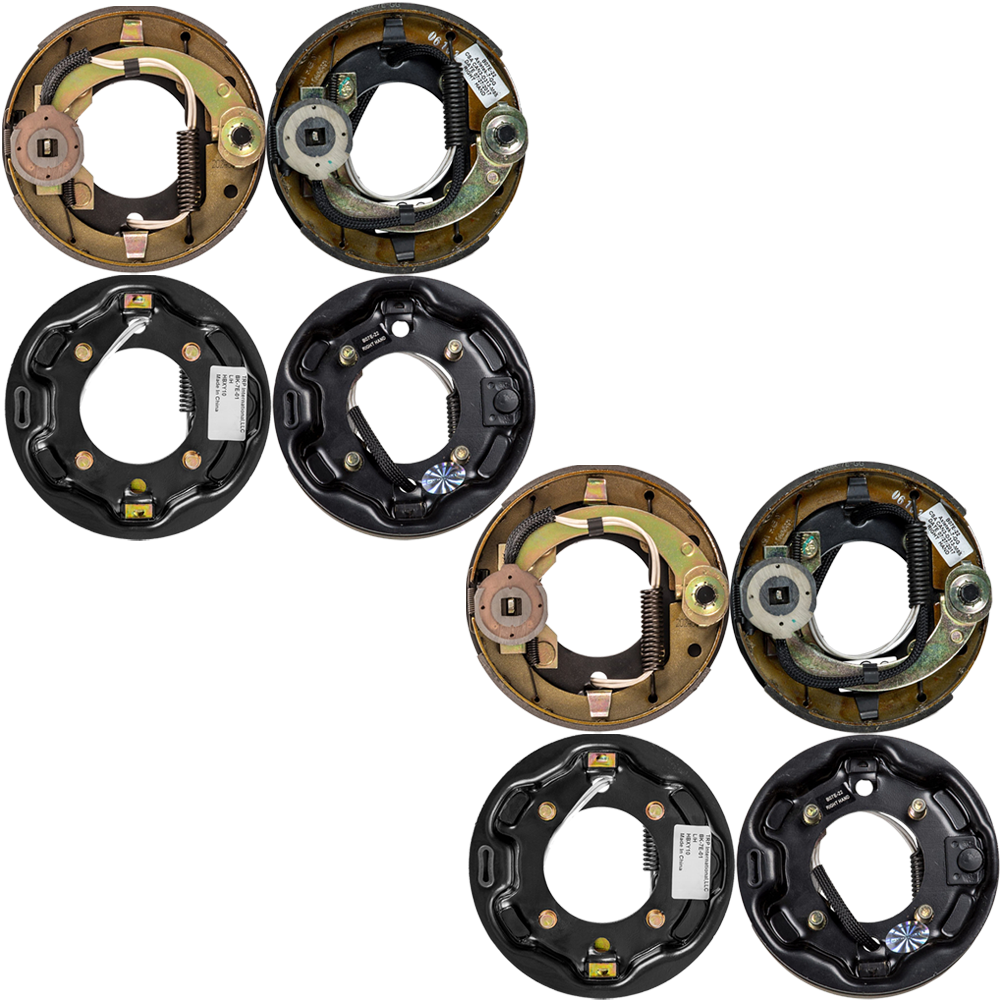

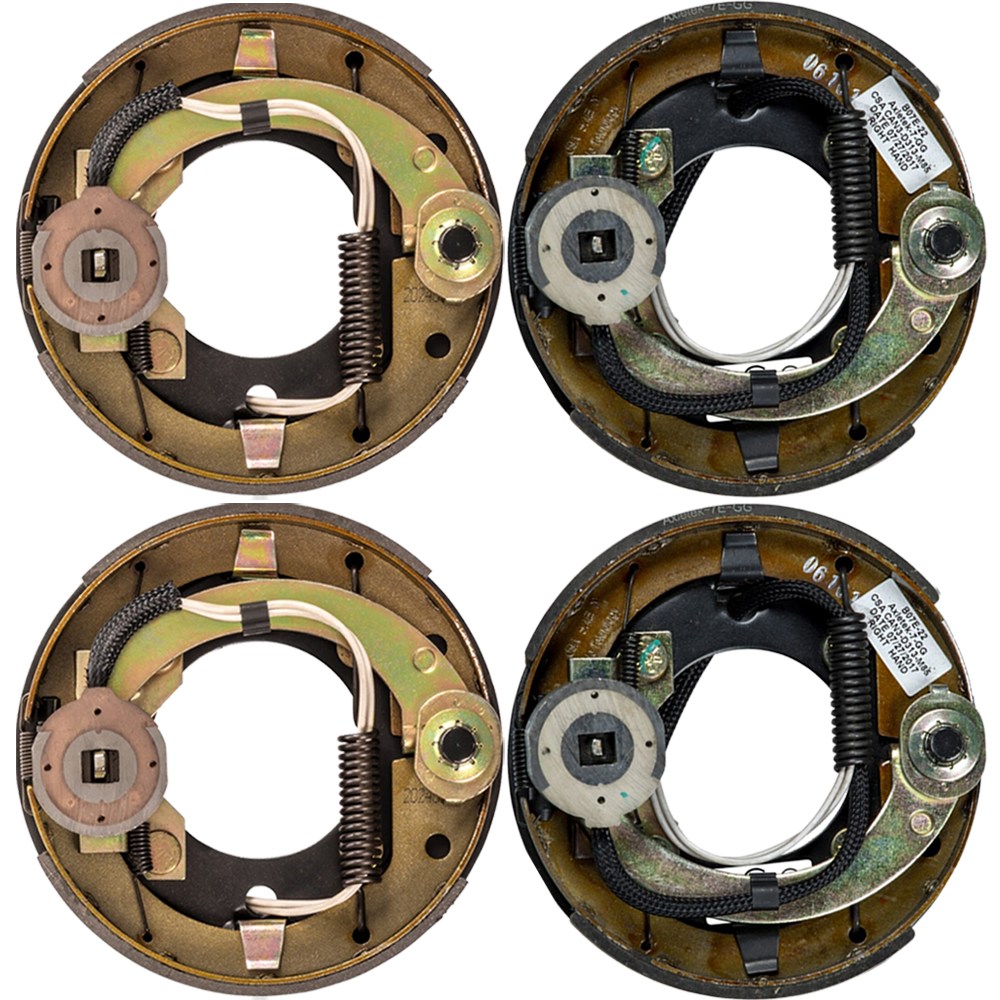

- QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Left Side
- Genuine Lippert® roadside assembly
- Manual-adjust 7" x 1.25" electric brake
- Fits 10"–13" wheels; 2,200-lb rating
- 4-bolt mounting pattern
- Dexter Compatible Part #: K23-047-00 | 023-047-00
- QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs., Right Side
- Genuine Lippert® curb-side assembly
- Manual-adjust 7" x 1.25" electric brake
- Fits 10"–13" wheels; 2,200-lb rating
- 4-bolt mounting pattern
- Dexter Compatible Part #: K23-048-00 | 023-048-00

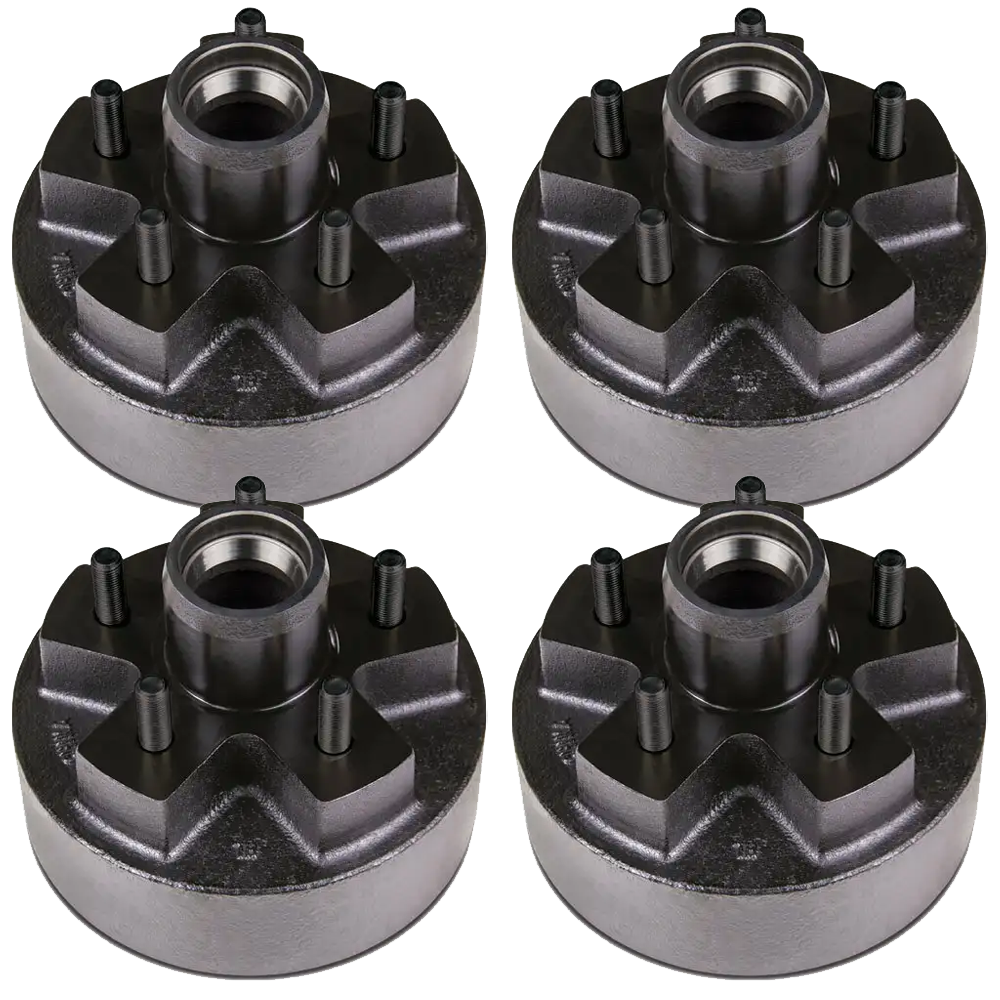

- QTY (4): 7" Brake Hub-Drum, 5 on 4.5", 1/2" Studs – 2,200 lbs.
- Cast-iron hub-drum only
- 5-on-4.5" bolt circle; 1/2" studs
- Rated 2,200 lbs.; fits 8"–12" wheels
- Lippert™ OE replacement part

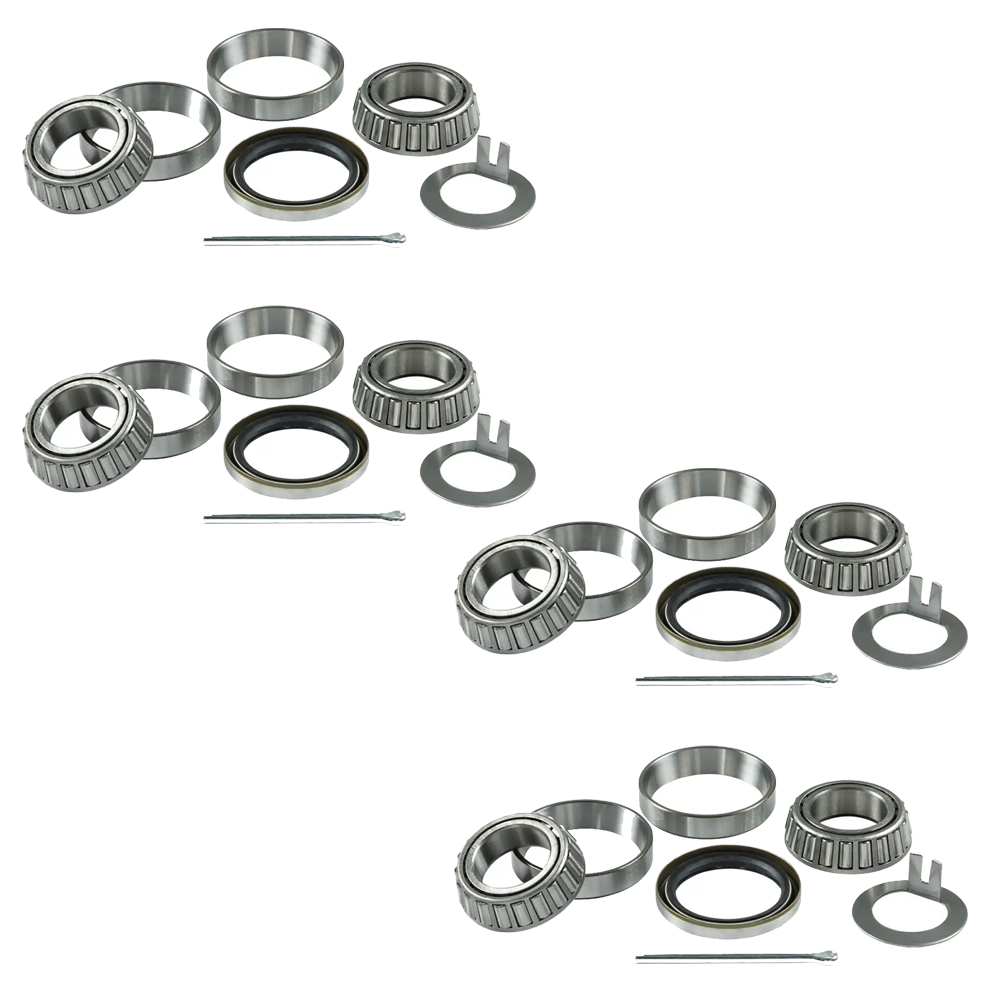

- QTY (4): Lippert Bearing Replacement Kit – 1.5" Seal I.D.
- (1) Inner bearing cone & race
- (1) Outer bearing cone & race
- (1) 1.5" double-lip grease seal
- (1) 1.75" cotter pin
- (1) 1.5" tang spindle washer
- Includes one kit per hub (4 kits total)
Recommendation: Verify bolt pattern, spindle size, and axle rating against your original equipment. Grease bearings and adjust brakes after 200 miles and at regular service intervals for optimum performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem-Axle Brake, Hub & Bearing Kit |
| Axle Rating | 2,200 lbs. per axle |
| Brake Drum Dimensions | 7" x 1.25" |
| Brake Mounting Pattern | 4-bolt brake flange |
| Hub Bolt Pattern | 5 on 4-1/2" |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Left & Right Assemblies |
| Wheel Size Compatibility | Brakes 10"–13"; Drum 8"–12" |
| Brand | Lippert® (compatible with Dexter, Al-Ko, Rockwell) |
$511 99 $639.40 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$639.40 $511 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP260HBA
- Includes: Left Electric Brake Assembly (x2), Right Electric Brake Assembly (x2), Brake Drum Hub (x4), Bearing Kit (x4)
