Lippert 3,500-lb 10" x 2.25" Trailer Hub & Electric Brake (Right Hand) – 5 on 4.5" Pattern
Model: LP35HBALippert 3,500-lb 10" x 2.25" Trailer Hub & Electric Brake (Right Hand) – 5 on 4.5" Pattern
Upgrade your trailer’s braking system with this complete Lippert 3,500-lb hub and electric brake bundle. Enjoy the convenience of a pre-greased hub assembly paired with a genuine Lippert electric brake for smooth, safe towing.

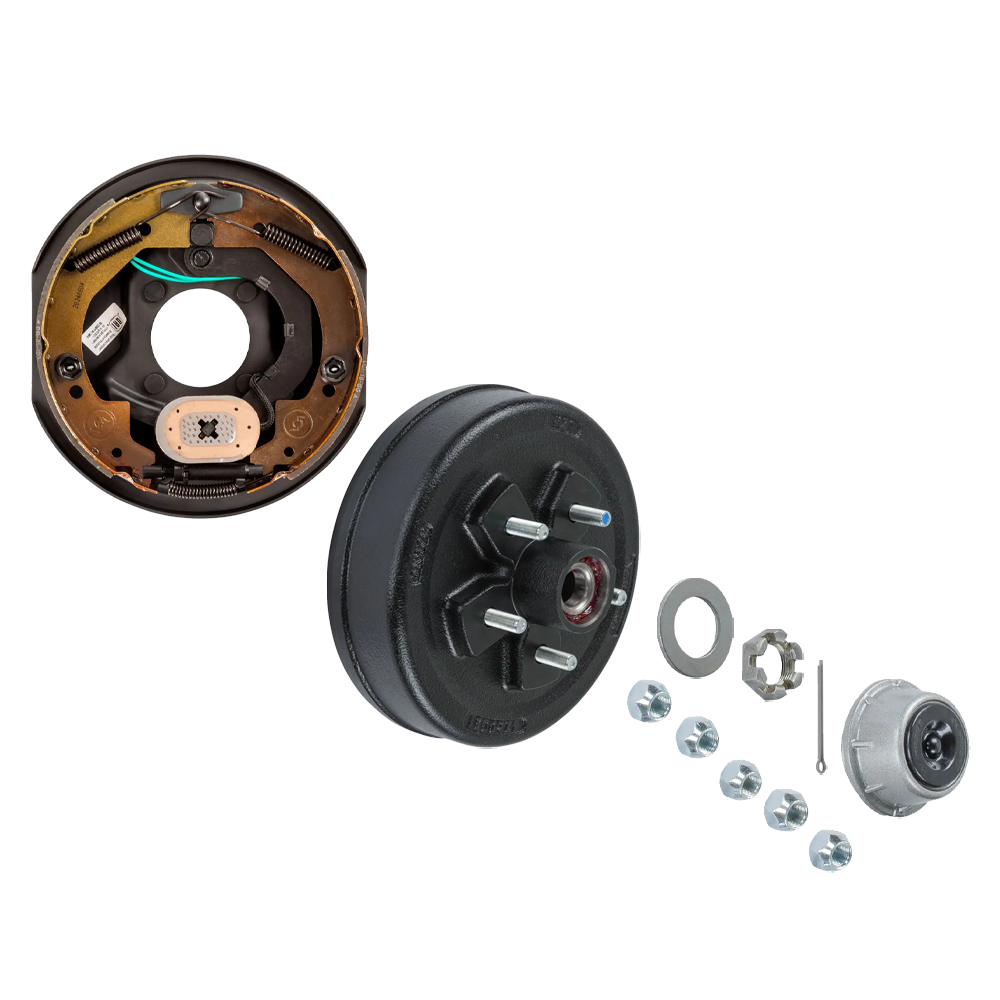

Bundle Contents:

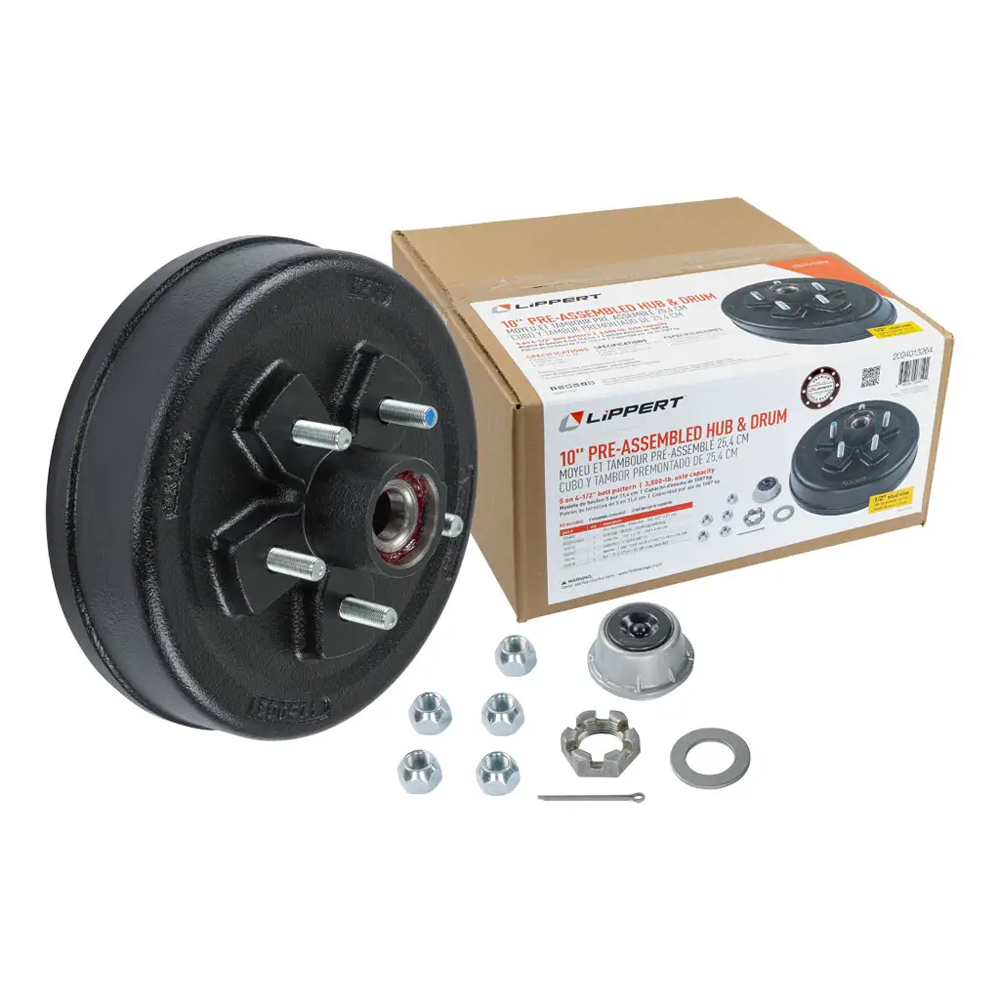

- QTY (1): Complete Pre-Greased Hub Assembly with Lug Nuts - 3,500-lb. Axles, 1/2" Stud
- Complete pre-greased hub assembly with lug nuts

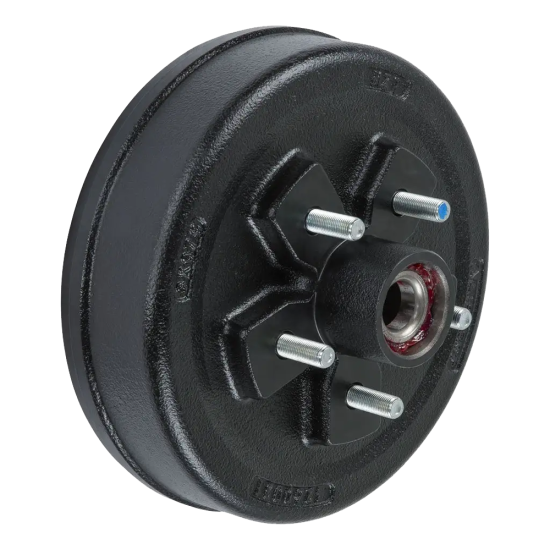

- (1) Brake hub assembly

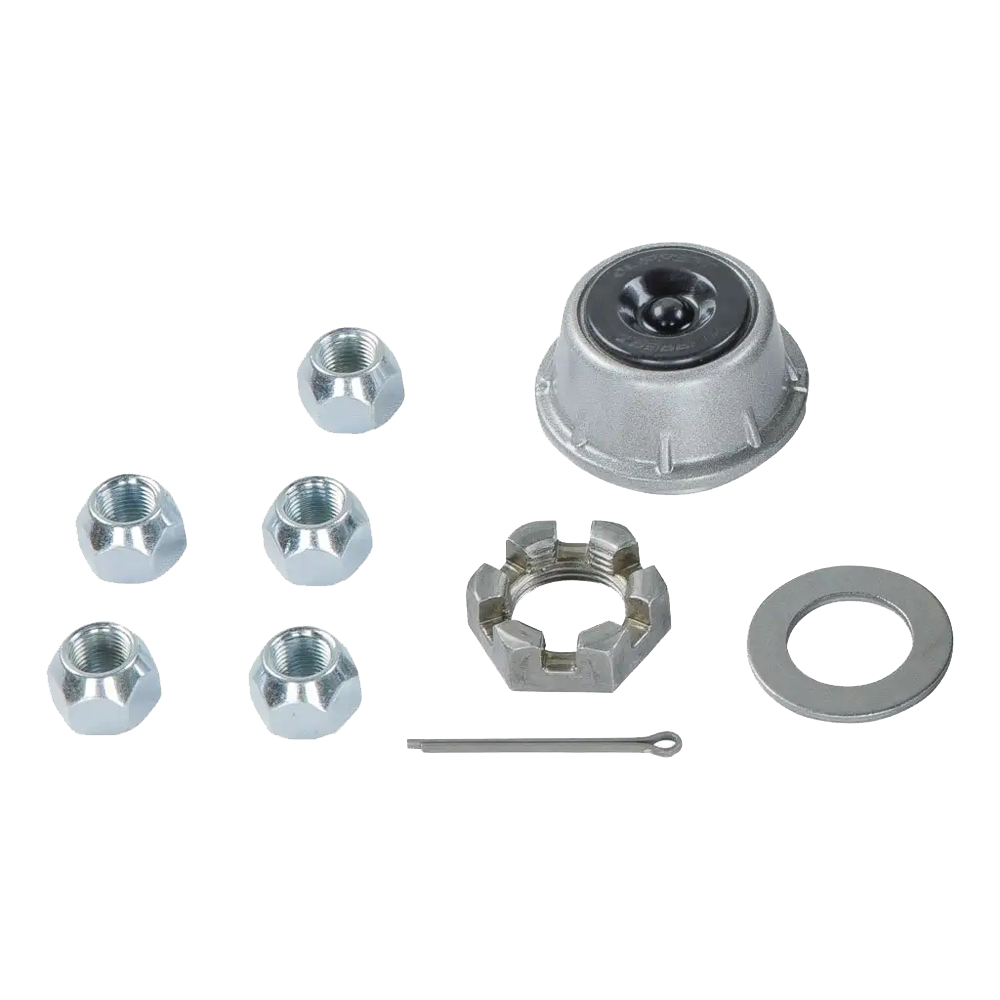

- (1) Dust cap with plug
- (1) 1.75" cotter pin
- (1) 1" 6-slot castle spindle nut
- (1) Round spindle washer with 1.03" ID, 1.68" OD
- (5) 60° cone trailer lug nuts

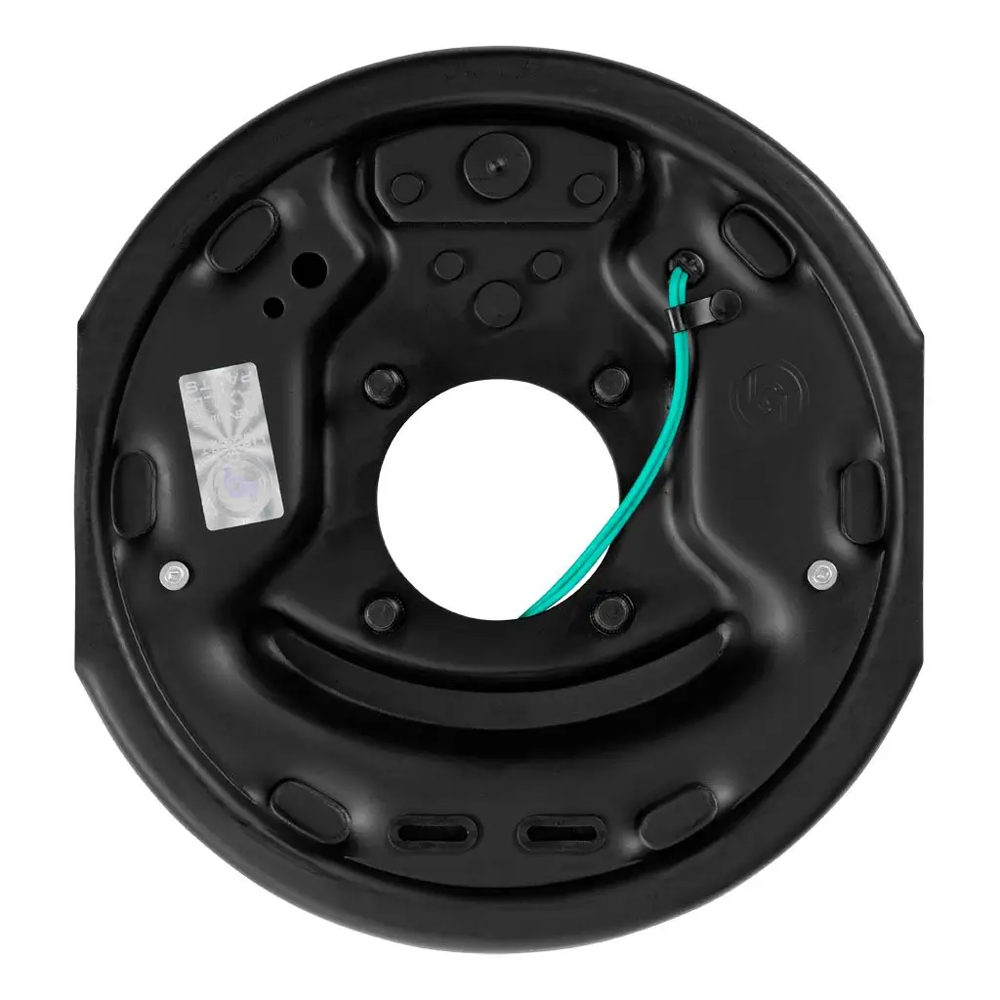

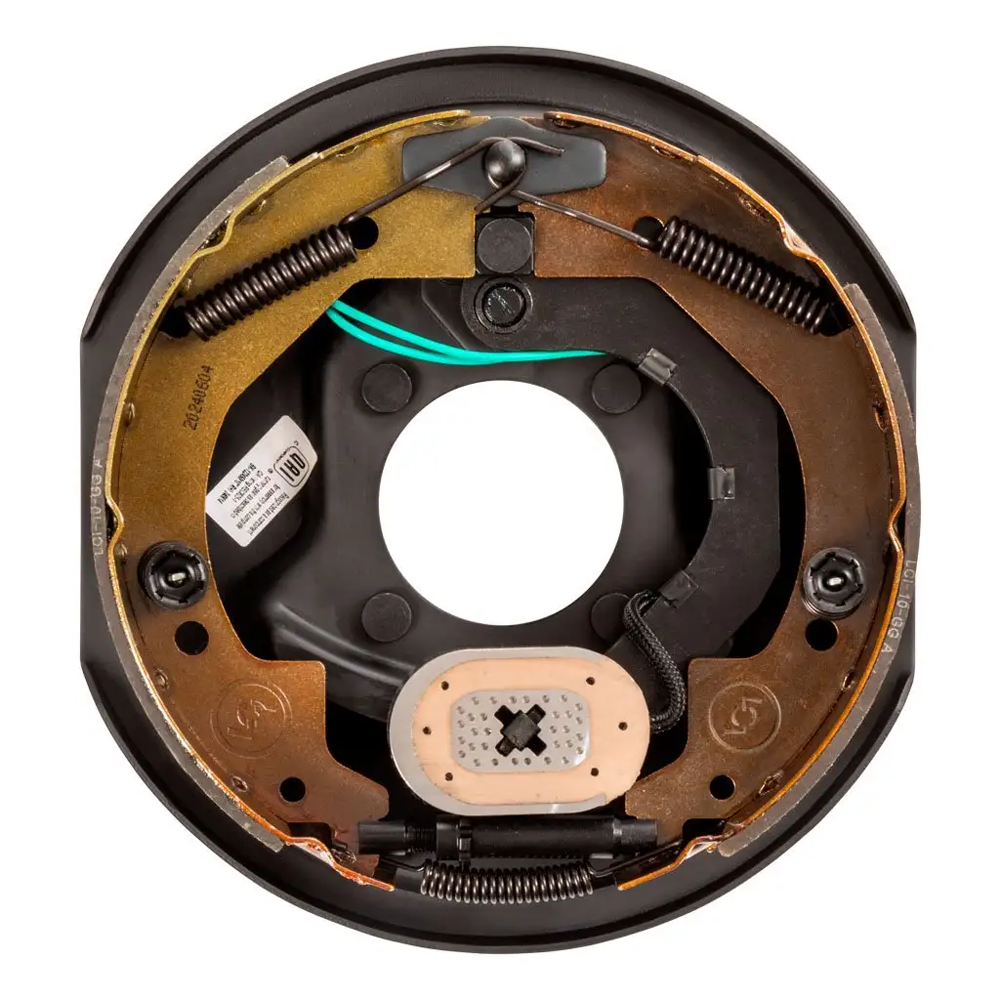

- QTY (1): Lippert Electric Brake Assembly - 10" x 2.25", 3,500 lbs. (Right)
- Replacement electric brake assembly
- Right hand (curb side)
- Brake size: 10" x 2.25"
- Axle rating: 3,500 lbs.
- Easy, DIY installation
- 1-year warranty
- Dexter Compatible Part Number: K23-027-00|023-027-00
Always check your original equipment specifications, maintain your brakes periodically, and replace worn components to ensure top performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Brake Assembly | |
| Brake Location | Right Hand (Curb Side) |
| Brake Size | 10" x 2.25" |
| Brake Mounting Pattern | 4-Bolt Brake Flange |
| Drum Brake Type | Electric |
| Brake Drum Dimensions | 10" x 2.25" |
| Drum Bolt Pattern | 4-Bolt |
| Type of Adjustment | Manual |
| Hub & Drum | |
| Hub Bolt Pattern | 5 on 4-1/2" |
| Stud Size | 1/2" |
| Axle Capacity | 3,500 lbs |
| Hub Type | Hub With Integrated Drum Assembly |
| Drum Location | Right Hand (Curb Side) |
| Wheel Size Compatibility | 12", 13", 14", 14.5", 15" |
$147 99 $152.90 3% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$152.90 $147 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP35HBA
- Includes: Right Electric Brake Assembly, Pre-Greased Hub Assembly
Description
