Lippert 3,500 lb Tandem Axle Suspension Kit (1.75″ Tube, 2,000 lb, 26″ Leaf, Hangers & Hardware) – Dexter/Alko/Rockwell/Quality Axles Compatible
Model: LP77ASKLippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 1.75″ Tube – 2,000 lb Leaf Springs (26″) – Long Equalizer
Upgrade your tandem axle trailer with this complete Lippert suspension bundle, compatible with Dexter, Alko, Rockwell, and Quality Axles. Designed for a 3,500 lb axle rating and featuring 1.75″ axle tubes, this kit includes 2,000 lb-rated, 3-leaf springs (commonly marketed as 26″) along with hangers and all necessary hardware. Enjoy a smoother ride, better weight distribution, and a reliable towing experience with everything you need in one convenient package.

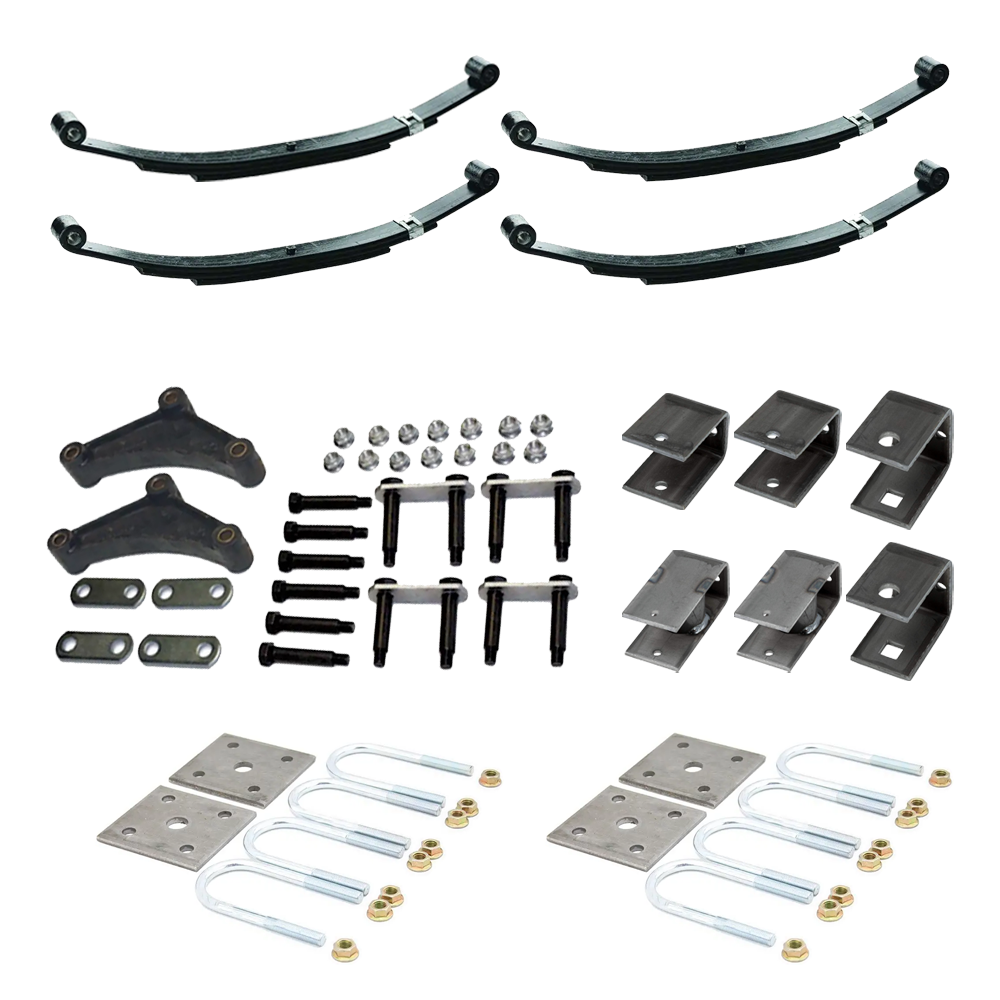

Bundle Contents:

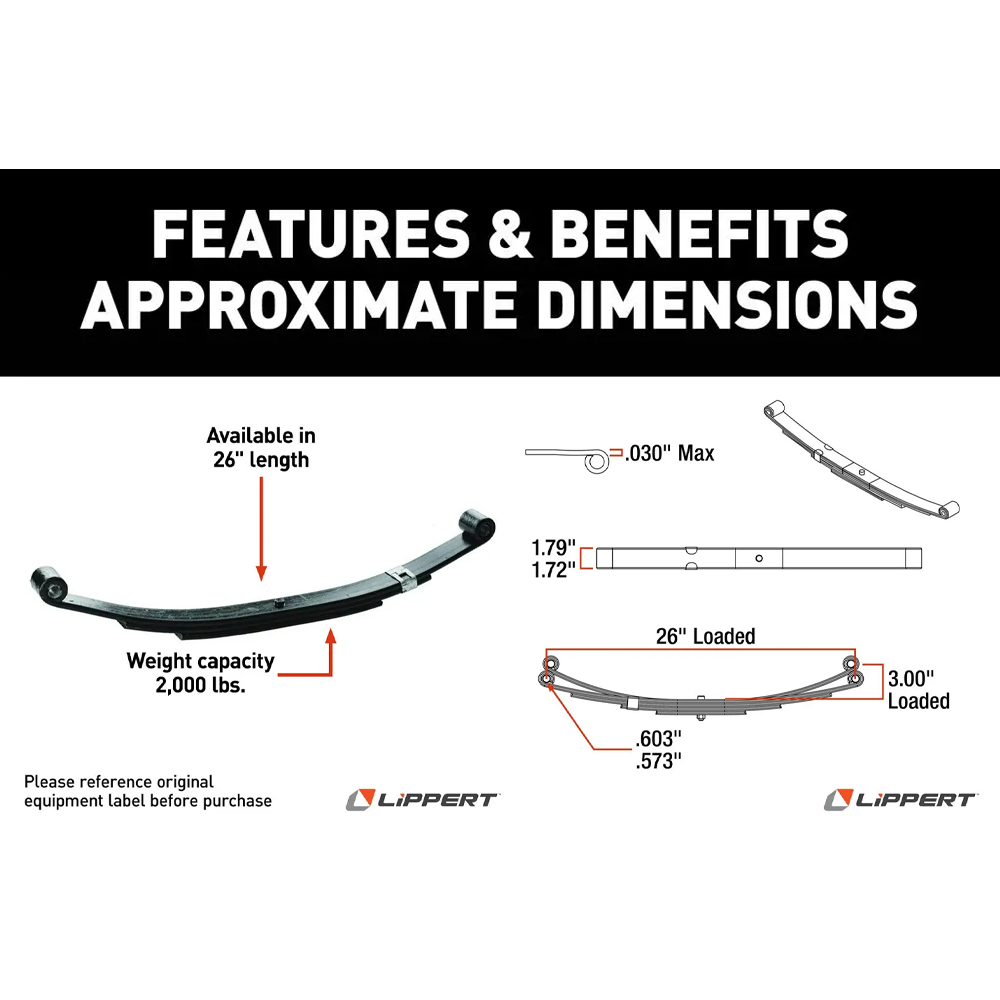

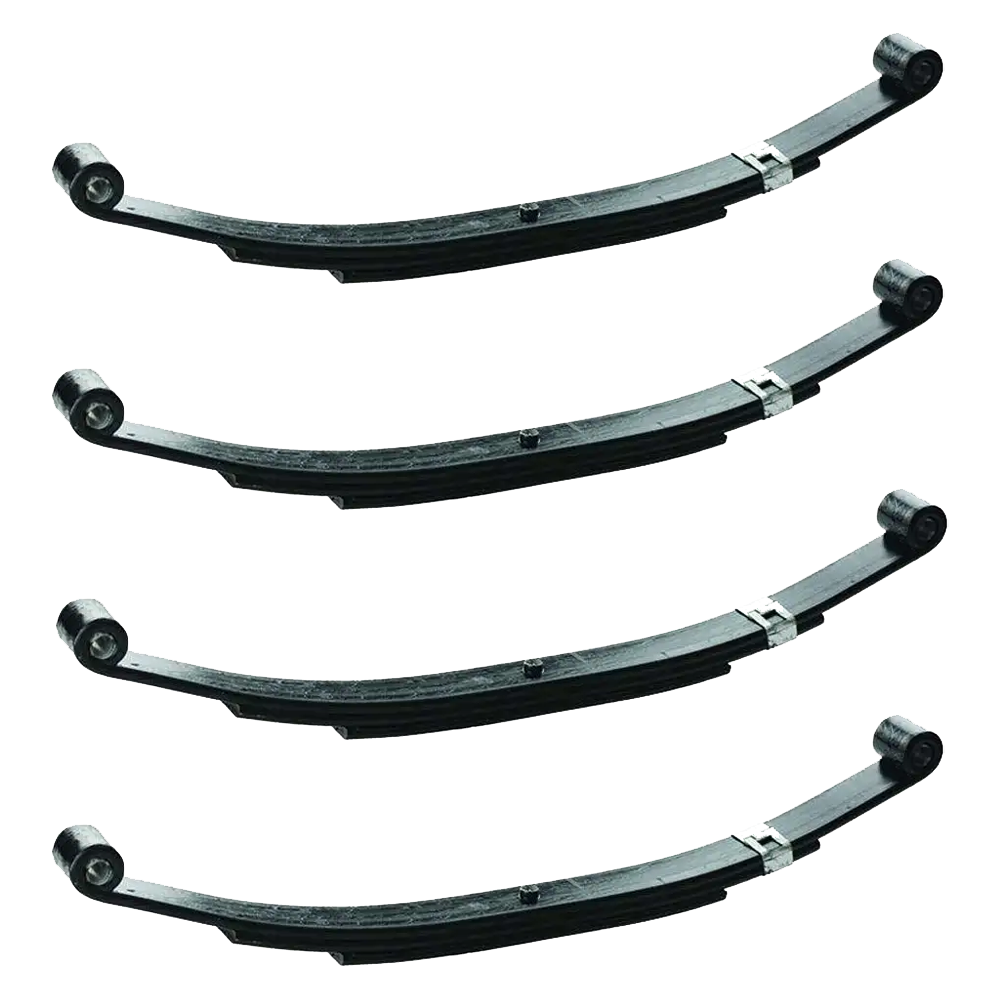

- QTY (4): Replacement Double-Eye Leaf Spring – 2,000 lb Capacity, 26″ (3-Leaf Design)
- 2,000 lb-rated leaf springs for tandem trailer setups
- 3-leaf design, 1.75″ width for secure fit
- Double-eye style for dependable suspension support
- Ideal for replacing worn or damaged springs

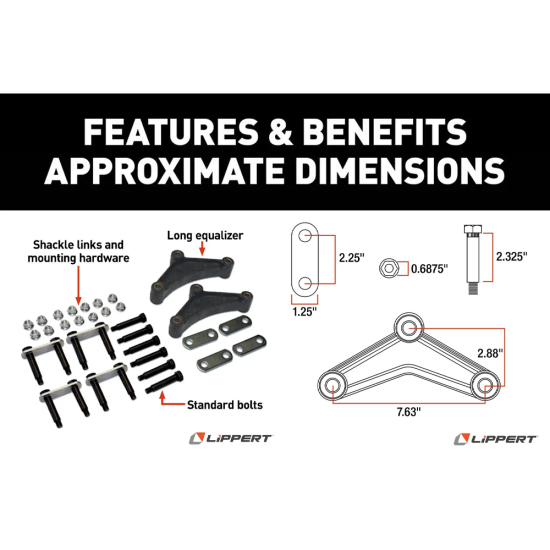

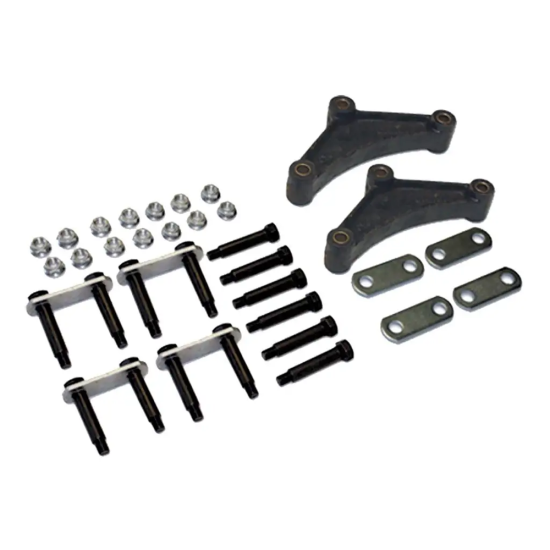

- QTY (1): Tandem Axle AP Kit with Long Equalizer and Standard Bolts
- Long-style equalizers for improved load distribution
- Includes shackle links, mounting hardware, and equalizers
- Installs just like original equipment
- Perfect match for Lippert or competitor axles
- QTY (2): Axle Mounting Kit – 1.75″ Tube
- U-bolt style mounting kit for secure axle installation
- Fits 1.75″ axle tubes
- Direct replacement for worn or damaged hardware
- Engineered to match original equipment specs
- QTY (2): Front Trailer Axle Hanger – 4-5/16″ x 2-3/16″
- Axle capacity rating: 2,200–8,000 lbs.
- Length: 4-5/16″, Width: 2-3/16″
- Hole size: 9/16″
- Distance to hole: 3-9/16″ on-center
- Welded to chassis for secure axle and component mounting
- QTY (2): Center Trailer Axle Hanger – 4-1/2″ x 3-1/8″
- Axle capacity rating: 2,200–8,000 lbs.
- Length: 4-1/2″, Width: 3-1/8″
- Hole size: 7/8″
- Distance to hole: 3-5/16″
- Connects to equalizer for tandem suspension setups
- QTY (2): Rear Trailer Axle Hanger – 6″ x 2-1/4″
- Axle capacity rating: 2,200–8,000 lbs.
- Length: 6″, Width: 2-1/4″
- Hole size: 5/16″
- To hole: 4″
- Supports rear of the leaf spring assembly
For optimal performance, confirm compatibility with your trailer’s original components, follow proper maintenance schedules, and adhere to recommended installation instructions. Keeping all suspension components in good condition ensures safer travel and extended service life.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Suspension Kit |
| Axle Rating | 3,500 lbs |
| Leaf Spring Capacity | 2,000 lbs Each |
| Number of Leaves per Spring | 3 |
| Leaf Spring Width | 1.75″ |
| Unloaded Eye-to-Eye Length | 25-1/4″ |
| Loaded Eye-to-Eye Length | 24″ |
| Arch Height Unloaded | 3″ |
| Arch Height Loaded | 2.5″ |
| Spring Eye Diameter | 9/16″ |
| Axle Tube Diameter | 1.75″ |
| Equalizer Type | Long |
| Axle Configuration | Tandem |
$318 99 $415.40 23% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$415.40 $318 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP77ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
