Lippert 10″ self-adjust brake kit with bare 6-on-5.5 drum hubs

Lippert 4,400-lb 10″ Forward Self-Adjust Electric Brake & Bare 6-on-5.5 Drum/Hub Kit – Single Axle

Name: Lippert 4.4K 10″ Self-Adjust Brake & Bare 6-on-5.5 Drum Hub Kit
Brand: LIPPERT
Price: 273.99 USD
Availability: InStock

Model: LP223HBA

Lippert 10″ Forward Self-Adjusting Brake & Bare Drum/Hub Bundle – 4.4K Single-Axle (Not for Dexter D44)

Service your 4,400-lb axle class with matched 10″ × 2-1/4″ forward self-adjusting electric brakes and bare 10″ hub/drums (6 on 5.5″, 1/2″ studs). The brake assemblies fit the standard 4-bolt brake flange used across Dexter/Lippert/AL-KO/Rockwell. The hub/drums are machined for Lippert-style 4.4K spindles. Bearings, races, seals, dust caps, and lug nuts are sold separately.

Fitment warning: The hub/drums do NOT fit Dexter D44 (4,400-lb) spindles. Verify by checking the bearing numbers and seal size on your existing hubs. (Brakes fit any axle with a 10″ × 2-1/4″, 4-bolt brake flange.)

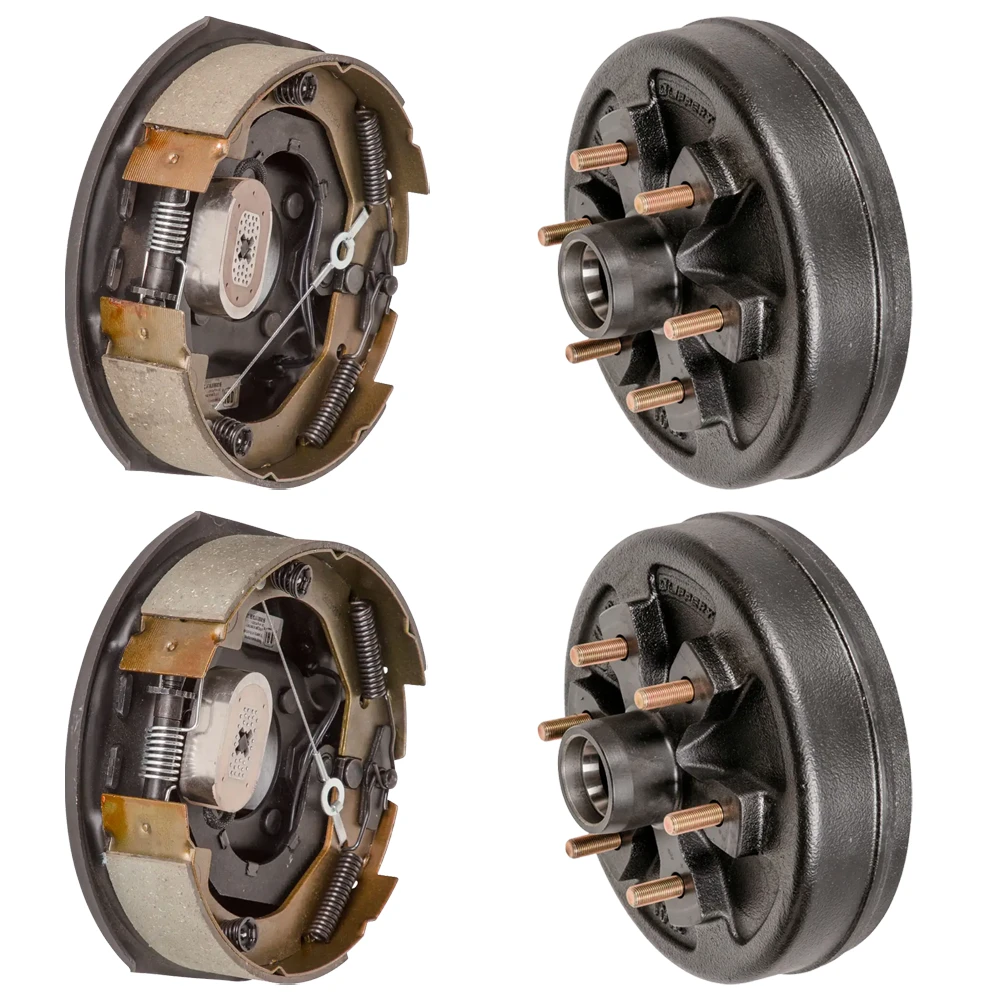

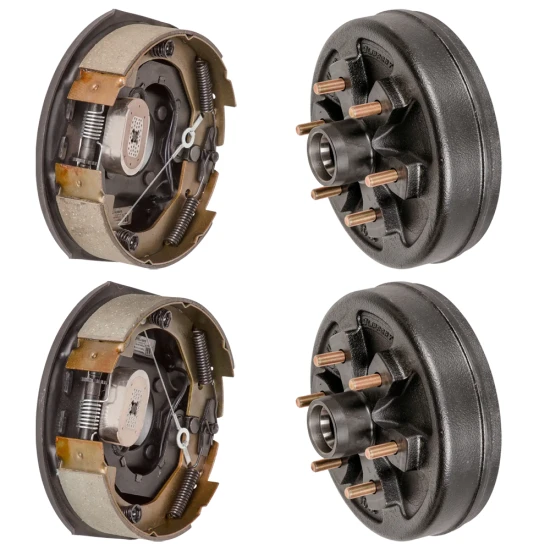

Bundle Contents:

QTY (1): Forward Self-Adjusting Brakes – 10″ × 2-1/4″ Driver-Side, 4.4K, 4-Bolt
- Driver/left electric brake assembly
- Rated for 4,400-lb axles – 4-bolt mount
- Forward self-adjusts for up to 50 % shorter stops
- Dexter compatible PN: K23-478-00 | 023-478-00
- Lippert OE replacement – Dexter/Alko/Rockwell friendly
QTY (1): Forward Self-Adjusting Brakes – 10″ × 2-1/4″ Passenger-Side, 4.4K, 4-Bolt
- Passenger/right electric brake assembly
- Rated for 4,400-lb axles – 4-bolt mount
- Automatic self-adjust every forward stop
- Dexter compatible PN: K23-479-00 | 023-479-00
- Lippert OE replacement – Dexter/Alko/Rockwell friendly

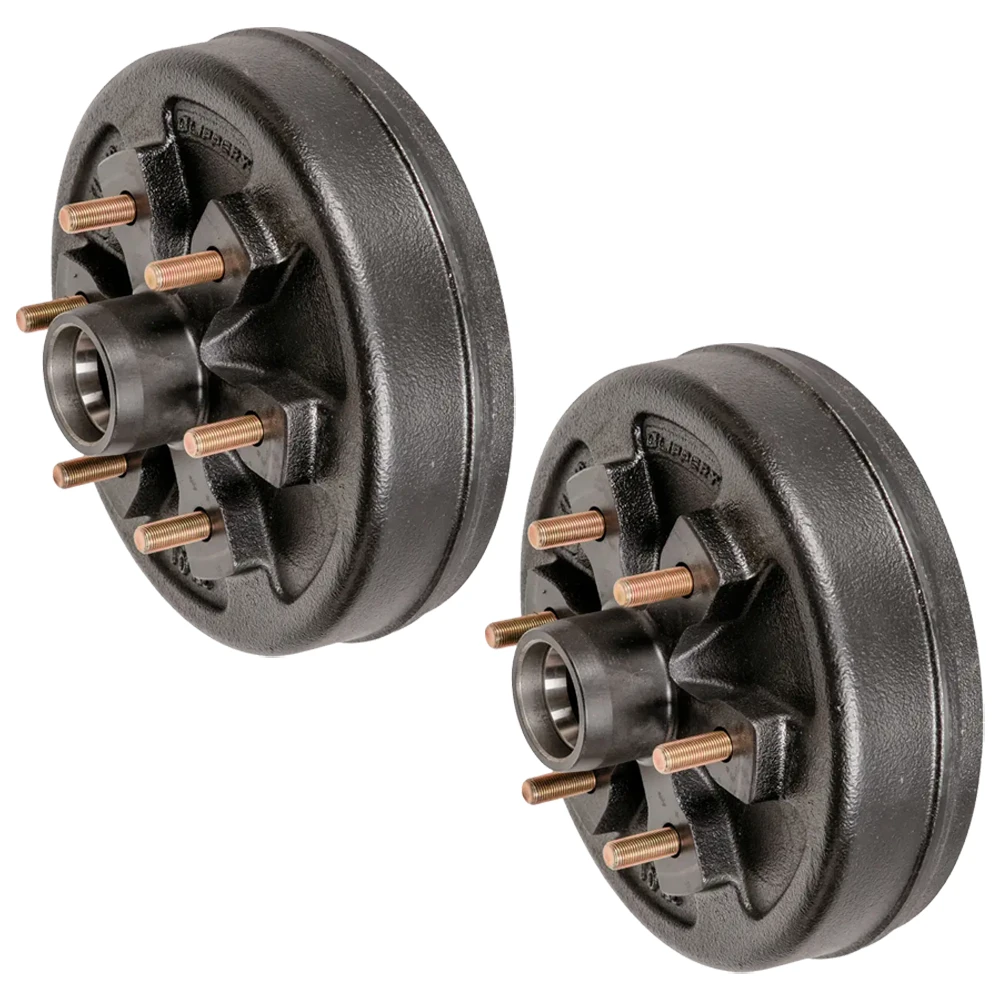

QTY (2): 10″ Hub with Integrated Drum – 6 on 5.5″, 1/2″ Studs, 4,400 lbs (Not for Dexter D44)
- Bare drum hub – bearings, races & seal sold separately
- 6-on-5.5″ bolt circle, 1/2″ studs
- Solid-iron construction – fits 14.5″–16.5″ wheels
- Genuine Lippert part with 1-year warranty

Recommendation: Verify bolt pattern, axle rating, and brake size before ordering. Perform regular bearing lubrication and brake inspections for optimal safety and performance.

Specifications:
Kit Type	Single-Axle Electric Brake & Drum/Hub Bundle
Axle Rating	4,400 lbs
Brake Drum Dimensions	10″ × 2-1/4″
Brake Mounting Pattern	4-bolt
Hub Bolt Pattern	6-on-5.5″
Hub Type	Bare Hub with Integrated Drum
Stud Size	1/2″
Type of Adjustment	Forward Self-Adjusting
Brake Location	Left & Right Assemblies
Wheel Size Compatibility	14.5″, 15″, 16″, 16.5″

Order today or call us at 877-869-6690 for expert advice and personalized service.

See Full Description

$273 ⁹⁹ $379.80 28% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Estimate

Add to Wish List

$379.80 $273 ⁹⁹

Pay in 4 interest-free installments of with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: LIPPERT
Model: LP223HBA
Includes: Left Self-Adjusting Brakes, Right Self-Adjusting Brakes, Brake Drum Hub (x2)

Default
Bolt Pattern	6 on 5-1/2 Inch
Brand	LIPPERT
Axle Capacity	For 4400 lbs Axles
Hub Type	Hub With Integrated Drum and Brake Assembly
Wheel Size Compatibility	14-1/2 Inch Wheel, 15 Inch Wheel, 16 Inch Wheel, 16-1/2 Inch Wheel

Be the first to ask a question.

Description
