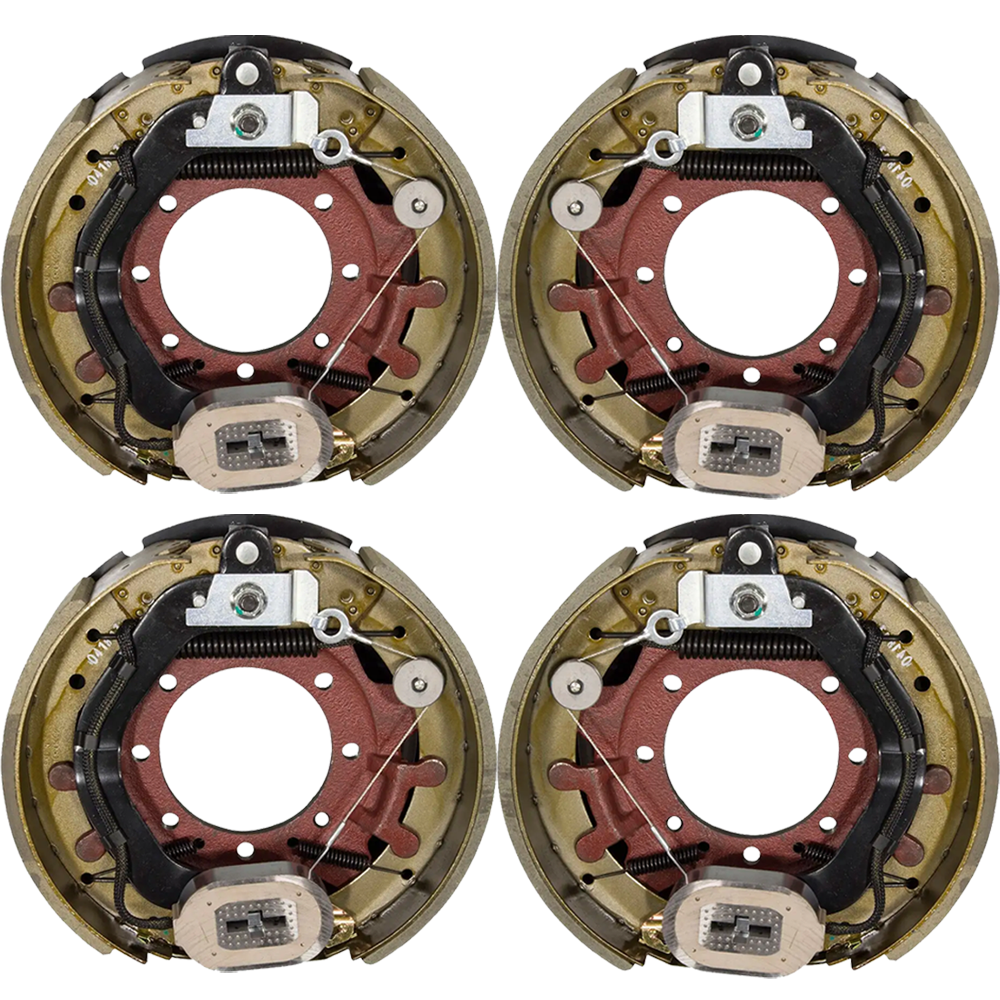

Lippert 4-Pack (2-Pair) 12.25" x 3.38" Self-Adjusting Electric Trailer Brake Assemblies (Left & Right), 10,000 lbs Tandem Axle – Replaces Dexter, Al-Ko, Rockwell & Quality Axles
Model: LP59BABLippert 4-Pack 12.25" x 3.38" Self-Adjusting Electric Trailer Brake Assemblies (Left & Right) – 10,000 lbs Tandem Axle
Upgrade your tandem axle trailer’s braking system with these four Lippert electric brake assemblies. Each assembly is engineered for 10,000-lb axles, offering reliable stopping power, easier installation compared to hydraulic brakes, and reduced maintenance thanks to forward self-adjusting functionality. This set conveniently replaces Dexter, Al-Ko, Rockwell, and Quality Axles brake systems.
Bundle Contents:
- QTY (2): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration — no manual adjustments needed
- Designed for left-hand (roadside) installation
- Rated for 10,000-lb axles
- Seven-bolt mounting pattern (hardware sold separately)
- Compatible with 16", 16.5", 17", or 17.5" wheels
- Brake size: 12.25" x 3.38"
- Requires a break-in period for full performance
- Dexter Compatible Part Number: K23-450-00|023-450-00
- QTY (2): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Right Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration — no manual adjustments needed
- Designed for right-hand (curbside) installation
- Rated for 10,000-lb axles
- Seven-bolt mounting pattern (hardware sold separately)
- Compatible with 16", 16.5", 17", or 17.5" wheels
- Brake size: 12.25" x 3.38"
- Requires a break-in period for full performance
- Dexter Compatible Part Number: K23-451-00|023-451-00
Always check your existing equipment labels to ensure a proper match, and schedule regular brake inspections to maintain optimal performance. Neglecting worn-out brakes can lead to axle failure.
| Specifications: | |
|---|---|
| Brake Type | Self-Adjusting Electric Drum |
| Brake Size | 12.25" x 3.38" |
| Axle Capacity | 10,000 lbs |
| Mounting Pattern | 7-Bolt |
| Location | Left & Right |
| Wheel Size Compatibility | 16" - 17.5" |
| Brand | Lippert |
