Lippert 7" x 1.25" Electric Brake, Hub & Bearing Kit – 5 on 4.5" Bolt Pattern – 2,200-lb Right-Hand Trailer Axle | Fits Dexter, AL-KO & More

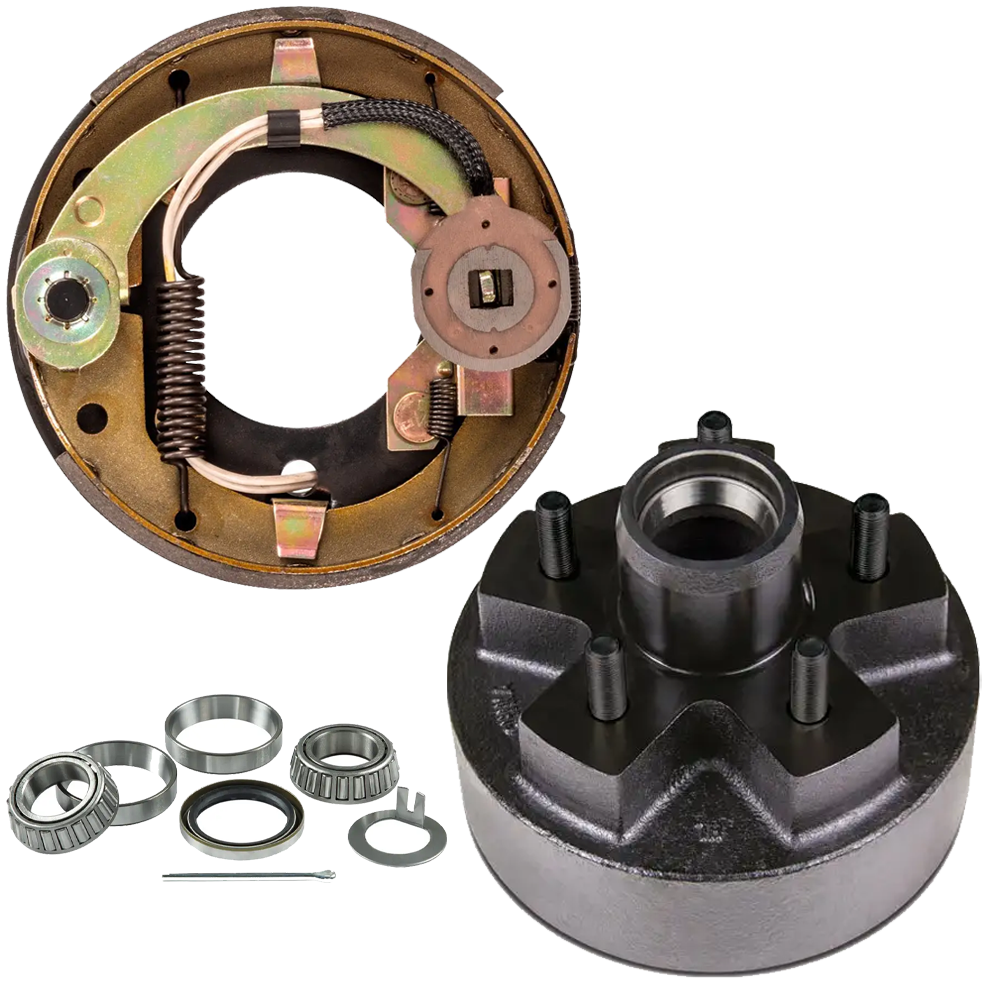

Model: LP270HBALippert 7" x 1.25" Electric Brake, Hub & Bearing Kit – Right-Hand 2,200-lb Axle
Service one 2,200-lb trailer axle with a single, convenient package. This genuine Lippert® bundle pairs a right-hand 7" x 1.25" electric brake assembly with a matching 5-on-4.5" hub-drum plus a complete bearing kit. It ships with all mounting hardware (nuts & washers, not pre-installed) so you can bolt on and go—just add your favorite high-temperature wheel-bearing grease.
Bundle Contents:

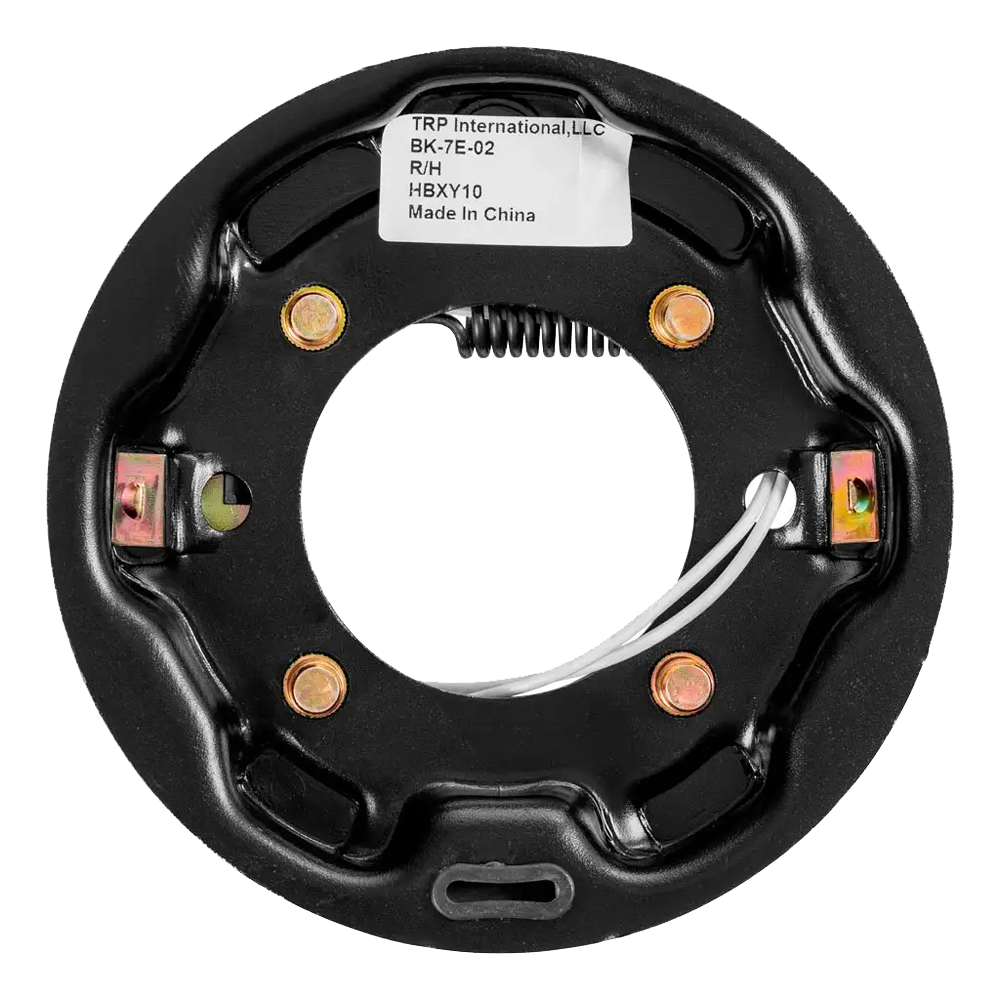

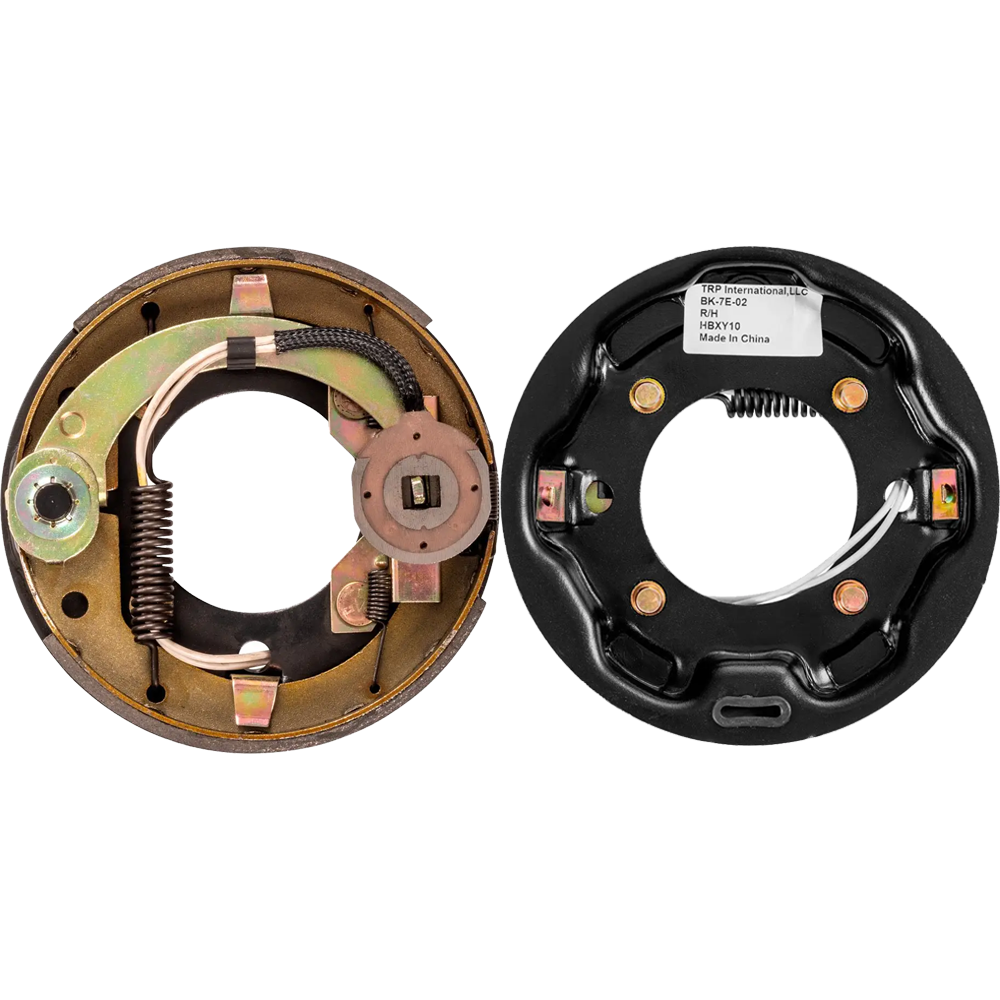

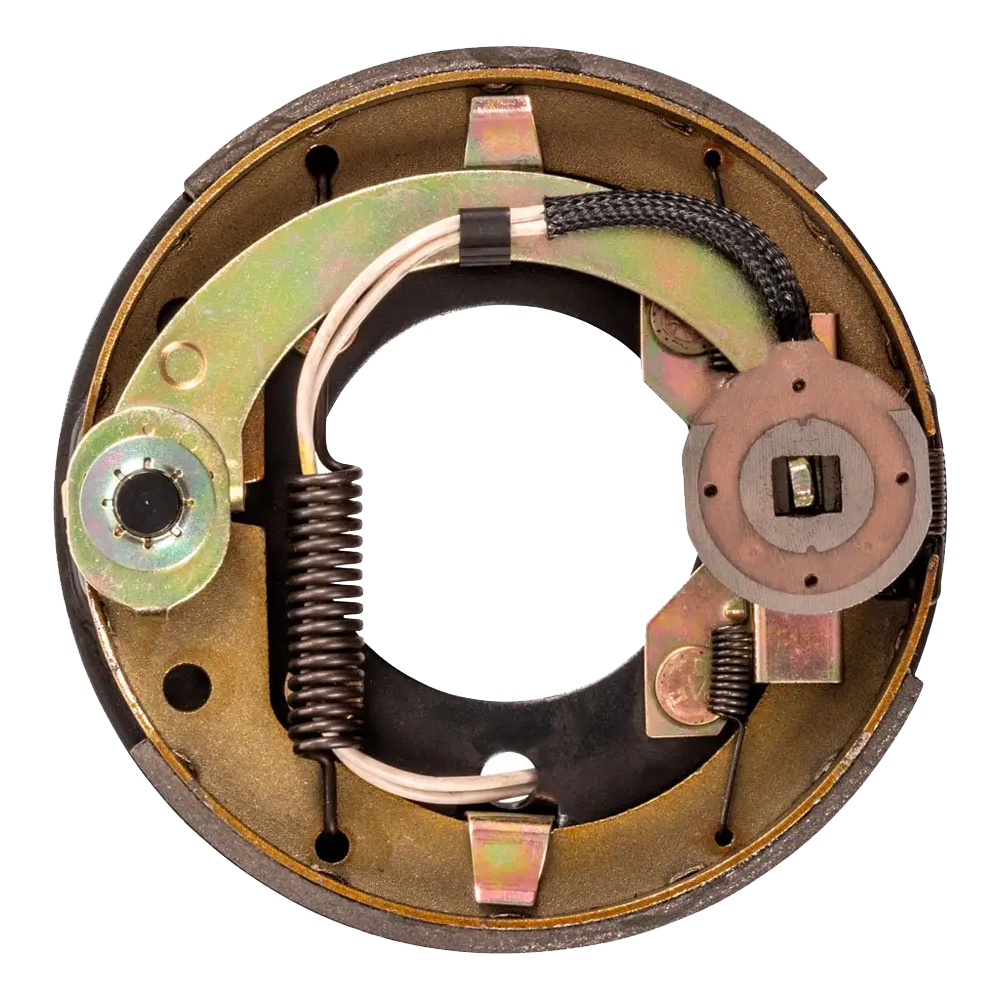

- QTY (1): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs – Right Side
- Genuine Lippert® replacement – quality you can trust
- Dexter compatible part numbers: K23-048-00 | 023-048-00
- Right-hand (curb-side) orientation
- Fits 10", 12" & 13" wheels
- Four-bolt mounting, manual adjustment
- 1-year limited warranty

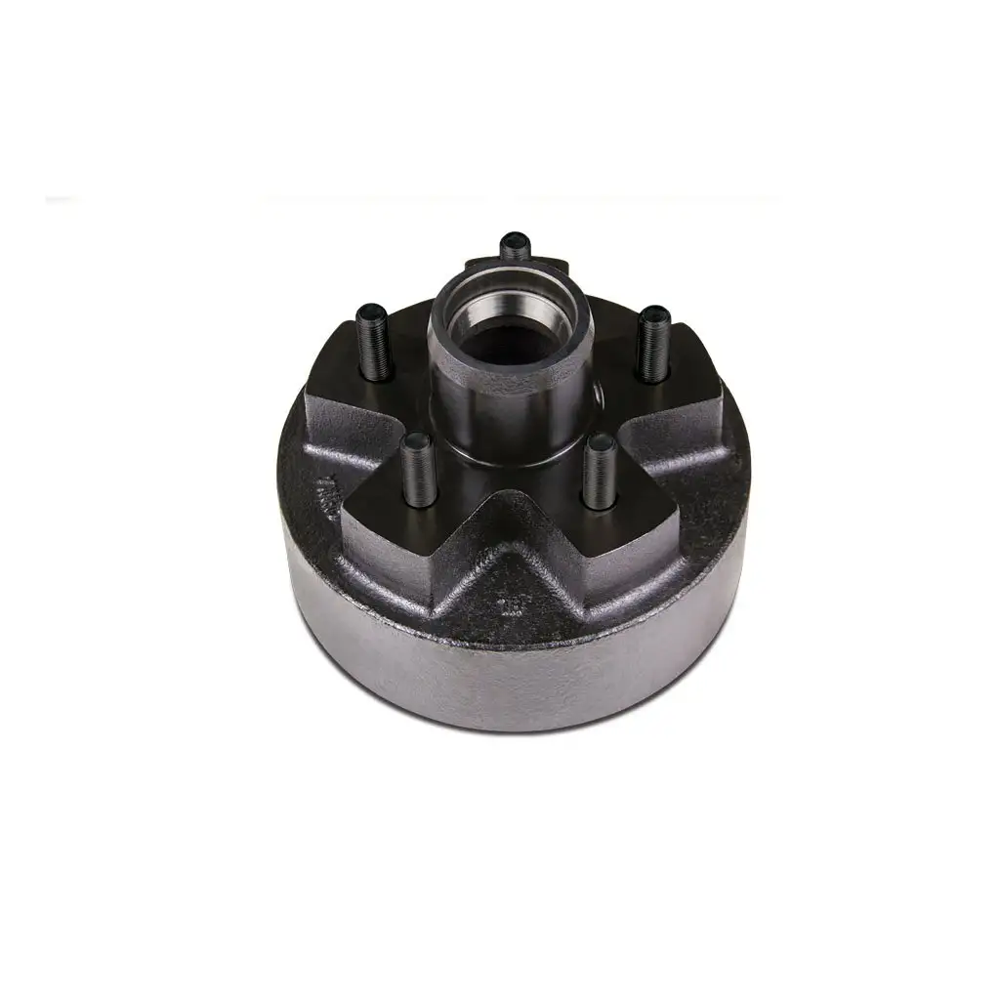

- QTY (1): 7" Brake Hub-Drum, 5 on 4.5"; 1/2" Stud – 2,200 lbs
- Solid-iron hub-drum rated for 2,200-lb axles
- 5-on-4.5" bolt circle, 1/2" wheel studs
- Accepts 8"–12" wheels
- One-year warranty

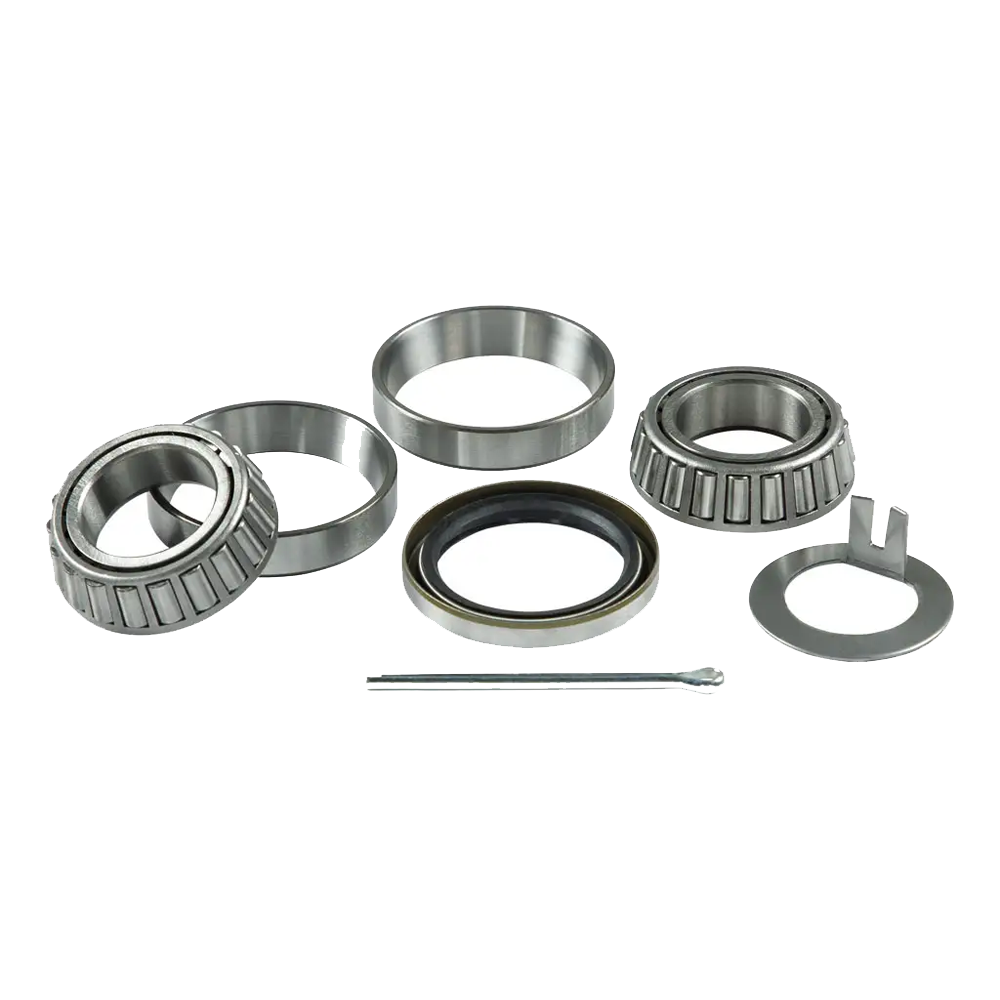

- QTY (1): Lippert Bearing Replacement Kit – 1.5" Seal ID
- (2) Inner bearing cones & races
- (2) Outer bearing cones & races
- (1) 1.5" double-lip grease seal
- (1) 1.75" cotter pin
- (1) 1.5" tang spindle washer
- One kit per hub is included
Recommendation: Verify bolt pattern and spindle dimensions before installation, use fresh high-temp wheel-bearing grease, and inspect brakes and bearings every 3,000 miles or annually—whichever comes first.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake, Hub & Bearing Kit |
| Axle Rating | 2,200 lbs |
| Brake Drum Dimensions | 7" diameter × 1.25" width |
| Brake Mounting Pattern | Four-bolt backing plate |
| Hub Bolt Pattern | 5 on 4.5" |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Right-Hand (Curbside) |
| Wheel Size Compatibility | Brake: 10"–13" | Drum: 8"–12" |
$138 99 $169.85 18% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$169.85 $138 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP270HBA
- Includes: Right Electric Brake Assembly, Brake Drum Hub, Bearing Kit
