Lippert Quad-Axle 3,500-lb Self-Adjusting Electric Brake & 10″ Hub-Drum Kit – 5-on-4.5″ Pattern – Dexter / Alko / Rockwell Compatible
Model: LP178HBALippert Quad-Axle 3,500-lb Self-Adjusting Electric Brake & 10″ Hub-Drum Kit – 5-on-4.5″ Pattern – Dexter / Alko / Rockwell Compatible
Service or upgrade every wheel on your quad-axle trailer with this complete Lippert bundle. The kit delivers four left-hand and four right-hand 10″ forward self-adjusting electric brake assemblies plus eight matching 10″ hub-drums with a 5-on-4.5″ bolt pattern—everything required for confident, consistent stopping on 3,500-lb axles, compatible with Dexter, Alko, and Rockwell setups.

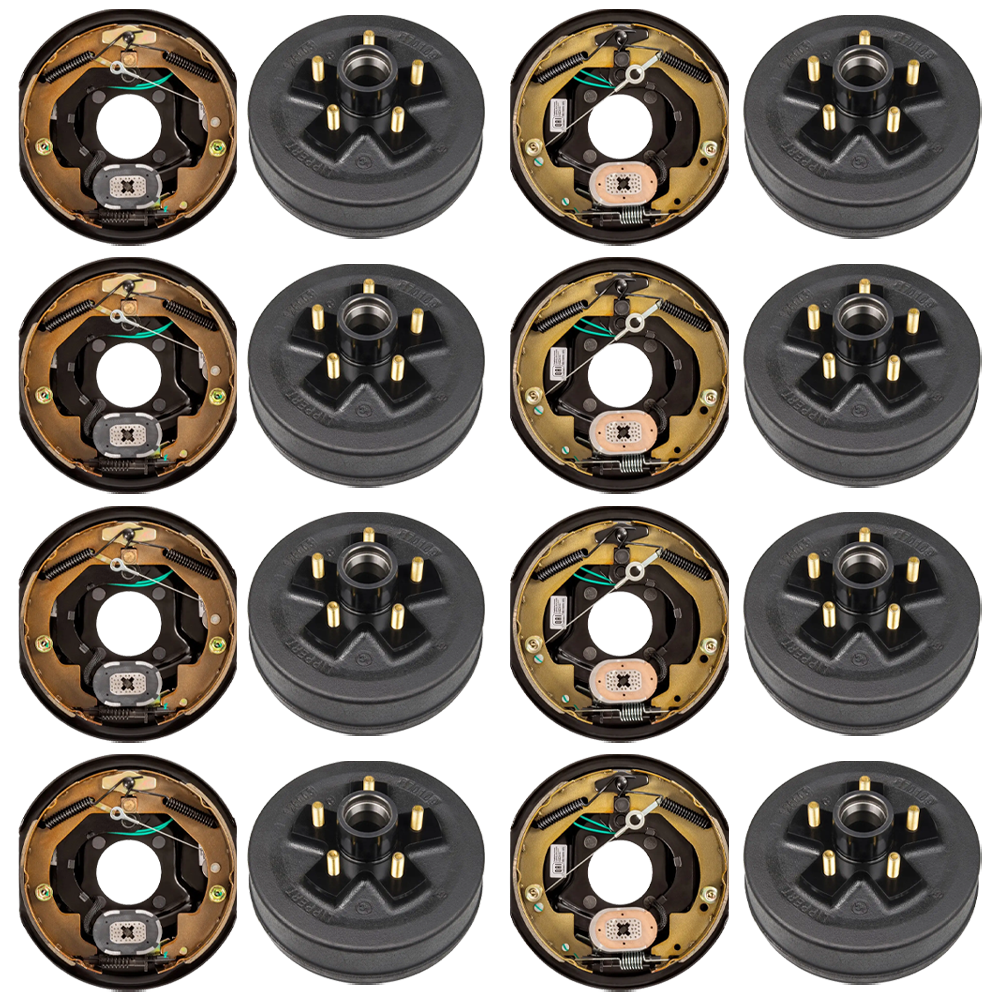

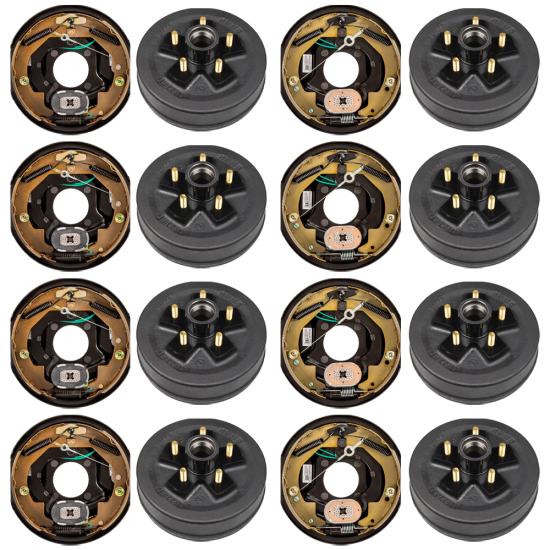

Bundle Contents:

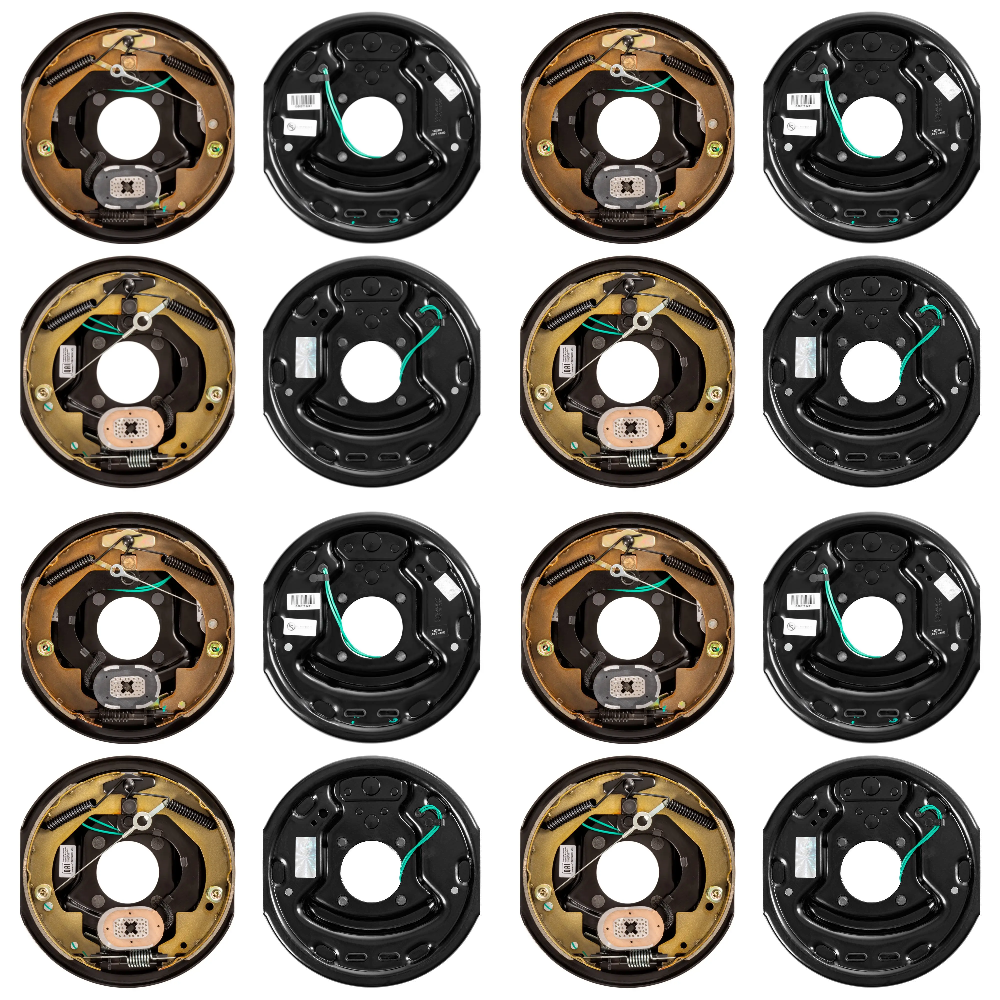

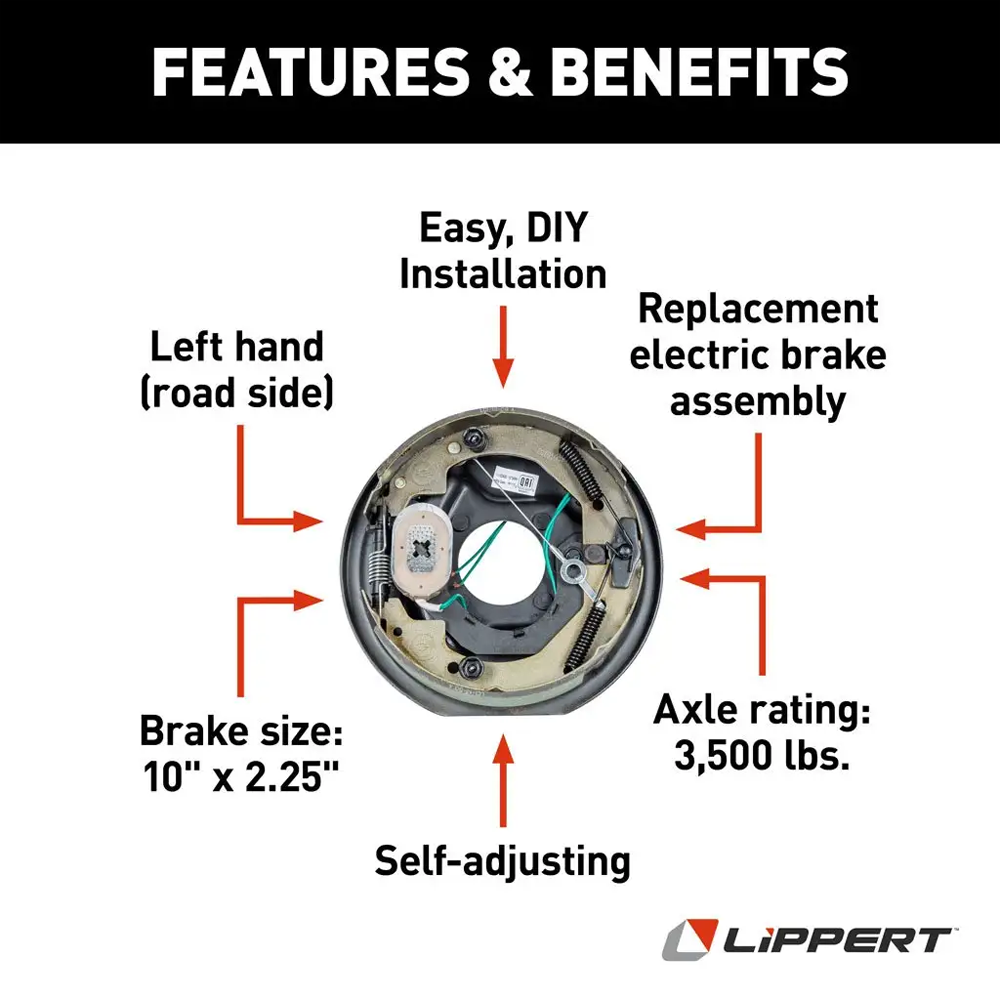

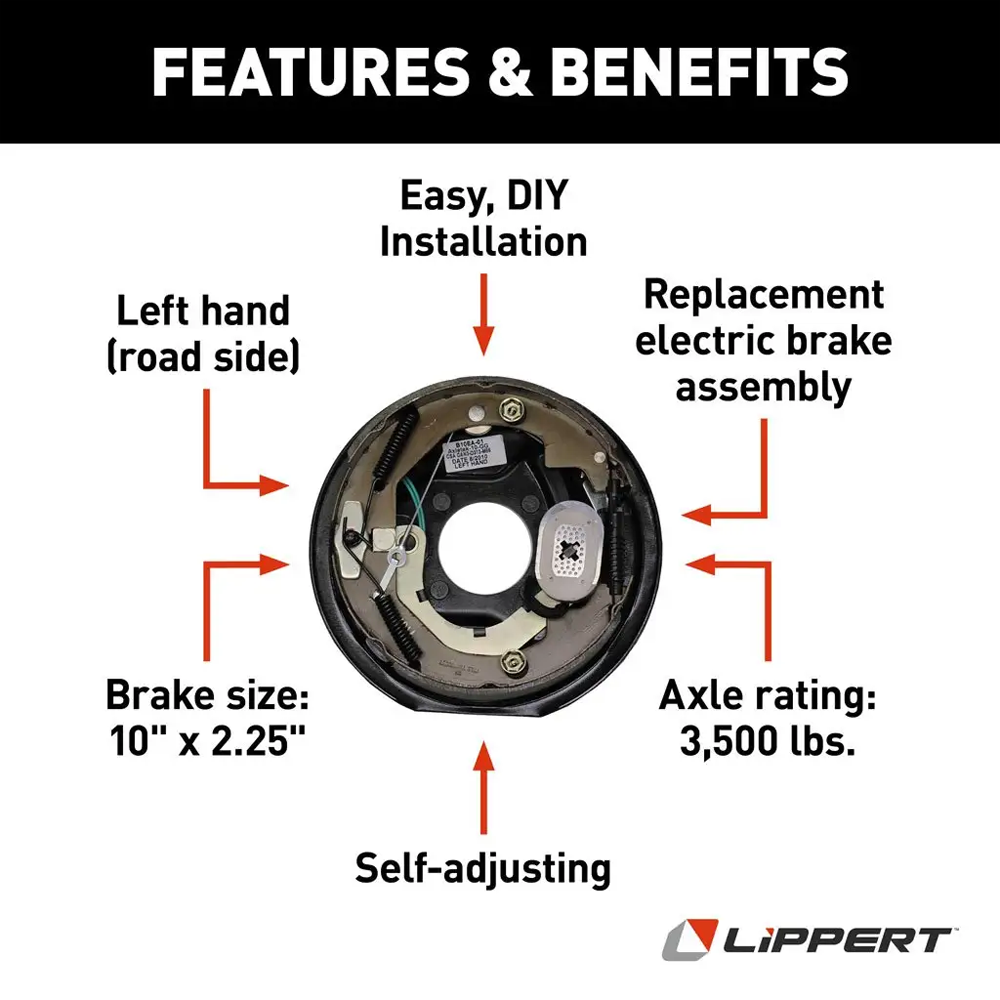

- QTY (4): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, 3.5K, Left
- Left-hand (road-side) mount, 4-bolt flange
- Maintenance-free forward self-adjusting mechanism
- Improves stopping distance up to 50 %
- Fits 3,500-lb axles, 10″ × 2.25″ drums
- Dexter compatible part numbers: K23-468-00 | 023-468-00
- Lippert OEM quality – 1-year warranty
- QTY (4): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, 3.5K, Right
- Right-hand (curb-side) mount, 4-bolt flange
- Forward self-adjusting—no manual tweaks
- 10″ × 2.25″ shoe size for 3,500-lb axles
- Dexter compatible part numbers: K23-469-00 | 023-469-00
- Reduces magnet & lining wear
- Lippert OEM quality – 1-year warranty

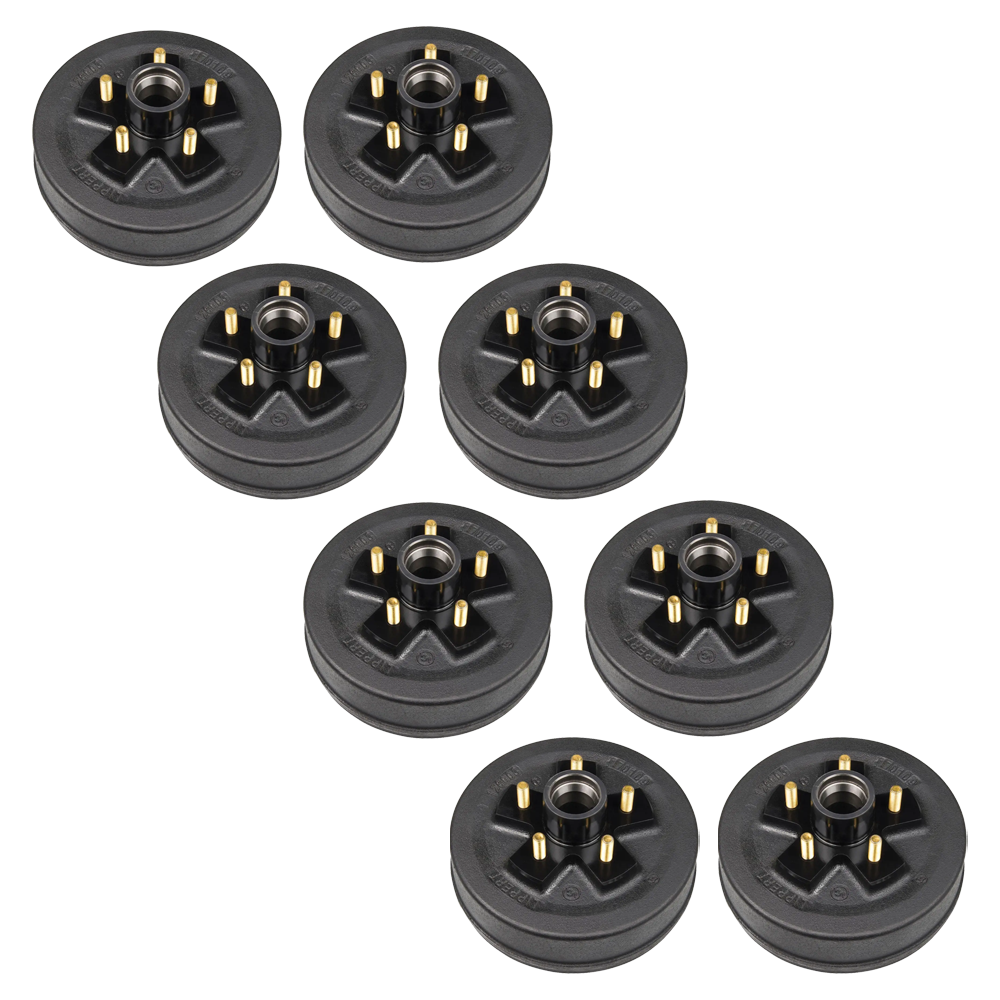

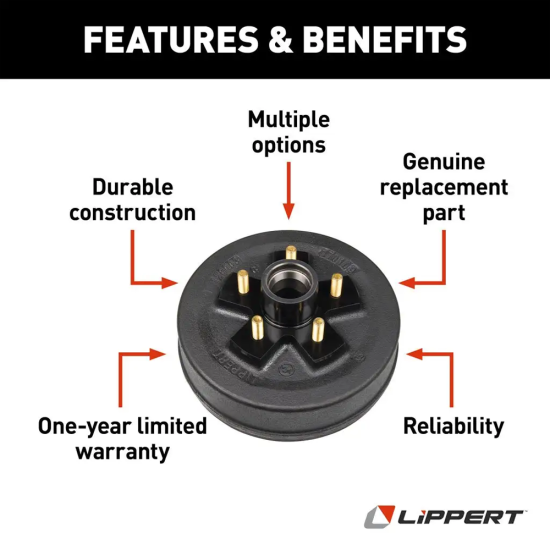

- QTY (8): Lippert 10″ Brake Drum Hub – 3,500-lb Axle, 5-on-4.5″, 1/2″ Studs
- Integrated cast-iron hub & 10″ drum
- Hub only—full bearing assembly not included
- 5-on-4.5″ bolt pattern, pre-installed 1/2″ studs
- Fits 13″–15″ wheels on 3,500-lb axles
- Heavy-duty construction for long service life
- Limited 1-year warranty
Please verify your existing axle and brake specifications before installation, and perform routine inspections to ensure peak performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Quad-Axle Brake & Hub Kit |
| Axle Rating | 3,500 lbs |
| Brake Drum Dimensions | 10″ × 2.25″ |
| Brake Mounting Pattern | 4-Bolt Brake Flange |
| Hub Bolt Pattern | 5-on-4.5″ |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2″ |
| Type of Adjustment | Forward Self-Adjusting Electric |
| Brake Location | Left (Road Side) & Right (Curb Side) |
| Wheel Size Compatibility | 13″–15″ Wheels |
$889 99 $1,335.20 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,335.20 $889 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP178HBA
- Includes: Left Forward Self-Adjusting Brake Assembly (x4), Right Forward Self-Adjusting Brake Assembly (x4), Brake Drum Hub (x8)
