Lippert Tandem Axle Electric 12" x 2" Trailer Brake Assemblies (Left & Right, 5,200–7,000 lbs) with Pre‑Greased 8 on 6½" Hub Assemblies (9/16" Studs) for 7,000 lb Axles
Model: LP33HBALippert Tandem Axle Brake & Hub Kit (12" x 2", up to 7,000 lbs)
Enhance your trailer’s performance with this complete Lippert bundle, designed for tandem axles rated up to 7,000 lbs. Featuring reliable electric brakes, four pre-greased hubs for easy installation, and high-quality components, this kit delivers the stopping power and durability you need on the road.

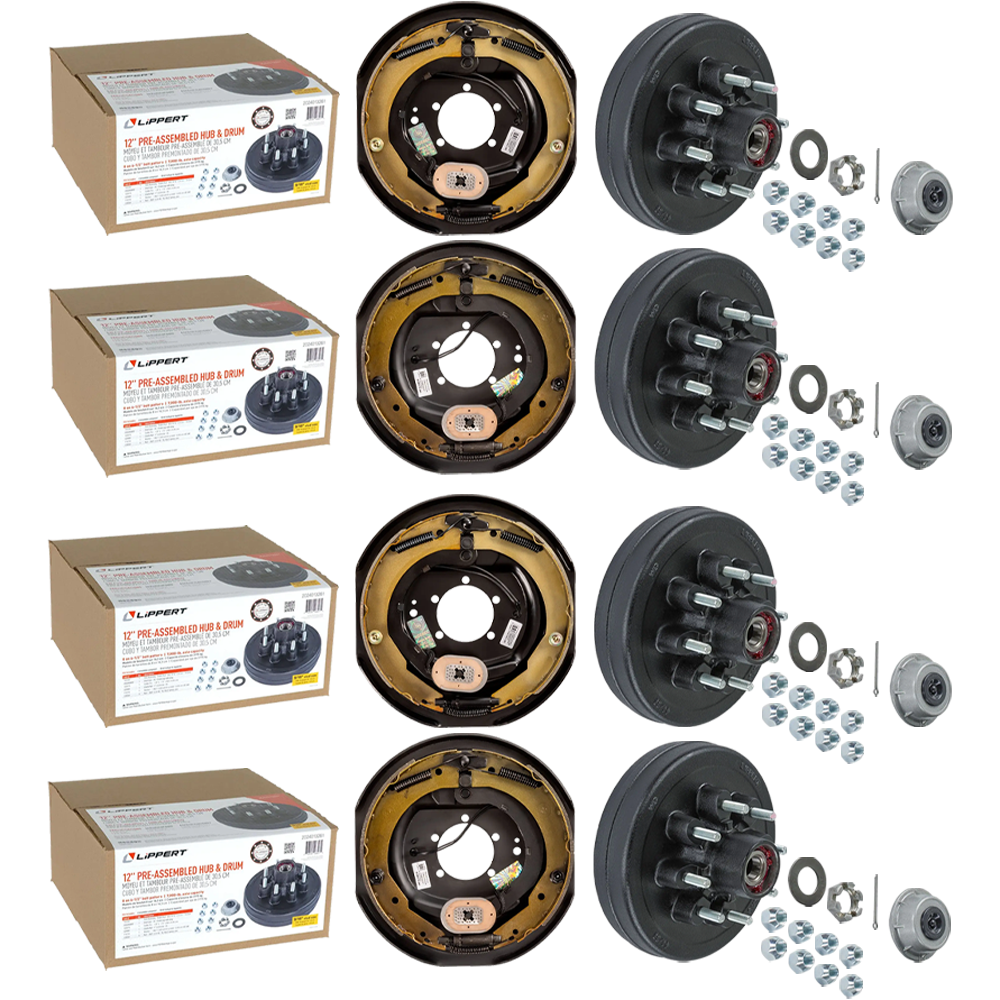

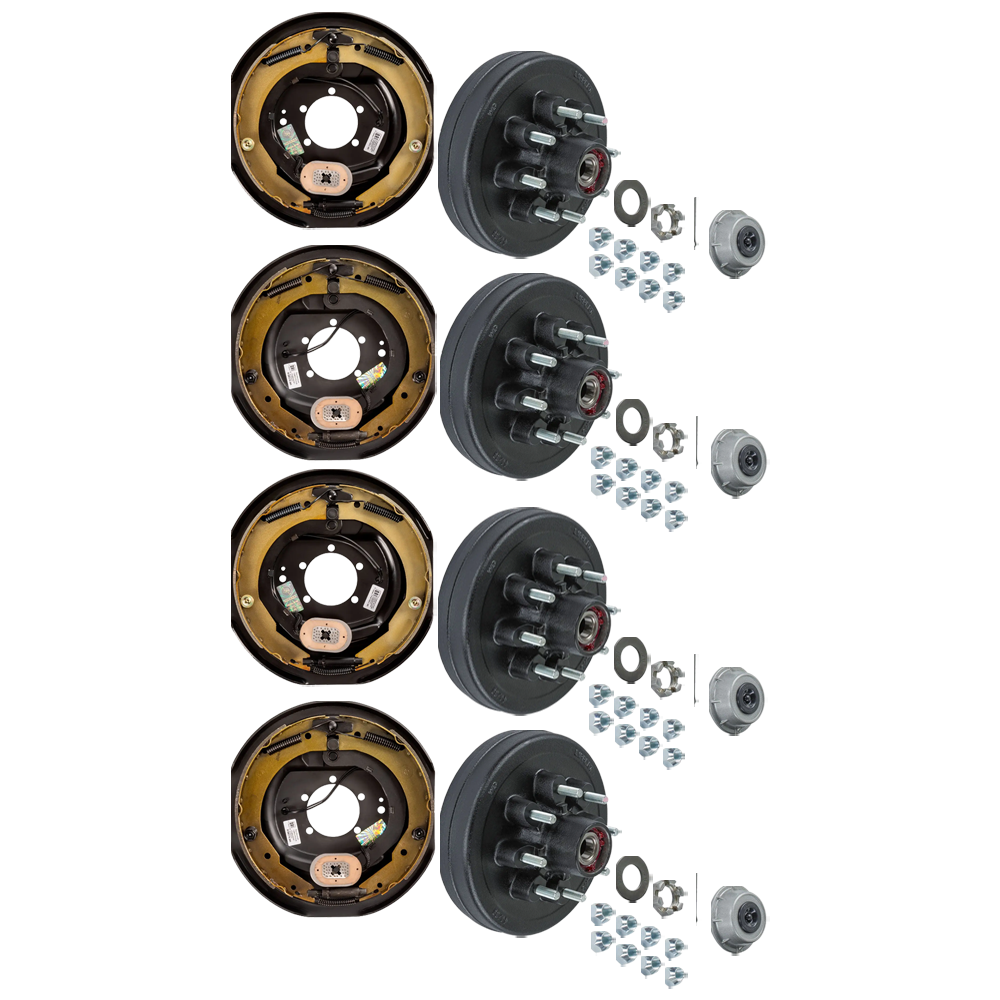

Bundle Contents:
- QTY (4): Complete Pre-Greased Hub Assembly with Lug Nuts – 7,000-lb. Axles, 9/16" Stud
- This bundle includes four identical kits, each containing:
- Complete pre-greased hub assembly with lug nuts
- (1) Brake hub assembly
- (1) Dust cap with plug
- (1) 1.75" cotter pin
- (1) 1" 6-slot castle spindle nut
- (1) Round spindle washer (1.06" ID, 2" OD)
- (8) 60° cone trailer lug nuts
- This bundle includes four identical kits, each containing:
- QTY (2): Lippert Electric Trailer Brake Assembly – 12" x 2" (Left Side)
- Manual-adjust electric brake
- Mounts on left-hand (roadside) position
- 5-bolt mounting pattern
- Rated for 5,200- to 7,000-lb. axles & 8,000-lb. hybrid axles
- Fits 15"–17.5" wheels
- Dexter Compatible Part Number: K23-180-00|023-180-00
- QTY (2): Lippert Electric Trailer Brake Assembly – 12" x 2" (Right Side)
- Manual-adjust electric brake
- Mounts on right-hand (curbside) position
- 5-bolt mounting pattern
- Rated for 5,200- to 7,000-lb. axles & 8,000-lb. hybrid axles
- Fits 15"–17.5" wheels
- Dexter Compatible Part Number: K23-181-00|023-181-00
Always verify your axle ratings and brake size before installation. Regular maintenance, proper torque, and routine inspections ensure optimal performance and a long service life.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Capacity | Up to 7,000 lbs |
| Hub & Drum Bolt Pattern | 8 on 6.5" |
| Wheel Stud Size | 9/16" |
| Hub Type | Pre-greased Hub with Integrated Drum |
| Brake Type | Electric (Manual Adjust) |
| Brake Size | 12" x 2" |
| Brake Mounting Pattern | 5-bolt |
| Wheel Size Compatibility | 16" – 17.5” |
| Side/Location | Left & Right Assemblies for Tandem Axles |
$784 99 $939.60 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$939.60 $784 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP33HBA
- Includes: Left Electric Trailer Brake Assembly (x2), Right Electric Trailer Brake Assembly (x2), Pre-Greased Hub Assembly (x4)
