Lippert Tandem Axle Suspension Kit, 3,500 lb – 1.75″ Axle Tube – 24″ 2,500 lb Leaf Springs – Standard Equalizer – Hangers & Hardware Included – Dexter, Alko, Rockwell, Quality Axles Compatible
Model: LP47ASKLippert Tandem Axle Suspension Kit – 3,500 lb Rating with Hangers & Hardware

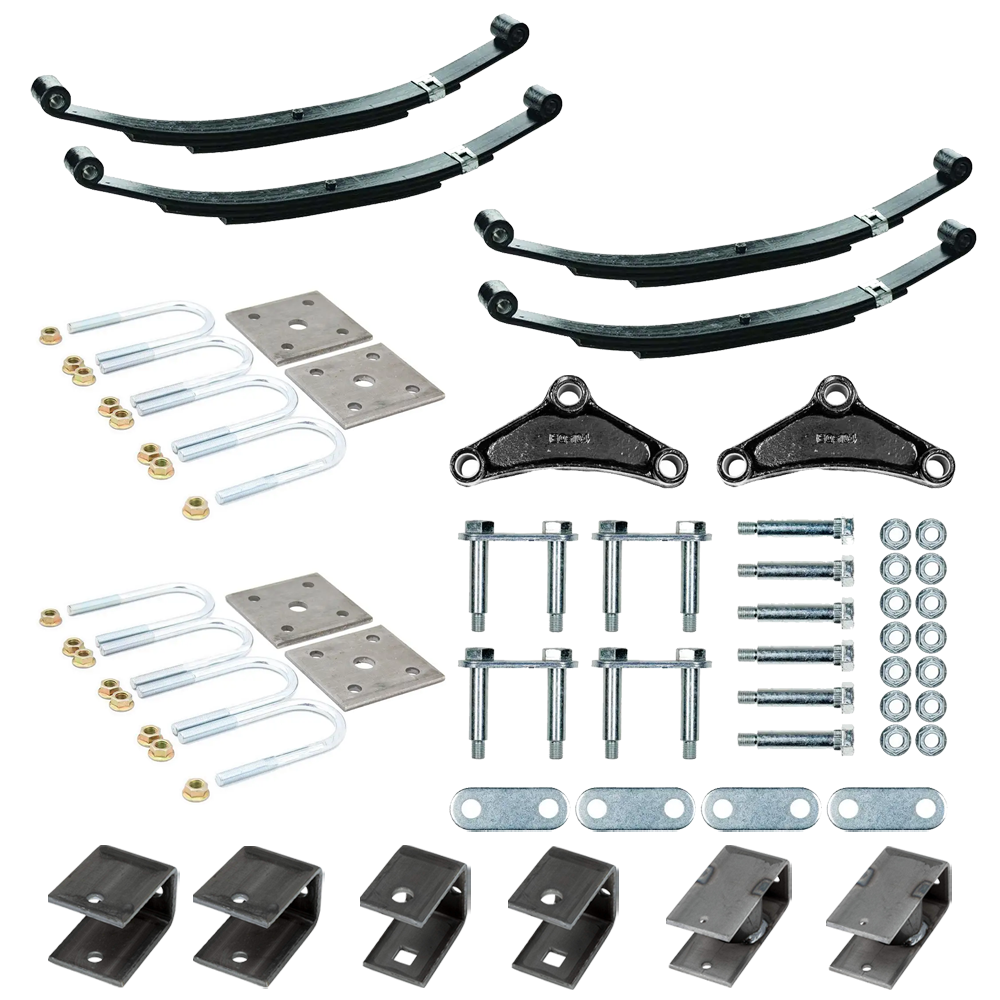

This complete Lippert tandem axle kit includes 24" leaf springs (2,500 lb capacity each), a standard EQ-104 equalizer assembly, front/center/rear hangers, and all necessary hardware for a smooth ride. Compatible with Dexter, Alko, Rockwell, and Quality Axles, it’s designed for 3,500 lb-rated axles using a 1.75″ tube diameter.
Bundle Contents:

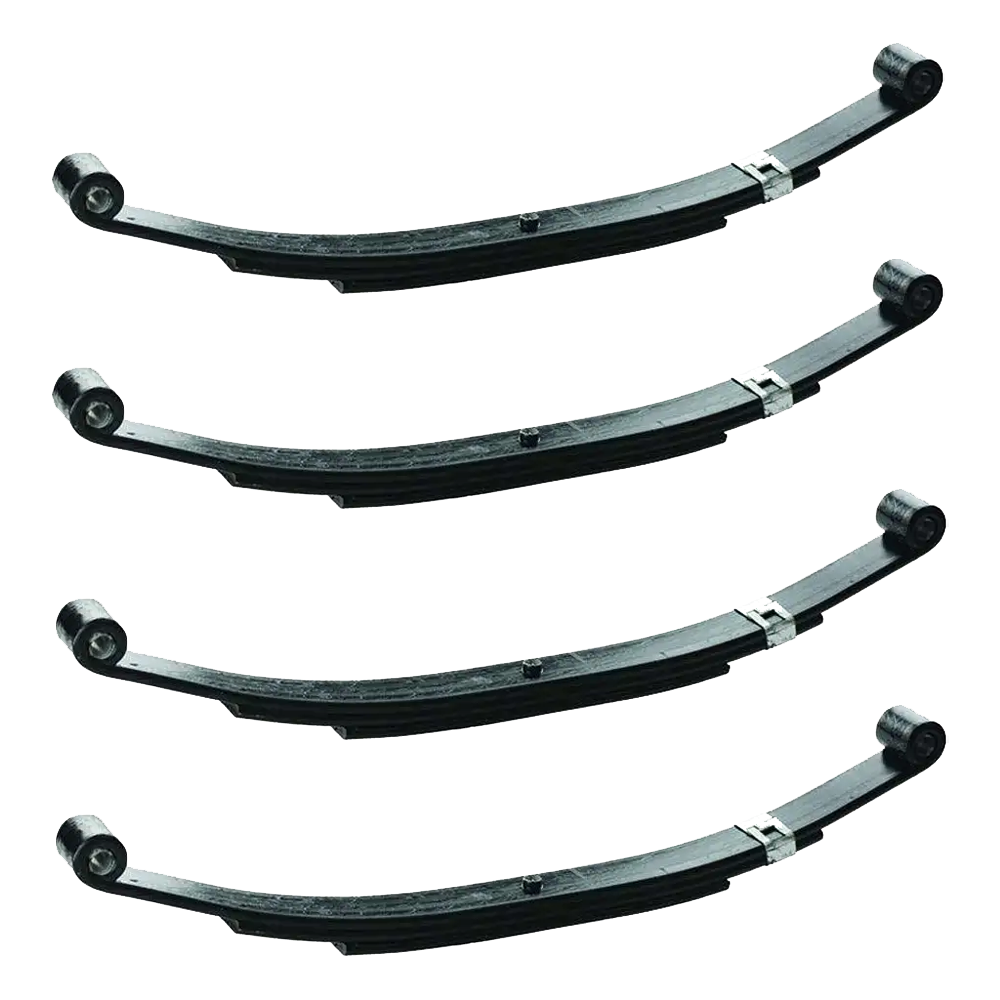

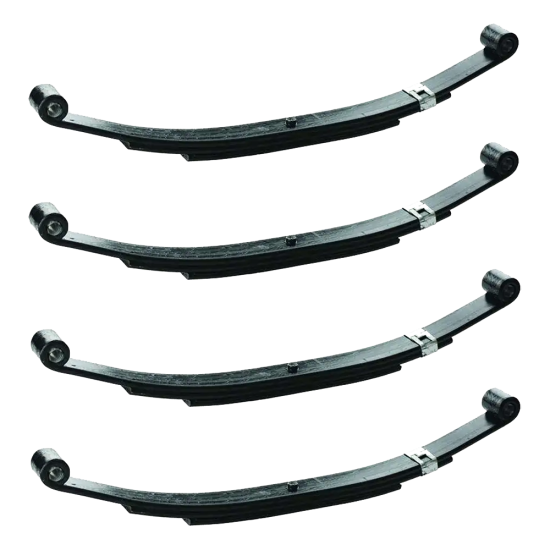

- QTY (4): 24" Leaf Spring (2,500 lb each)
- Replacement leaf spring for RV and trailer applications
- Loaded length: 24"
- 2,500 lb weight capacity per spring
- Installs just like your original equipment
- QTY (1): Lippert Trailer Axle AP Kit – Standard EQ-104 Equalizer
- Equalizer Reference: EQ-104
- Bolts, nuts, shackles, and hardware all included
- Built for 2K–7K double-eye tandem axles
- Ensures consistent load distribution across both axles
- QTY (2): Axle Mounting Kit – 1.75" Tube
- U-bolts and related hardware for secure axle mounting
- Designed for 1.75" axle tubes
- Exact-match component for easy installation
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Axle capacity: 2,200–8,000 lbs.
- Distance to hole: 3-9/16" on-center
- Hole size: 9/16"
- Weld-on design for secure mounting
- QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Axle capacity: 2,200–8,000 lbs.
- To hole: 3-5/16"
- Hole size: 7/8"
- Provides the pivot point for the equalizer
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Axle capacity: 2,200–8,000 lbs.
- To hole: 4"
- Hole size: 5/16"
- Ensures proper rear positioning of the axle
Always confirm that your replacement parts match your trailer’s original specs. Regular inspection and maintenance of suspension components help ensure safe towing and long-lasting performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem Axle Suspension & Hanger Kit |
| Axle Rating | 3,500 lb |
| Leaf Spring Length | 24" |
| Leaf Spring Capacity | 2,500 lb (each) |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Standard (EQ-104) |
| Axle Configuration | Tandem |
$390 99 $603.35 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$603.35 $390 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP47ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
