Lippert Tandem Axle Suspension Kit – 3,500 lb – 3″ Axle Tube – 25-1/4″ (3,000 lb) Leaf Springs – Standard Equalizer, Hangers & Hardware (Dexter, Alko, Rockwell, Quality Axles Compatible)
Model: LP102ASKLippert Tandem Axle Suspension Kit – 3,500 lb – 3″ Axle Tube – 25-1/4″ (3,000 lb) Leaf Springs – Standard Equalizer, Hangers & Hardware (Dexter, Alko, Rockwell, Quality Axles Compatible)
This complete Lippert tandem axle suspension kit is designed for 3,500 lb axles with a 3" axle tube. It includes 25-1/4" (3,000 lb capacity) leaf springs, a standard double-eye equalizer, front/center/rear hangers, plus all necessary hardware for a stable, dependable ride. It’s compatible with Dexter, Alko, Rockwell, and Quality Axles, making it a versatile choice for upgrading or replacing your trailer’s suspension.

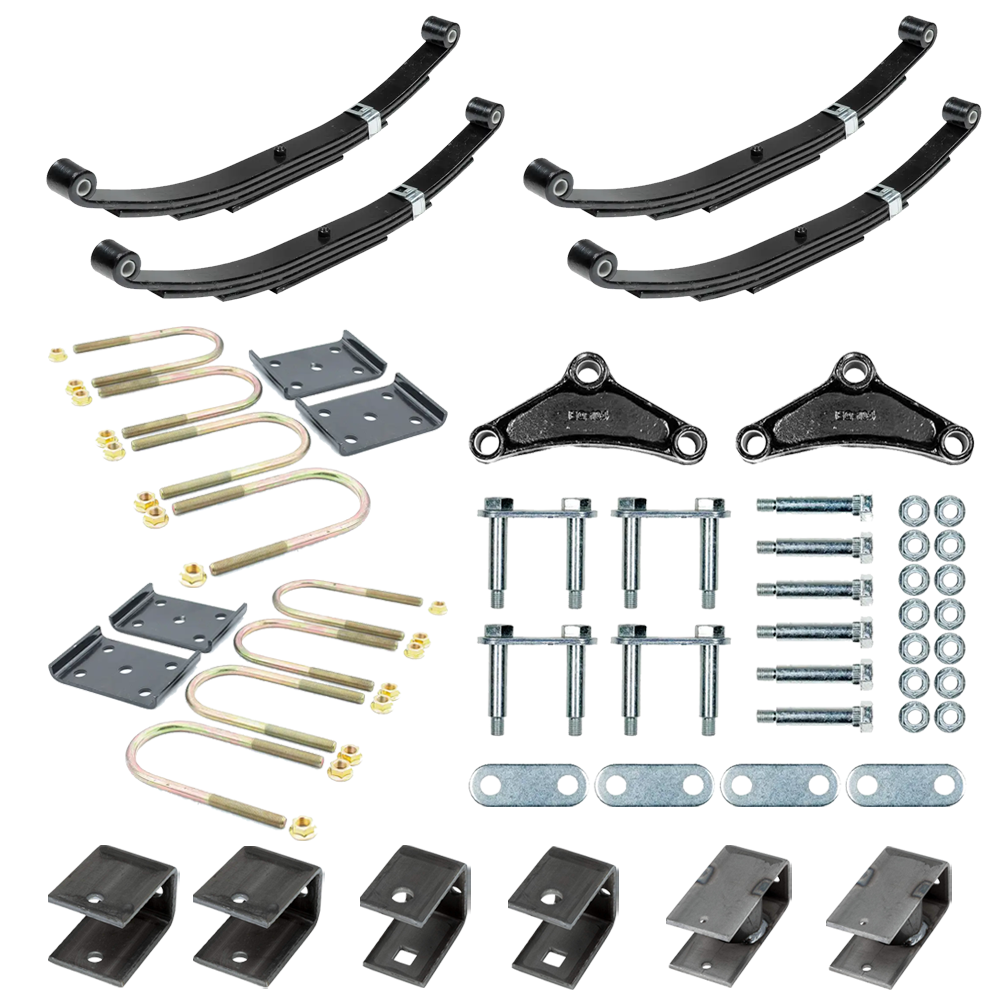

Bundle Contents:

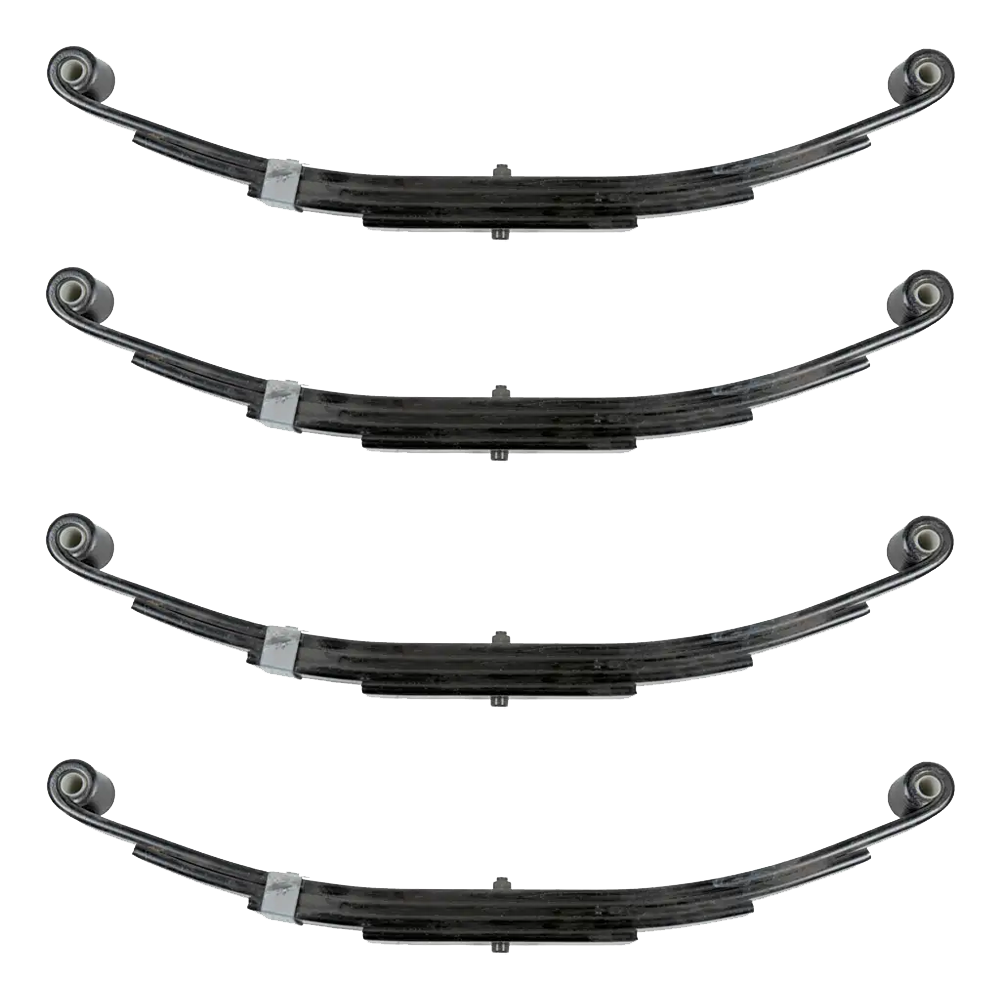

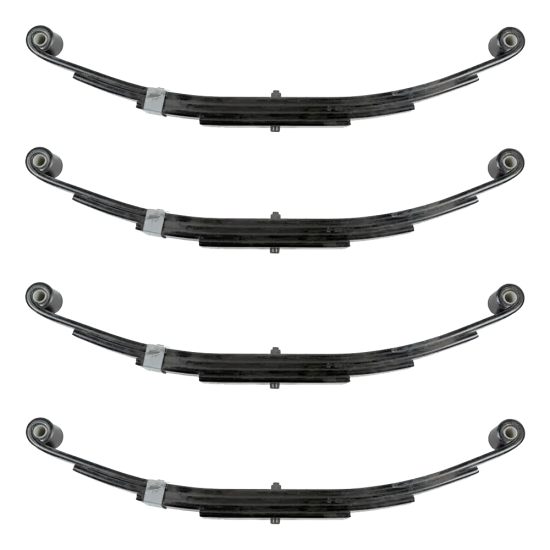

- QTY (4): Replacement Leaf Spring – 25-1/4" (3,000 lb Capacity)
- Double-eye leaf spring, 4 leaves
- 1-3/4" width, 25-1/4" unloaded eye-to-eye length
- 26" loaded length
- Arch height unloaded: 3-1/8"
- Arch height loaded: 1-3/4"
- Spring eye diameter: 9/16"
- QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles – Standard Equalizer
- Equalizer reference: EQ-104 (standard double-eye style)
- (2) Equalizer bolts (2.88" length)
- (2) Equalizer nuts (7/16"-20)
- (4) Shackle assemblies (2.25" length)
- (4) Shackle plates (2.25" length)
- (6) Shackle bolts (2.88" length)
- (14) Lock nuts (7/16"-20)
- QTY (2): Lippert Axle Mounting Kit – 3" Tube
- Replacement axle mounting kits for 3" tubes
- U-bolt design with nuts and plates included
- Installs like original equipment
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Axle capacity range: 2,200-8,000 lbs.
- Distance to hole: 3-9/16" on-center
- Hole size: 9/16"
- Welds to chassis for mounting axle and components
- QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Axle capacity range: 2,200-8,000 lbs.
- Distance to hole: 3-5/16"
- Hole size: 7/8"
- Welds to chassis for mounting axle and components
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Axle capacity range: 2,200-8,000 lbs.
- Distance to hole: 4"
- Hole size: 5/16"
- Welds to chassis for mounting axle and components
For best results, confirm compatibility with your original equipment. Regularly inspect and maintain all trailer suspension components to ensure peak performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem Suspension Kit |
| Axle Rating | 3,500 lb |
| Leaf Spring Capacity | 3,000 lb |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/4" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/8" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 3" |
| Equalizer Type | Standard Double-Eye |
| Axle Configuration | Tandem |
$577 99 $741.35 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$741.35 $577 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP102ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
