Lippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Tube, 26″ Leaf Springs (1,750 lb), Standard Equalizer – Includes Hangers & Hardware – Dexter, Alko, Rockwell, Quality Axles Compatible
Model: LP66ASKLippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Tube, 26″ Leaf Springs (1,750 lb), Standard Equalizer
Upgrade your tandem axle trailer with this complete Lippert suspension kit. Specifically designed for 3,500 lb axles on a 3″ tube and featuring 26″ leaf springs rated at 1,750 lbs, this bundle also includes standard equalizers, hangers, and all necessary mounting hardware. Compatible with Lippert, Dexter, Alko, Rockwell, and Quality Axles for a hassle-free installation.

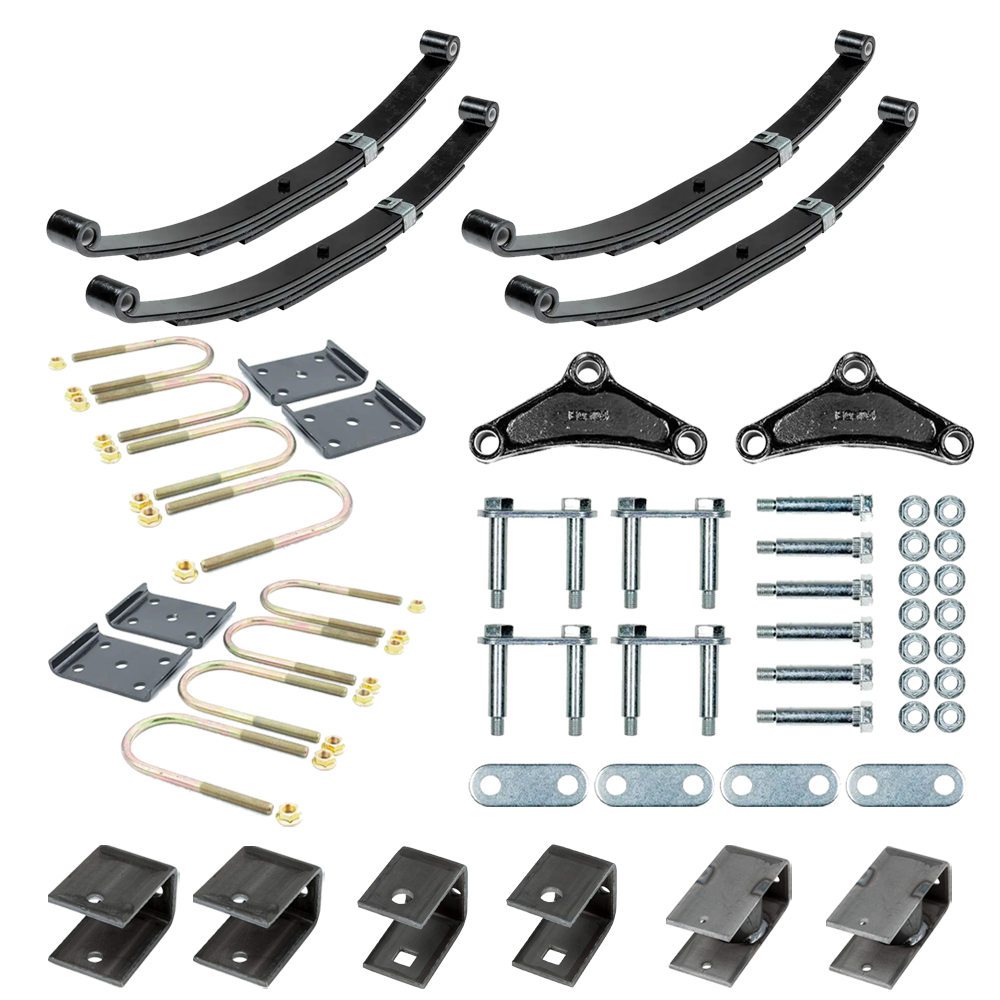

Bundle Contents:
- QTY (4): Lippert Replacement Leaf Spring for Trailer Suspension System – 26″, 1,750 lbs.
- Replacement leaf spring for RV/trailer suspension
- Length: 26″
- Weight capacity: 1,750 lbs.
- 4-leaf, double-eye design (1-3/4″ wide, 9/16″ eye diameter)
- QTY (1): Lippert Trailer Axle AP Kit for 2–7K Double-Eye Tandem Axles – Standard Equalizer
- Equalizer Reference: EQ-104
- Equalizer Bolt Qty: 2 (Length: 2.88″)
- Shackle Assembly Qty: 4 (Length: 2.25″)
- Shackle Plate Qty: 4 (Length: 2.25″)
- Shackle Bolt Qty: 6 (Length: 2.88″)
- Equalizer Nut Qty: 2 (Thread: 7/16″-20)
- Lock Nut Qty: 14 (Thread: 7/16″-20)
- QTY (2): Lippert Axle Mounting Kit – 3″ Tube
- Replacement axle mounting kit for RV/trailer
- U-bolt design for 3″ axle tubes
- Includes nuts and tie plates
- QTY (2): Front Trailer Axle Hanger – 4-5/16″ x 2-3/16″, 2,200–8,000 lb Axle Rating
- Welded to chassis for axle and component mounting
- Distance to hole (on-center): 3-9/16″
- Length: 4-5/16″, Width: 2-3/16″
- Hole size: 9/16″
- QTY (2): Center Trailer Axle Hanger – 4-1/2″ x 3-1/8″, 2,200–8,000 lb Axle Rating
- Welded to chassis for center support
- Distance to hole: 3-5/16″
- Length: 4-1/2″, Width: 3-1/8″
- Hole size: 7/8″
- QTY (2): Rear Trailer Axle Hanger – 6″ x 2-1/4″, 2,200–8,000 lb Axle Rating
- Welded to chassis for rear spring eye placement
- To hole: 4″
- Length: 6″, Width: 2-1/4″
- Hole size: 5/16″
Always confirm fitment with your trailer’s original equipment specifications and perform routine maintenance for safe, reliable towing.
| Specifications: | |
|---|---|
| Kit Type | Tandem Axle Suspension Kit |
| Axle Rating | 3,500 lbs. |
| Leaf Spring Length | 26″ |
| Leaf Spring Capacity | 1,750 lbs. |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4″ |
| Spring Eye Diameter | 9/16″ |
| Axle Tube Diameter | 3″ |
| Equalizer Type | Standard Equalizer (EQ-104) |
| Axle Configuration | Tandem |
$504 99 $641.35 21% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$641.35 $504 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP66ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
