Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 1.75″ Tube, 2,000 lb Leaf Springs (24″), Tall Equalizer, Includes Hangers & Hardware – Dexter Alko Rockwell Quality Axles Compatible
Model: LP44ASKLippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 1.75″ Tube – Tall Equalizer
Enhance your trailer’s ride with this complete Lippert tandem axle suspension kit, designed for 3,500 lb axles with a 1.75″ tube. Each of the four leaf springs is rated at 2,000 lbs, measures 24″ in length, and is compatible with Dexter, Alko, Rockwell, and Quality Axles. This kit includes the tall equalizer AP kit, plus all hangers and hardware needed for a smooth, worry-free installation.

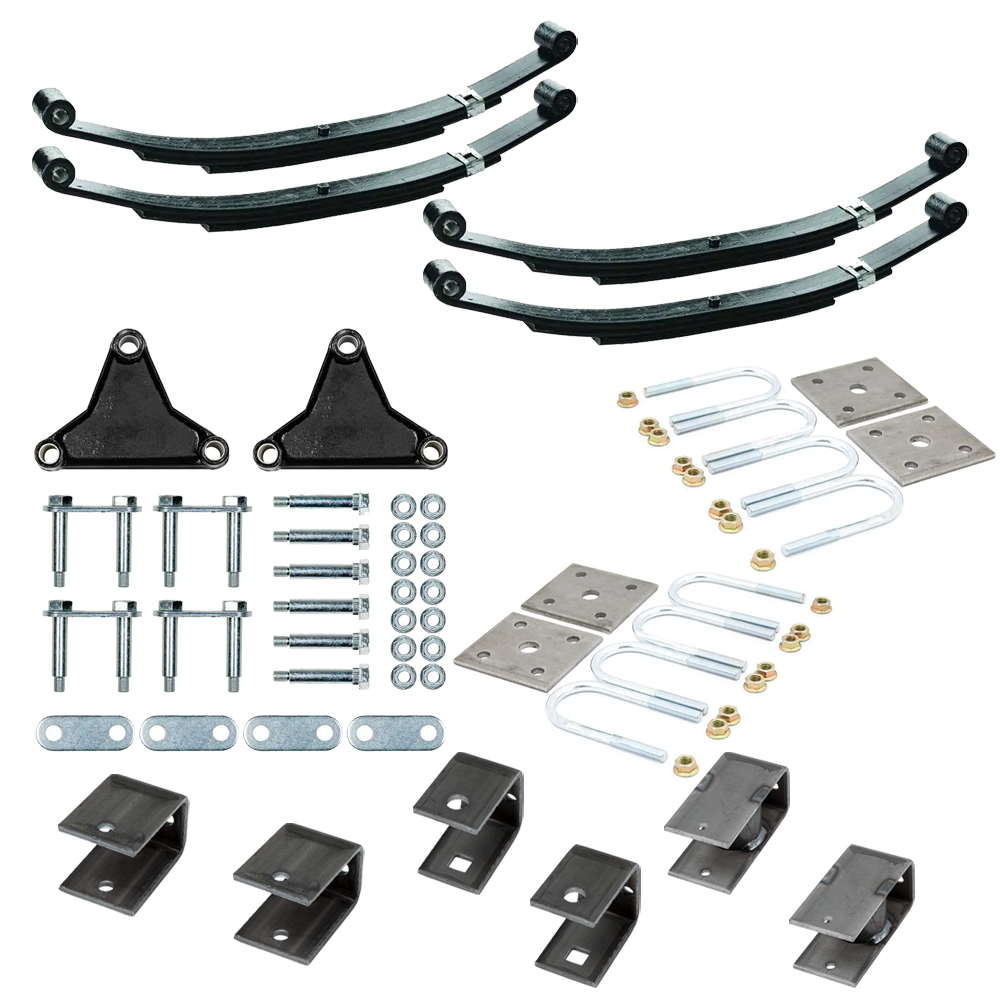

Bundle Contents:

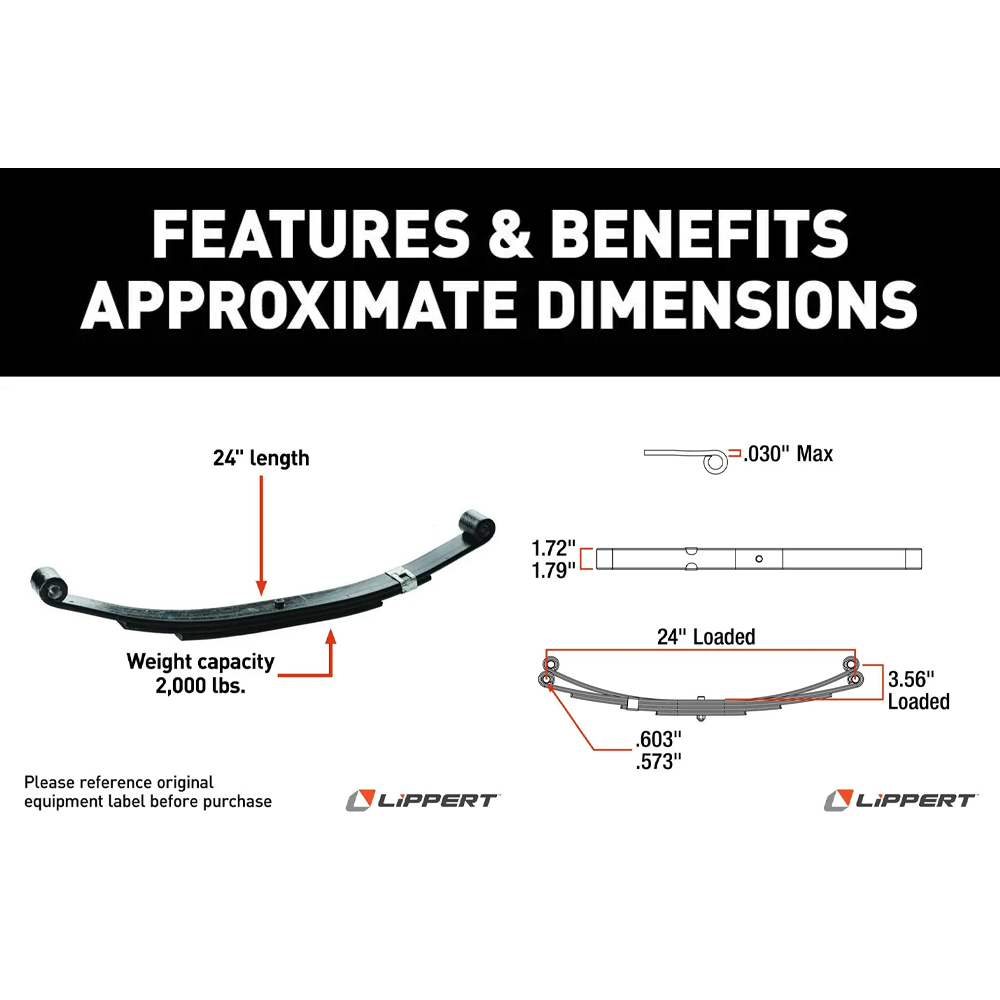

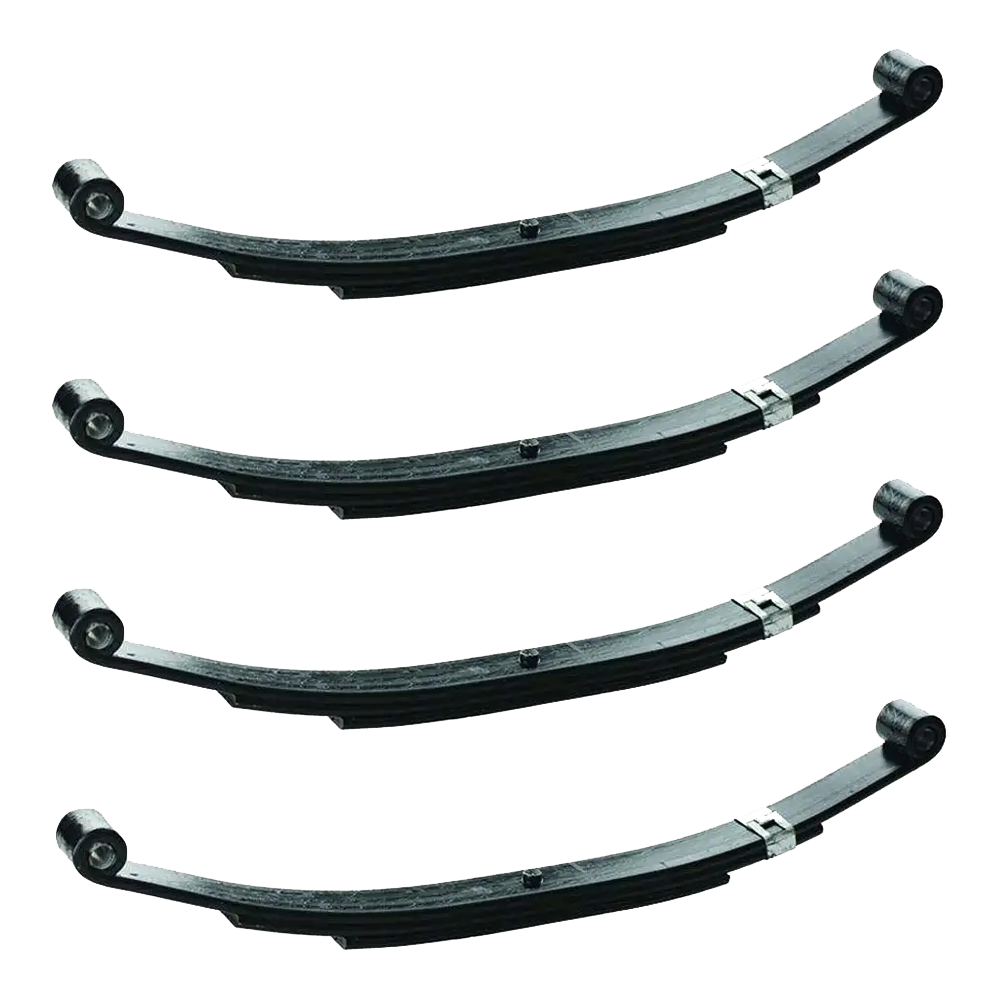

- QTY (4): Replacement Double-Eye Leaf Spring
- 24″ length
- 2,000 lb weight capacity per spring
- Designed for RV trailer suspension systems
- Check your original equipment label before purchasing
- QTY (1): Lippert Trailer Axle AP Kit (Tall Equalizer)
- Equalizer Reference: EQ-310
- Equalizer Bolt Qty: 3 (2.88″ length)
- Shackle Assembly Qty: 4 (2.25″ length)
- Shackle Plate Qty: 4 (2.25″ length)
- Shackle Bolt Qty: 6 (2.88″ length)
- Includes lock nuts for secure installation
- Exact-match replacement for 2-7K double-eye tandem axles
- QTY (2): Axle Mounting Kit – 1.75″ Tube
- Replacement U-bolt kit for securing axle to springs
- 1.75″ diameter sizing (also available in 2.375″, 3″)
- U-bolt design for reliable mounting
- QTY (2): Front Trailer Axle Hanger
- Axle capacity: 2,200–8,000 lbs
- Distance to hole: 3‑9/16″ on-center
- Length: 4‑5/16″, Width: 2‑3/16″, Hole size: 9/16″
- QTY (2): Center Trailer Axle Hanger
- Axle capacity: 2,200–8,000 lbs
- Distance to hole: 3‑5/16″
- Length: 4‑1/2″, Width: 3‑1/8″, Hole size: 7/8″
- QTY (2): Rear Trailer Axle Hanger
- Axle capacity: 2,200–8,000 lbs
- Distance to hole: 4″
- Length: 6″, Width: 2‑1/4″, Hole size: 5/16″
Always confirm compatibility with your original axle and suspension setup. Regular inspections and maintenance are recommended for safe towing and optimal performance.
| Specifications: | |
|---|---|
| Kit Type | Tandem Axle Suspension Kit |
| Axle Rating | 3,500 lb |
| Leaf Spring Length | 24″ |
| Leaf Spring Capacity | 2,000 lb each |
| Axle Tube Diameter | 1.75″ |
| Equalizer Type | Tall Equalizer |
| Axle Configuration | Tandem |
$340 99 $493.35 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$493.35 $340 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP44ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
