Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 20-1/2" Unloaded (1,400 lb) Leaf Springs, Long Equalizer, Hangers & Hardware (Dexter, Alko, Rockwell)
Model: LP137ASKLippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 20-1/2" Unloaded (1,400 lb) Leaf Springs with Long Equalizer, Hangers & Hardware
Upgrade your trailer or RV with a complete Lippert Triple Axle Suspension Kit that fits 1.75" axle tubes and 35" spacing. Featuring 20-1/2" unloaded (1,400 lb) leaf springs, long equalizers, and heavy-duty hangers and hardware, this kit is compatible with Dexter, Alko, Rockwell, and Quality Axles. It’s an all-in-one solution to keep your rig riding smoothly and safely on the road.

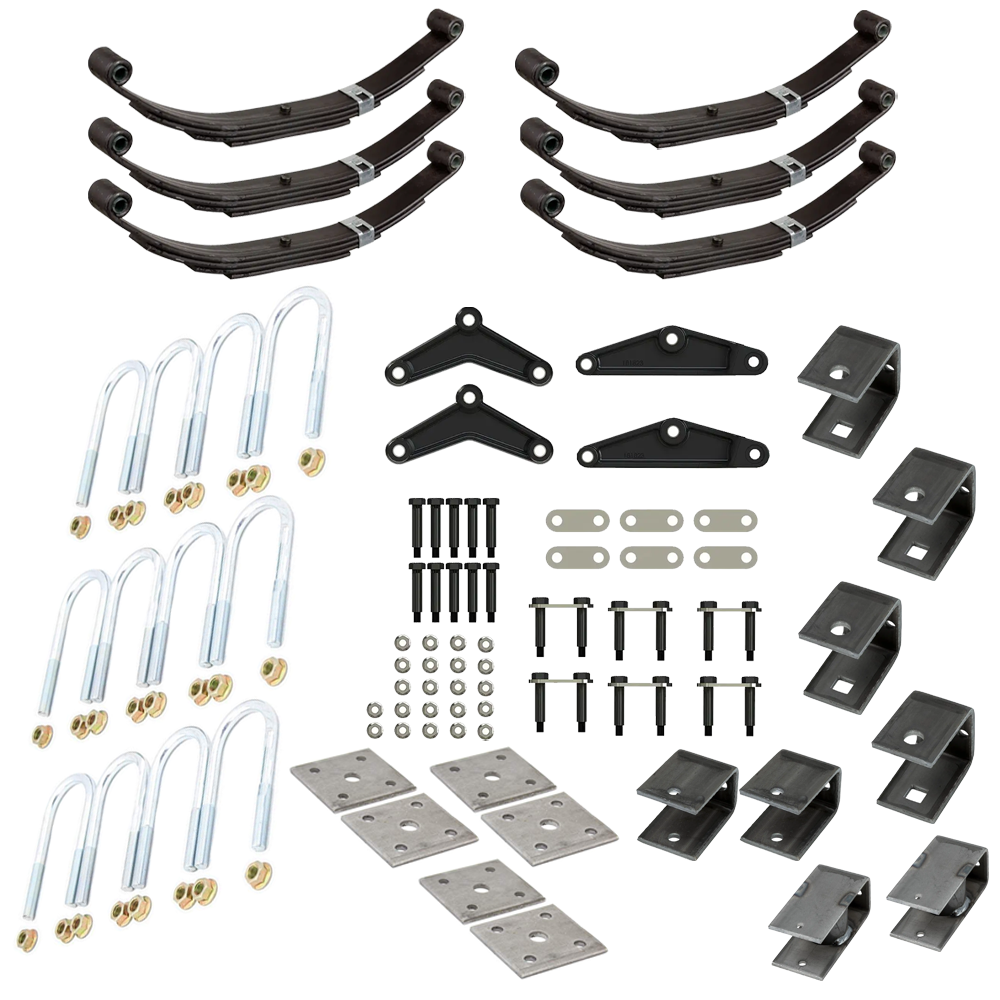

Bundle Contents:

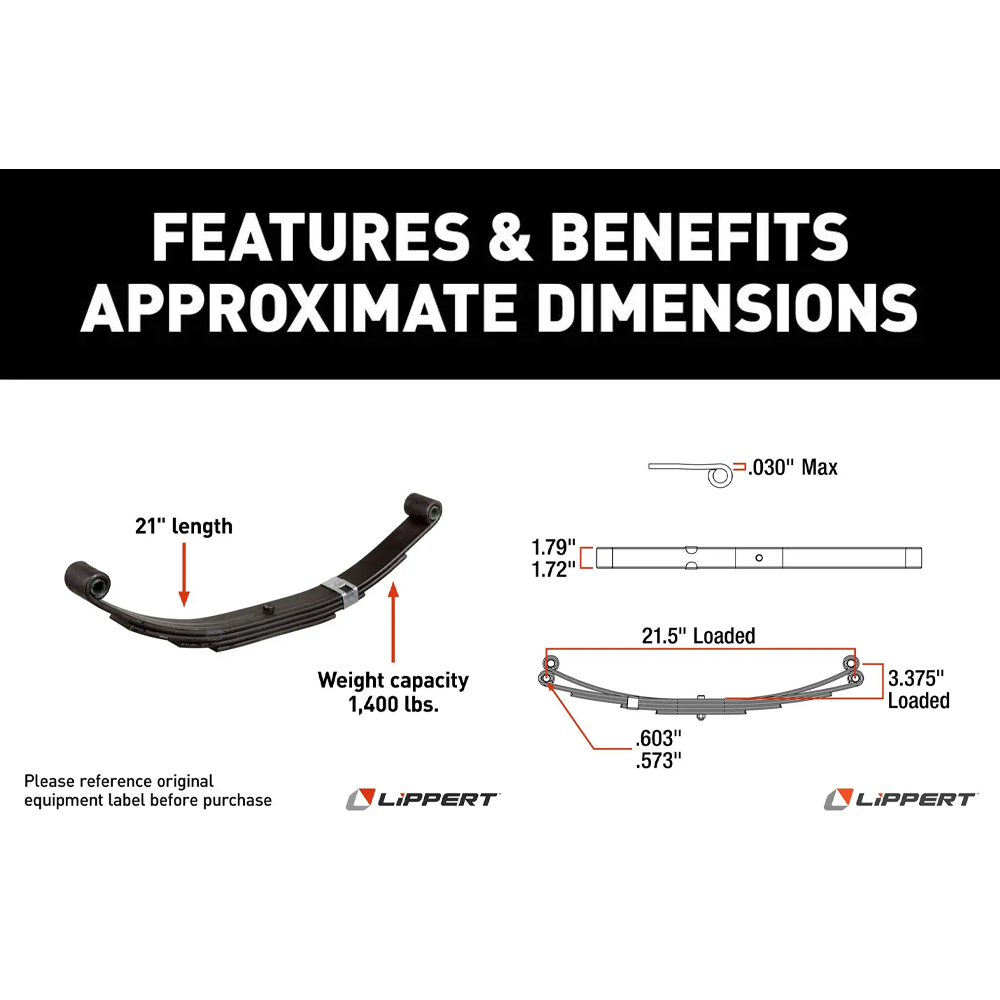

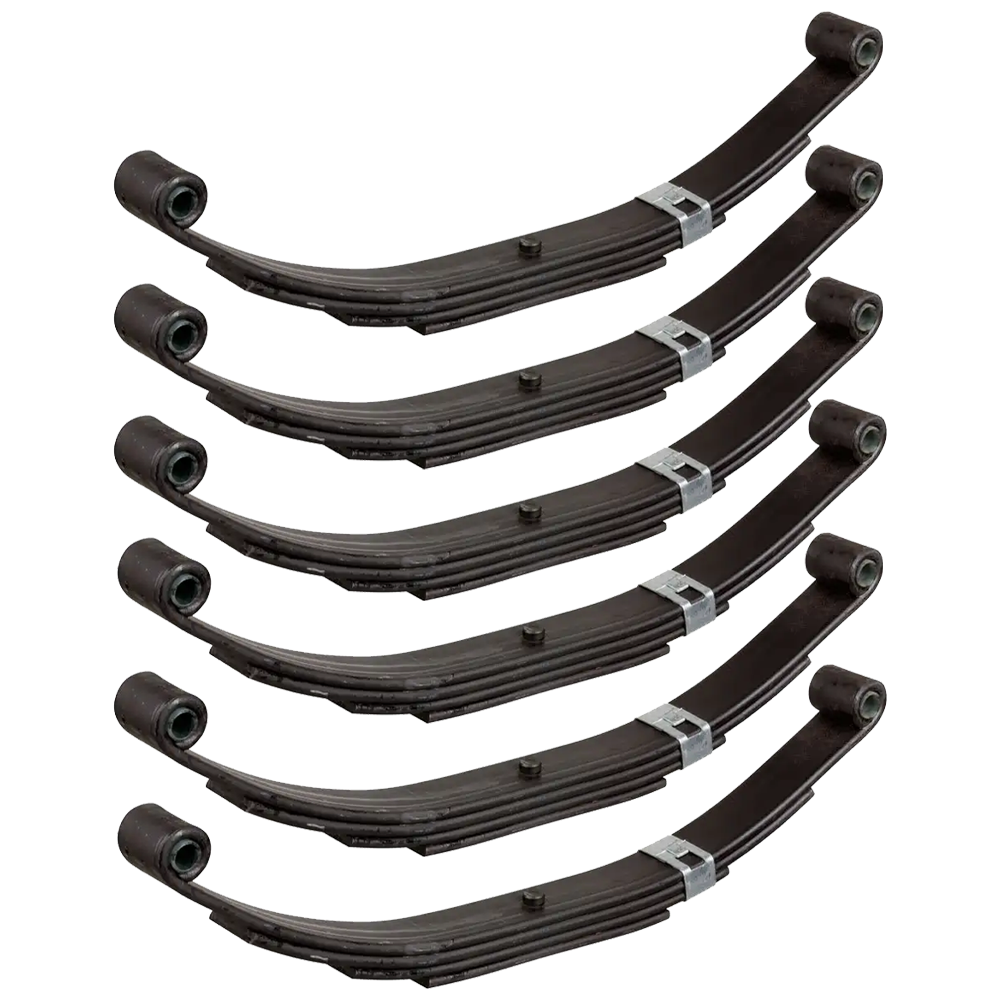

- QTY (6): Replacement Leaf Spring (1,400 lb capacity, 20-1/2" unloaded length)
- 1,400 lb capacity per spring
- 4 leaves, 1-3/4" spring width
- Unloaded eye-to-eye length: 20-1/2"
- Loaded length: 21"
- Arch height unloaded: 3-1/2", loaded: 2-3/8"
- Spring eye diameter: 9/16"
- QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
- Includes shackle links, mounting hardware, and equalizers
- Long equalizer design for smoother towing
- Installs like your original equipment
- QTY (3): Axle Mounting Kit – 1.75" Tube
- U-bolt design sized for 1.75" axle tubes
- Direct replacement for worn or damaged mounting kits
- Installs just like your original hardware
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Axle capacity: 2,200 – 8,000 lbs.
- Length: 4-5/16"
- Width: 2-3/16"
- Distance to hole: 3-9/16" on-center
- Hole size: 9/16"
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Axle capacity: 2,200 – 8,000 lbs.
- Length: 4-1/2"
- Width: 3-1/8"
- Distance to hole: 3-5/16"
- Hole size: 7/8"
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Axle capacity: 2,200 – 8,000 lbs.
- Length: 6"
- Width: 2-1/4"
- Distance to hole: 4"
- Hole size: 5/16"
Always confirm your trailer’s original equipment before installation, and conduct periodic inspections to ensure safe and optimal performance on every trip.
| Specifications: | |
|---|---|
| Kit Type | Triple Axle Suspension Kit |
| Axle Rating | 2,200 – 8,000 lbs. |
| Leaf Spring Capacity | 1,400 lbs. Each |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 20-1/2" |
| Loaded Eye-to-Eye Length | 21" |
| Arch Height Unloaded | 3-1/2" |
| Arch Height Loaded | 2-3/8" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Long Equalizer |
| Axle Configuration | Triple Axle |
