Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 1,000 lb Leaf Springs (20-3/8" Unloaded), Standard Equalizer, Hangers & Hardware – Fits Dexter, Alko, Rockwell
Model: LP127ASKLippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 1,000 lb Leaf Springs (20-3/8" Unloaded), Standard Equalizer
Upgrade or replace your triple axle trailer’s suspension system with this comprehensive Lippert kit. Featuring six 1,000 lb leaf springs (each with 20-3/8" unloaded length), front/center/rear hangers, hardware, and a triple axle AP kit with a standard equalizer, this bundle delivers reliable performance for trailers compatible with Dexter, Alko, Rockwell, and other quality axles. Designed for a 2.375" axle tube and 33" axle spacing, installation is straightforward, helping you get back on the road with confidence.

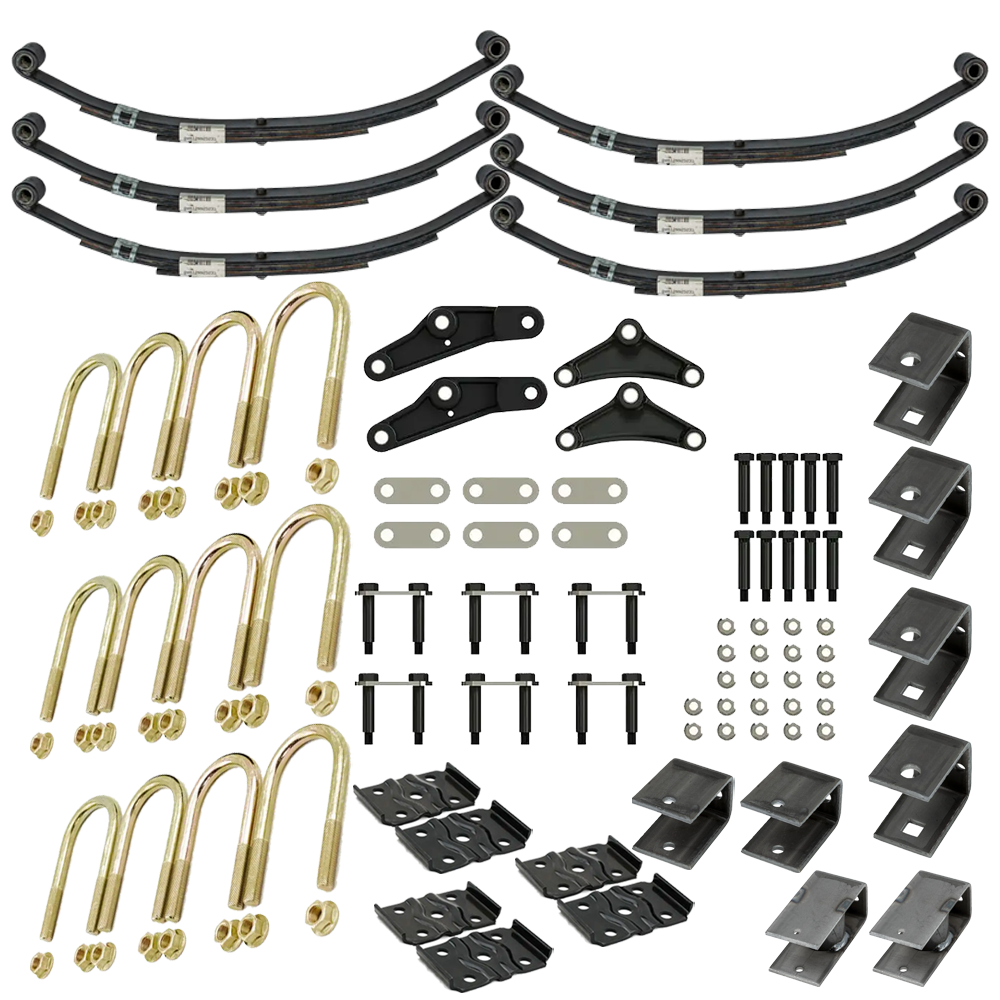

Bundle Contents:
- QTY (6): 1,000 lb Leaf Springs
- 3 leaves total
- 1-3/4" spring width
- 20-3/8" unloaded eye-to-eye length
- 21" loaded length
- Arch height unloaded: 2-7/8"; loaded: 2-1/8"
- Spring eye diameter: 9/16"

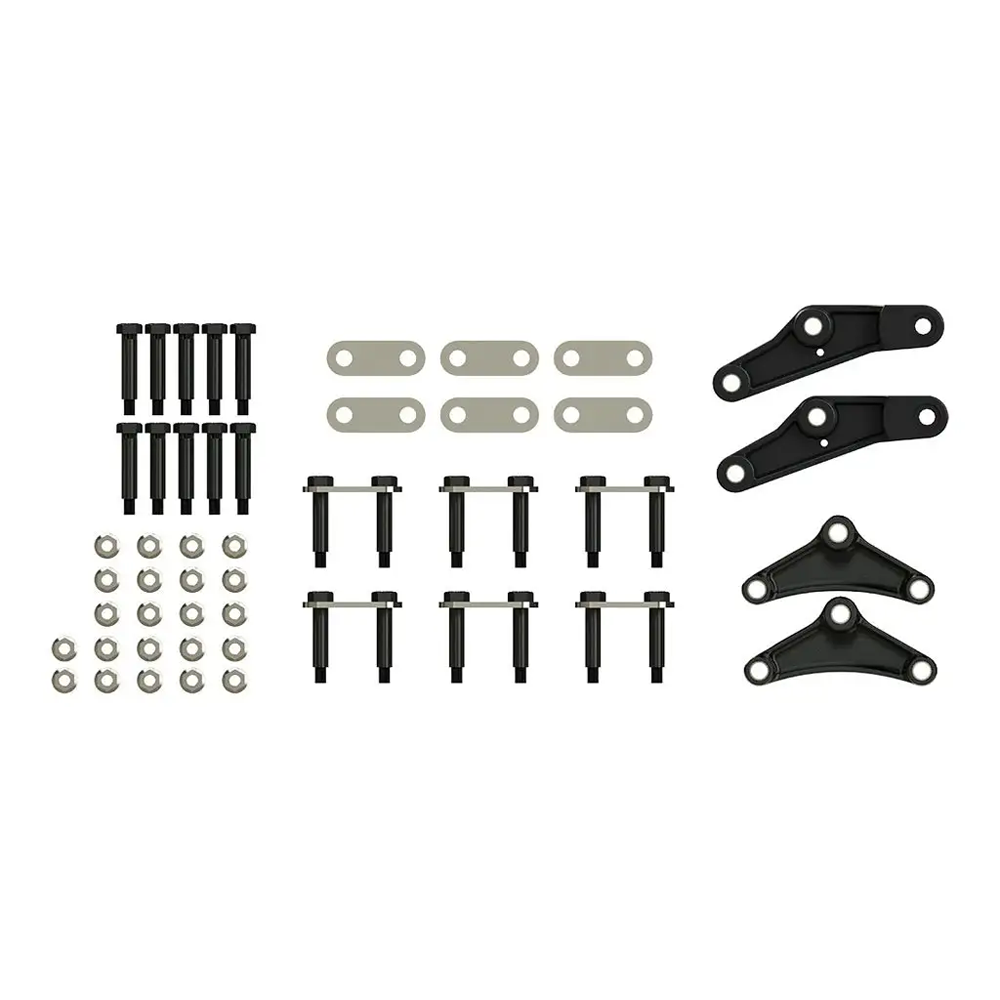

- QTY (1): Triple Axle AP Kit with Standard Equalizer & Bolts
- Includes shackle links, hardware, and standard equalizers
- Standard equalizer design for smoother towing
- Installs like original equipment
- QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
- For 2.375" diameter axle tubes
- U-bolt design for secure mounting
- Reference your original hardware for fit
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Welded to chassis for axle mounting
- Axle capacity: 2,200 - 8,000 lbs.
- Length: 4-5/16"; width: 2-3/16"
- Hole size: 9/16"
- Distance to hole: 3-9/16" on-center
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Axle capacity: 2,200 - 8,000 lbs.
- Length: 4-1/2"; width: 3-1/8"
- Hole size: 7/8"
- Distance to hole: 3-5/16" on-center
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Axle capacity: 2,200 - 8,000 lbs.
- Length: 6"; width: 2-1/4"
- Hole size: 5/16"
- Distance to hole: 4" on-center
Always verify these components match your trailer’s original equipment. Regular inspection and proper installation help ensure safe towing for the long haul.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | 2,200 – 8,000 lbs. |
| Leaf Spring Capacity | 1,000 lbs. |
| Number of Leaves per Spring | 3 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 20-3/8" |
| Loaded Eye-to-Eye Length | 21" |
| Arch Height Unloaded | 2-7/8" |
| Arch Height Loaded | 2-1/8" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 2.375" |
| Equalizer Type | Standard |
| Axle Configuration | Triple |
$420 82 $493.15 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$493.15 $420 82
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP127ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
