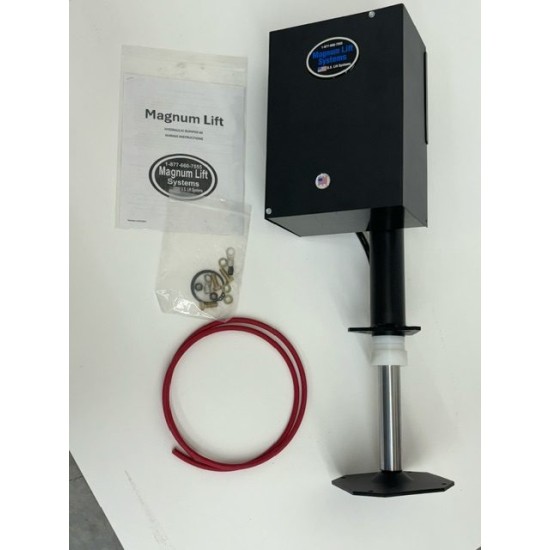

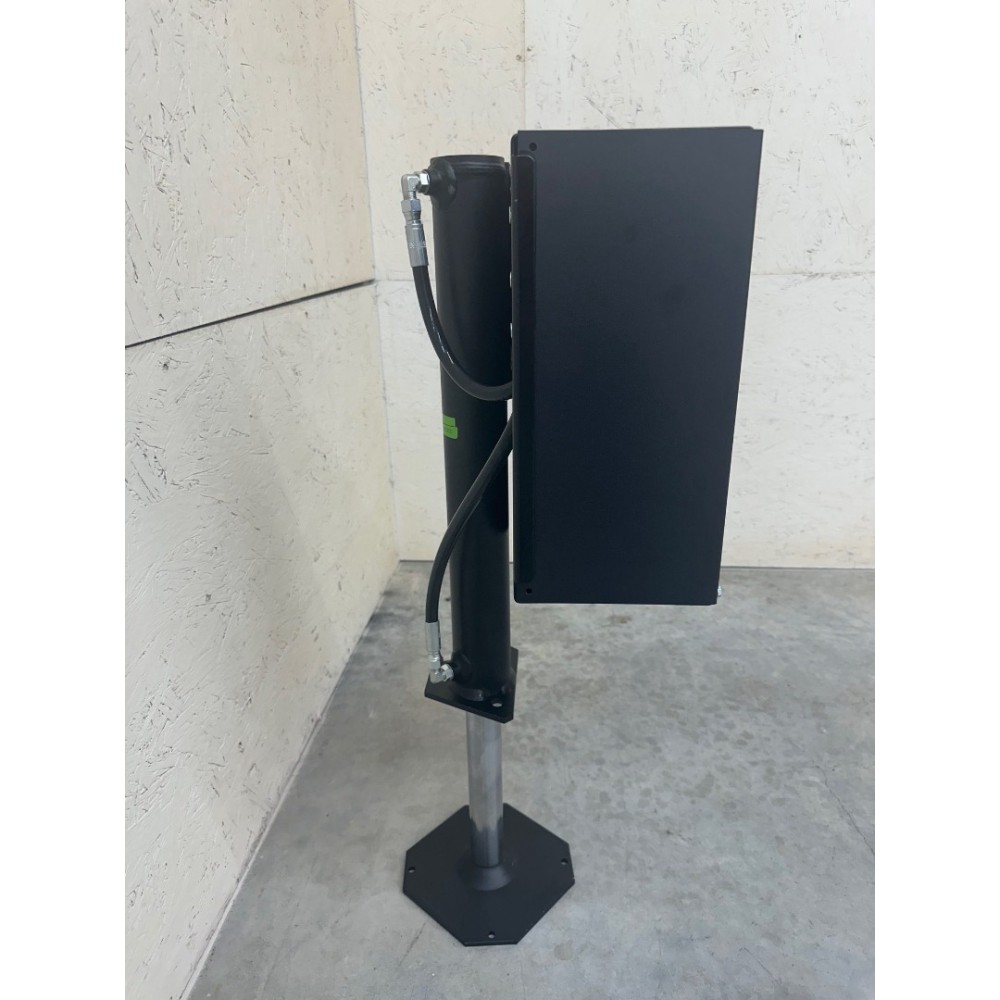

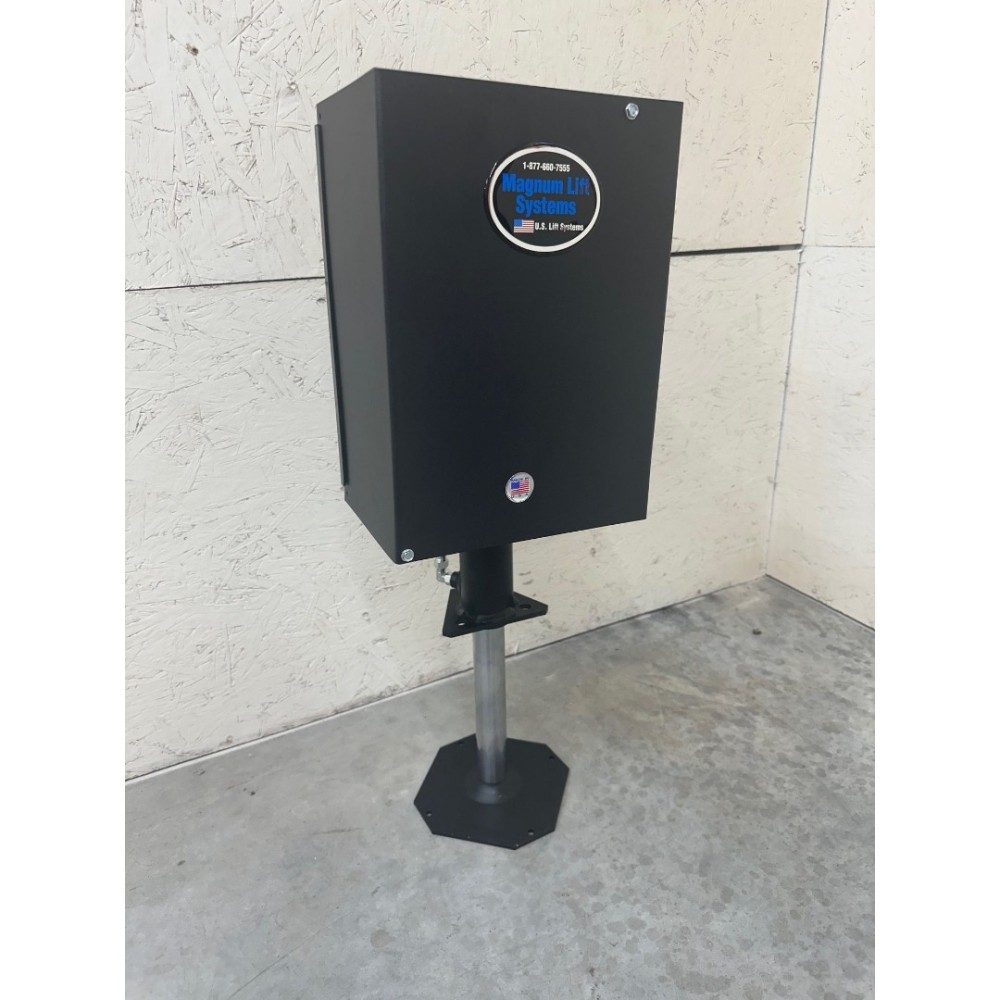

Magnum Lift Systems® Hydraulic Bumper Jack – 8,000 lb Capacity with External Keyed Switch
Model: MAG-D5001Magnum Lift Systems® Hydraulic Bumper Jack – 8,000 lb Capacity with External Keyed Switch
Power, safety, and convenience meet in the Magnum Lift Systems Hydraulic Bumper Jack with an External Keyed Switch. Designed for premium trailer applications, this system provides precise lift control while ensuring secure, authorized operation through a keyed ignition-style switch. Built to handle up to 8,000 lbs per leg, this hydraulic jack features a 16-inch stroke cylinder, durable A-frame mounting design, and built-in manual override for backup operation. Engineered by Magnum Lift Systems—a trusted leader in trailer lifting technology—this system delivers dependable hydraulic performance and professional-grade reliability, backed by a 1-year complete warranty.
Bundle Contents:
- QTY (1): Hydraulic Bumper with External Keyed Switch
- External keyed switch for secure, controlled lift operation
- Hydraulic lift system rated for 8,000 lbs (single leg)
- 16-inch stroke cylinder provides smooth, powerful lifting range
- Durable 7-inch base prevents sinking on soft surfaces
- Three-hole A-frame mounting design for easy, secure install
- Manual override built into motor for emergency operation
- Powder-coated black finish for corrosion resistance
- Includes pump, motor, bolts, wiring, and keyed switch assembly
Recommendation: Always mount the keyed switch in an accessible but secure location. Inspect hydraulic lines and wiring before operation, and ensure your power source and safety locks are properly installed for long-term reliability and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Group | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Hydraulic Lift |
| Jack Travel Range | 16 Inches |
| Jack Finish | Black Powdercoat |
| Static Load Capacity | 8,000 lbs |
| Lifting Capacity | 8,000 lbs |
| Control Type | External Keyed Switch |
| Jack Foot Type | Fixed Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non-Swivel |
| Jack Shape | Round Jack |
| Electric Lift | Yes |
| Custom Bundle | No |
| Warranty | 1-Year Complete Warranty |
| Manufacturer | Magnum Lift Systems® |
$699 00 $955.00 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$955.00 $699 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Magnum Lift Systems
- Model: MAG-D5001
- Includes: Hydraulic Bumper with External Keyed Switch
