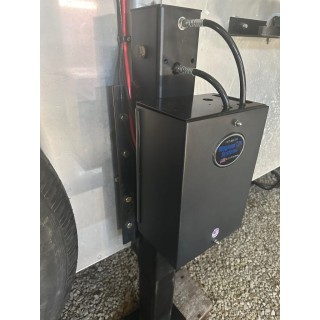

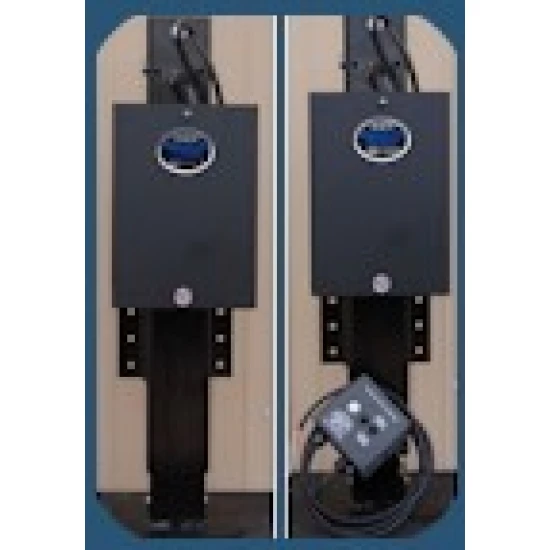

Magnum Lift Systems® Hydraulic Landing Gear with Dual Legs & Dual Pumps – 24,000 lb Capacity, 24" Stroke Cylinder
Model: MAG-SQ124-CG2Magnum Lift Systems® Hydraulic Landing Gear with Dual Legs & Dual Pumps – 24,000 lb Capacity
Achieve maximum lifting efficiency and control with the Magnum Lift Systems Hydraulic Dual-Leg Landing Gear featuring dual pumps and independent switches. Designed for the heaviest trailer applications, this powerful system delivers a combined lifting capacity of 24,000 lbs (12,000 lbs per leg) and allows precise, independent control of each side for leveling and stability. Built with rugged tube-in-tube construction and a corrosion-resistant black powder-coated finish, this dual-pump configuration provides faster lift times and balanced hydraulic power. Magnum Lift Systems continues to lead the industry with durable, professional-grade trailer lifting technology backed by a 1-year complete warranty.
Bundle Contents:
- QTY (1): Hydraulic Landing Gear with Dual Legs and Dual Pumps
- Dual 24-inch stroke hydraulic cylinders (12,000 lbs each leg)
- Dual pump configuration for faster, balanced lift performance
- Independent control switches allow separate leg adjustment

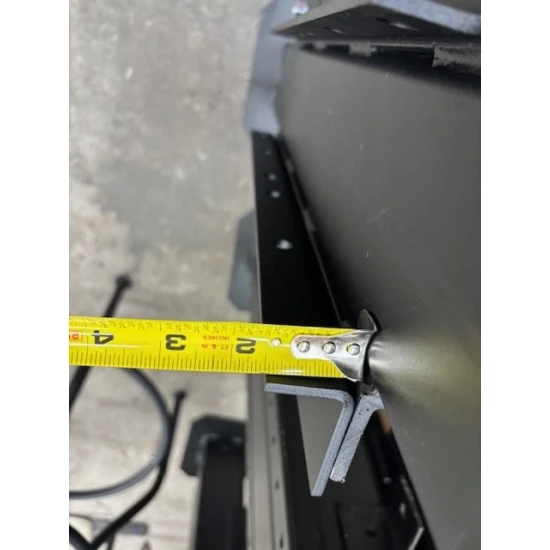

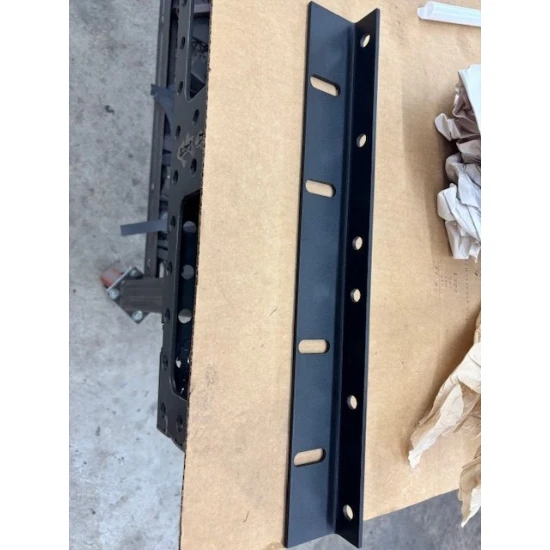

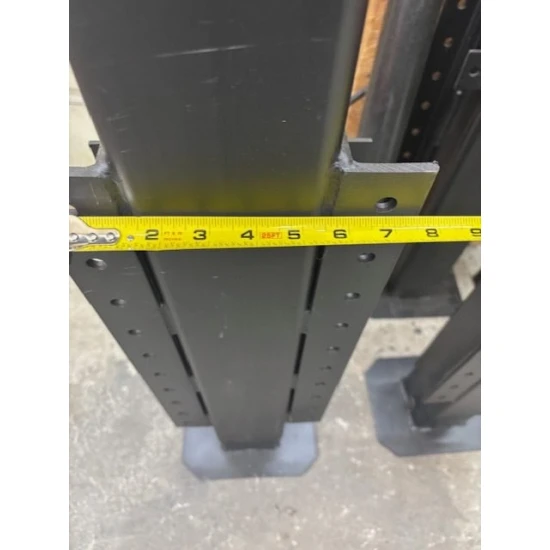

- Adjustable frame bracket mounts fit virtually any trailer frame
- Includes keyed and toggle switch box for secure operation
- Manual override built into the top of each motor
- Rugged tube-in-tube construction for strength and longevity
- Powder-coated black finish for corrosion protection
- Complete hardware, bolts, and wiring kit included
Recommendation: Install both pumps on stable mounts with proper hydraulic line routing to ensure even flow and pressure. Regularly inspect connections, test both switches, and verify hydraulic fluid levels for optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 24,000 lbs (Dual Legs, 12,000 lbs per leg) |
| Jack Mounting Style | Frame Bracket Mount (Bolt-On) |
| Jack Group | Heavy Duty Trailers |
| Jack Style | Landing Gear |
| Lift Mechanism | Electric Hydraulic Lift |

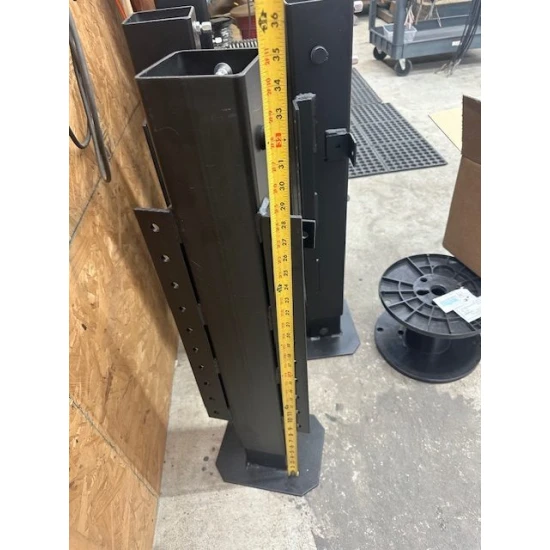

| Jack Travel Range | 24 Inches |
| Jack Finish | Black Powdercoat |
| Static Load Capacity | 24,000 lbs |
| Lifting Load Capacity | 24,000 lbs |
| Control Type | Dual Pump with Independent Switches |
| Jack Foot Type | Fixed Footplate |
| Jack Leg Style | Fixed Leg (Dual Legs) |
| Jack Swivel Type | Non-Swivel |
| Jack Shape | Square Jack |
| Electric Lift | Yes |
| Custom Bundle | No |
| Warranty | 1-Year Complete Warranty |
| Manufacturer | Magnum Lift Systems® |
$1,995 00 $2,495.00 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,495.00 $1,995 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Magnum Lift Systems
- Model: MAG-SQ124-CG2
- Includes: Hydraulic Landing Gear with Dual Legs and Dual Pumps
