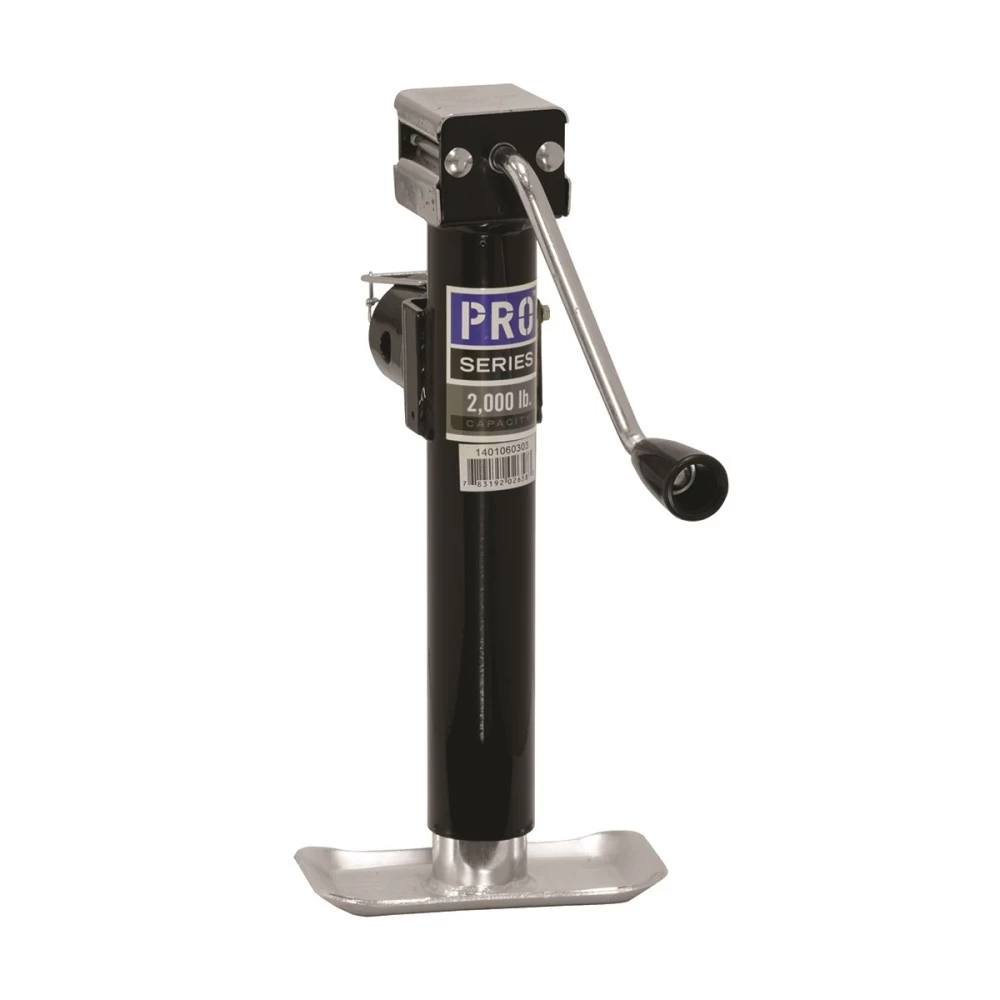

Pro Series 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Sidewind 10" Lift w/ Pull Pin
Pro Series 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Sidewind 10" Lift w/ Pull Pin

Pro Series 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Sidewind 10" Lift w/ Pull Pin

Model: 1401060303 '

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and clear zinc inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 11.20"

  • Extended Bracket Height: 21.20"

  • Travel/Lift: 10"

  • Clearance: 5.45" from bracket to top

  • Weld-On Tubular Mount

  • Male Mount Included

  • Foot plate included

  • 5/8" Pull pin diameter

$62 44 $86.25 28% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$86.25 $62 44

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Pro Series
  • Model: 1401060303 '
  • UPC: 783192026583
  • Includes: Round Pipe Mount Swivel Jack

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and clear zinc inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 11.20"

  • Extended Bracket Height: 21.20"

  • Travel/Lift: 10"

  • Clearance: 5.45" from bracket to top

  • Weld-On Tubular Mount

  • Male Mount Included

  • Foot plate included

  • 5/8" Pull pin diameter

Default
Brand Pro Series
Jack Mounting Style Pipe Mount Swivel Jack
Jack Style Pipe Mount
Lift Mechanism Sidewind Handle Crank
Jack Travel Range 10 Inch Lift
Jack Finish Black Powdercoat
Jack Static Load Capacity 2000 LB Static Capacity
Jack Lifting Load Capacity 2000 LB Lift Capacity
Jack Foot Type Footplate
Jack Leg Style Fixed Leg
Jack Swivel Type Swivel
Jack Outer Tube Diameter 2.25 Inch Outer Tube
Jack Shape Round Jack
Approx Bracket-to-Bottom Clearance (Retracted) 11 Inch Bracket-to-Bottom Retracted
Approx Bracket-to-Bottom Clearance (Extended) 21 Inch Bracket-to-Bottom Extended
Approx Bracket-to-Top Clearance 5 Inch Bracket-to-Top Clearance
Electric Lift Non Electric
Custom Bundle No
Exact Bracket-to-Bottom Clearance (Retracted) 11.20 Inch
Exact Bracket-to-Bottom Clearance (Extended) 21.20 Inch
Exact Bracket-to-Top Clearance 5.45 Inch
Inner Tubing Diameter 2 Inch Inner Tube
