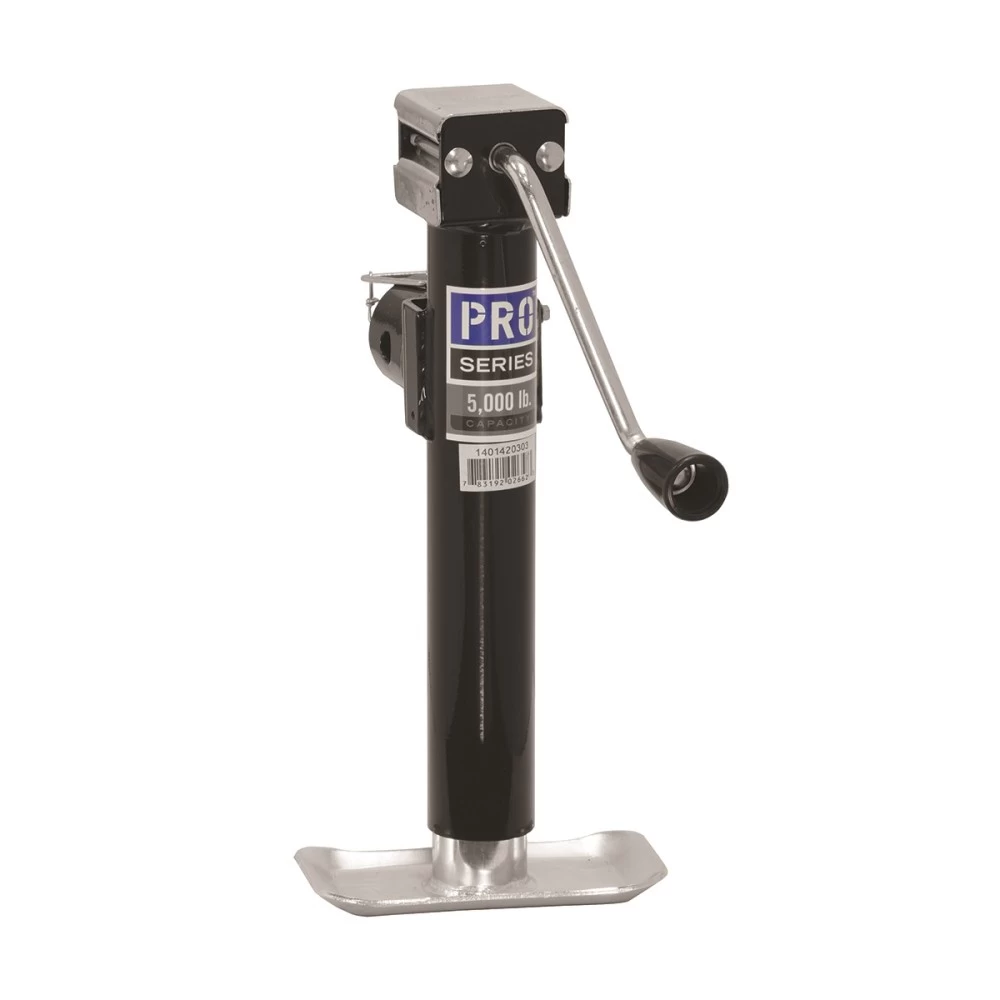

Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Sidewind 10" Lift w/ Pull Pin
Model: 1401420303PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
Smooth, comfortable, ergonomic design
Dependable vertical and side load capacity
Proven reliability for long term use at rated loads
Precision fitted parts for extra stability
Black painted outer and clear zinc inner tube
Limited 1-year warranty
Specifications:
Lift Capacity: 5,000 lbs.
Retracted Bracket Height: 10.50"
Extended Bracket Height: 20.50"
Travel/Lift: 10"
Clearance: 6.25" from bracket to top
Weld-On Tubular Mount
Male Mount Included
Foot plate included
Pull pin included to hold Jack in place
$65 15 $90.00 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$90.00 $65 15
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $16.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1401420303
- UPC: 783192026620
- Includes: Round Pipe Mount Swivel Jack
Description
Get Expert Help
Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Sidewind 10" Lift w/ Pull Pin Install Notes
Installation Instructions for Tongue Jacks
General Guidelines:
- Confirm no interference with the tow vehicle, tongue, ground, or mounted accessories before and after installation.
- Check for handle swing and swivel clearance in all positions.
Tools Required:
- Torque wrench (set to 25 ft. lbs.).
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the corresponding holes.
- Position the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft. lbs.
Snap Ring/Bolt-Thru Installation:
- For snap ring models, position the jack bracket over the mount and insert the snap ring fully into the groove.
- For bolt-thru models, position the jack bracket into the recessed opening, align the bushing onto the bolt, and tighten the locknut until movement is minimal.
A-Plate Mounting (Bolt-On or Weld-On):
- Ensure all welding is performed by an AWS-certified welder.
- Align the jack and coupler before welding. Use a 3/16" fillet weld.
- Bolt the jack A-plate to the coupler with 3/8-16 Grade 5 bolts, torqued to 15-20 ft. lbs.
- Weld a support plate to the bottom of the trailer frame.
Direct Mounting:
- Position the jack and weld 1" in two locations on each side using a 3/16" fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove drop foot or caster before towing.
- Avoid side forces to prevent jack failure.
- Ensure maximum rated capacity is not exceeded.
Maintenance:
- Annually lubricate internal gears and bushings with automotive grease.
- Apply lightweight oil to the handle unit and other moving parts.
- For marine environments, flush with fresh water and reapply lubricants.
Technical Support:
For technical support and assistance, please visit www.trailerjacks.com or call 877-869-6690.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed manufacturer information, please download the full installation PDF.
