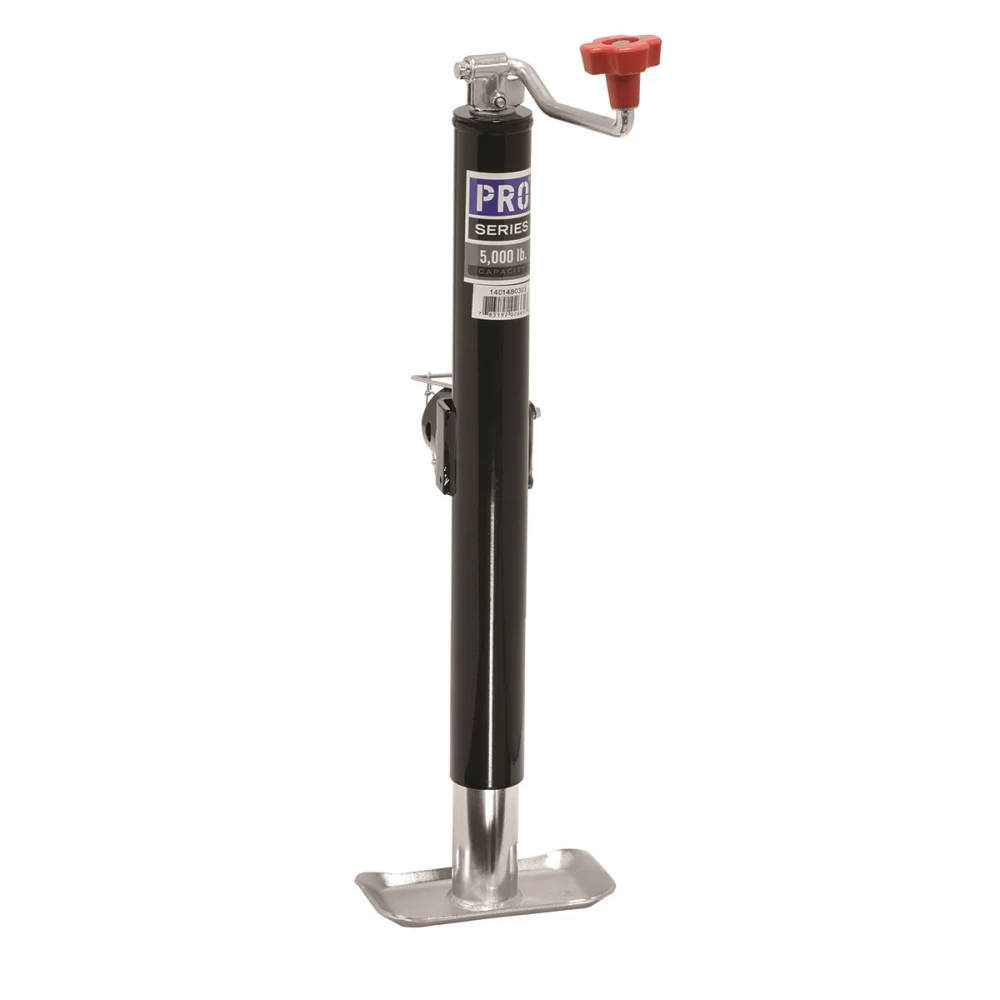

Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 15" Lift w/ Pull Pin
Model: 1401480303PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Black painted outer and clear zinc inner tube
-
Limited 1-year warranty
Specifications:
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 14.70" from bracket to bottom
-
Extended Bracket Height: 29.70"
-
Travel/Lift: 15"
-
Clearance: 10" from bracket to top
-
Weld-On Tubular Mount
-
Male Mount Included
-
Foot plate included
-
Pull pin included to hold Jack in place
$52 48 $72.50 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$72.50 $52 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $13.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1401480303
- UPC: 783192026651
- Includes: Round Pipe Mount Swivel Jack
Get Expert Help
Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 15" Lift w/ Pull Pin Install Notes
Installation Instructions for Tongue Jacks
General Instructions:
- Read, understand, and follow these instructions before mounting the jack.
- Confirm there is no interference from the tow vehicle, tongue, ground, or any mounted accessories while stationary or in motion.
- Check all positions (including handle swing and swivel positions) for interference both before and after installation.
Tools Required:
- Torque wrench (set to 25 ft. lbs.)
Step-by-Step Instructions:
Bolt-On Rack Jack Instructions:
- Place the gear housing on the tongue.
- Insert the supplied bolts into the holes corresponding to the tongue width.
- Place the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft. lbs.
Safety Notes:
- Never position any part of the body under the product or the load being supported.
- Fully retract and rotate the jack before towing.
- Remove any drop foot or caster before towing to maximize ground clearance.
- Secure the load, vehicle, and trailer to prevent rolling (use wheel blocks).
- Avoid excessive side forces, as they may cause jack failure.
- Do not exceed the maximum rated capacity of the jack, footplate, or caster wheel. Refer to product markings or contact the manufacturer if uncertain.
- Ensure the supplied pin is fully inserted through both sides of the inner and drop tubes before using the jack.
Maintenance:
- Check for wear and replace damaged components as needed.
- Lubricate internal gearing and bushings annually with automotive grease.
- In marine environments, flush with fresh water and reapply lubricants to prevent corrosion.
Technical Support:
For technical support or replacement parts, visit www.trailerjacks.com or call 877-869-6690.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed manufacturer information, please download the full installation PDF.
